Core Technology Quick Read: Drivetrain Selection Key Points

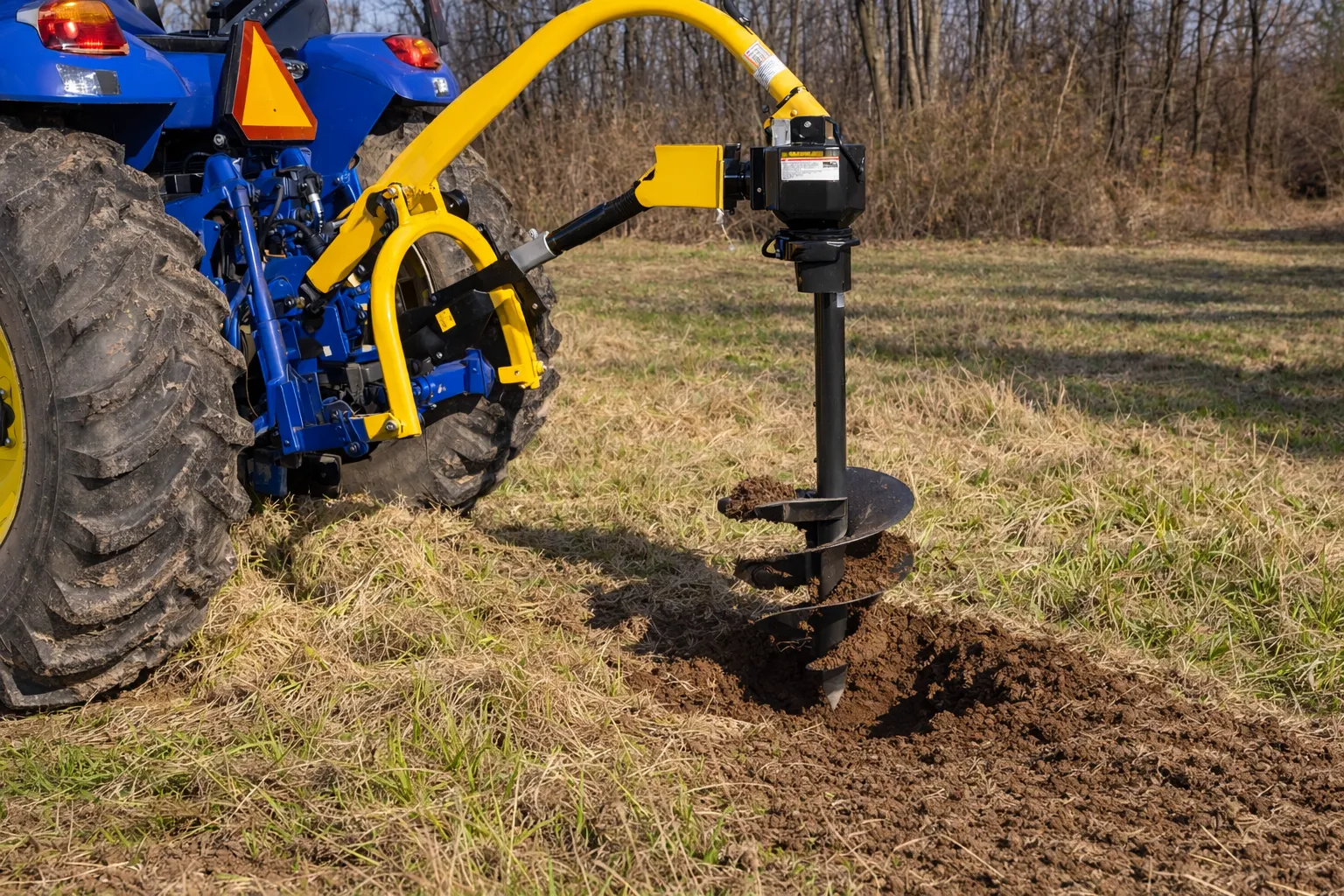

In the expansive and geographically diverse agricultural and pastoral sectors of Australia, the Post Hole Digger (or tractor-mounted auger) is an indispensable implement for fencing, tree planting, and foundation establishment. Due to the unpredictable subterranean environment—ranging from hidden limestone shelves to dense root networks and the notorious hardpan clay—the drivetrain of this implement is subjected to extreme, instantaneous torsional shock loads.

Standard, light-duty cast-iron transmissions frequently suffer from sheared input shafts or catastrophic casing fractures under these conditions. As a premier Post Hole Digger Agricultural Gearbox manufacturer and supplier with two decades of engineering heritage, EVER-POWER (represented by General Bearing Company Pty Ltd – GBC) delivers a radically fortified solution. Our post hole digger gearboxes integrate QT450-10 nodular ductile iron housings, large-module 20CrMnTi forged spiral bevel gears, and FKM double-lip thermal seals. When coupled with a precision-matched PTO Shaft equipped with a slip clutch, we provide an uninterrupted, high-torque kinetic transfer system that guarantees maximum uptime across the harshest Australian terrains.

In the transitional agricultural zones between New South Wales and Queensland, contractors and farmers frequently encounter highly compacted, iron-rich red podzolic soils. During drought conditions, this soil matrix hardens to a concrete-like consistency.

The Engineering Advantage: When a 12-inch auger bites into this hardpan and suddenly jams against a buried ironstone shelf, the reverse shockwave travels straight up the auger shaft into the gearbox. Generic gearboxes, cast from standard HT200 grey iron, exhibit poor elasticity and frequently shatter like glass under these instantaneous stalls. EVER-POWER eliminates this catastrophic failure vector by utilizing QT450-10 Nodular Ductile Iron. The spheroidal graphite structure within our castings allows the housing to microscopically flex and absorb the kinetic spike without macroscopic fracture. Combined with our 20CrMnTi gears featuring a ductile 35 HRC core beneath a 60 HRC case-hardened exterior, our drivetrains easily outlast standard OEM configurations. We further enforce safety by recommending integration with a shear-bolt or slip-clutch PTO Shaft, establishing a failsafe mechanical fuse.

*Legal & Compatibility Disclaimer: Our drivetrain components have undergone precise reverse-engineering and metallurgical enhancement to serve as perfect aftermarket replacements for equipment manufactured by renowned brands such as Bush Hog™, Land Pride™, John Deere™, SpeeCo™, and King Kutter™. The utilization of these brand names and specific model references within this document is strictly for the purpose of communicating “installation compatibility” and “facilitating consumer selection.” EVER-POWER and GBC are independent manufacturers and do not provide original OEM parts, nor do we infringe upon any trademark rights. We supply custom-engineered, premium-grade alternatives that frequently exceed original factory specifications.

Case 1: Sydney (New South Wales) – The Vineyard Trellis Savior

Client Pain Point: A large vineyard in the Hunter Valley was expanding in early spring. Their original OEM gearboxes were fracturing continuously when the augers hit submerged sandstone shelves.
EVER-POWER Solution: We executed an emergency swap to our 75HP Heavy-Duty agricultural gearbox series. The QT450 nodular iron absorbed the kinetic kickbacks without cracking.
Real Client Feedback: “The rigidity is unbelievable. We finished hundreds of trellis post holes without needing to swap out a single backup digger.”

Case 2: Melbourne (Victoria) – The Damp Clay Tug-of-War

Client Pain Point: The heavy, damp clay native to Victoria acts like glue on auger flights. The torque resistance was causing older, high-speed gearboxes to stall out the tractor or strip gear teeth.
EVER-POWER Solution: We downgraded the speed but massively upregulated the torque by supplying a custom 3.18:1 high-reduction ratio gearbox.
Real Client Feedback: “The low-speed, high-torque output is flawless. The auger clears the heavy clay beautifully and the tractor never bogs down anymore.”

Case 3: Brisbane (Queensland) – Sustaining 40°C Heatwaves

Client Pain Point: Drilling perimeter fencing in the brutal Queensland summer heat caused standard NBR rubber oil seals to literally melt, draining the gearbox fluid in the field.
EVER-POWER Solution: We deployed our thermal-resistant units featuring FKM (Viton) double-lip seals and mandated a fill of full-synthetic high-temperature gear grease.
Real Client Feedback: “We ran them all summer without a single drop of leaked oil. The thermal stability of these units completely won us over.”

Case 4: Adelaide (South Australia) – Forestry Contractor’s Brutal Test

Client Pain Point: Clearing eucalyptus forestry land requires drilling through thick root mats. The sudden, violent jamming was repeatedly twisting the PTO splines off the gearbox input shaft.
EVER-POWER Solution: We paired our carburized, surface-hardened gearbox with a specialized PTO Shaft featuring a pre-calibrated friction slip clutch.
Real Client Feedback: “The slip clutch saved our gearboxes. The moment it hits a massive root, it slips, protecting the driveline. This combination is bulletproof.”

Case 5: Perth (Western Australia) – Isolation and Endurance

Client Pain Point: On a remote station 500 kilometers outside Perth, any part failure means weeks of waiting for freight. They needed absolute, zero-maintenance reliability.
EVER-POWER Solution: We supplied our maintenance-free series gearbox, equipped with an oversized oil reservoir, sealed labyrinth breathers, and oversized tapered bearings.
Real Client Feedback: “Once we bolted it on, I completely forgot about it. Two years later, working in extreme dust, it’s still running as quiet and strong as day one.”

1. The original gearbox on my implement is discontinued. Can your unit replace it directly?
Answer: In 95% of cases, yes. Our units are designed around industry-standard 4-bolt and 6-bolt mounting flange patterns, utilizing the universal 1-3/8″ 6-spline input. If the physical dimensions and gear ratio align, it operates as a seamless “plug-and-play” replacement.

2. Is it normal for the gearbox to feel incredibly hot to the touch during operation?
Answer: Yes. Generating operating temperatures between 60°C and 85°C under continuous digging load is normal thermodynamic behavior, and it will feel very hot to the bare hand. However, if it exceeds 95°C or emits a burning oil odor, stop immediately to check the fluid level.

3. If the auger gets completely stuck and the tractor doesn’t stall, will the gearbox explode?
Answer: If your driveline is properly equipped with a shear bolt or a friction slip-clutch PTO Shaft, the mechanical fuse will break first, isolating the gearbox. Without any protection, immense torque will twist the driveline or crack the casing.

4. Does a brand new agricultural gearbox come pre-filled with oil?
Answer: No. To comply with global logistics and environmental safety protocols during transport, our units are shipped dry. You are required to fill them with the specified gear oil prior to operation.

5. How frequently should the gearbox fluid be changed?
Answer: We strongly advise an initial “break-in” oil change after the first 50 hours of use to flush out microscopic metallic lapping particles. After this, change the oil every 250 operational hours or at least once a year.

6. Why does my input shaft seal keep blowing out and leaking?
Answer: Beyond normal wear, the most common culprit is tall grass, baling twine, or fencing wire wrapping tightly around the spinning PTO shaft. This debris pushes into the seal housing and slices the rubber lip. Always clear tangled debris after every shift.

7. Can I reverse the PTO to unscrew an auger that is stuck under a root?
Answer: Mechanically, the spiral bevel gears support bi-directional rotation. If your tractor possesses a reverse PTO function, you can slowly back it out at low idle. However, verify that your auger’s mounting hardware will not unscrew itself during reverse rotation.

8. What happens if I have a breakdown near Brisbane? Do you offer local warranty support?
Answer: Yes. We offer comprehensive manufacturing defect warranties. Our authorized agency network, spearheaded by GBC (General Bearing Company Pty Ltd), ensures rapid technical support and parts dispatch to Brisbane and across Australia.

9. My application requires a massive 4.2:1 reduction ratio. Do you manufacture custom units?
Answer: Absolutely. Our state-of-the-art factory is fully equipped to handle non-standard, OEM-level custom orders. Simply provide us with your engineering blueprints or operational parameter requests, and we can configure the internal gearing to your exact needs.

10. Is the difference between Ductile Iron and Grey Cast Iron really that significant?
Answer: It is night and day. Grey iron is cheaper but contains graphite flakes that create internal fault lines, making it prone to shattering on impact. Ductile (nodular) iron contains spherical graphite, arresting crack propagation and giving it incredible tensile strength and flexibility—essential for heavy-duty earth drilling.

Engineered Quality, Driving Australian Agriculture Forward

EVER-POWER commands a massive, vertically integrated manufacturing facility equipped with automated vacuum carburizing heat-treatment lines, multi-axis CNC skiving centers, and strict Coordinate Measuring Machine (CMM) quality control testing. We don’t just supply standard agricultural gearboxes off the shelf; we solve complex kinetic challenges. Whether you need a massive fleet upgrade or a highly specialized OEM prototype, we accept all non-standard, blueprint-driven customizations. We welcome your drawings and samples!

Are you ready to exponentially upgrade your machinery’s performance and eliminate downtime?

Consult Our Engineering Team for a Custom Quote
