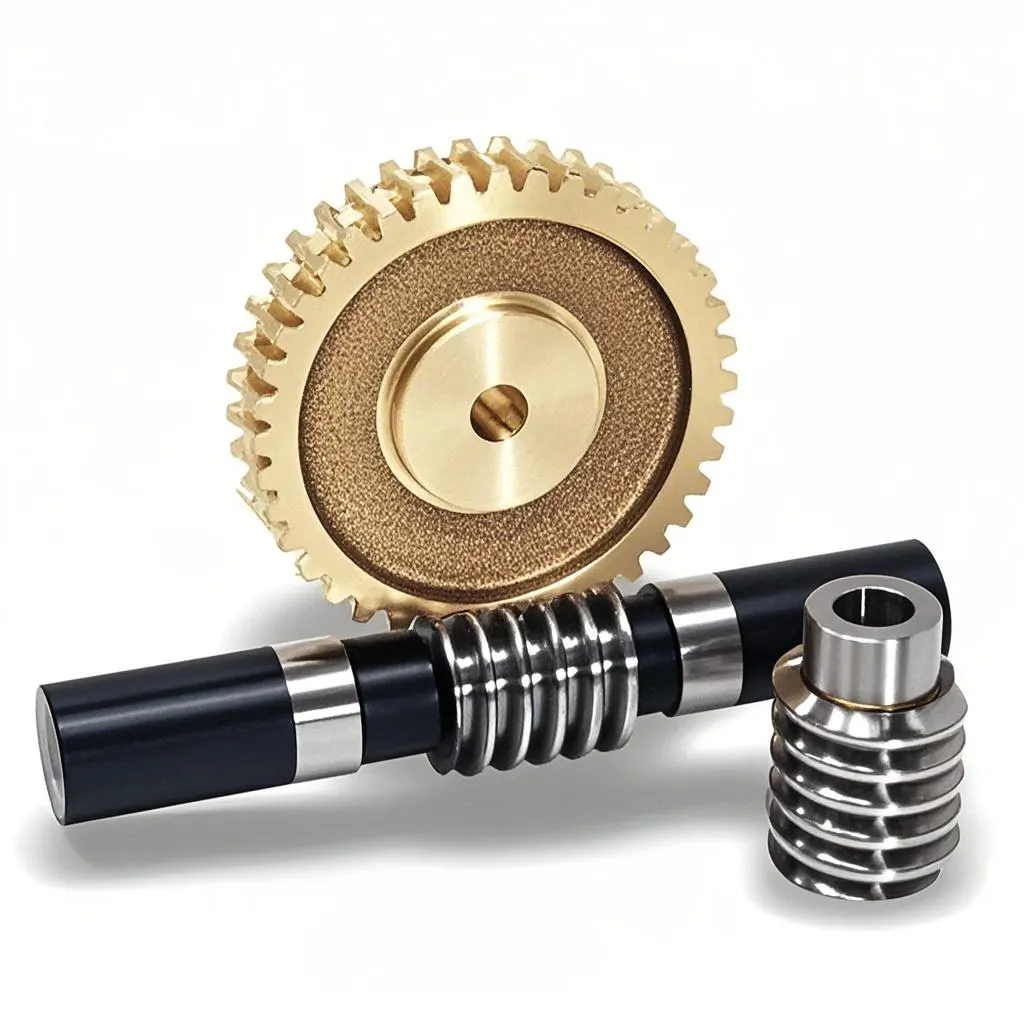

Brass Worm Wheel

The Brass Worm Wheel is a critical component in various mechanical systems, designed to work seamlessly with brass worm gears. Constructed from high-quality brass, this durable wheel provides excellent wear resistance and low friction properties. Its primary function is to transmit motion and torque efficiently between non-intersecting shafts, making it ideal for applications in machinery and automotive systems. The worm gear mechanism allows for smooth operation, enhancing the overall performance of devices utilizing the brass worm wheel.

Specifications of Brass Worm Wheel

Specifications
Material Brass
Color Yellow
Modulus 0.5
Weight 16g



Size of the worm wheel
Teeth 20
Teeth Dia 11.2mm
Height 12mm/0.47inch
Outer Diameter 11mm/0.43inch
Hole Diameter 4mm/0.16inch
Step Size 9x7mm/0.35x0.27inch ( Dia x H)
Overall Size 12x11x4mm/0.47x0.39x0.12inch( H x OD x ID)



Size of worm gear shaft
Height 20mm/0.79inch
Outer Diameter 9.8mm/0.39inch
Inner Diameter 3.17mm/0.12inch
Size 20x9.8x3.17mm/0.79x0.39x0.12inch( H x OD x ID)

Features and Advantages of Brass Worm Wheel

  • High Durability: The Brass Worm Wheel is engineered from high-quality brass, ensuring long-lasting performance under various operating conditions.
  • Excellent Load Distribution: This worm gear design allows for efficient load distribution, minimizing wear and extending the lifespan of the gear.
  • Corrosion Resistance: Brass is naturally resistant to corrosion, making the Brass Worm Gear ideal for applications in humid or corrosive environments.
  • Smooth Operation: The precise manufacturing process ensures smooth engagement between the worm gear and the brass worm wheel, resulting in quiet and efficient operation.

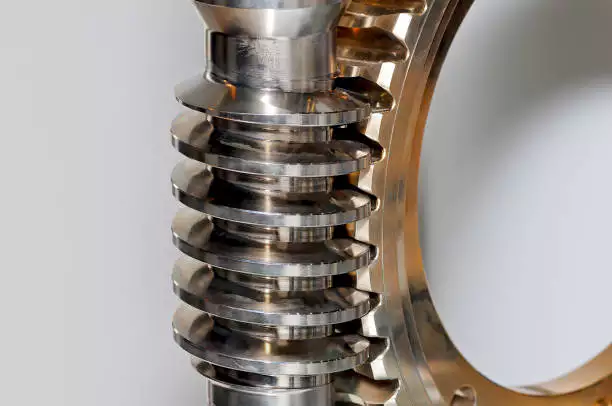

Brass Worm Gear and Shaft

Applications of Brass Worm Wheel in Mechanical Systems

The Brass Worm Wheel is an essential component in various mechanical systems, providing efficient power transmission and torque multiplication. Widely used in industries such as robotics, conveyor systems, and automotive applications, the brass worm gear offers durability and resistance to wear. The unique design of the worm gear allows for smooth operation and reduced noise, making it ideal for high-performance machinery. By integrating a brass worm wheel, engineers can achieve precise control and increased efficiency in their projects. Discover the benefits of incorporating a brass worm gear in your next design.

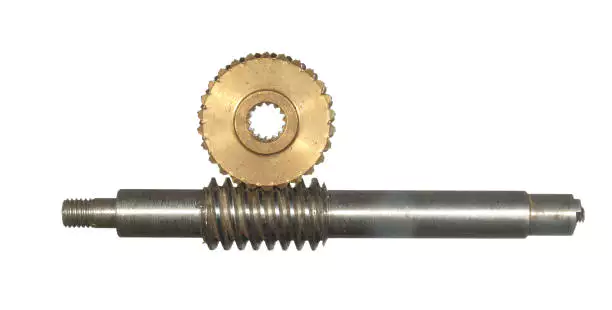

Brass Worm Gear and Shaft

Maintenance Tips for Brass Worm Wheel

  • Regular Inspection for Wear and Tear:
    To ensure the longevity of your brass worm wheel, it is crucial to conduct regular inspections. Examine the worm gear and the brass worm wheel for any signs of wear, such as scoring or uneven teeth. If you notice any irregularities, it may indicate that the components are under excessive stress or misaligned. Regular checks will help in identifying issues early, allowing for timely repai
