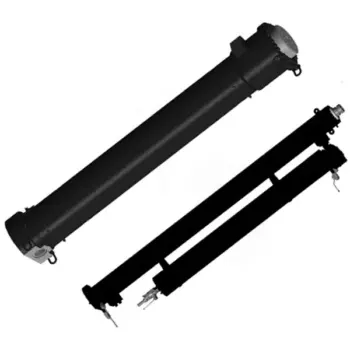

Drilling Platform Steel Wire Rope Tensioner Cylinder
Drilling platform wire rope tensioner cylinder is a kind of equipment used in drilling operations, the main function is to adjust and control the tension of the wire rope to ensure the safety and stability of drilling operations. Driven by a hydraulic system, the cylinder provides reliable tensioning in a variety of operating environments and is suitable for all types of drilling RIGS to improve efficiency and safety.
Specifications of Steel Wire Rope Tensioner Cylinder
Steel Wire Rope Tensioner Cylinder | |
| Application | Provide thrust force and provides tension to the wire rope through the pulley |
| Bore diameter | up to 620mm |
| Rod diameter | up to 580mm |
| Thrust force | Maximum 8500KN Provide 889KN, 1112KN, 1245KN and other cylinders with different tension requirements |
Drilling platform steel wire rope tensioner cylinders are vital components used to provide thrust and tension to the wire rope through the pulley system. Their importance lies in ensuring safe and efficient drilling operations, as they maintain proper tension on the wire rope even under heavy loads.
The operation of tensioner cylinders involves applying hydraulic force to the piston, which then pushes against the wire rope. This mechanism generates the necessary tension to keep the wire rope taut, preventing potential slippage or breakage. The amount of tension can be adjusted according to the specific requirements of the drilling operation.
Typically constructed from high-strength steel, tensioner cylinders are designed to endure the challenging conditions encountered on drilling platforms. They also incorporate various safety features, including pressure relief valves and overload protection, to mitigate the risk of accidents.
Benefits of Drilling Platform Steel Wire Rope Tensioner Cylinders
- Excellent materials meet the requirements of third-party inspection organizations for impact energy, with low temperature product design available.
- Multiple surface anti-corrosion treatment solutions are provided, including Ni/Cr electroplating, ceramic spraying, and laser cladding.
- Can be designed and integrated with counterbalance valves and oil pipes.
- The conventional design offers a wide temperature resistance range (-20℃-+80℃), with options for higher or lower temperature cylinder customization services.
Applications of Drilling Platform Steel Wire Rope Tensioner Cylinder
Drilling platform steel wire rope tensioner cylinders are utilized in various applications on drilling platforms, including:
- Tensioning the drilling derrick guy wires: These guy wires support the weight of the drilling derrick and prevent tipping. Tensioner cylinders help maintain proper tension on the guy wires.
- Tensioning the blowout preventer (BOP) stack: The BOP stack is a crucial safety device designed to prevent blowouts. Tensioner cylinders ensure that the BOP stack is adequately tensioned to withstand high pressure.
- Tensioning the drilling line: The drilling line is responsible for raising and lowering the drill string. Tensioner cylinders guarantee that the drilling line is properly tensioned to support the weight of the drill string.
GBC Offshore Hydraulic Cylinders
At GBC Transmission, we take immense pride in our hydraulic cylinders. Our commitment to excellence, state-of-the-art production facilities, and unwavering dedication to quality assurance set us apart in the industry.
Unmatched Production Prowess: Our production capabilities are second to none. Equipped with cutting-edge technology and operated by a team of skilled experts, our manufacturing facilities are optimized for precision and efficiency. We invest in continuous research and development to ensure that our offshore hydraulic cylinders meet and exceed the evolving needs of our customers.
Quality Assurance Beyond Compare: At GBC Transmission, quality is the cornerstone of our business. Every stage of production is subject to rigorous testing and inspection to guarantee that our hydraulic cylinders meet the highest industry standards. Our commitment to quality extends beyond our products; it's ingrained in our company culture.
Reliable Offshore Solutions: Our hydraulic cylinders are specifically designed to withstand the harshest offshore conditions. Whether it's subsea exploration or marine applications, you can trust our products to perform consistently and reliably, ensuring the success of your operations.
Choose GBC Transmission for offshore hydraulic cylinders that exemplify innovation, precision, and durability. With us, you not only get exceptional products but also a partner dedicated to your success. Join the countless satisfied customers who have made us their first choice in offshore hydraulic solutions.
