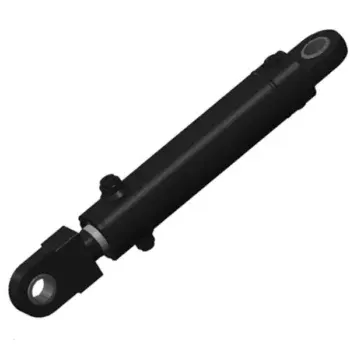

Jack-up Offshore Platform Bolt Cylinder
Jack-up Offshore Platform Bolt Cylinder is a key component used in offshore drilling platforms. It is mainly used to support and fix the structure of the platform to ensure the stability and safety of the platform in the harsh Marine environment. The cylinder is controlled by the hydraulic system, which can effectively adjust the height of the platform, adapt to different Marine conditions, and ensure the normal operation of the equipment. They are often designed with corrosion resistance and high strength in mind to meet the challenges posed by the Marine environment.
Specifications of Jack-up Offshore Platform Bolt Cylinder
| Jack-up Offshore Platform Bolt Cylinder | |
| Application | Insert and pull out the cylindrical pin on the ring beam to realize the locking of the ring beam |
| Bore diameter | up to 100mm |
| Rod diameter | up to 60mm |
| Pressure | up to 32MPa |
| Sensor | It can be equipped with a built-in displacement sensor device to reduce the installation size of the hydraulic cylinders |
Jack-up offshore platform bolt cylinders are critical for locking the ring beam by inserting and pulling out cylindrical pins. This safety feature is essential to prevent the legs of the platform from collapsing.
Typically, bolt cylinders function as hydraulic cylinders connected to both the ring beam and the cylindrical pin. When activated, the cylinder pushes or pulls the pin, effectively locking or unlocking the ring beam, ensuring safe movement of the platform's legs.
Constructed from high-strength steel, these bolt cylinders are designed to endure the demanding conditions found offshore and are subject to regular inspections and maintenance.
How the Bolt Cylinder Works?
The bolt cylinder operates by managing the insertion or removal of a cylindrical pin on the ring beam. The ring beam acts as a circular structure surrounding the base of the jack-up platform, with the cylindrical pin fitting securely into it.
Upon activation, the bolt cylinder inserts the pin into the ring beam's hole, thus locking it in place to prevent the platform from sinking. Conversely, to lower the platform, the cylinder retracts the pin, releasing the lock and allowing descent.
Jack-Up Offshore Platform Bolt Cylinders Features
Engineered for performance in severe marine environments, jack-up offshore platform bolt cylinders are made from high-strength steel and include protective coatings against corrosion. Their reliability and safety are enhanced by several key features:
- High load capacity: Capable of managing the substantial forces involved in raising and lowering the jack-up rig.
- Long stroke length: Designed for significant movement of spudcans.
- Precision control: Allows for accurate locking and unlocking of spudcans.
- Durability: Built to withstand extreme marine conditions.
- Safety features: Includes overpressure relief valves and pressure sensors.
- Built-in displacement sensor: Monitors piston rod position for optimal operation.
- External displacement sensor: Allows for monitoring without disassembly of the cylinder.
- Customized designs: Tailored to meet the specific needs of different jack-up rigs.
Choose Hydraulic Cylinders for Jack-up Offshore Platform at GBC
At GBC, we specialize in hydraulic cylinders designed for jack-up offshore platforms, emphasizing quality and innovation.
- Precision Engineering: Our cylinders are crafted to endure challenging offshore conditions, ensuring reliable operations.
- Durable Materials: Constructed with top-grade materials for corrosion resistance and high-pressure tolerance, minimizing downtime.
- Custom Solutions: We provide tailored hydraulic cylinders to meet unique project requirements for optimal platform performance.
- Rigorous Testing: Our cylinders undergo comprehensive testing to surpass industry standards.
- Product Quality Control: We maintain strict quality control throughout production, ensuring each cylinder meets high-quality benchmarks.
Choose GBC for Hydraulic Cylinders that Deliver Reliability and Performance.
Invest in your offshore success with GBC's hydraulic cylinders. Contact us today to discuss your specific needs and discover our hydraulic solutions that will keep your Jack-up Offshore Platform running at peak efficiency.
