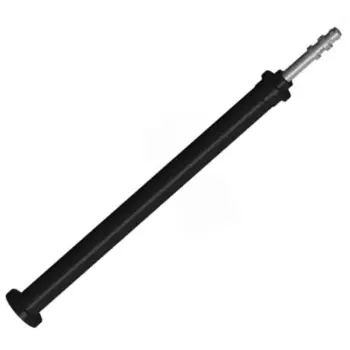

Overflow Cylinder for Trailing Suction Dredger
The overflow cylinder is a key component of the trailing suction dredger, which is mainly used to control and manage the discharge of sand. By regulating the mixing of water flow and sediment, it ensures that a stable working state is maintained during the excavation process, thereby improving the efficiency and accuracy of sand pumping. Overflow tanks are often designed with durability and adaptability in mind to handle a variety of waters and operating environments.
Specifications of Overflow Cylinder for Trailing Suction Dredger
| Overflow Cylinder | |
| Application | Provide pulling force for the lifting of the relief tube |
| Bore diameter | up to 280mm |
| Rod diameter | up to 180mm |
| Stroke | up to 6000mm |
| Pressure | up to 32MPa |
| Thrust force | Maximum 900KN |
The overflow cylinder for a trailing suction dredger is a hydraulic cylinder that provides the pulling force required to lift the overflow tube. The overflow tube is a large pipe that discharges excess water and slurry overboard when the hopper of the dredger is full.
The overflow cylinder is typically attached to the overflow tube by a chain or cable. When the cylinder is activated, it pulls the overflow tube up, allowing the excess water and slurry to flow out. The overflow cylinder can be controlled manually or automatically, depending on the dredging operation.
Overflow cylinders are typically made of high-strength steel and are designed to withstand the harsh conditions of the dredging environment. They are also equipped with safety features to prevent the overflow tube from accidentally falling.
Overflow Cylinder for Trailing Suction Dredger Features
- Heavy-duty construction to withstand the harsh conditions of the dredging environment
- Long stroke length to provide sufficient lifting force for the relief tube
- Corrosion-resistant materials to ensure long service life
- Hydraulically operated for easy control
Benefits of Using an Overflow Cylinder for a Trailing Suction Dredger
- Ensures that the hopper of the dredger does not overload
- Helps to maintain the stability of the dredger
- Improves the efficiency of the dredging process
- Reduces the environmental impact of dredging operations
Dredger Tank Hydraulic Cylinder Manufacturer - GBC
When it comes to hydraulic cylinders for dredger tanks, there are numerous options available. However, if you are seeking the perfect combination of unmatched production prowess and superior product quality, look no further than our company. We take pride in offering hydraulic cylinders equipped with GBC transmission that stand out in both performance and durability.
Our production capabilities are second to none. With state-of-the-art manufacturing facilities and a team of highly skilled engineers and technicians, we ensure that every hydraulic cylinder we produce adheres to the highest industry standards. Our commitment to quality is unwavering, and we employ rigorous quality control measures throughout the production process to guarantee flawless performance and reliability.
When you choose our dredger tank hydraulic cylinders with GBC transmission, you're not just investing in a product; you're investing in a testament to quality and excellence. Trust in our production prowess and experience the unmatched durability and performance of our hydraulic cylinders. Make the smart choice today and experience the difference for yourself.
