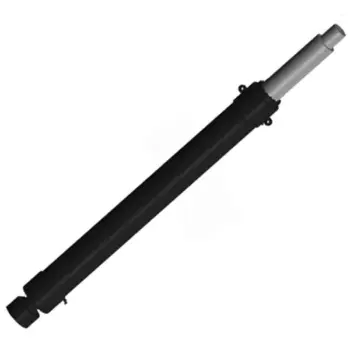

Piling Cylinder for Cutter-Suction Dredger
Piling Cylinder for Cutter Suction Dredger Piling cylinder for cutter suction dredger is a device specifically designed for cutting suction boats. It is mainly used for underwater piling operations to provide stable support and fixed structures. The cylinder has high strength and corrosion resistance, and is able to work effectively in harsh water environments, ensuring smooth cutting and mud suction processes. By precisely controlling the depth and position of the pile driving, it helps improve construction efficiency and ensure the quality of the project.
Specifications of Piling Cylinder for Cutter-Suction Dredger
| Piling Cylinder | |
| Application | Provide thrust force to pull the steel piles out of the seabed |
| Bore diameter | up to 460mm |
| Rod diameter | up to 400mm |
| Stroke | up to 4000mm |
| Pressure | up to 32MPa |
| Thrust force | Maximum 3140KN |
Piling Cylinders for Cutter-Suction Dredgers are hydraulic cylinders that provide thrust force to pull steel piles out of the seabed. They are an essential component of cutter-suction dredgers, which are used to remove sediment from underwater environments.
Piling Cylinders are typically made of high-strength steel and are designed to withstand the harsh conditions of the marine environment. They are also equipped with a variety of safety features, such as pressure relief valves and overload protection.
To use a Piling Cylinder, it is first attached to the steel pile. This is done using a variety of methods, such as welding, bolting, or clamping. Once the cylinder is attached, it is pressurized using hydraulic fluid. This pressurization creates a thrust force that pulls the steel pile out of the seabed.
Features of Piling Cylinders for Cutter-Suction Dredgers
- Large bore diameter and rod diameter: This allows the cylinder to generate high thrust forces, which are required to pull the steel piles out of the seabed.
- Long stroke length: This allows the cylinder to pull the steel piles out of the seabed even when they are embedded deeply in the seabed.
- High pressure rating: This allows the cylinder to withstand the high pressures generated by the hydraulic system.
- Durable construction: Piling cylinders are typically made of high-strength steel and are equipped with a variety of features to protect them from corrosion and wear.
Applications of Piling Cylinders
Piling Cylinders are used in a variety of dredging applications, including:
- Port and harbor maintenance
- River and canal dredging
- Land reclamation
- Beach nourishment
- Offshore construction
Choosing Offshore Hydraulic Cylinders at GBC
At GBC, we take immense pride in our offshore hydraulic cylinders. Our commitment to excellence, state-of-the-art production facilities, and unwavering dedication to quality assurance set us apart in the industry.
- Unmatched Production Prowess: Our production capabilities are second to none. Equipped with cutting-edge technology and operated by a team of skilled experts, our manufacturing facilities are optimized for precision and efficiency. We invest in continuous research and development to ensure that our offshore hydraulic cylinders meet and exceed the evolving needs of our customers.
- Quality Assurance Beyond Compare: At GBC, quality is the cornerstone of our business. Every stage of production is subject to rigorous testing and inspection to guarantee that our hydraulic cylinders meet the highest industry standards. Our commitment to quality extends beyond our products; it's ingrained in our company culture.
- Reliable Offshore Solutions: Our hydraulic cylinders are specifically designed to withstand the harshest offshore conditions. Whether it's subsea exploration or marine applications, you can trust our products to perform consistently and reliably, ensuring the success of your operations.
Choose GBC for offshore hydraulic cylinders that exemplify innovation, precision, and durability. With us, you not only get exceptional products but also a partner dedicated to your success. Join the countless satisfied customers who have made us their first choice in offshore hydraulic solutions.
