PTO Shaft Safety Guard

The PTO shaft safety guard operates on a straightforward but life-saving mechanical principle: a free-spinning outer shell surrounds the rotating driveline without being mechanically coupled to it. The guard assembly consists of three core components:

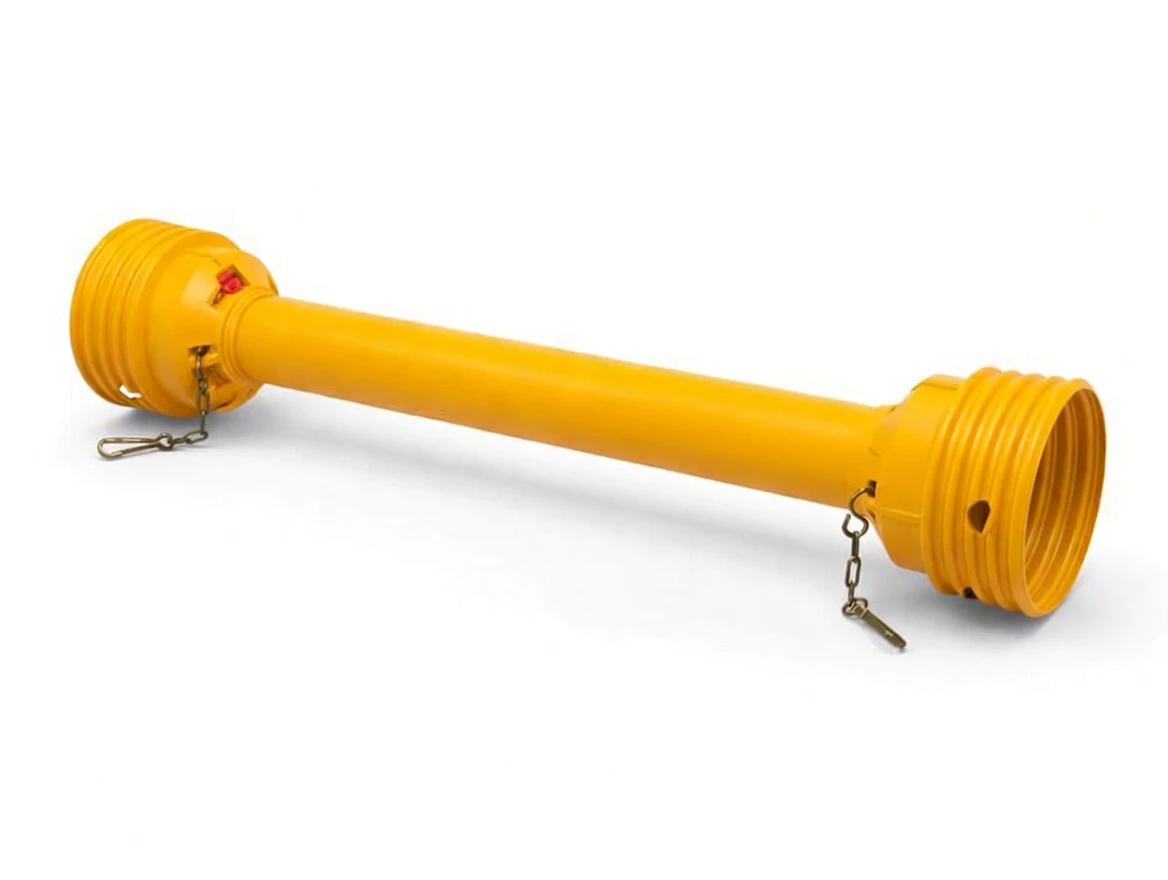

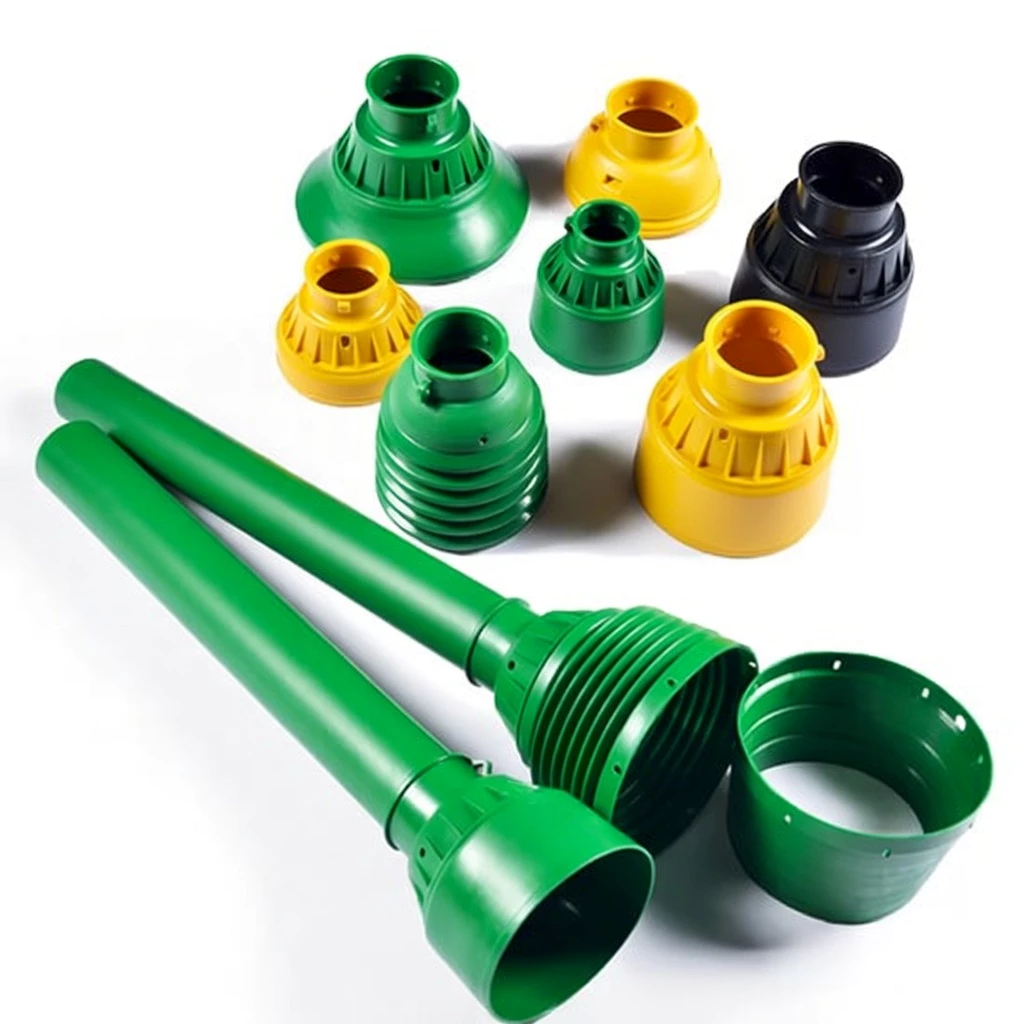

1. Outer Tube (Part A): A high-density polyethylene or polypropylene tube that encases the rotating shaft. This tube rests on internal bearing surfaces and spins freely. If an operator's clothing, hair, or a loose strap touches the tube, it simply rotates without gripping.

2. Retaining Collar (Part B): Moulded polymer collars at each end of the guard that locate the tube assembly over the universal joint housings. These collars incorporate bearing surfaces and are pinned with spring pins or push pins to prevent axial migration.

3. Safety Chains: Anchor chains (available in golden or silvery finishes) connect the guard tube to a stationary point on the tractor or implement frame. These chains prevent the guard from rotating with the shaft if the bearing surfaces seize, maintaining the protective non-grip function.

During operation, the tractor PTO transmits rotational power at 540 or 1000 RPM through the driveline. The inner shaft rotates at high speed while the outer guard tube remains essentially stationary relative to the operator. The combination of free-spinning tube plus chain anchor ensures the guard never develops the wrap-and-grip effect that makes unguarded PTO shafts so dangerous.

Proven Entanglement Prevention

Free-spinning outer tube technology eliminates the wrap-and-grip mechanism responsible for the majority of PTO-related fatalities on Australian farms. Tested to rotate independently at speeds up to 1000 RPM with zero drag coefficient on contact surfaces.

UV-Stabilised for Australian Conditions

All guard tubes and retaining collars are manufactured from UV-stabilised engineering polymer formulated for the extreme solar radiation levels across Australia. Resists cracking, chalking, and embrittlement after extended outdoor exposure in regions from Perth to Brisbane.

Universal Cross-Brand Fitment

Dimensionally matched to fit drivelines from all major agricultural PTO shaft manufacturers. Our guards install as direct replacements on equipment from replacement of Walterscheid, replacement of Bondioli & Pavesi, replacement of Comer Industries, and replacement of AW (AgriWide) shafts without modification.

Full Series Coverage (1 to 50)

Stocked in all standard PTO series sizes from light-duty Series 1 (48.5 mm tube ID) through heavy-duty Series 42/48/50 (90 mm tube ID). Five guard variants - Shield I, II, III, WA, and N - ensure a precise match for every driveline configuration in the Australian agricultural market.

High-Visibility Safety Colours

Available in safety yellow, black, and combination yellow-black schemes. Yellow guards provide immediate visual warning in dusty field conditions, alerting operators and bystanders to the presence of rotating machinery. Colour coding also assists with series identification during maintenance.

Cost-Effective Compliance

Replacing a damaged or missing PTO safety guard is a fraction of the cost of workplace injury claims, equipment downtime, or regulatory fines. GBC offers competitive B2B pricing on volume orders, making it economical to maintain full safety compliance across entire implement fleets.

Impact and Chemical Resistance

The engineering-grade thermoplastic withstands impacts from stones, crop debris, and accidental tool strikes without shattering. Resistant to common agricultural chemicals including diesel, hydraulic oil, fertiliser solutions, and herbicide sprays encountered in daily farm operations.

Tool-Free Installation

Most guards install without special tools using snap-fit retaining collars and push pins. Spring pins and safety chains are included as standard. The entire guard can be fitted in under 10 minutes, minimising downtime and encouraging operators to maintain shields on all implements.

The PTO shaft safety guard is a precision-engineered assembly designed for maximum operator protection with minimum maintenance. The structural design incorporates several critical engineering features:

The outer tube is injection-moulded from high-density polyethylene (HDPE) or polypropylene (PP) with UV stabiliser additives that prevent degradation from ultraviolet radiation. Wall thickness is optimised for each series to balance impact resistance against weight, ensuring the guard does not add excessive rotational inertia to the driveline.

Retaining collars are moulded from the same UV-stabilised polymer with reinforced wall sections around the bearing interface. The collars feature internal bearing surfaces that allow the tube to rotate freely without the need for separate bearing components, reducing the total part count and eliminating grease points.

Pin retention uses either push pins (for quick-release applications) or taper pins (for semi-permanent installations). Push pins range from 43 mm to 91 mm in length with diameters of 13, 14, or 16 mm depending on the guard series. Spring pins are available in 8 mm and 10 mm diameter for additional retention security.

Safety chains are available in both golden (zinc-plated) and silvery (galvanised) finishes, each rated for the torque reaction loads of their respective PTO series. The chains anchor to fixed points on the tractor drawbar or implement frame, preventing guard rotation if internal bearings fail.

Step 1: Identify Your PTO Series

Determine the PTO series of your driveline (Series 1 through Series 50). This is usually stamped on the yoke or listed in the implement manual. The series dictates all tube and collar dimensions.

Step 2: Measure Tube Dimensions

Measure the inner and outer diameter of the existing guard tube (or the shaft profile if the guard is missing). Match these to the Tube(A) Inner and Outer columns in the specification tables above.

Step 3: Measure Retaining Collar

Measure the inner and outer diameter of the retaining collar that seats over the universal joint housing. Match to the Collar(B) Inner and Outer columns. Ensure the collar clears the cross-kit bearing caps.

Step 4: Determine Guard Variant

Select the shield type based on your application: Shield I for standard, Shield II for enhanced coverage, Shield III for heavy-duty, Shield WA for wide-angle joints, or Shield N for narrow clearance installations.

Step 5: Check Operating Angle

If your implement requires articulation angles greater than 15 degrees (common on balers, trailed mowers, and offset implements), you must use a Wide Angle (WA) shield with the expanded C and D dimensions.

Step 6: Select Colour and Accessories

Choose between black, yellow, or combination colours. Order the matching push pins, spring pins, and safety chains. Yellow is recommended for high-visibility safety compliance on farms with multiple operators.

ISO 9001:2015

All PTO safety guards are manufactured under ISO 9001:2015 certified quality management systems, ensuring consistent dimensional accuracy, material quality, and assembly integrity across every production batch.

CE Declaration of Conformity

Our PTO shaft safety shields carry CE certification in accordance with the EU Machinery Directive 2006/42/EC, meeting the essential health and safety requirements for agricultural machinery guarding.

12-Month Warranty

Every GBC PTO safety guard is backed by a 12-month warranty against manufacturing defects in materials and workmanship. Our warranty covers cracking, delamination, bearing failure, and colour degradation under normal agricultural operating conditions.

"We replaced guards on 18 implements across two properties. GBC matched every series perfectly from the dimensions we emailed over. Delivery to our NSW depot was three days. The yellow guards are much more visible than the old black ones - our operators appreciate the safety improvement."

Mark T. - Farm Manager, Dubbo NSW
Purchased: Shield II Series 3/4 and Series 5 (x18 units) for Slashers and Augers

"The wide-angle guards solved a problem we had been fighting for years. Our balers chew through standard guards in one season because of the tight turns. The GBC Shield WA has lasted two full seasons without a crack. Excellent quality."

Sarah L. - Hay Contractor, Toowoomba QLD
Purchased: Shield WA Series 6/32/36 (x5 units) for Round Balers

"Good quality guards at a fair price. We run a machinery dealership and needed a reliable aftermarket supplier for safety shields. GBC has been consistent - good stock levels, accurate dimensions, and they always include the pins and chains. Would rate 5 stars once they offer more colour options."

James R. - Dealership Parts Manager, Ballarat VIC
Purchased: Shield I, II, III Mixed Series (bulk order) for Dealership Stock

"Outstanding product for our vineyard operation. The narrow-profile Shield N fits perfectly in our tight row spacings where standard guards foul on the posts. The team at GBC helped us identify the correct series from a photo of our old broken guard. Very professional service."

Antonio V. - Vineyard Operations Manager, Barossa Valley SA
Purchased: Shield N Series 2 (x5 units) for Under-Vine Mowers

"We ordered custom-length guards for three modified grain augers. GBC manufactured them to our exact specifications within two weeks. The guards fit perfectly and the UV resistance is noticeably better than the OEM guards we previously used. Will be ordering again for the rest of the fleet."

David K. - Grain Grower, Geraldton WA
Purchased: Custom-Length Shield I Series 6/7/8 (x3 units) for Modified Grain Augers

Installation Steps

1. Disengage and Lock Out PTO: Before any guard work, ensure the tractor PTO is disengaged, the engine is off, and the key is removed. Never work on a PTO driveline with the engine running.

2. Slide Guard Tube Over Shaft: Position the outer tube (Part A) over the telescoping section of the PTO shaft. The tube should slide freely along the shaft profile without binding or interference.

3. Seat Retaining Collars: Press the retaining collars (Part B) over the universal joint housings at each end of the driveline. The collar must seat fully over the joint housing with the bearing surface aligned concentrically.

4. Insert Retention Pins: Insert the push pins or taper pins through the pre-drilled holes in the retaining collars. For push pin installations, press until the locking clip engages. For taper pins, tap lightly with a rubber mallet until snug. Install spring pins where specified.

5. Attach Safety Chains: Connect the safety chains from the guard tube to a fixed point on the tractor drawbar or implement frame. The chain must have sufficient slack to allow normal telescoping movement and articulation, but must not be so long that it drags on the ground or wraps around the shaft.

Preventive Maintenance Schedule

Before Every Use: Visually inspect the guard for cracks, missing pins, and detached chains. Manually spin the outer tube to confirm it rotates freely. If the tube does not spin, do not operate the implement until the guard bearing is cleared or replaced.

Every 50 Operating Hours: Remove the guard and inspect the internal bearing surfaces for wear, scoring, or debris buildup. Clear any accumulated dirt, crop residue, or grease from the collar bearing interface. Check all pins for wear or deformation and replace as needed.

Every Season (or 250 Hours): Perform a full guard condition assessment. Check for UV degradation (white chalking on black guards, yellowing on yellow guards), hairline cracks around pin holes, and collar integrity. Verify that the safety chains are not stretched or kinked. Replace any guard that shows structural compromise.

Every 3-5 Years: Proactively replace all PTO safety guards regardless of visual condition. UV degradation weakens the polymer internally before surface symptoms appear. In high-UV environments (Northern Queensland, Western Australia), reduce this interval to 2-3 years. Budget for guard replacement as a standard consumable in your annual farm maintenance plan.
