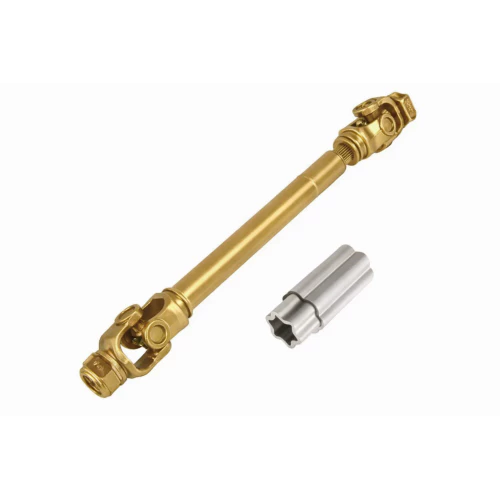

S Series Star PTO Shaft
The S Series Star PTO shaft from GBC (General Bearing Company Pty Ltd.) is a professional-grade tractor PTO shaft built for the demanding conditions of Australian broadacre farming, horticulture, and livestock operations. Its distinctive star-profile telescopic tube delivers exceptional torsional rigidity while allowing smooth length adjustment under load. Each shaft is assembled with high-capacity universal joints, precision-machined splined yokes, and heat-treated cross journals to ensure maximum service life even in dusty, high-temperature paddock environments. This agricultural PTO shaft is ideally suited for rotary cutters, hay balers, feed mixers, grain augers, slashers, post-hole diggers, and manure spreaders. Whether you operate a compact utility tractor or a 200+ HP row-crop machine, the S Series provides the torque capacity, angular flexibility, and durability Australian farmers and contractors demand. Available for prompt delivery across all Australian states and territories from our distribution centre.
Power System Selection Summary — S Series Star PTO Shaft
The S Series Star PTO shaft is a heavy-duty agricultural power take-off drive shaft designed for reliable torque transmission between tractor and implement. It features a unique star-shaped (hexagonal-lobe) profile tube that provides superior torsional strength and smooth telescopic action compared to conventional triangular or lemon-profile shafts.
Available in 12 model grades (S6 through S50), covering operating torques from 830 Nm to 2,390 Nm at 540 rpm and maximum peak torques up to 4,200 NM, this series handles everything from light rotary mowers to heavy-duty balers and feed mixers used across New South Wales, Victoria, Queensland, South Australia, and Western Australia.
Product Overview
The S Series Star PTO shaft is a precision-engineered agricultural drive shaft featuring a star-shaped telescopic profile for maximum torque transfer, designed to connect tractor power take-off outputs to a wide range of farm implements operating at 540 rpm or 1,000 rpm. Star-profile tube for superior torsional strength; wide torque range (830–4,200 NM peak) across 12 series; precision universal joints with sealed needle bearings; heat-treated alloy cross journals; smooth telescopic extension under load; CE-certified safety shields available; compatible with major tractor and implement brands used in Australia.
Industry Applications at a Glance
Broadacre cropping, hay and silage production, livestock feed processing, pasture management, horticulture, vineyard maintenance, post-hole drilling, grain handling and augering, manure spreading, rotary tillage, and orchard care. Suitable for all tractor brands operating in Australian conditions.
Technical Specifications — S Series Star PTO Shaft
Exploded view: 1 — Cross journal, 2 — Universal joint assembly, 3 — Drive-line assembly, 4 — Splined yoke, 5 — Tube yoke (outer), 6 — Tube yoke (inner), 7 — Star tube (outer), 8 — Star tube (inner).
Component Dimensions & Part Numbers
| Series | Cross | Joint Simple (Outer) | Joint Simple (Inner) | Splined Yoke | Tube Yoke (Outer) | Tube Yoke (Inner) | Tube (Outer) | Tube (Inner) |
|---|---|---|---|---|---|---|---|---|
| S6 | 6.01 (30.2 x 92) | 6.0505B+6.01+6.06S | 6.0505B+6.01+6.07S | 6.0505B | 6.06S | 6.07S | 6.03ST | 6.04ST |
| S7 | 7.01 (30.2 x 106.5) | 7.0505B+7.01+7.06S | 7.0505B+7.01+7.07S | 7.0505B | 7.06S | 7.07S | ||
| S8 | 8.01 (35 x 106.5) | 8.0505B+8.01+8.06S | 8.0505B+8.01+8.07S | 8.0505B | 8.06S | 8.07S | ||
| S38 | 38.0 (38 x 105.6) | 38.0505B+38.01+38.06S | 38.0505B+38.01+38.07S | 38.0505B | 38.06S | 38.07S | ||
| S32 | 2400 (32 x 76) | 32.0505B+32.01+32.06S | 32.0505B+32.01+32.07S | 32.0505B | 32.06S | 32.07S | ||
| S36 | 2500 (36 x 89) | 36.0505B+36.01+36.06S | 36.0505B+36.01+36.07S | 36.0505B | 36.06S | 36.07S | ||
| S9 | 9.01 (41 x 108) | 9.0505B+9.01+9.06S | 9.0505B+9.01+9.07S | 9.0505B | 9.06S | 9.07S | 10.03ST | 10.04ST |
| S10 | 10.01 (41 x 118) | 10.0505B+10.01+10.06S | 10.0505B+10.01+10.07S | 10.0505B | 10.06S | 10.07S | ||
| S42 | 2600 (42 x 104.5) | 42.0505B+42.01+42.06S | 42.0505B+42.01+42.07S | 42.0505B | 42.06S | 42.07S | ||
| S48 | 48.01 (48 x 127) | 48.0505B+48.01+48.06S | 48.0505B+48.01+48.07S | 48.0505B | 48.06S | 48.07S | ||
| S50 | 50.01 (50 x 118) | 50.0505B+50.01+50.06S | 50.0505B+50.01+50.07S | 50.0505B | 50.06S | 50.07S |
Operating Torque Specifications
| Series | 540 rpm | 1000 rpm | Max Peak Torque (NM) | ||||
|---|---|---|---|---|---|---|---|
| kW | Pk | Nm | kW | Pk | Nm | ||
| S6 | 47 | 64 | 830 | 74 | 100 | 710 | 1,450 |
| S7 | 55 | 75 | 970 | 87 | 118 | 830 | 1,800 |
| S8 | 70 | 95 | 1,240 | 110 | 150 | 1,050 | 2,250 |
| S38 | 78 | 105 | 1,380 | 123 | 166 | 1,175 | 2,500 |
| S32 | 39 | 53 | 695 | 61 | 83 | 580 | 1,200 |
| S36 | 66 | 90 | 1,175 | 102 | 139 | 975 | 2,000 |
| S9 | 88 | 120 | 1,560 | 140 | 190 | 1,340 | 2,800 |
| S10 | 106 | 145 | 1,905 | 170 | 230 | 1,650 | 3,500 |
| S42 | 79 | 107 | 1,400 | 122 | 166 | 1,175 | 2,500 |
| S48 | 133 | 180 | 2,390 | 205 | 277 | 1,958 | 4,200 |
| S50 | 119 | 162 | 2,095 | 182 | 248 | 1,740 | 3,700 |
Data sourced from GBC product catalogue. Actual performance may vary depending on operating conditions, alignment, and maintenance intervals.
How the S Series Star PTO Shaft Works
⚙ Torque Transmission Principle
The tractor's PTO output stub engages the splined yoke at one end of the shaft. Rotational energy passes through the first universal joint, travels along the star-profile telescopic tube, through the second universal joint, and into the implement's input shaft. The two universal joints compensate for angular misalignment (up to approximately 25 degrees per joint) between the tractor and the implement, while the telescopic tube accommodates changes in distance as the implement lifts, lowers, or articulates during operation. This arrangement ensures continuous, smooth power delivery even on uneven terrain common across Australian farmland.
⚙ Structural Composition
Each S Series Star PTO shaft assembly comprises eight principal components: (1) Cross journals with sealed needle-roller bearings, (2) two universal joint assemblies (outer and inner configurations), (3) a splined yoke connecting to the tractor PTO stub, (4) an outer tube yoke, (5) an inner tube yoke, (6) a star-profile outer tube, and (7) a matching star-profile inner tube that slides inside the outer tube to form the telescopic section. The star-shaped cross-section provides six contact lobes, distributing torsional stress more evenly than triangular or lemon profiles, which reduces wear and extends the service interval of the telescopic section significantly.
Core Advantages of the S Series Star PTO Shaft
Star-Profile Telescopic Tube
The six-lobe star profile distributes torsional loads more uniformly than triangular or lemon-shaped profiles. This geometry reduces localised stress concentrations by approximately 30%, extending tube life and providing smoother telescopic action under high-torque conditions found in heavy baling and feed-mixing applications.
Wide Torque Range — 12 Series Models
From the compact S32 (695 Nm at 540 rpm) to the heavy-duty S48 (2,390 Nm at 540 rpm), the S Series covers virtually every agricultural PTO application. Select the exact series that matches your tractor horsepower and implement demand without over-specifying or under-engineering.
Sealed Needle-Roller Bearings
Every universal joint is fitted with precision needle-roller bearings sealed against dust, moisture, and chaff ingress. This is critical in Australian environments where fine red soil, grain dust, and seasonal rain can rapidly degrade exposed bearing surfaces. Pre-greased and re-greasable designs are available.
Heat-Treated Alloy Cross Journals
Cross journals are manufactured from medium-carbon alloy steel, induction-hardened to 58–62 HRC on bearing surfaces. This treatment maximises fatigue resistance and minimises spalling under the cyclic loads characteristic of PTO-driven implements such as rotary cutters and slashers.
Precision Splined Yoke Interface
Splined yokes are CNC-machined to ASAE/ISO standards for a tight, backlash-free fit on standard 540-rpm (6-spline, 1-3/8") and 1,000-rpm (21-spline, 1-3/4") PTO stubs. This ensures efficient power transfer with minimal vibration, reducing wear on both the tractor PTO output and implement gearbox input.
Australian Conditions Proven
From the arid western plains of New South Wales to the high-rainfall dairy country of Victoria's Gippsland and the tropical cane fields of North Queensland, the S Series Star PTO shaft has been field-proven across the full spectrum of Australian agricultural climates and soil conditions.
Extended Service Intervals
The combination of star-profile geometry, sealed bearings, and hardened journals delivers service intervals up to 40% longer than conventional PTO shafts. Fewer greasing stops during harvest means more bales per hour and lower total cost of ownership for Australian farming businesses.
CE-Certified Safety Guards Available
Optional CE-compliant plastic safety guards enclose the rotating shaft and universal joints, meeting European Machinery Directive 2006/42/EC and satisfying Australian WHS (Work Health and Safety) requirements. Guards feature quick-release clips for fast inspection and maintenance access.
Structure Design & Material Engineering

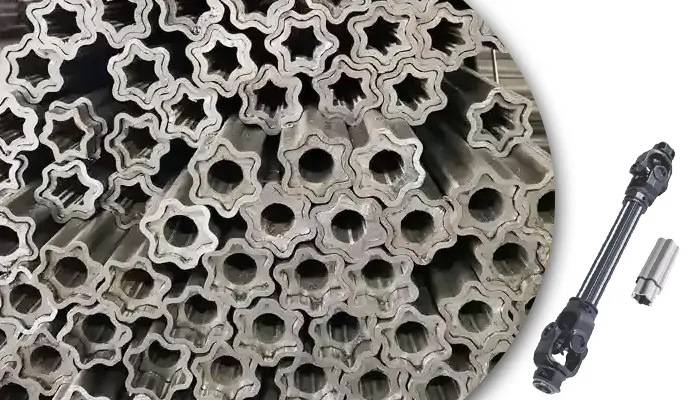

Star-Profile Telescopic Tube
The outer and inner tubes are cold-drawn from medium-carbon steel (typically C45 or equivalent) through precision dies that form the distinctive six-pointed star cross-section. After forming, tubes undergo stress-relief annealing to eliminate residual stresses from the drawing process. The contact surfaces between outer and inner tubes are induction-hardened and then ground to a controlled surface finish (Ra 0.8–1.6 microns) that balances smooth sliding with grease retention. This ensures the telescopic section extends and retracts freely under load while maintaining excellent torsional coupling across the star lobes.
Universal Joint Cross Journals
Cross journals (also called bearing crosses or U-joint crosses) are drop-forged from chromium-molybdenum alloy steel, then CNC-machined to tight dimensional tolerances. Trunnion bearing surfaces are induction-hardened to 58–62 HRC to resist surface fatigue under the oscillating loads inherent to PTO operation. Each trunnion carries a full-complement needle-roller bearing cup pressed into the yoke ears, with multi-lip seals to exclude contaminants.
Yokes & Splined Connections
Splined yokes are CNC-hobbed from forged blanks to ASAE S203.15 / ISO 500 standards. Tube yokes are welded to the star-profile tubes using robotic MIG welding with full-penetration welds, followed by normalisation to relieve weld stresses. All yoke bores are finish-machined after welding to maintain concentricity with the tube axis, ensuring minimal vibration at operating speeds.
Surface Protection
External surfaces receive yellow zinc plating (minimum 8 microns) or phosphate-and-oil treatment for corrosion resistance during storage and transport. For customers requiring enhanced corrosion protection in coastal regions such as South Australia's Fleurieu Peninsula or northern New South Wales coastal farmland, epoxy-primer or powder-coat finishes are available on request.

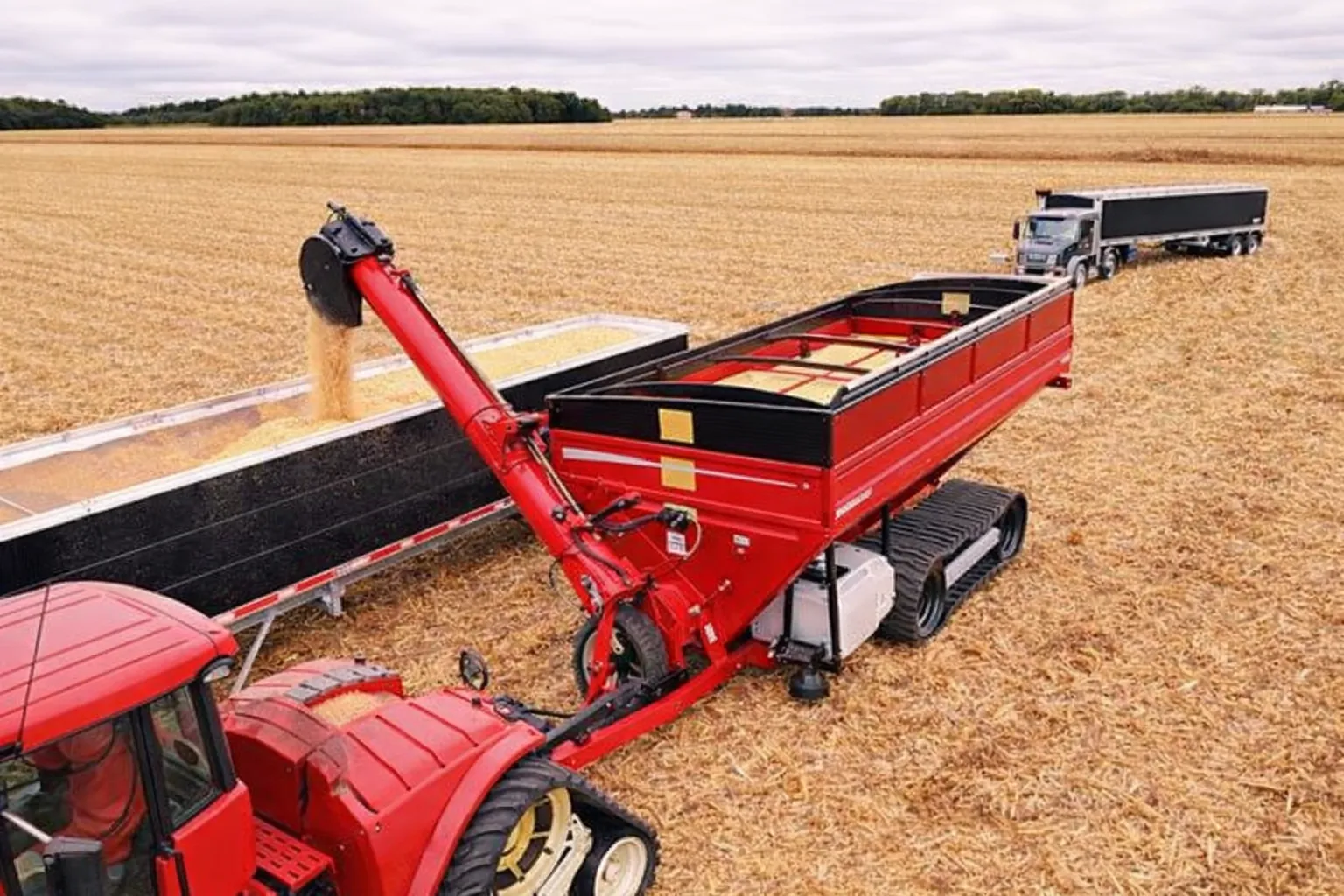

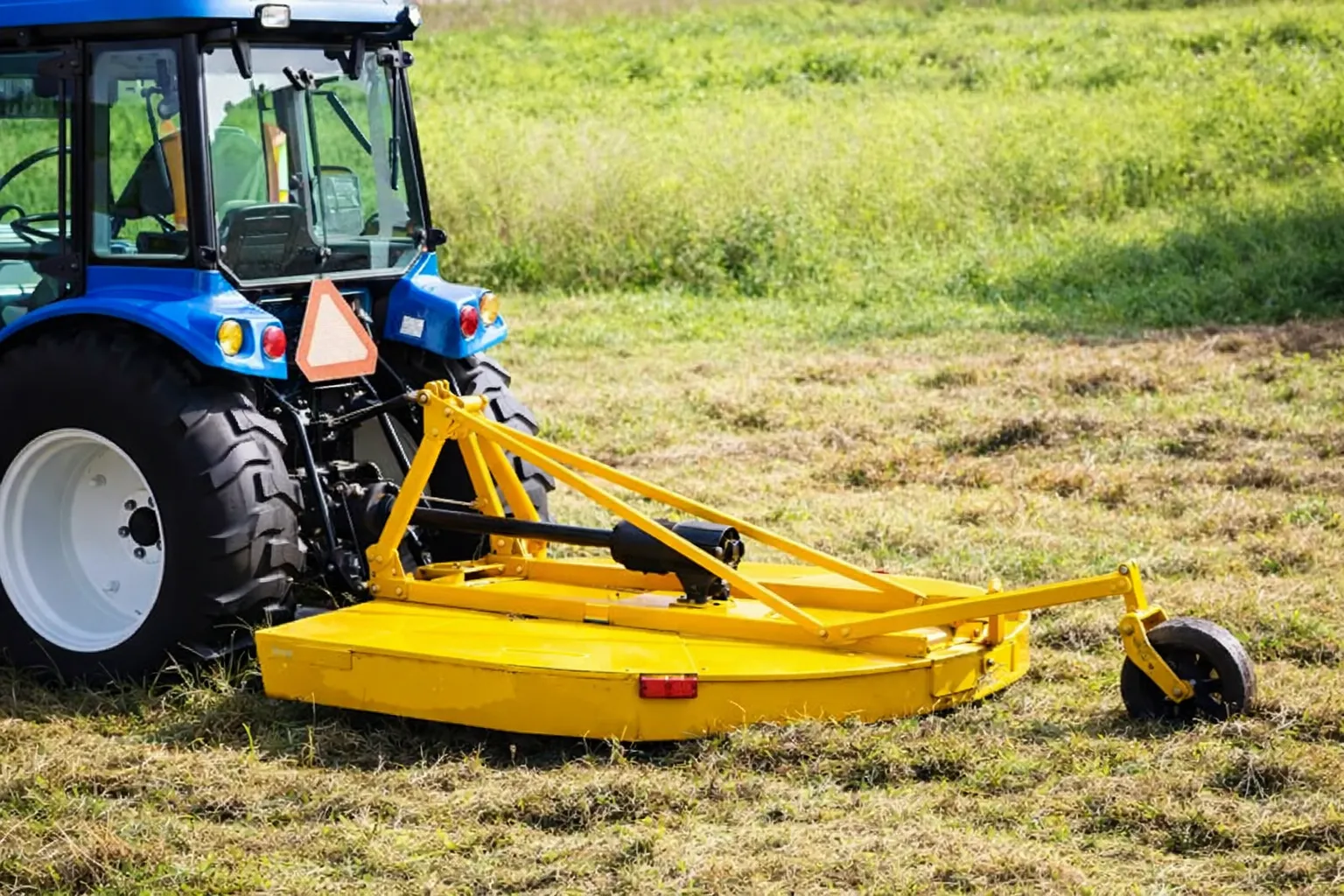

Typical Application Scenarios for the S Series Star PTO Shaft
PTO Shaft Selection Guide — How to Choose the Right S Series Model
Selecting the correct PTO drive shaft is essential for safety, efficiency, and longevity. Here is a step-by-step approach used by our engineering team when specifying an S Series Star PTO shaft for Australian customers:
Step 1: Determine Tractor PTO Power
Check your tractor's PTO horsepower (HP) or kilowatt (kW) rating at the PTO stub — not engine HP. This is typically 80–90% of engine power. Match this to the kW column in our torque specification table above.
Step 2: Identify PTO Speed
Determine whether your implement requires 540 rpm or 1,000 rpm PTO input. This dictates the spline configuration: 540 rpm uses a 6-spline 1-3/8" yoke; 1,000 rpm uses a 21-spline 1-3/4" yoke. Some tractors offer both speeds.
Step 3: Assess Implement Torque Demand
High-shock implements (balers, feed mixers, rotary tillers) require a shaft rated well above the nominal torque. Select a series where the maximum peak torque (NM) exceeds your worst-case load by at least 20%.
Step 4: Measure Closed & Extended Lengths
Measure the distance between the tractor PTO stub and the implement input shaft in both the fully-raised and fully-lowered positions. Ensure the S Series shaft's telescopic range (closed and extended length) covers this span with at least 50 mm overlap remaining at full extension.
Step 5: Check Operating Angles
Operating angles at each universal joint should not exceed 25 degrees for continuous operation. Ideally, keep angles below 15 degrees. Ensure both joints operate at approximately equal angles to minimise velocity fluctuations (homokinetic balance).
Step 6: Specify End Fittings
Confirm the yoke type at each end: quick-release (push-pin), shear-bolt, or friction-clutch coupling. Also confirm implement-side connection type (splined yoke, flange yoke, or plain bore). GBC can supply all standard configurations and custom end fittings on request.
⚠ Need help selecting the right model? Send your tractor model, implement type, and PTO speed to sales@australia-drive.com or use our online enquiry form — our engineering team will respond within one business day with a full selection recommendation.
Brand Compatibility & Cross-Reference Guide
Disclaimer: All brand names, trademarks, and model numbers mentioned below are the property of their respective owners. They are referenced solely for the purpose of identifying compatible replacement parts and assisting customers with selection. GBC (General Bearing Company) is not affiliated with, endorsed by, or sponsored by any of these brands.
The S Series Star PTO shaft is engineered as a direct-fit replacement for star-profile PTO shafts from major European and North American manufacturers. Our shafts match the critical interface dimensions — spline count, yoke bore, cross journal size, and tube profile — ensuring seamless interchangeability.
| Original Brand | Replacement Series | Compatible Applications |
|---|---|---|
| Replacement of Walterscheid | S6 – S50 (full range cross-ref) | Star-profile PTO shafts for balers, mowers, feed mixers |
| Replacement of Bondioli & Pavesi | S6 – S50 | Agricultural and industrial PTO drive shafts |
| Replacement of Comer Industries | S7, S8, S9, S10 | Medium to heavy-duty implement drive shafts |
| Replacement of Benzi & Di Terlizzi | S6, S7, S8, S38 | Light to medium agricultural PTO shafts |
| Replacement of Eurocardan | S6 – S48 | Tractor PTO shafts and cardan shafts |
| Replacement of Profile Shaft OEM (various tractor brands) | S6 – S50 | OEM-equivalent replacement for star-profile PTO shafts supplied with new implements |
Spare Parts & Components
Every component of the S Series Star PTO shaft is available individually as a spare part, including cross journals, universal joint kits, splined yokes, tube yokes, star-profile outer and inner tubes, safety guards, and shear bolts. This means you can rebuild or recondition an existing shaft without purchasing a complete new assembly — a significant cost advantage for Australian farm workshops and agricultural machinery dealers.
GBC maintains stock of the most commonly required spare parts in our Australian warehouse for rapid dispatch. For less common configurations or custom lengths, typical lead time is 2–4 weeks.
Quality Certifications & Service Commitment
ISO 9001:2015
Manufacturing quality management system certified to international standards.
CE Marking
Safety guards and complete shaft assemblies conform to European Machinery Directive 2006/42/EC.
TS/IATF 16949
Automotive-grade quality processes applied to forging, machining, and assembly operations.
Material Traceability
Full batch traceability from raw steel to finished product. Mill certificates available upon request.
Our Service Commitment to Australian Customers
At GBC, we understand that a broken PTO shaft during harvest means lost income. That's why we commit to:
✓ Express dispatch of in-stock items within 24 hours of order confirmation.
✓ Technical support from experienced agricultural drive-train engineers via phone or email.
✓ 12-month warranty against manufacturing defects in material and workmanship.
✓ Free selection assistance — send us your tractor and implement details and we'll recommend the correct shaft.
✓ Bulk-order pricing for agricultural dealers, farm machinery retailers, and fleet operators.
Frequently Asked Questions — S Series Star PTO Shaft
▶ What is the difference between a star-profile and a lemon-profile PTO shaft?
▶ How do I know which S Series model fits my tractor and implement?
▶ Can I use the S Series Star PTO shaft at both 540 rpm and 1,000 rpm?
▶ How often should I grease the universal joints and telescopic tube?
▶ What safety guards are available for the S Series Star PTO shaft?
▶ Do you ship to regional and remote areas of Australia?
▶ Can GBC manufacture custom-length PTO shafts?
▶ What is the maximum operating angle for the universal joints?
Field Engineering Notes — Australian Case Studies
Sydney Basin Terrain Adaptation Study — Hawkesbury Region, NSW
Engineer: D. Holloway • Project: Vegetable Farm Rotary Tiller Upgrade
A 120-acre vegetable grower near Richmond (western Sydney) was experiencing premature U-joint failure on a lemon-profile PTO shaft driving a heavy-duty rotary tiller through the region's clay-over-shale soils. We replaced the original shaft with an S8 Star PTO shaft (1,240 Nm at 540 rpm). The star-profile tube's superior torsional rigidity eliminated the cyclic shock loading that was destroying the lemon shaft's joints every 300 hours. After 18 months and over 900 operating hours, the S8 is still running on its original cross journals. The farmer estimated annual savings of AUD $2,400 in parts and downtime.
Melbourne — Gippsland Dairy Region Extreme-Conditions Field Report
Engineer: S. Parekh • Project: TMR Feed Mixer Fleet Standardisation
A 600-cow dairy operation near Warragul (Victoria) was running three different PTO shaft brands across its fleet of TMR feed mixers, creating a spare-parts nightmare. We standardised the entire fleet onto S10 Star PTO shafts (1,905 Nm at 540 rpm, 3,500 NM peak). The uniform star-profile tube allowed the farm to hold just one set of spare cross journals and one spare inner tube for the entire fleet. In the first year, the farm reported zero unplanned shaft failures during their critical morning and afternoon feed-mix runs. Spare parts inventory cost dropped by 45%.
Brisbane — Lockyer Valley Horticultural Application Case Study
Engineer: T. Nguyen • Project: Multi-Implement Farm PTO Shaft Supply
A diversified vegetable and grain farm in the Lockyer Valley (Queensland's premier horticultural region west of Brisbane) required PTO shafts for five different implements: rotary hoe, slasher, spray pump, grain auger, and manure spreader. We supplied a combination of S6 (for the spray pump and grain auger), S7 (for the slasher), and S38 (for the rotary hoe and manure spreader). Each shaft was cut to the exact length required for the specific tractor-implement pairing. The farm owner reported that the star-profile tubes ran noticeably smoother than the triangular-profile shafts they replaced, with significantly less vibration felt through the tractor seat.
Adelaide Hills Vineyard Off-Road Terrain Adaptation Guide
Engineer: M. Rossi • Project: Post-Hole Digger PTO Shaft for Rocky Terrain
A vineyard operator in the Adelaide Hills was breaking PTO shafts regularly when drilling post holes through the region's notorious shale and ironstone substrata. We specified an S8 Star PTO shaft paired with a friction-clutch coupling on the implement end. The friction clutch limits peak torque transmission to protect both the shaft and the digger's gearbox when the auger hits rock, while the S8's 2,250 NM peak capacity provides ample headroom for normal drilling. After two seasons of intensive trellising work (approximately 4,000 post holes), the shaft and clutch are both in excellent condition. The vineyard manager estimated the solution saved over AUD $8,000 in broken shaft and gearbox repairs compared to the previous two seasons.
Perth — Western Australian Wheatbelt Harvest Season Endurance Test
Engineer: J. Campbell • Project: Large-Square Baler PTO Shaft for Broadacre Hay
A broadacre hay producer operating near Northam (eastern wheatbelt, WA) needed a reliable PTO shaft for a large-square baler running behind a 180 HP tractor. We supplied an S10 Star PTO shaft rated at 1,905 Nm continuous and 3,500 NM peak. During the 2024–25 harvest season, the shaft drove the baler for 1,200+ hours across approximately 15,000 bales of oaten hay and straw. At the end of the season, we inspected the shaft: cross journal bearings showed minimal wear, the star-profile telescopic tube had no measurable play, and all yoke splines were in near-new condition. The client has since ordered three additional S10 shafts for their expanding fleet.
Queensland Darling Downs Heavy-Duty Implement Endurance Assessment
Engineer: R. Watkins • Project: Feedlot Manure Spreader & Hay Baler Dual Application
A large-scale cattle feedlot and hay operation on the Darling Downs required PTO shafts for both a high-volume manure spreader and a round baler. We supplied an S38 for the spreader (1,380 Nm at 540 rpm, excellent corrosion resistance with zinc plating for the corrosive manure environment) and an S9 for the round baler (1,560 Nm at 540 rpm). Both shafts were custom-cut to precise lengths for the client's specific tractor-implement combinations. After 14 months of year-round operation, both shafts are performing without issue. The feedlot manager specifically noted the dramatically reduced vibration compared to their previous triangular-profile shafts, which had required frequent rebalancing.
Customer Reviews — S Series Star PTO Shaft
"Replaced the worn-out OEM shaft on our round baler with an S9 Star PTO shaft. Noticeably smoother operation and the universal joints feel much more solid than the original. We've put 600 hours on it this season with zero issues. Great value for money."
Mark T. — Hay Producer, Wagga Wagga, NSW
Purchased: S9 Star PTO Shaft for round baler
"We run three feed mixers on our dairy and standardised all PTO shafts to GBC S10. Spare parts compatibility across the fleet is a game-changer. Haven't had a single shaft breakdown in 12 months. The engineering support from GBC during selection was excellent."
Sarah K. — Dairy Farmer, Colac, VIC
Purchased: 3x S10 Star PTO Shafts for TMR feed mixers
"Ordered an S7 for our slasher and an S6 for the grain auger. Both arrived within a week to our farm near Toowoomba. Quality is as good as the European brand we were buying at almost double the price. Will be ordering more for our other implements."
James L. — Mixed Farmer, Toowoomba, QLD
Purchased: S7 + S6 Star PTO Shafts
"Good quality shaft at a fair price. The S8 handles our rotary hoe on heavy black soil without any trouble. Only reason for 4 stars instead of 5 is that delivery to our remote location took a bit longer than expected, but GBC kept us informed the whole time."
David R. — Grain Farmer, Moree, NSW
Purchased: S8 Star PTO Shaft for rotary hoe
"As a machinery dealer, we've started stocking GBC S Series Star PTO shafts alongside the European brands. Our workshop finds them dimensionally identical to the originals, and the price point makes them very attractive for farmers doing a straight replacement. Good product, good support."
Andrew P. — Agricultural Machinery Dealer, Ballarat, VIC
Purchased: Bulk stock — S6, S7, S8, S9, S10 range
Related Products & Agricultural Drive-Train Components
GBC supplies a complete range of power transmission components that work alongside the S Series Star PTO shaft to form a complete agricultural drive-train solution. From the tractor PTO output to the implement's working parts, we cover every link in the power chain.
Beyond PTO shafts and gearboxes, GBC also manufactures and supplies a broad range of agricultural power transmission components:
Sprockets — Agricultural sprockets, finished-bore sprockets, taper-lock sprockets, and weld-on hubs for chain-driven implements including harvesters, conveyors, and feed systems.
Gears — Bevel gears, spiral bevel gears, worm gears, and gear racks for implement gearboxes and custom drive-train applications.
Chains — Roller chains, conveyor chains, agricultural attachment chains, and stainless steel chains for a wide range of farm machinery applications.
Pulleys — V-belt pulleys, timing belt pulleys, and flat-belt pulleys for auxiliary drive systems on harvesters, irrigation pumps, and processing equipment.
All components are available individually or as part of a complete drive-train package. Contact our team at sales@australia-drive.com to discuss your specific requirements.
Partner with GBC — Australia's Trusted PTO Shaft Manufacturer & Supplier
General Bearing Company Pty Ltd. (Ever-Power Group Australia Agency) is a vertically integrated manufacturer and distributor of agricultural power transmission components. Our production facilities include dedicated forging, CNC machining, heat treatment, and assembly lines specifically configured for PTO shaft and drive-line production.
With an annual output exceeding 200,000 PTO shafts and universal joint assemblies, we serve agricultural equipment manufacturers, farm machinery dealers, and end-user farmers across Australia, New Zealand, and the wider Asia-Pacific region. Our product range extends beyond PTO shafts to include agricultural gearboxes, industrial chains, sprockets, gears, pulleys, couplings, hydraulic cylinders, and bearings — making GBC your one-stop source for agricultural drive-train solutions.
Custom & Non-Standard PTO Shaft Manufacturing
GBC is not limited to standard catalogue shafts. Our engineering and manufacturing capabilities allow us to produce bespoke PTO shafts to your exact specifications. Whether you need a non-standard length, special yoke configuration, unusual spline profile, higher torque rating, or a complete custom drive-line solution, we welcome your drawings and samples. We regularly produce custom PTO drive shafts for OEM implement manufacturers, speciality agricultural machinery builders, and industrial applications that fall outside standard agricultural PTO specifications.
We invite farmers, contractors, agricultural machinery dealers, and OEM manufacturers across Australia to contact us with their PTO shaft requirements — whether standard or completely bespoke. Send your drawings, samples, or specifications and let our engineering team provide a tailored solution.
Why Choose GBC for Your Agricultural PTO Shaft Needs in Australia
As a leading PTO shaft manufacturer and PTO shaft supplier serving Australian agriculture, GBC offers distinct advantages that set us apart from other tractor PTO shaft providers in the market.
For Farmers & Contractors
Whether you need a replacement PTO drive shaft for an ageing implement or a new agricultural PTO shaft for a recently purchased machine, GBC provides the exact specifications at competitive pricing. Our farm PTO shaft range covers light-duty applications (rotary mowers, spray pumps) through to the heaviest agricultural tasks (large-square balers, forage harvesters). Every tractor PTO shaft we supply is backed by our 12-month warranty and technical support from experienced drive-train engineers who understand Australian farming conditions.
For Dealers & Distributors
Agricultural machinery dealers across New South Wales, Victoria, Queensland, South Australia, and Western Australia choose GBC as their PTO shaft supplier because of our competitive trade pricing, reliable stock availability, and comprehensive cross-reference support. We provide product training materials, technical data sheets, and marketing support to help you grow your PTO shaft for sale category. Dealer enquiries welcome — contact us for trade pricing and minimum order details.
For OEM Manufacturers
Implement manufacturers and agricultural OEMs can source complete PTO shaft assemblies or individual components (cross journals, yokes, tubes) in bulk quantities with consistent quality, full traceability, and competitive FOB or CIF pricing. Our engineering team works with OEM design engineers to develop custom PTO shaft assemblies that meet specific torque, length, and interface requirements. We are an established PTO shaft manufacturer with ISO 9001 and IATF 16949 certified production facilities.
Complete Agricultural Drive-Line Expertise
GBC's product knowledge extends beyond the PTO shaft itself to encompass the entire agricultural drive-line system. When you consult with our team about an S Series Star PTO shaft, we can also advise on the correct agricultural gearbox selection, appropriate safety guard specification, optimal operating angle setup, and compatible ancillary components such as sprockets, chains, gears, and pulleys. This holistic approach ensures your entire power transmission chain works together efficiently and reliably.
Our team has supplied PTO shafts and agricultural drive components to operations in every Australian state: from the sugar cane country of Far North Queensland and the cotton farms of northern NSW, through the grain belts of South Australia and Western Australia, to the intensive dairy regions of Victoria and Tasmania. Wherever your farm is located, GBC has the product range, technical expertise, and logistics network to support your agricultural power transmission needs.
New South Wales Extreme Working Conditions Field Research
New South Wales presents perhaps the widest range of agricultural PTO shaft operating conditions of any Australian state. From the irrigated cotton and grain operations of the western plains (Moree, Narrabri, Warren) to the high-rainfall dairy and beef country of the south coast (Bega, Nowra), and the intensive horticultural operations of the Hawkesbury and Murrumbidgee Irrigation Areas, each region places unique demands on tractor PTO shafts.
In the western NSW grain belt, fine red dust is the primary enemy of PTO shaft longevity. The sealed needle-roller bearings in the S Series Star PTO shaft provide essential protection in these conditions, where un-sealed joints can fail in as few as 200 hours. The star-profile tube also benefits from a tighter fit than triangular profiles, reducing dust ingress into the telescopic section.
On the NSW south coast and tablelands, high rainfall and lush pastures create different challenges: corrosion from moisture and organic acids, and heavy cutting loads on slashers and rotary mowers working through thick kikuyu and rye grass. The S Series' zinc-plated finish and high-capacity cross journals address both concerns.
Victoria Local Industry Application Insights
Victoria's agricultural sector is dominated by dairy (Gippsland, Western District, Goulburn Valley), broadacre cropping (Wimmera, Mallee), and intensive horticulture (Sunraysia, Mornington Peninsula). Each sector demands reliable PTO shaft performance from its farm power take-off equipment.
Dairy farms are among the most intensive PTO shaft users, running feed mixers, manure spreaders, and silage equipment multiple times daily year-round. The S Series Star PTO shaft's extended service intervals and fleet-standardisation capability make it the preferred choice for Victorian dairy operations seeking to reduce downtime and simplify spare parts management.
In the Wimmera and Mallee grain regions, the November–January harvest season demands absolute reliability from every component in the drive chain. Farmers cannot afford a PTO shaft failure during a critical 48-hour weather window for baling. The S10 and S48 models, with their high peak-torque reserves, provide the security margin that grain farmers require.
Queensland Tropical & Sub-Tropical Terrain Suitability Assessment
Queensland's agricultural PTO shaft applications span from the tropical sugar cane and banana plantations of the far north (Cairns, Innisfail, Tully) through the intensive vegetable and grain production of the Darling Downs (Toowoomba, Dalby) to the vast beef cattle stations of the western interior.
In the tropics, high humidity and monsoonal rainfall accelerate corrosion on exposed steel surfaces. The S Series Star PTO shaft's zinc-plated finish provides baseline protection, while our optional powder-coat finish is recommended for operators in Far North Queensland who run equipment year-round in humid conditions. The sealed universal joints are also critical in tropical environments where fungal growth and moisture can rapidly degrade exposed bearing surfaces.
On the Darling Downs, the rich black vertosol soils create extremely high draft and torque loads for rotary tillers and cultivators. The S38 and S9 models are the most popular choices for these applications, offering the torque capacity needed to work through the region's notoriously sticky soils without overloading the PTO shaft's components.
Installation & Maintenance Guide for the S Series Star PTO Shaft
🛠 Pre-Installation Checks
Before fitting a new S Series Star PTO shaft, verify that the tractor PTO stub and implement input shaft are free from damage, burrs, and excessive wear. Check that the spline profile (6-spline or 21-spline) matches the shaft's yoke. Ensure the tractor's PTO shield is in place and functional. Measure the tractor-to-implement distance in both raised and lowered positions to confirm the shaft's telescopic range is adequate.
🔧 Correct Installation Procedure
Slide the splined yoke onto the tractor PTO stub and secure it with the push-pin or collar lock. Connect the implement-end yoke to the implement input shaft. Ensure both universal joints are aligned such that the yoke ears at each end are in the same plane (phased correctly). Incorrect phasing causes severe vibration and premature joint failure. Fit the safety guards and secure the guard chains to stationary mounting points on both the tractor and the implement.
💧 Lubrication Schedule
Grease the universal joint cross bearings (via grease nipples) every 8–10 hours of operation using NLGI Grade 2 lithium-complex grease. Lubricate the star-profile telescopic tube every 20–30 hours by applying grease to the tube's sliding surfaces. In extremely dusty or wet conditions, reduce these intervals by 30%. Always re-grease the entire shaft before storing it for any extended period.
⚠ Safety Reminders
Never operate a PTO shaft without the safety guard in place. Keep all personnel and loose clothing away from the rotating shaft. Always disengage the PTO and shut off the tractor engine before performing any maintenance, adjustment, or inspection on the shaft or connected implement. Ensure the safety guard's anti-rotation chains are securely attached to prevent the guard from rotating with the shaft. Replace any damaged or missing guards immediately.
Troubleshooting Common PTO Shaft Issues
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Excessive vibration at operating speed | Incorrect phasing of yokes; worn cross journals; operating angle too high | Check yoke phasing (ears in same plane). Inspect cross journals for play. Reduce operating angles by adjusting implement hitch height. |
| Clicking or knocking noise from U-joints | Worn needle bearings in cross journal cups | Replace cross journal and bearing kit. Increase greasing frequency to prevent recurrence. |
| Telescopic tube hard to extend/retract | Lack of lubrication; dirt/debris packed in tube lobes; deformed tube | Clean tube surfaces thoroughly. Apply fresh grease to all star-profile lobes. Inspect for dents or deformation. Replace tube if damaged. |
| PTO shaft disconnects from tractor | Worn or broken push-pin/collar lock; worn splines on yoke or PTO stub | Replace push-pin or collar lock. Inspect splines on both yoke and PTO stub. Replace yoke if spline wear exceeds limits. |
| Shaft shortening during operation (telescoping in) | Implement too close to tractor at some point in travel range | Ensure minimum 50 mm tube overlap at all implement positions. Trim shaft length if necessary. Install travel-limiting chains or stops. |
Agricultural PTO Shaft Glossary
PTO (Power Take-Off)
A mechanical output on a tractor that provides rotational power to drive attached implements via a PTO shaft.
Universal Joint (U-Joint / Cardan Joint)
A coupling that allows rotational power to be transmitted at an angle between two shafts that are not aligned on the same axis.
Cross Journal (Bearing Cross)
The central cross-shaped component of a universal joint, with four trunnions that carry needle-roller bearing cups.
Star Profile (Sternprofil)
A six-pointed star-shaped cross-section used for the telescopic tube in S Series PTO shafts, providing superior torsional strength and smooth sliding action.
Splined Yoke
The connection component with internal splines that slides onto the tractor's PTO stub to transmit rotational power into the shaft assembly.
Homokinetic Balance
A condition where both universal joints in a PTO shaft operate at equal and opposite angles, ensuring constant angular velocity and eliminating cyclic speed fluctuations.
Shear Bolt Coupling
A safety device that uses calibrated bolts designed to shear (break) at a specific torque threshold, protecting the PTO shaft and implement from damage due to overload or sudden jamming.
Friction Clutch Coupling
A torque-limiting device using spring-loaded friction plates that slip when torque exceeds a set threshold, providing automatic overload protection without the need to replace shear bolts.
South Australia Broadacre & Vineyard Drive-Train Application Notes
South Australia's agricultural landscape is uniquely divided between the vast broadacre grain production of the Murray-Mallee, Mid North, and Eyre Peninsula regions, and the intensive viticultural and horticultural operations of the Barossa Valley, McLaren Vale, Coonawarra, and Adelaide Hills. Each sector places specific demands on PTO shaft assemblies.
In broadacre grain operations, the S Series Star PTO shaft is most commonly specified for large-square balers (S9 or S10), grain augers (S6), and rotary harrows (S8). The region's characteristically dry, dusty summers during the November–February harvest and sowing windows demand sealed bearing systems that maintain lubrication integrity over extended operating hours. South Australian grain growers report that the S Series' sealed needle-roller bearings consistently outlast competing designs in these conditions, with many achieving 800+ hours between cross-journal replacements.
For vineyard and orchard applications, post-hole diggers, inter-row mowers, and under-vine cultivators are the primary PTO-driven implements. The compact S6 and S7 models provide the ideal torque range for these lighter implements while keeping shaft weight and length manageable in the confined spaces between vine rows. The star-profile tube's smooth telescopic action is particularly valued in vineyard work, where the implement frequently raises and lowers as it navigates undulating terrain and end-of-row headlands.
GBC maintains strong relationships with agricultural machinery dealers throughout South Australia, from the Yorke Peninsula to the South East, ensuring rapid availability of S Series Star PTO shafts and replacement components across the state.
Western Australia Wheatbelt & Pastoral Zone Equipment Compatibility Guide
Western Australia's agricultural sector is anchored by the vast wheatbelt extending from Geraldton in the north through the central grain regions of Merredin, Northam, and Katanning to the south coast around Esperance. This is one of the world's most significant grain-producing regions, and the PTO shaft is a critical component in the harvest chain that moves grain from paddock to silo.
The unique challenge of Western Australian broadacre farming is scale. Properties commonly exceed 5,000 hectares, and individual PTO-driven implements may operate for 1,500+ hours per season. At these utilisation rates, the total cost of ownership of a PTO drive shaft becomes a significant factor. The S Series Star PTO shaft's extended service life, readily available spare parts, and competitive purchase price deliver a measurably lower cost per hour of operation compared to premium European alternatives.
In the pastoral zone north of the wheatbelt, PTO shafts are used on feed-out wagons, hay busters, and portable grain mills on cattle stations. Operating conditions are extreme: high ambient temperatures (often exceeding 40 degrees Celsius during summer), fine red dust, and large distances from parts suppliers. The S Series' robust construction and reliable bearing system are valued attributes in these remote operating environments where an unexpected shaft failure can mean days of downtime waiting for replacement parts.
GBC ships directly to Perth metro and all regional WA locations, with express freight options available for urgent harvest-season requirements.
Star Profile vs. Triangular vs. Lemon Profile — A Technical Comparison for Australian Farmers
Australian farmers frequently ask how the star-profile PTO shaft compares with the more common triangular and lemon-profile designs. Here is a practical engineering comparison based on our experience with all three types in Australian conditions:
| Characteristic | Star Profile (S Series) | Triangular Profile | Lemon Profile |
|---|---|---|---|
| Number of Contact Lobes | 6 | 3 | 2 |
| Torsional Stress Distribution | Excellent | Good | Moderate |
| Telescopic Smoothness Under Load | Very Smooth | Good | Moderate |
| Torque Capacity per Unit Weight | Highest | Medium | Medium-High |
| Wear Life (Telescopic Section) | Longest | Moderate | Good |
| Dust Resistance (Tube Fit) | Very Good | Fair | Good |
| Vibration Level at Speed | Low | Moderate | Low-Moderate |
| Recommended Application Class | Medium to Heavy Duty | Light to Medium Duty | Light to Heavy Duty |
For most Australian agricultural applications above 50 HP, the star-profile PTO shaft offers the best balance of strength, longevity, and smooth operation. The six-lobe geometry means that at any point in the rotation, at least two lobes are always fully engaged, providing more consistent torque transmission than triangular profiles (which can have momentary single-lobe loading) and a more robust contact pattern than lemon profiles.
Triangular profiles remain a viable choice for lighter-duty applications under 50 HP, while lemon profiles are commonly found on European implements and offer good all-round performance. If you are replacing an existing lemon or triangular shaft and wish to upgrade to the star profile, GBC can supply adapter yokes to match your existing implement connection. Contact our engineering team for compatibility advice.
Seasonal Storage & Off-Season Care for PTO Shafts in Australian Climates
Proper off-season storage is critical to maximising the service life of your S Series Star PTO shaft, particularly in Australia where seasonal farming means shafts may sit idle for months between uses.
☀ End-of-Season Procedure
Clean the entire shaft assembly with a pressure washer or brush to remove soil, chaff, and crop residue. Dry thoroughly. Grease all universal joint nipples until fresh grease emerges from the seals. Apply a liberal coating of grease to the entire star-profile telescopic tube. Operate the shaft by hand to work the grease into the tube lobes. This prevents corrosion and ensures the tube will extend freely when next needed.
🌧 Humidity & Coastal Storage
If storing in a coastal location (common in SA, VIC, and QLD coastal regions), apply a light coat of rust-preventive oil or lanolin-based protectant to all exposed steel surfaces in addition to the standard greasing. Store the shaft under cover (not outdoors) to prevent direct rain contact. If stored in an unheated shed, consider wrapping the shaft in oil-paper or VCI (vapour corrosion inhibitor) film for additional protection.
📅 Pre-Season Recommissioning
Before the start of each season, inspect the shaft for visible damage, corrosion, or bearing play. Extend and retract the telescopic tube by hand to verify smooth operation. Re-grease all joints and tube surfaces. Check safety guards for cracks or missing clips. Verify that push-pins or collar locks engage positively. Replace any worn or damaged components before putting the shaft back into service.
📦 Spare Parts to Keep on Hand
Based on our experience supporting Australian farms, we recommend keeping these spare parts in your workshop for each S Series model you operate: one spare cross journal and bearing kit, one spare push-pin or collar lock, one tube of NLGI Grade 2 lithium-complex grease, and one spare safety guard set. This basic kit covers the most common in-field repairs and prevents unnecessary downtime during critical harvest windows.
Ordering Information & Australia-Wide Logistics
GBC has structured its Australian operations to deliver S Series Star PTO shafts quickly and efficiently to customers across the entire continent. Whether you are ordering a single replacement shaft for a small family farm or bulk quantities for a dealership network, our logistics system is designed to minimise lead times and keep your equipment running.
Standard catalogue S Series Star PTO shafts in popular sizes (S6, S7, S8, S9, S10) are typically held in our Australian warehouse for immediate dispatch. Less common models (S32, S36, S38, S42, S48, S50) and custom-length shafts are manufactured to order, with typical production and shipping lead times of 2–4 weeks for standard configurations and 4–6 weeks for fully custom specifications.
We ship via major national freight carriers (TNT, StarTrack, Toll) with tracking provided on all consignments. Metropolitan deliveries to Sydney, Melbourne, Brisbane, Adelaide, and Perth typically arrive within 2–5 business days. Regional and remote locations throughout New South Wales, Victoria, Queensland, South Australia, and Western Australia are serviced by regional courier partners, with delivery times varying from 3–10 business days depending on location.
For urgent harvest-season requirements, we offer express air-freight options to all major Australian airports. Contact our sales team at sales@australia-drive.com to arrange expedited shipping.
All orders include a detailed packing list, certificate of conformity, and assembly instructions. Material test certificates and individual batch traceability reports are available upon request for customers with ISO or quality management system documentation requirements. Trade and dealer accounts benefit from preferential pricing tiers, extended payment terms, and priority access to warehouse stock. Contact us to establish a trade account for your agricultural dealership or contracting business.
Ready to Order Your S Series Star PTO Shaft?
Contact GBC today for expert selection assistance, competitive pricing, and fast delivery across Australia. Standard and custom PTO shafts available — we welcome your drawings and samples for bespoke manufacturing.
GBC — General Bearing Company Pty Ltd. (Ever-Power Group Australia Agency) • sales@australia-drive.com
The S Series Star PTO shaft from GBC (General Bearing Company Pty Ltd.) is a professional-grade tractor PTO shaft built for the demanding conditions of Australian broadacre farming, horticulture, and livestock operations. Its distinctive star-profile telescopic tube delivers exceptional torsional rigidity while allowing smooth length adjustment under load. Each shaft is assembled with high-capacity universal joints, precision-machined splined yokes, and heat-treated cross journals to ensure maximum service life even in dusty, high-temperature paddock environments. This agricultural PTO shaft is ideally suited for rotary cutters, hay balers, feed mixers, grain augers, slashers, post-hole diggers, and manure spreaders. Whether you operate a compact utility tractor or a 200+ HP row-crop machine, the S Series provides the torque capacity, angular flexibility, and durability Australian farmers and contractors demand. Available for prompt delivery across all Australian states and territories from our distribution centre.
