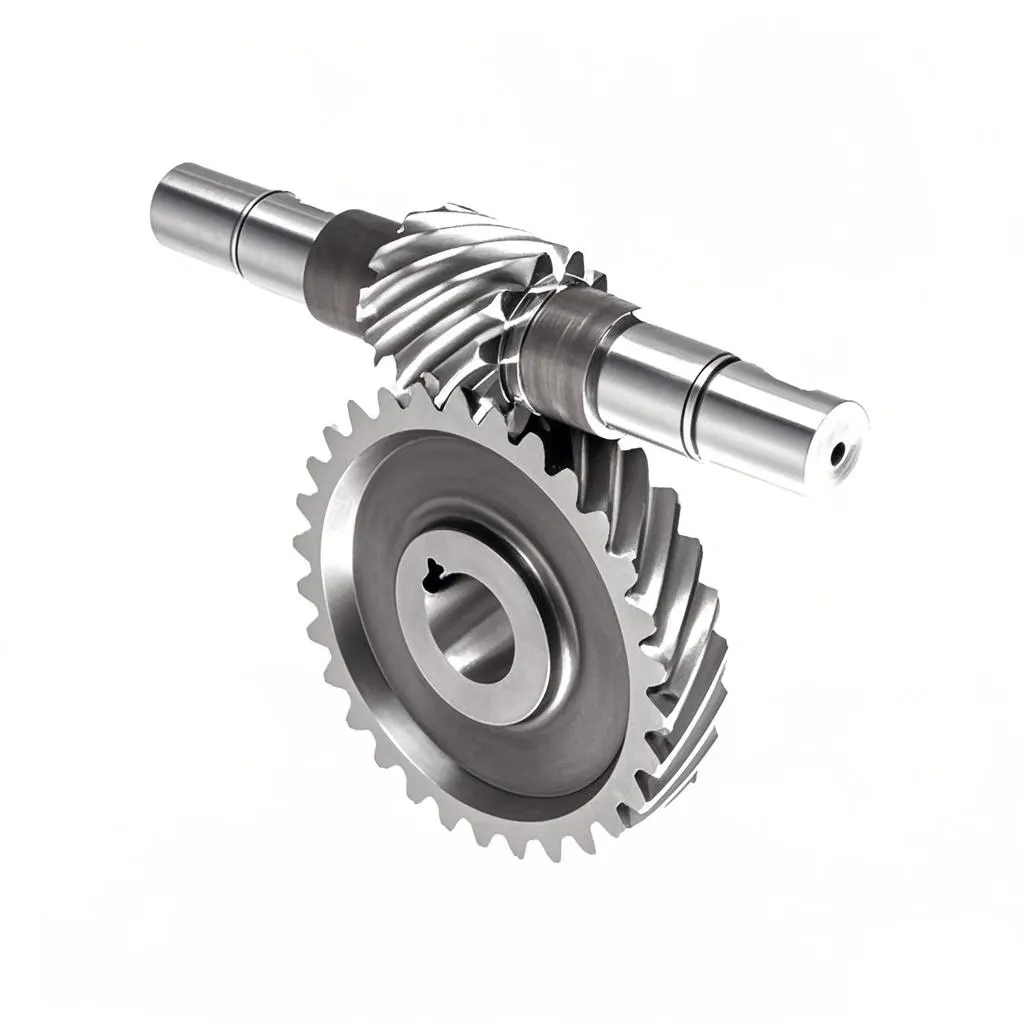

Stainless Steel Worm Gear
The stainless steel worm gear is a crucial component in various mechanical systems, designed to provide efficient power transmission and torque conversion. Made from high-quality stainless steel, this durable material ensures resistance to corrosion and wear, making it ideal for demanding applications. The stainless worm gear functions by meshing with a worm wheel, allowing for smooth operation and increased mechanical advantage. Whether used in a steel worm gear set or standalone, this product exemplifies reliability and strength in engineering solutions.
Specifications of Stainless Steel Worm Gear
| Number | Number of Teeth | Shaft Bore Dia. AH7 (1mm Increment) | Twisting Direction | B | C | D | E | F | G | ||
| Type | Module | Straight Bore Straight Bore+Tap | Keyway+Tap | ||||||||
| Straight Bore
Straight Bore+Tap Keyway+Tap |
1.0 | 20 | 6 | 8 | L(Left)
R(Right) |
17 | 20 | 22 | 8 | 10 | 18 |
| 22~ 28 | 8 | 8~13 | 18~20 | 22~28 | 24~30 | ||||||
| 30~48 | 10 | 10~17 | 25~30 | 30~48 | 32~50 | ||||||
| 50~70 | 12 | 12~17 | 35~40 | 50~70 | 52~72 | ||||||
| 80~100 | 15 | 15~30 | 50 | 80~100 | 82~102 | ||||||
| 1.5 | 20~26 | 12 | 12~17 | 24~32 | 30~39 | 33~42 | 12 | 12 | 24 | ||
| 28~44 | 15 | 15~30 | 36~50 | 42~67.5 | 45~70.5 | ||||||
| 45~52 | 18 | 18~40 | 50~60 | 72~78 | 75~81 | ||||||
| 60~100 | 20 | 20-50 | 60~70 | 90~150 | 93·153 | ||||||
| 2.0 | 15~18 | 12 | 12~17 | 24~30 | 30~36 | 34~40 | 16 | 13 | 29 | ||
| 20~28 | 15 | 15·22 | 32~45 | 40~56 | 44~60 | ||||||
| 30~36 | 18 | 18~40 | 50 | 60~72 | 64~76 | ||||||
| 40~48 | 20 | 20~44 | 60 | 80~96 | 84~100 | ||||||
| 50~100 | 25 | 25~60 | 60~100 | 100~200 | 104~204 | ||||||
| 2.5 | 15~18 | 15 | 15~30 | 30~38 | 37.5~45 | 42.5~50 | 20 | 14 | 34 | ||
| 20~24 | 18 | 18~40 | 40~48 | 50~60 | 55~65 | ||||||
| 25~36 | 20 | 20~50 | 50~70 | 62.5~90 | 67.5~95 | ||||||
| 40~60 | 25 | 25~70 | 70~80 | 90~150 | 95~155 | ||||||
| 3.0 | 15~18 | 18 | 18~22 | 36~40 | 45~54 | 51~60 | 25 | 16 | 4 | ||
Features and Advantages of Stainless Steel Worm Gear
Stainless steel worm gears offer numerous benefits that make them a preferred choice in various applications:
- Corrosion Resistance: The use of stainless steel ensures durability and resistance to rust, making it ideal for harsh environments.
- High Efficiency: Stainless steel worm gear provides smooth operation with minimal friction, enhancing the overall efficiency of machinery.
- Versatility: These gears can be used in a wide range of applications, from automotive to industrial machinery, meeting diverse requirements.
- Strong Load Capacity: The robust design of stainless worm gear allows for handling heavy loads, ensuring reliability.
- Reduced Noise Levels: Steel worm gear operates quietly, contributing to a bet
