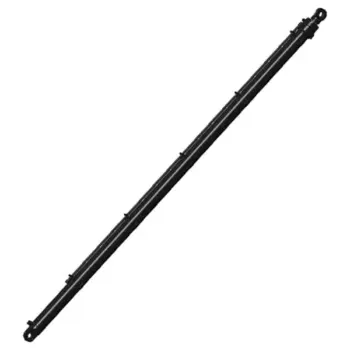

Telescopic Cylinder for Reach Stacker
The telescopic cylinder is a key component of the stacker, which is mainly used to control the lifting and stretching of the fork arm. It consists of an inner cylinder and an outer cylinder, and realizes power conversion through a hydraulic system, which can effectively lift and support heavy objects. The telescopic cylinder has compact structure and flexible operation, and is widely used in logistics, warehousing and other fields to improve handling efficiency and operation safety.
Reach Stacker Telescopic Cylinder Specification
| Reach Stacker Telescopic Cylinder | |
| Application | Realize the linear telescopic movement of the boom |
| Specifications | Bore diameter:200mm-220mm Rod diameter:150mm-180mm Stroke≤8000mm |
| Pressure | Maximum 30MPa |
A Reach Stacker Telescopic Cylinder is a type of hydraulic cylinder that facilitates the linear telescopic movement of the boom of a reach stacker. It operates as a double-acting cylinder, allowing it to extend and retract in both directions. The cylinder comprises two or more concentric tubes that slide within each other. The inner tube is attached to the piston, which connects to the boom, while the outer tube is affixed to the base of the cylinder.
When hydraulic fluid is pumped into the cylinder, it exerts pressure on the piston, prompting the inner tube to extend, thereby extending the boom of the reach stacker. Conversely, when the hydraulic fluid is released, the piston retracts, leading the inner tube to contract and the boom to retract. Reach Stacker Telescopic Cylinders are typically constructed from high-strength steel to endure the demanding conditions of industrial applications. They feature various seals to prevent hydraulic fluid leakage.
Advantages of Reach Stacker Telescopic Cylinders
Reach Stacker Telescopic Cylinders present several advantages compared to other hydraulic cylinder types, such as:
- Compact size: These cylinders are generally smaller and lighter, making them suitable for applications with limited space.
- Long stroke: They offer a long stroke essential for the full extension of the reach stacker's boom.
- High force: These cylinders can generate significant force required for lifting and moving heavy containers.
- Durability: They are built to withstand the rigors of industrial environments.
Applications of Reach Stacker Telescopic Cylinders
Reach Stacker Telescopic Cylinders find applications in various fields, including:
- Reach stackers: Used for lifting and moving heavy containers in ports and industrial settings.
- Forklifts: Employed in warehouses for lifting and moving materials.
- Dump trucks: Utilized for transporting and dumping loose materials.
- Construction equipment: Also applied in cranes and excavators.
Offshore Hydraulic Cylinder Supplier - GBC
At GBC, we take great pride in our hydraulic cylinders. Our dedication to excellence, state-of-the-art manufacturing facilities, and unwavering commitment to quality assurance distinguish us in the industry.
Unparalleled Production Expertise: Our production capabilities are unmatched. Utilizing cutting-edge technology and operated by a team of skilled professionals, our manufacturing facilities are optimized for precision and efficiency. We continually invest in research and development to ensure that our offshore hydraulic cylinders not only meet but exceed the evolving demands of our customers.
Unrivaled Quality Assurance: Quality is the bedrock of our business at GBC. Every stage of production undergoes rigorous testing and inspection to ensure our hydraulic cylinders adhere to the highest industry standards. Our commitment to quality is deeply ingrained in our company culture.
Dependable Solutions for Offshore Applications: Our hydraulic cylinders are purpose-built to withstand the most challenging offshore environments. Whether it's subsea exploration or marine applications, you can rely on our products to perform consistently and reliably, contributing to the success of your operations.
Choose GBC for offshore hydraulic cylinders that exemplify innovation, precision, and durability. With us, you not only get exceptional products but also a partner dedicated to your success. Join the countless satisfied customers who have made us their first choice in offshore hydraulic solutions.
