Track Drive for Crawler Harvesters
The Track Drive Planetary Gearbox for Crawler Harvesters is designed to efficiently transfer power from the engine to the tracks, enabling smooth movement across various terrains. Its robust construction ensures durability, while the planetary gear design optimizes torque and speed, enhancing the overall performance of crawler harvesters in agricultural operations.

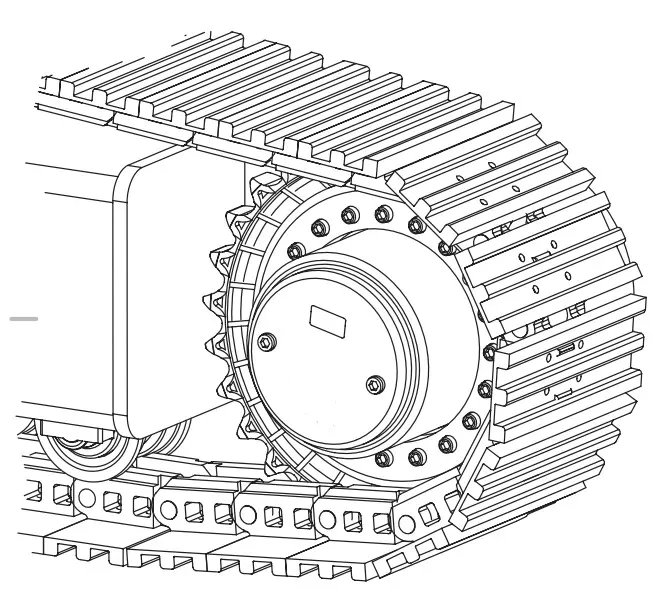

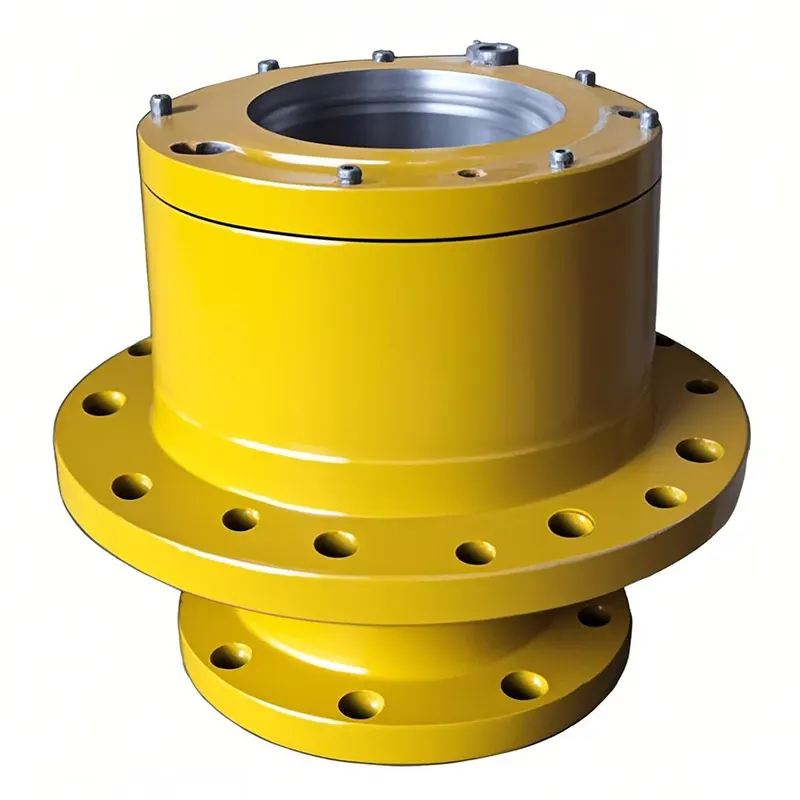

Track Drive Planetary Gearbox for Crawler Harvesters
The Track Drive Planetary Gearbox is designed for enhanced power transmission and efficiency in crawler harvesters, ensuring reliable performance in challenging agricultural environments.
| Feature | Description |
|---|---|
| Output Torque Range | 1000-450000 N¡¤m |
| Gear Ratios | i = 5.3 - 500 |
| Support | The gearbox has rotating housing flanges to fit tracks |
| Applicable Motors | Axial piston hydraulic motors, hydraulic orbit motors, or others |
| Hydraulic Motor Options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulic released parking brake |
| High Torque and Load Capacities | Designed to carry equipment over the roughest and steepest terrain |
| Motor Mounting | Designed to allow mounting of plug-in motors |
| Compact Design | Integral multi-disc parking brakes, while still keeping the drive compact |
| Material | Steel structure |
| Easy Maintenance | Filling and draining openings are reasonably located for easy reach |
| Front Mechanical Seal | Designed specifically for earth-moving machines |
| Compatibility | Technical data and installation dimensions of EP400T Series gearbox are the same as those of Rexroth GFT¡T Series and Bonfiglioli 700C Series, allowing interchangeability |
| Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m.) |
| EP400T1 | 1300 | 6.09 | 1000 | 130 |
| EP401T1 | 2000 | 6.2 | 1000 | 270 |
| EP402T2 | 5000 | 12.4-37.1 | 3500 | - |
| EP403T2 | 7000 | 15.4-40 | 3500 | 270 |
| EP405T | 10000 | 20-80 | 3500 | 270 |
| EP405.4T | 11000 | 26-57 | 3500 | 280 |
| EP406AT | 17000 | 23-220 | 3500 | 430 |
| EP406T | 18000 | 28-140 | 3500 | 430 |
| EP406BT3 | 24000 | 63-136 | 3500 | 430 |
| EP407AT | 26000 | 38-136 | 3500 | 430-530 |
| EP407T3 | 36000 | 63-136 | 3500 | 530 |
| EP410T3 | 50000 | 62-177 | 3500 | 530 |
| EP413T3 | 60000 | 86-172 | 3500 | 610 |
| EP414T3 | 80000 | 76-186 | 3500 | 1200 |
| EP415T3 | 110000 | 81-215 | 3000 | 1200 |
| EP41 |
