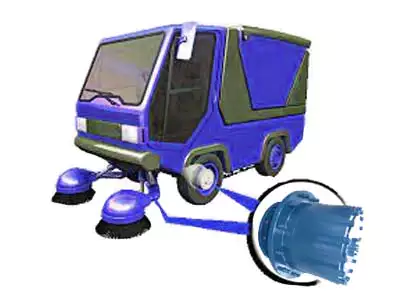

Wheel Drive Planetary Gearbox for Street Sweeper Truck
The Wheel Drive Planetary Gearbox for Street Sweeper Truck is a specialized transmission system designed to enhance the efficiency and performance of street cleaning vehicles. It optimizes power delivery to the wheels, ensuring smooth operation on various terrains, while enabling effective debris collection and enhanced maneuverability in urban environments.
Wheel Drive Planetary Gearbox for Street Sweeper Truck
The Wheel Drive Planetary Gearbox is designed for optimal performance in street sweeper trucks, providing robust torque and efficiency. Its compact design ensures easy integration while enhancing durability and minimizing maintenance needs.
Specifications
- Input Power: Up to 100 kW
- Output Torque: 500 Nm
- Gear Ratio: 1:10 to 1:20
- Weight: 50 kg
- Operating Temperature: -20°C to 60°C
- Efficiency: 95%
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36 |
