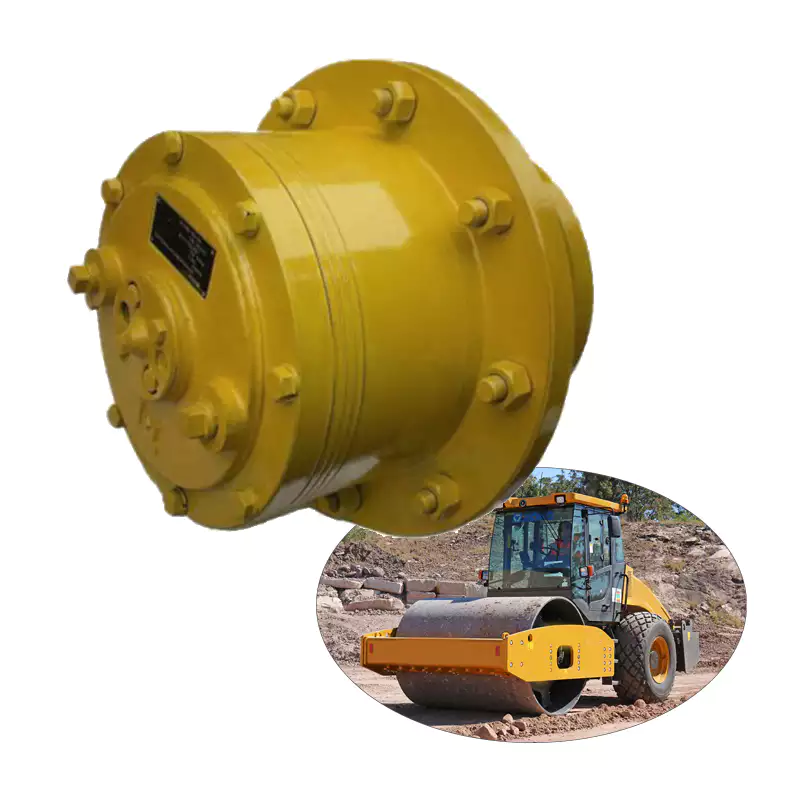

Wheel Drive Planetary Gearbox Reducer for Rollers
The Wheel Drive Planetary Gearbox Reducer for Rollers is designed to enhance the torque and efficiency of roller systems. Its compact and robust construction allows for smooth operation and precise control, making it ideal for applications in industrial machinery, conveyor systems, and automated equipment where reliable power transmission is essential.
Wheel Drive Planetary Gearbox Reducer for Rollers
The Wheel Drive Planetary Gearbox Reducer for Rollers is designed to provide high torque and efficiency, making it ideal for various roller applications. Its compact design and robust construction ensure durability and reliable performance under demanding conditions.
Specifications
- Gear Ratio: Customizable
- Max Torque: Up to 1000 Nm
- Input Speed: 3000 RPM
- Operating Temperature: -20°C to 60°C
- Material: High-strength steel
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 |
