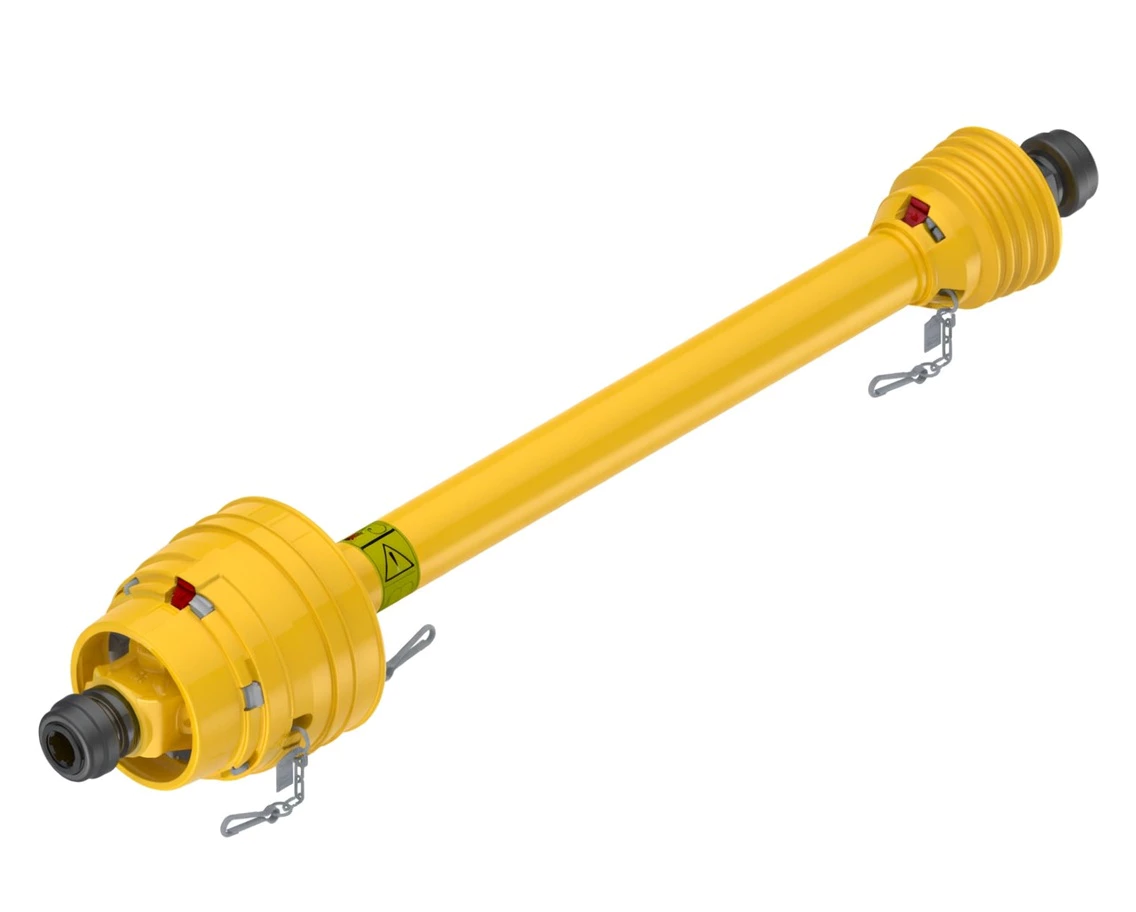

Wide Angle PTO Shaft

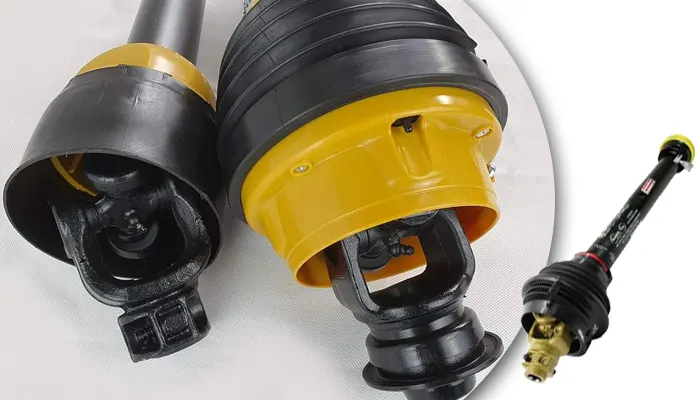

Product Overview: Wide Angle PTO Shaft

The Wide Angle PTO Shaft is a constant-velocity power take-off driveline that transmits rotary power from a tractor’s PTO output to attached agricultural implements at operating angles far exceeding those of standard Hooke-type universal joints. Where a conventional PTO drive shaft is limited to approximately 25–30 degrees of articulation before incurring damaging speed fluctuations, the wide angle design maintains smooth, constant-velocity output at angles up to 80 degrees. This capability is critical in Australian farming, where hilly terrain in regions such as the Adelaide Hills, the Atherton Tablelands, and the Yarra Valley regularly demands extreme driveline deflection during routine fieldwork.

Suitable Industries at a Glance

Core Advantage Summary

Compared to standard PTO shafts that rely on two single-plane Hooke joints, the wide angle PTO shaft employs a constant-velocity (CV) joint architecture that cancels out the inherent speed variation of traditional universal joints. The result: zero cyclic vibration, reduced component fatigue, extended implement gearbox life, and safer operation for the driver. As an experienced PTO shaft manufacturer and PTO shaft supplier serving farms from Perth to Brisbane, GBC engineers each wide angle driveline assembly to meet the demanding duty cycles of Australian agriculture.

Technical Specifications — Wide Angle PTO Shaft Series

All dimensional data below is sourced directly from our engineering catalogue. Cross journal sizes, housing dimensions, and compatible yoke/guard references are listed per series. Use horizontal scroll on mobile devices to view the full table.

Dimension Key: A = overall housing length; B = centre body width; C = outer bell diameter; D = inner bell diameter. Yoke/Guard column (E) indicates compatible coupling yokes and safety guard assemblies. Shield/Cap column (F) lists matched protective cap and shield part numbers. All measurements in millimetres. Custom lengths and spline profiles available on request.

General Performance Envelope

How a Wide Angle PTO Shaft Works

A standard PTO driveline shaft uses two Hooke-type universal joints (single-plane joints) connected by a telescoping tube. As the operating angle increases, each Hooke joint introduces a sinusoidal speed fluctuation — the output speed accelerates and decelerates twice per revolution. When the angle exceeds roughly 25–30 degrees, these oscillations become severe enough to generate destructive vibration, premature bearing wear, and excessive heat in both the driveline and the connected implement gearbox.

The wide angle PTO shaft solves this with a constant-velocity (CV) joint mechanism. Internally, a set of precisely machined ball races and a spherical cage guide power-transmitting elements through complementary arcs. This geometry ensures that input and output angular velocities are always equal regardless of articulation — hence "constant velocity." The result is smooth, vibration-free torque delivery at angles up to 80 degrees.

Structural Composition

Every wide angle PTO shaft assembly comprises the following key sub-assemblies:

Core Advantages of Our Wide Angle PTO Shaft

Structure & Material Engineering

Every component in the GBC Wide Angle PTO Shaft is selected and processed to survive the punishing operating environment of Australian agriculture — from the red dust of outback Queensland to the wet, acidic soils of Gippsland dairy country. Below is an in-depth look at the materials and manufacturing processes behind each critical component.

CV Joint Housing

The constant-velocity housing is hot-forged from medium-carbon alloy steel (typically equivalent to AISI 4140 or similar), then CNC-machined to close tolerances on the ball race tracks. After machining, the housing is induction-hardened on the race surfaces to achieve a surface hardness of 58–62 HRC while the core remains tough and ductile (28–32 HRC). This combination resists wear on the tracks while absorbing shock loads through the body. The outer surface receives a phosphate coating followed by powder-coat paint for corrosion resistance in humid coastal environments.

Cross Journal Bearings

Cross journals are forged from high-carbon chromium bearing steel (GCr15 / AISI 52100). The journals are precision-ground and super-finished to Ra 0.2 micrometres. Needle rollers within each bearing cup are Grade 3 certified and held in a cage to prevent roller skew at high speeds. Multi-lip seals with a secondary dust lip exclude the fine silica dust prevalent in Australian broadacre and mining-adjacent farmland. Grease channels are drilled through the centre of the cross, allowing re-lubrication from a single grease nipple.

Profile Tubes

Inner and outer telescoping tubes are cold-drawn from seamless carbon steel tubing and then internally broached to the desired profile (lemon, triangular, star, or spline). Wall thickness varies from 3.0 mm on lighter 2WA series up to 5.5 mm on the heavy-duty 42WA series. External surfaces are zinc-plated (minimum 12 microns) for corrosion protection, and a nylon liner is pressed into the outer tube to reduce sliding friction, eliminate metal-to-metal galling, and dampen noise. Under proper lubrication, expected tube life exceeds 3,000 operating hours in typical Australian grain farming duty cycles.

Yokes & Connection Hardware

Yokes are drop-forged from C45 medium-carbon steel and normalised for uniform grain structure. Tractor-side yokes are available in both 1-3/8" 6-spline (540 rpm) and 1-3/4" 20-spline (1000 rpm) configurations. Implement-side yokes feature either push-pin quick-disconnect or bolt-on flange connections. All mating surfaces are induction-hardened, and snap-ring grooves are machined after hardening to prevent brittle fracture during bearing installation.

Typical Application Scenarios

The wide angle PTO shaft is not a niche product — it is a universal upgrade for any implement driveline where operating angles, terrain, or three-point-hitch geometry exceed the limits of standard PTO shafts. Here are the most common applications across Australian agriculture:

Wide Angle PTO Shaft Selection Guide

Selecting the correct wide angle PTO shaft requires matching several critical parameters to your tractor and implement combination. Specifying incorrectly risks premature failure, safety hazards, or poor implement performance. Use the following checklist when requesting a quote from our engineering team.

Step 1: Determine Tractor PTO Output

Identify the PTO speed (540 rpm or 1000 rpm) and the spline profile of your tractor’s PTO stub shaft. The two most common profiles in the Australian market are 1-3/8" 6-spline (540 rpm standard) and 1-3/4" 20-spline (1000 rpm standard). Some European-specification tractors use 1-3/4" 6-spline for 540E (economy PTO) mode.

Step 2: Measure the Closed Length (CLa)

With the tractor and implement connected and the three-point hitch at transport height, measure the distance between the tractor PTO stub face and the implement input shaft face. This is your minimum operating length. The PTO shaft must telescope to be shorter than this distance to avoid "bottoming out" and bending when the hitch is raised.

Step 3: Determine the Maximum Extended Length

Lower the hitch to maximum working depth or trail the implement at full drawbar extension. Measure again. The shaft must have sufficient telescopic travel to reach this length with at least 75 mm of overlap remaining on the profile tubes. If overlap falls below this threshold, the tubes may disengage under vibration.

Step 4: Calculate Torque Requirement

Take the engine horsepower transmitted to the PTO (typically 80–90% of rated engine HP) and convert: Torque (Nm) = (HP x 745.7) / (2 x pi x rpm / 60). Select the WA series whose rated torque capacity exceeds your calculated value by at least 25% to provide a fatigue safety margin.

Step 5: Select Overload Protection

Choose the torque limiter type based on the implement’s sensitivity: shear bolt (lowest cost, manual reset) for occasional overloads; friction clutch (automatic reset, smooth engagement) for implements with frequent transient loads like feed mixers; ratchet clutch for implements requiring instant disconnect, such as post-hole diggers or stump grinders.

Step 6: Confirm Safety Guard Compatibility

Australian workplace health and safety regulations require that all PTO drivelines be fitted with guards that cover the full rotating length. Confirm that the selected E-column guard assembly (refer to the specifications table above) physically clears the tractor drawbar and implement tongue. For tight installations, we offer compact cone guards specifically designed for short drivelines.

Brand Compatibility & Cross-Reference

Disclaimer: Brand names referenced below are the property of their respective owners. They are mentioned solely to assist customers in identifying compatible replacement parts. GBC is not affiliated with, authorised by, or endorsed by these brands.

Our Wide Angle PTO Shaft is engineered as a direct-fit replacement of wide angle drivelines supplied by major OEM and aftermarket manufacturers. The following cross-reference guide will help you identify the correct GBC series for your existing equipment:

Spare Parts & Accessories

All components of our wide angle PTO shaft are individually replaceable. We stock cross journal kits, yoke assemblies, safety guard sets, torque limiter kits, profile tube pairs, CV housing rebuild kits, and grease nipple adapters. For implement-side connections, we carry a full range of spline adapters, flange yokes, and quick-disconnect coupling yokes to suit virtually any tractor or implement manufactured in the last 40 years.

Quality Certification & Service Commitment

Our Service Promise

GBC backs every wide angle PTO shaft with a 12-month warranty against manufacturing defects in materials and workmanship. Our technical support team — staffed by engineers with real-world farm machinery experience — is available Monday to Friday via phone (+61 3 9070 7991) and email (sales@australia-drive.com). For time-sensitive harvest breakdowns, we offer expedited dispatch with next-business-day delivery to major metro areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and 2–3 business days to regional centres.

Frequently Asked Questions

Engineer’s Field Notes: Australian Case Studies

Over the past two decades we have fitted wide angle PTO shafts to hundreds of tractor-implement combinations across every Australian state. Below are five representative field cases from our project archives, each highlighting a distinct challenge and the engineering rationale behind our solution.

Customer Reviews

Extreme Working Condition Studies Across Australia

New South Wales — Varied Terrain Adaptation

NSW presents perhaps the widest range of operating conditions of any Australian state. From the flat black-soil plains of the Liverpool Plains to the steep, rocky slopes of the New England Tablelands, PTO driveline requirements vary enormously within a single day’s drive. Wide angle PTO shafts are the de facto standard for implement contractors working across multiple properties in the state because they eliminate the need to carry different driveline configurations for flat versus hilly terrain. In the irrigated Murrumbidgee Irrigation Area, the combination of high-moisture soil conditions, heavy clay, and frequent turning on small pivots makes the wide angle shaft’s extreme articulation capacity an operational necessity for rotary ditchers and border-check mowers.

Victoria — Dairy Belt Intensive Operations

Victoria’s western and southern dairy belts — from Colac through Warrnambool to Hamilton — are characterised by small paddocks, tight laneways, and intensive daily implement use. Feed mixers, slurry tankers, and pasture renovators all operate on PTO power, often at sharp angles when negotiating narrow farm tracks and turning into feed pads. The wet, mild climate means PTO shafts are exposed to moisture year-round, making the sealed CV housing and multi-lip bearing seals of our wide angle range particularly valuable. For the grain and pulse cropping zone in the Wimmera and Mallee, our larger 32WA and 36WA series provide reliable high-torque transfer to air seeders and disc cultivators across gently undulating country.

Queensland — Subtropical Broadacre and Sugar Cane

Queensland’s agricultural diversity spans from intensive sugar cane production along the coastal strip (Bundaberg, Mackay, Burdekin) to massive broadacre grain operations on the Darling Downs and Central Highlands. Sugar cane farming is particularly demanding on PTO drivelines: cane trash incorporators, inter-row cultivators, and stool shaving machines all operate in extreme heat, with abrasive crop residue and fine volcanic soil particles accelerating bearing wear. Our wide angle PTO shafts for the cane industry are specified with upgraded multi-lip seals and stainless steel grease nipples to withstand this environment. On the Darling Downs, the emphasis shifts to high-torque reliability for large seeders, headers, and hay balers operating continuously during the short planting and harvest windows.

Related Products

Wide Angle PTO Shaft Gallery

Partner with GBC — Your Australian PTO Shaft Manufacturer & Supplier

General Bearing Company Pty Ltd. (Ever-Power Group Australia Agency) is a full-spectrum power transmission components manufacturer and distributor serving farms, contractors, and OEMs across Australia. Our product range extends well beyond wide angle PTO shafts to include standard PTO drivelines, agricultural gearboxes, hydraulic cylinders, industrial chains, sprockets, couplings, pulleys, and bearing assemblies.

Our manufacturing facilities operate under ISO 9001:2015 quality management with dedicated CNC machining centres, heat treatment lines, and a fully equipped testing laboratory. Every wide angle PTO shaft undergoes dynamic balancing, torque proof-testing, and dimensional inspection before dispatch.

We are not limited to catalogue-standard products. GBC welcomes custom orders — send us your drawings, samples, or specifications and our engineering team will develop a bespoke PTO shaft solution tailored to your exact tractor-implement combination. Whether you need a non-standard length, unusual spline profile, special torque limiter calibration, or a complete OEM driveline programme, we have the capability and the experience to deliver.
