Winch Drive for Excavators
The Winch Drive Planetary Gearbox for Excavators is a vital component designed to enhance the efficiency of winch systems. It features a compact design that allows for high torque transmission and precise control. This gearbox ensures smooth operation and improved load handling, making it essential for heavy lifting and excavation tasks.

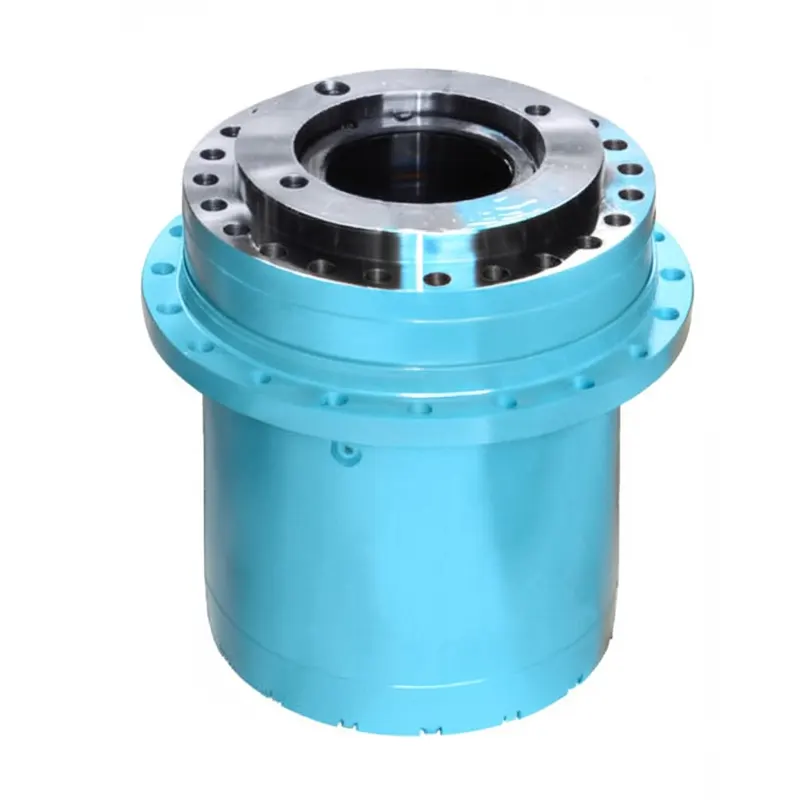

Winch Drive Planetary Gearbox for Excavators
The Winch Drive Planetary Gearbox is designed to provide high torque and efficient power transmission for excavators, ensuring optimal performance in heavy-duty applications. Its compact design and durable construction enhance reliability and longevity, making it an essential component for excavation tasks.
Specifications
| Specification | Details |
|---|---|
| Output torque range | 1000-280000 N.m |
| Gear ratios | i=5.3-400 |
| Support | The gearbox has rotating housing flanges to fit winch |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve on request |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulic released parking brake on request |
| Performance figures | Refer to FEM standards, class M5 (T5-L2) for output max. speeds of 25 rpm |
| Compatibility | Technical data and installation dimensions of the EP400W Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 800 Series, so these three can be used interchangeably |
| Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP400W1 | 870 | 6.09 | 1000 | 130 |
| EP401W1 | 1300 | 6.2 | 1000 | 270 |
| EP402W2 | 4000 | 12.4-37.1 | 3500 | - |
| EP403W2 | 4000 | 15.4-40 | 3500 | 270 |
| EP405W | 7000 | 20-80 | 3500 | 270 |
| EP405.4W | 5500 | 26-57 | 3500 | 280 |
| EP406AW | 12500 | 23-220 | 3500 | 430 |
| EP406W | 13000 | 28-140 | 3500 | 430 |
| EP406BW3 | 17500 | 63-136 | 3500 | 430 |
| EP407AW | 18000 | 38-136 | 3500 | 430-530 |
| EP407W3 | 26000 | 63-136 | 3500 | 530 |
| EP410W3 | 37500 | 62-177 | 3500 | 530 |
| EP413W3 | 42500 | 86-172 | 3500 | 610 |
| EP414W3 | 67000 | 76-186 | 3500 | 1200 |
| EP415W3 | 100000 | 81-215 | 3000 | 1200 |
| EP416W3 | 140000 | 87-255 | 3000 | 2000 |
| EP417W3 | 200000 | 123-365 | 3000 | 2000 |
| EP419W3 | 275000 | 161-306 | 2500 | 3000 |
How does the Winch Drive Planetary Gearbox for Excavators Work?
The Winch Drive Planetary Gearbox for Excavators operates through a series of concentric gears that work together to transmit power efficiently. The basic structure includes a sun gear, planet gears, and a ring gear, allowing for high torque and compact design. As the motor drives the sun gear, the planet gears rotate around it, engaging with the ring gear. This planetary arrangement provides a mechanical advantage, resulting in controlled speed and increased load capacity. The gearbox
