Z10816/Z11544 Ag Chain Sprocket

Z10816/Z11544 Chain Sprocket for John Deere Combine

Z10816/Z11544 Chain Sprocket is compatible with a variety of John Deere combine harvesters, including models such as 1052, 1055, 1065, 1068H, 1072, 1075, 1085, 1133, 1144, 952, 955, 965, 965H, 968H, 975, and 985. This versatile sprocket ensures optimal performance and reliability, making it an essential component for maintaining the efficiency of your harvesting equipment.

SKU: 71e5548ccd86 Categories: , Tags: , , , , , , ,
Inquiry Now

Parameters of Z11544 Agricultural Chain Sprocket

Weight , W kg 2.54
Inner diameter , d mm 40
Outer diameter , D mm 190
Number of teeth , Z 14
Number of mounting holes , N 2
Pitch , p mm 38.1
Height , H mm 58
Thread , M М10
Key slot mm 49х10х5

Key Features of Z10816/Z11544 Chain Sprocket for John Deere Combine

  • Designed as a replacement part specifically for John Deere combines.
  • Essential for torque transfer in chain drives.
  • Features a robust construction with precision-engineered dimensions for optimal performance.
  • Includes 14 teeth and a pitch of 38.1 mm, ensuring compatibility with various models.
  • Single-row sprocket design for efficient power transmission.

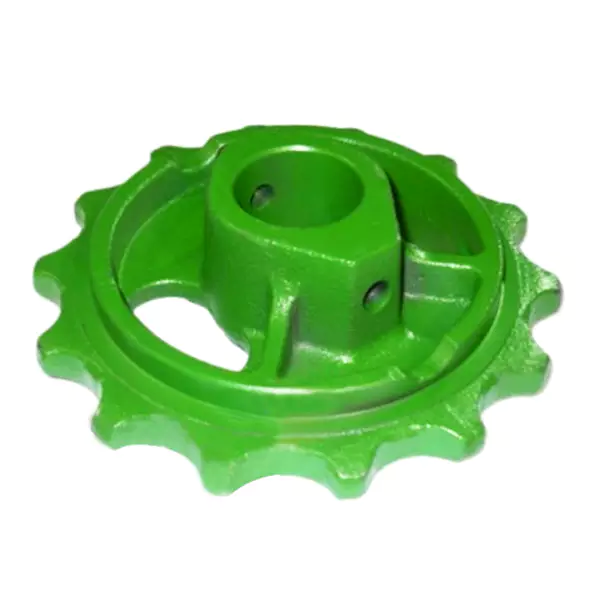

Z10816/Z11544 Chain Sprocket

Installation Steps for Z10816/Z11544 Chain Sprocket For John Deere Combine

  1. Ensure the combine is powered off and secured before beginning the installation.
  2. Remove the old sprocket by unscrewing the mounting bolts carefully.
  3. Align the new Z10816/Z11544 chain sprocket with the shaft, ensuring the key slot matches with the shaft key.
  4. Securely attach the sprocket using the mounting holes and bolts, ensuring proper torque specifications are followed.
  5. Check the alignment and tension of the chain to avoid premature wear or damage.
  6. Perform a test run to ensure proper operation before full-scale use.

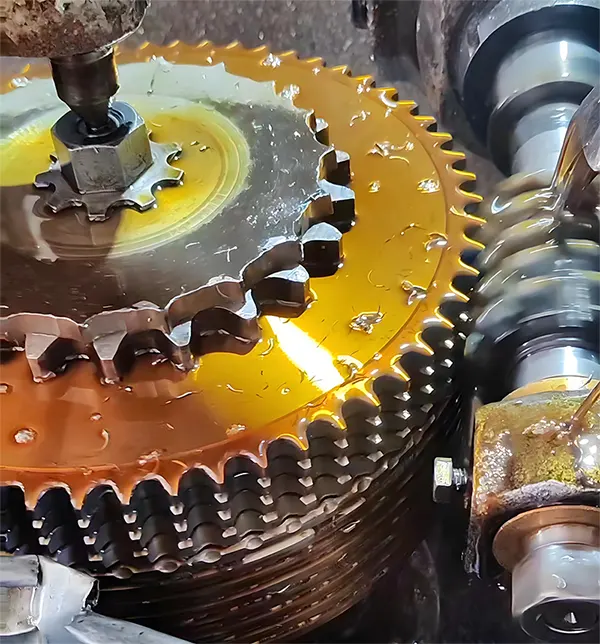

Manufacturing Process of Z10816/Z11544 Chain Sprocket for John Deere Combine

The manufacturing process for the Z10816/Z11544 chain sprocket involves several critical steps. First, high-quality raw materials are selected and prepared. Next, precision machining
