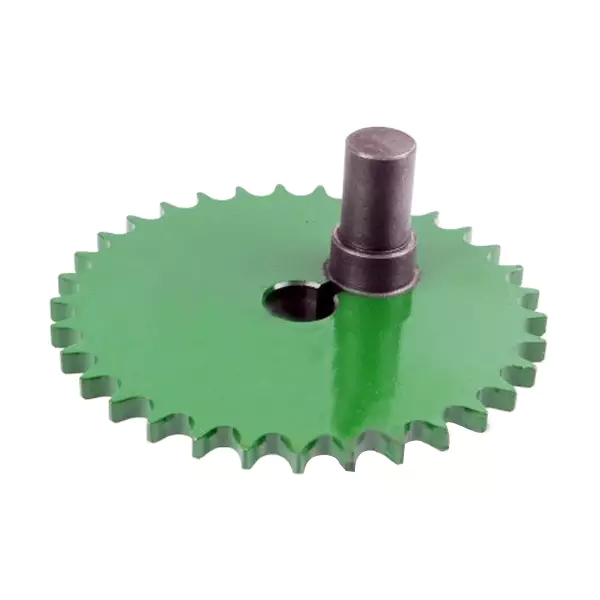

Z11690 Straw Walker Sprocket For John Deere Combine
The Z11690 Straw Walker Agricultural Sprocket is specifically designed for various John Deere combine harvesters, including models such as the 1166, 1166HY/4, 1169, 1169HY/4, 1174, 1174HY/4, 1177, 1177HY/4, 1188, and 1188HY/4. It is also compatible with the 4435 and 4435HYDRO models, along with the C100-ORIGIN, C110, W210, and C230 editions made in China, ensuring optimal performance and durability for your harvesting needs.
Parameters Of Z11690 Straw Walker Sprocket
| Weight , W | kg | 3.5 |
|---|---|---|
| Inner diameter , d | mm | 29 |
| Number of teeth , Z | 33 | |
| Mounting holes diameter , Dm | mm | 10 |
| Height , H | mm | 105.8 |
| Gear diameter , Dg | mm | 210 |
| Diameter of shaft , Ds | mm | 32.5 |
| Key slot | mm | 4x7 |
Features of Z11690 Straw Walker Sprocket for John Deere Combine
- Compatible with various John Deere combine harvesters.
- Constructed from durable steel or cast iron for enhanced longevity.
- Features a complex spatial design for efficient torque transmission.
- Special coating is applied to extend the product's operational life.
- Designed for easy replacement of worn or damaged parts.
Installation Steps for Z11690 Straw Walker Sprocket
- Ensure the combine harvester is turned off and safely positioned to prevent accidents.
- Remove the existing sprocket by unscrewing the mounting bolts using the appropriate tools.
- Inspect the shaft for any damage or wear before installation of the new sprocket.
- Align the new Z11690 sprocket with the mounting holes and ensure proper fit.
- Tighten the mounting bolts securely, following the manufacturer's torque specifications.
- Reassemble any removed components and perform a visual inspection before starting the machine.
Manufacturing Process of Z11690 Straw Walker Sprocket for John Deere Combine
The manufacturing process of the Z11690 Straw Walker Sprocket involves several key steps:
- Ma
