PTO Shafts

A 600-head dairy operation south-east of Melbourne was experiencing repeated PTO shaft failures on their 20-cubic-metre vertical auger feed mixer. The original Series 4 triangular-profile driveline was fracturing at the inner tube weld junction every 3-4 months during winter feeding, when frozen silage blocks imposed extreme start-up torque spikes exceeding 2,800 Nm. Each failure resulted in a full day of downtime and emergency freight charges for replacement parts.

We specified a Series 6 star-profile PTO shaft with a friction-disc slip clutch calibrated to 1,800 Nm — 120% of the mixer's nominal continuous rating. The star profile increased the tube wall contact area by 40% over the triangular original, distributing peak loads across six engagement surfaces rather than three. The slip clutch absorbs the frozen-silage start-up spikes without transmitting destructive torque to the tube assembly.

A family-operated broadacre cropping enterprise managing 12,000 hectares between Merredin and Esperance was running a mixed fleet of seven grain augers and two chaser bins, each fitted with PTO shafts from different manufacturers. During the 2023 harvest, three separate driveline failures caused a combined 58 hours of lost harvest time. The fine silica dust characteristic of the Wheatbelt was infiltrating the telescoping tube profiles, accelerating abrasive wear and seizing U-joint bearings within 400 operating hours.

We replaced the entire fleet with standardised Series 7 spline-profile PTO shafts fitted with triple-lip sealed U-joint cross kits and neoprene dust exclusion boots at each telescoping junction. High-temperature lithium-complex EP2 grease (rated to 160 degrees C) replaced the standard lithium grease that was breaking down above 120 degrees C in ambient temperatures exceeding 42 degrees C. A 4-hour re-greasing schedule was implemented for the harvest window.

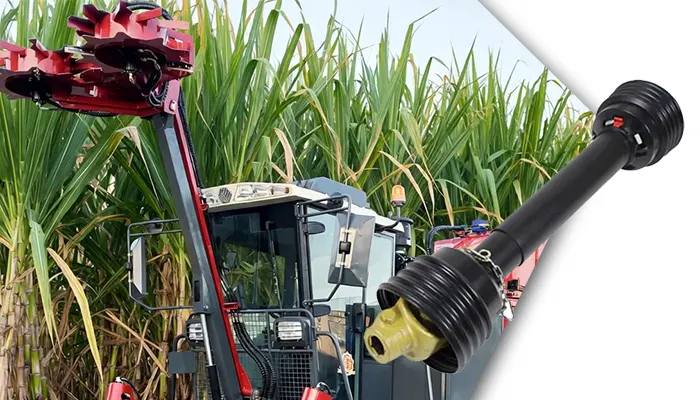

A sugarcane harvesting contractor operating across the Burdekin and Herbert River districts was reporting uneven cane cut lengths and excessive chopper drum vibration on two Austoft harvesters. Investigation revealed that the standard Hooke-type U-joints on the PTO driveline were inducing second-order harmonic speed variation at operating angles exceeding 18 degrees — a geometry forced by the harvester's rear-mount PTO configuration navigating undulating cane field rows. High ambient humidity (consistently above 85% RH) was also accelerating corrosion on exposed U-joint cross surfaces.

We retrofitted both harvesters with Series 8 spline-profile PTO shafts featuring constant-velocity wide-angle joints at the tractor end, permitting smooth operation at angles up to 80 degrees. Zinc-nickel plated U-joint crosses with 500+ hour salt-spray corrosion resistance were specified to combat the tropical humidity. Flanged yoke configurations matching the Austoft proprietary PTO output were sourced from our specialty stock for the North Queensland market, reducing the lead time from 4 weeks to 3 days.

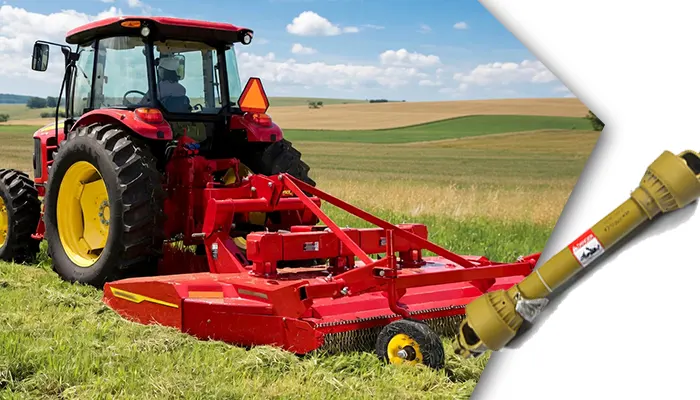

A local government parks and recreation division in western Sydney manages over 340 hectares of public green space across 85 parks, sports fields, and roadside corridors. Their fleet of 12 tractor-mounted slashers and rotary mowers was running PTO shafts sourced from five different suppliers over successive budget years. This resulted in incompatible spare parts, inconsistent grease specifications, and an unmanageable inventory of 23 unique U-joint cross kits. Average PTO shaft service life had fallen to just 14 months due to the rocky, debris-laden soils common in the Penrith and Blue Mountains corridor.

We conducted a comprehensive fleet audit and consolidated all 12 machines onto two standardised PTO shaft configurations: Series 4 lemon-profile with overrunning clutch for the eight medium-duty slashers, and Series 5 lemon-profile with friction slip clutch for the four heavy-duty mowers operating in rocky terrain. A three-year framework supply agreement with quarterly call-off scheduling was established, delivering 15% volume pricing and a consignment stock arrangement for high-turnover spare parts at the council's central depot.

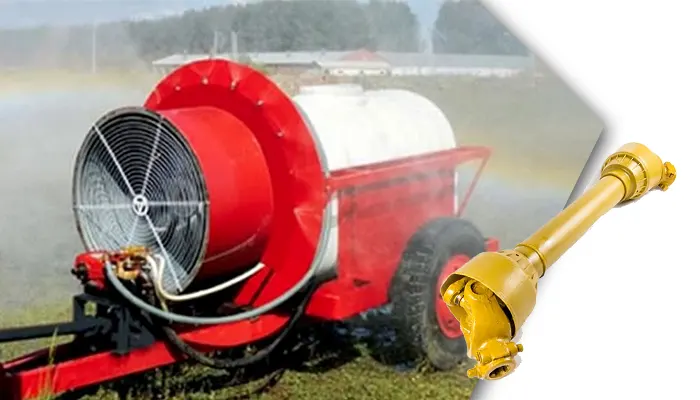

A premium wine producer managing 280 hectares of vineyard across the Barossa and Eden Valleys was experiencing inconsistent spray coverage on their fleet of three trailed air-blast mist blowers. The tight 2.4-metre row spacing forced the tractor-sprayer combination through sharp headland turns that imposed PTO shaft operating angles exceeding 22 degrees. Standard U-joints at these angles generated cyclic speed variation of approximately 8%, causing the centrifugal fan speed to pulse noticeably — producing visible bands of over- and under-application on the vine canopy. This spray inconsistency was compromising fungicide efficacy during the critical veraison period.

We fitted all three sprayers with Series 2 wide-angle PTO shafts equipped with constant-velocity joints at both ends. The CV joints maintain uniform angular velocity regardless of articulation angle, eliminating the fan speed pulsing entirely. Because the sprayer pump draws only 12 kW, the Series 2 rating provides ample torque capacity while keeping the driveline lightweight and easy for operators to connect and disconnect during the frequent sprayer changeovers typical of multi-block vineyard operations. A shortened re-greasing interval of 6 hours was recommended given the fine mineral dust common during the dry Barossa summer.
