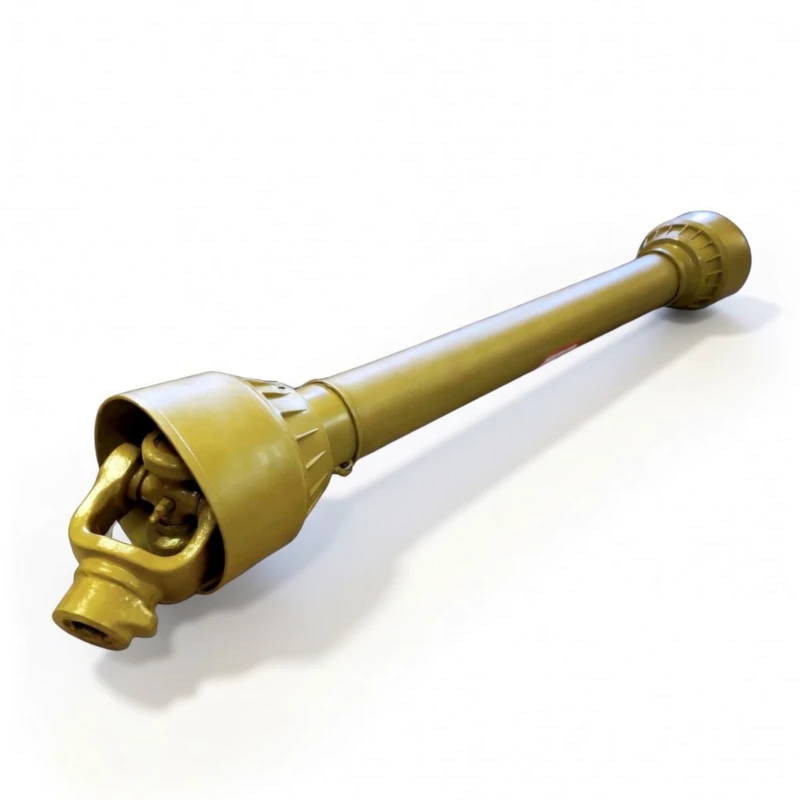

PTO Shaft for Crop Sprayer — Smooth, Consistent Power for Precision Chemical Application

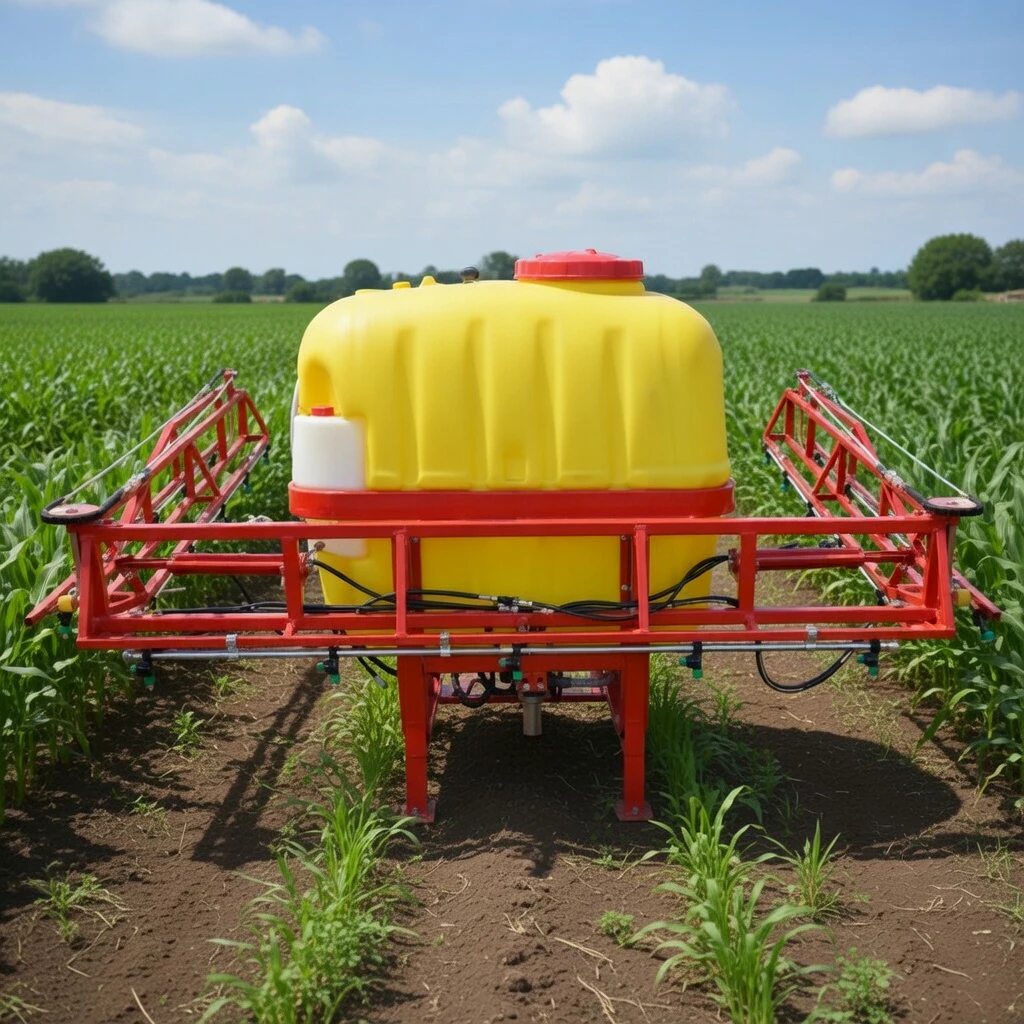

In every Australian cropping region — from the grain fields of the Western Australian Wheatbelt to the cotton paddocks of northern New South Wales — crop sprayers (also called boom sprayers, field sprayers, or agricultural sprayers) are essential for applying herbicides, fungicides, insecticides, and foliar nutrients. The PTO shaft (power take-off driveshaft, PTO drive line, implement PTO shaft) provides the steady rotational power that drives the sprayer’s diaphragm or centrifugal pump, maintaining the precise pressure and flow rate critical for accurate spray coverage.
Unlike high-torque applications, crop sprayer PTO duty demands vibration-free, constant-speed power delivery. Any speed fluctuation translates directly into uneven spray pressure, which causes inconsistent droplet size and poor coverage — wasting expensive chemicals and risking crop damage or environmental contamination.
GBC (General Bearing Company Pty Ltd), an Ever-power Group Australia Agency, supplies precision-balanced PTO shafts engineered for the low-vibration, smooth-running requirements of crop sprayer pump drives across all Australian states.
Product Specifications — Crop Sprayer PTO Shaft
| Specification | Default Value | Custom Options |
|---|---|---|
| PTO Input Speed | 540 RPM | 540 / 1000 RPM |
| Tractor Spline | 6-Spline 1-3/8″ | 6 / 20 / 21-Spline |
| Pump Input Spline | 6-Spline 1-3/8″ | 6 / 20-Spline / Keyed shaft |
| Closed Length | 850 mm | 600 – 1300 mm |
| Extended Length | 1250 mm | 900 – 2000 mm |
| Cross & Bearing | 22 × 54 mm | 22×54 / 27×74.5 mm |
| Continuous Torque | 180 Nm | 100 – 450 Nm |
| Peak Torque | 380 Nm | 200 – 900 Nm |
| Power @ 540 RPM | 14 HP (10.4 kW) | 8 – 40 HP |
| Tube Profile | Lemon | Lemon / Triangular |
| Tube Wall | 2.5 mm | 2.5 – 4.0 mm |
| Guard Material | UV-stabilised PP | PP / Nylon |
| Clutch Type | Shear Bolt (M8 Gr 4.8) | Shear bolt / Friction / Freewheel |
| U-Joint Type | Precision needle roller | Needle / Pre-lubed sealed |
| Chemical Resistance Seals | FKM (Viton-type) | FKM / PTFE |
| Grease Points | Zerk M6 | Zerk / Button-head / Sealed-for-life |
| Shaft Weight | 6.8 kg | 4 – 14 kg |
| Max Operating Angle | 25° | Up to 35° |
| Dynamic Balance | Factory balanced <5 g·cm | Standard / Precision (<2 g·cm) |
| Surface Protection | Zinc plate + chemical-resistant clear coat | Zinc / Stainless fittings / Powder coat |
How the PTO Shaft Powers a Crop Sprayer
The PTO shaft on a crop sprayer connects the tractor’s PTO stub to the sprayer’s pump — most commonly a diaphragm pump (for lower-volume sprayers) or a centrifugal pump (for higher-volume trailed sprayers). When engaged, the shaft transmits rotational power at a constant 540 RPM (or 1000 RPM on some large units) to the pump impeller or diaphragm mechanism, which generates the hydraulic pressure required to push liquid through the boom nozzles at a controlled flow rate.
The PTO shaft sits between the tractor’s rear and the sprayer’s front-mounted pump housing. On three-point linkage mounted sprayers, shaft length changes are minimal. On trailed sprayers, however, the telescopic section accommodates significant length variations as the drawbar articulates over terrain. The universal joints permit angular misalignment, and the shaft’s balance quality directly affects spray pressure stability — an unbalanced or vibrating shaft creates pulsation at the pump, leading to uneven nozzle output.
Chemical exposure is a unique consideration: spray drift and tank mix splashes can contact the shaft and seals. GBC shafts use FKM (Viton-equivalent) seals and chemical-resistant coatings to prevent degradation from herbicides, surfactants, and other agrochemicals.
GBC PTO Shaft Advantages for Crop Sprayer Use
🎯 Factory Dynamic Balancing
GBC: Every shaft is dynamically balanced to <5 g·cm residual imbalance (precision option <2 g·cm), ensuring smooth pump drive and consistent spray pressure.
Unbalanced shafts: Create pump pulsation, uneven nozzle output, and accelerated U-joint wear.
🧪 Chemical-Resistant Sealing
GBC: FKM (Viton-type) U-joint seals resist degradation from glyphosate, 2,4-D, paraquat, surfactants, and other common agrochemicals.
Standard NBR seals: Swell and deteriorate when exposed to chemical spray drift, leading to premature bearing failure.
⚖ Lightweight Yet Strong
GBC: Optimised lemon-tube wall thickness and compact 22 × 54 mm cross journals keep weight low (6.8 kg) — reducing stress on the sprayer pump bearing and tractor PTO stub.
Oversized shafts: Unnecessary weight increases pump shaft bearing load and can cause premature pump failure.
🔒 Precision Spline Engagement
GBC: Ground-finish splines with tight tolerances eliminate the backlash that causes start-up shock at the pump and premature gear wear.
Rough-cast splines: Allow rotational play, transmitting shock loads to the pump impeller at every PTO engagement.
Compatible Sprayer Brands
GBC PTO shafts for crop sprayers directly replace OEM shafts on machines from Hardi, Goldacres, Croplands (Pattison), Amazone UX, John Deere, AGCO RoGator, Bargam, Silvan, and TTI (Team Sprayers). We cross-reference Walterscheid, Comer Industries, and Bondioli & Pavesi part numbers for simple identification.
All brand names referenced are trademarks of their respective owners, mentioned solely for compatibility identification. GBC is an independent supplier with no affiliation to the listed brands.
Spare Parts for Sprayer PTO Shafts
Available components: cross & bearing kits, lemon-tube profile sets, yoke assemblies, shear bolts, FKM seal kits, safety guard assemblies, and guard chains. All stocked in our Australian warehouse.
Sprayer PTO Shaft Selection Checklist
| Check | How | Options | Notes |
|---|---|---|---|
| Pump Type | Sprayer manual | Diaphragm / Centrifugal / Piston | Diaphragm pumps create more vibration; choose precision-balanced shaft |
| Pump Input Shaft | Measure pump input stub | Spline / Keyed / Plain bore | Some pumps use keyed shaft — verify before ordering |
| Sprayer Mounting | Observe connection | 3-Point / Trailing | Trailing sprayers need longer shafts with more telescopic travel |
| Tank Capacity | Sprayer spec | 100 – 5000 L | Larger tanks often use higher-flow pumps needing more power |
| Chemical Exposure | Assess tank mix chemistry | Low / Moderate / High | Always specify FKM seals for chemical environments |
| Vibration Sensitivity | Required spray precision | Standard / High | High-precision spraying: order precision-balanced shaft |
Fitting a PTO Shaft to a Crop Sprayer
Troubleshooting — Crop Sprayer PTO Shaft Problems
⚠ Spray Pressure Fluctuation / Pulsation
Causes: Unbalanced PTO shaft, worn U-joints creating cyclic speed variation, or air in the pump system.
Fix: Replace or rebalance the PTO shaft. Replace worn cross & bearing kits. Bleed air from the pump and check suction lines for leaks.
⚠ Premature Seal Failure
Causes: Chemical attack from spray drift on non-resistant seal material, or lack of lubrication.
Fix: Upgrade to FKM (Viton) seals. Wash the PTO shaft with clean water after each spraying session. Maintain regular greasing schedule.
⚠ High-Pitched Whine at Operating Speed
Causes: Dry needle roller bearings in U-joints, or misaligned yokes causing cyclic binding.
Fix: Grease immediately. If noise persists, replace cross & bearing kit. Check yoke alignment (both ears in the same plane).
⚠ Pump Shaft Bearing Failure
Causes: Oversized / overweight PTO shaft putting excessive radial load on the pump input bearing, or excessive operating angle.
Fix: Use a correctly sized shaft matched to the pump’s power requirement. Adjust tractor three-point linkage to minimise operating angle. Replace pump bearing and re-evaluate shaft sizing.
Australian Farmer Feedback — Crop Sprayer PTO Shafts
📍 Narrabri, New South Wales
Sprayer: Goldacres G6 trailed boom sprayer, 6,000 L tank, 36 m boom.
“Spray pressure stability improved noticeably when we switched to GBC’s balanced shaft. Our agronomist even commented that coverage had become more uniform. The FKM seals handle our herbicide tank mix without swelling.” — Craig R., Cotton Grower
📍 Shepparton, Victoria
Sprayer: Hardi Commander 4500, trailing boom for stone fruit orchards.
“We spray fungicides weekly during the season. The GBC shaft’s chemical-resistant seals last the entire season without replacement — our old shaft’s seals failed after 4–5 weeks. Significant cost saving.” — Anna L., Orchardist
📍 Emerald, Queensland
Sprayer: Croplands Pegasus 5000, boom sprayer for broadacre cotton and grain.
“The lightweight shaft reduces strain on our pump bearing — we haven’t replaced it since installing the GBC shaft two seasons ago. Previous heavy shafts were killing pump bearings annually.” — Tom H., Farmer
📍 Loxton, South Australia
Sprayer: Silvan Turbomiser for citrus groves, 2,000 L capacity.
“Working in citrus rows means tight turns and angle changes. GBC’s shaft handles the articulation smoothly, and the compact design fits the tight PTO-to-pump gap on our Turbomiser.” — Raj P., Citrus Grower
📍 Katanning, Western Australia
Sprayer: TTI FieldLink 3000, linkage-mounted for canola and lupin spraying.
“Quick and easy to fit. The zero-vibration running keeps our Raven rate controller stable. Great product for precision spraying operations.” — Fiona D., Grain Grower
📍 Launceston, Tasmania
Sprayer: Amazone UF 1201 for vegetable crops and pasture weed control.
“We swap between the sprayer and our fertiliser spreader frequently. GBC supplies us with dedicated shafts for each — correctly sized and protected. Makes changeover quick and safe.” — Dave K., Mixed Farmer
FAQ — Crop Sprayer PTO Shafts
Why does PTO shaft balance matter for spraying?
An unbalanced PTO shaft creates vibration that transfers to the pump, causing pressure fluctuations (pulsation). Even small pressure variations change droplet size at the nozzle, reducing spray coverage uniformity and wasting chemicals. A dynamically balanced shaft ensures stable pump speed and consistent output.
Should I choose a lightweight shaft for my sprayer?
Yes, in most cases. Sprayer pumps have smaller input bearings than heavy implements like mowers or tankers. An oversized, heavy PTO shaft puts unnecessary radial load on the pump bearing, shortening its life. Choose a shaft rated for the pump’s actual power requirement — not oversized.
How do I protect the PTO shaft from chemical damage?
Specify FKM (Viton) seals, which resist most agricultural chemicals. After each spraying session, rinse the shaft with clean water to remove chemical residue. Avoid using pressure washers directly on the seals.
What greasing schedule is appropriate for a sprayer PTO shaft?
Grease every 10 operating hours under normal conditions. If the shaft is frequently exposed to chemical spray drift, increase to every 6 hours — fresh grease helps purge contaminants from the seal interface.
Standards, Compliance & Local SEO
All GBC crop sprayer PTO shafts comply with AS/NZS 3815 guarding standards. They ship with full-length tubular guards, bell-housing end guards, and retaining chains. Our products meet the safety expectations of Safe Work Australia and all state WHS regulators.
We service Australian farmers and dealers searching for “crop sprayer PTO shaft,” “boom sprayer PTO drive shaft Australia,” “field sprayer PTO replacement,” “Hardi sprayer PTO shaft,” “Goldacres PTO shaft,” and “agricultural sprayer drive line parts.”
More from GBC
Why Choose GBC — Our Manufacturing Edge
We are GBC (General Bearing Company Pty Ltd), an Ever-power Group Australia Agency. With over 18 years in PTO shaft and drivetrain component manufacturing, our ISO 9001:2015 certified facility produces over 200,000 PTO shafts annually across a 120,000 m² factory complex.
We invest in dynamic balancing equipment, CNC spline machining, and induction heat treatment to deliver shafts that meet or exceed OEM quality. Our OEM programme supports custom specifications, private-label packaging, and flexible order quantities for Australian dealers, distributors, and equipment manufacturers.
We export to over 60 countries and maintain Australian stock for immediate despatch — ensuring your crop sprayer stays in the paddock, not in the shed waiting for parts.
