Overview: PTO Shaft for Deep Cultivator
Deep cultivators and subsoilers are essential soil-decompaction implements used across Australian broadacre, horticultural and pastoral operations to break hardpan layers that restrict root growth and water infiltration. PTO-driven models use powered rotary elements — oscillating shares, rotating discs or powered crumbler rollers — that require a reliable, high-torque PTO shaft to operate. GBC’s PTO Shaft for Deep Cultivator is engineered for the extreme torque and shock loads generated when tines and powered components operate at depths of 300–600 mm in compacted clay, ceite or ironstone-capped soils. With oversized universal joints, a heavy-duty friction clutch and reinforced telescopic tubes, this shaft provides the power connection that deep-tillage operators in the grain belts of Western Australia, the black-soil plains of Queensland and the volcanic soils of western Victoria depend on for productive, damage-free operation.

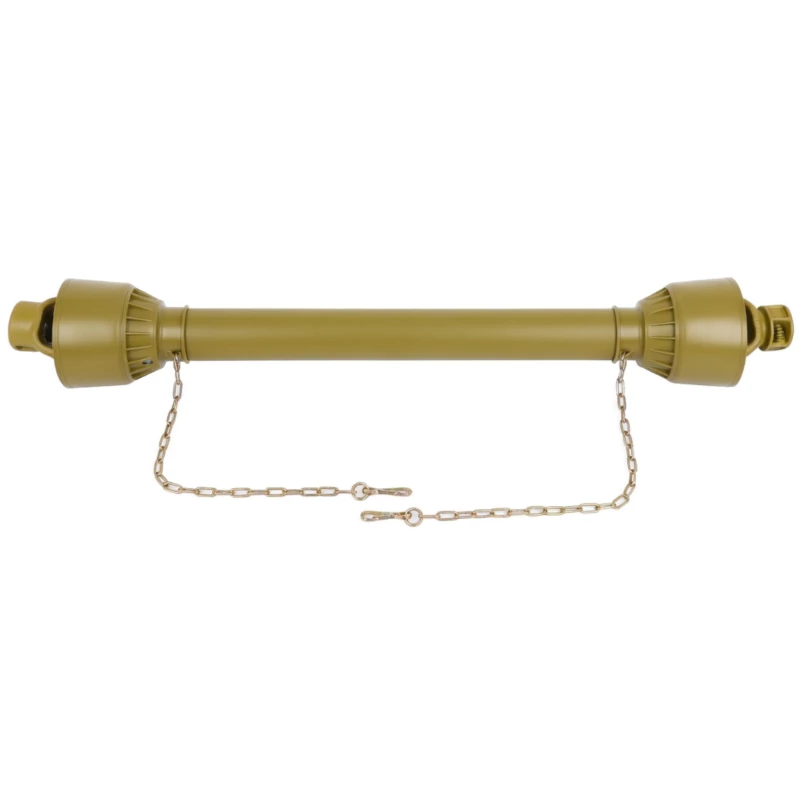

Technical Specifications — PTO Shaft for Deep Cultivator
Below are the key technical parameters for our deep cultivator PTO shaft. All values represent standard ranges — custom specifications are available upon request.
| Parameter | Specification | Customisable Range |
|---|---|---|
| Shaft Series | Series 6 / Series 7 / Series 8 | Custom series on request |
| Rated PTO Speed | 540 RPM or 1000 RPM | Per cultivator specification |
| Continuous Torque Rating | 850 – 1600 Nm | Up to 2500 Nm on request |
| Peak Torque Rating | 1700 – 3200 Nm | 200 % of continuous + 50 % shock reserve |
| Tractor-End Spline | 20-spline × 1-3/4″ (45 mm) | 6-spline × 1-3/8″ available |
| Implement-End Spline | 20-spline × 1-3/4″ (45 mm) | Custom profiles on request |
| Closed Length (Lz) | 720 mm | 600 – 1200 mm custom range |
| Overall Length (Lo) | 1120 mm | 900 – 1800 mm custom range |
| Telescopic Stroke | 400 mm | Up to 500 mm extended-stroke |
| Profile Tube Shape | Triangular (outer) / Triangular (inner) | Lemon & star available |
| Tube Wall Thickness | 4.0 mm (reinforced standard) | 5.0 mm heavy-duty option |
| Tube Material | High-strength alloy steel | Robotically welded, NDT-verified |
| U-Joint Cross Size | 35 × 106.5 mm (oversized for series) | Shock-load rated |
| U-Joint Bearing Type | Needle roller with heavy-duty seals | Pre-packed long-life grease |
| U-Joint Operating Angle (max) | 22° | Wide-angle CV for steep 3-point geometry |
| Overload Clutch Type | Heavy-duty multi-plate friction clutch | Adjustable spring preload |
| Friction Clutch Torque Setting | 1000 Nm (adjustable) | 600 – 2000 Nm range |
| Weld Fatigue Rating | 3 × 10⁶ cycles at rated load | 100 % NDT-verified |
| Guard Material | HDPE — UV stabilised, heavy-duty | Chain-restrained |
| Total Weight (approx.) | 21.0 kg | Varies with series and length |

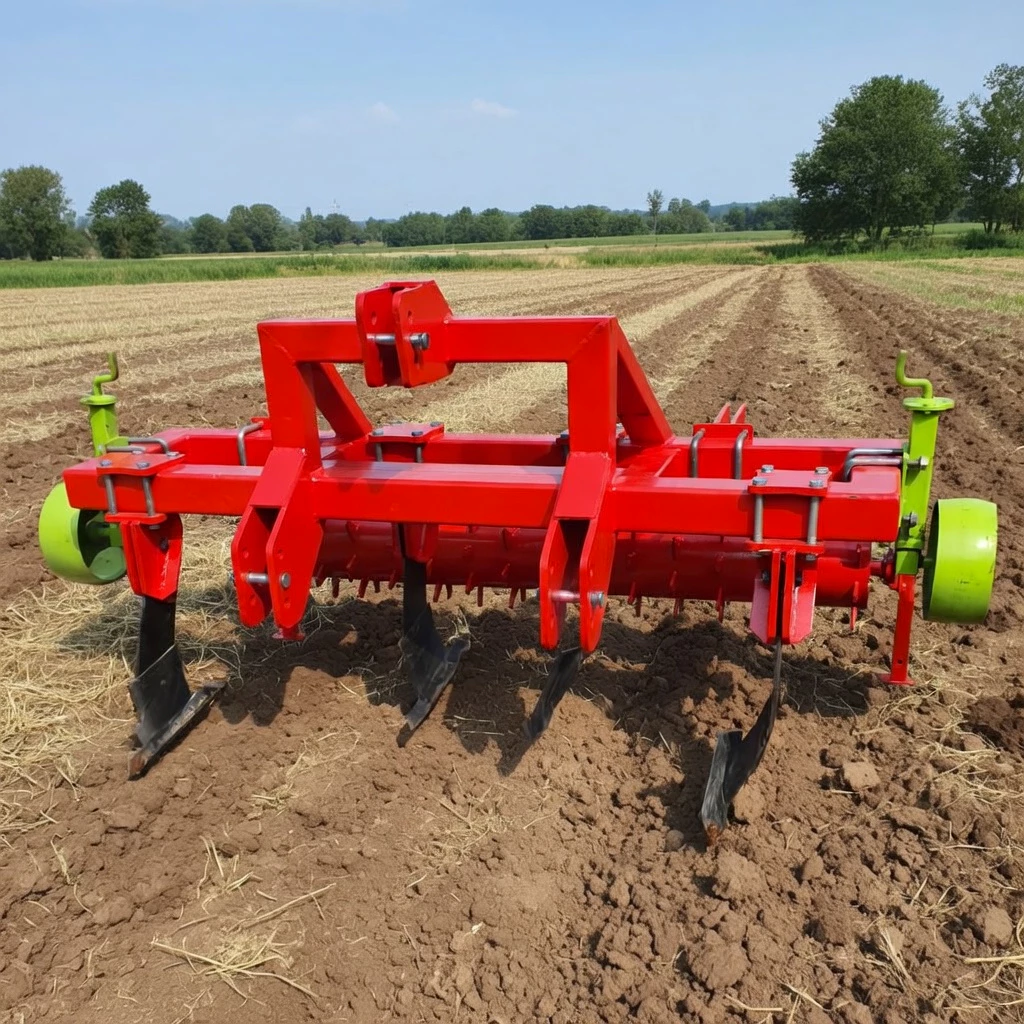

⚙️ How It Works: PTO Shaft in Deep Cultivator Applications
In a PTO-driven deep cultivator, the shaft transmits rotational power from the tractor’s PTO to a gearbox that drives powered components — typically an oscillating mechanism that vibrates the main tines at high frequency to reduce draft force and improve soil fracturing, or a crumbler roller that breaks surface clods behind the tines. The shaft operates at 540 or 1000 RPM and feeds power through telescoping profile tubes and universal joints. Because the deep cultivator is three-point-hitch mounted and operates at extreme depth, the tractor-to-implement distance varies significantly between the raised transport position and full working depth. The shaft’s extended telescopic travel accommodates this range. At depth, the cultivator encounters massive resistance from compacted soil layers, rocks and root mats, generating peak torque loads that can exceed the shaft’s continuous rating. The integrated heavy-duty friction clutch absorbs these peaks, protecting both the cultivator’s gearbox and the tractor’s PTO output bearing. Guard tubes with chain restraints enclose all rotating elements for compliance with Australian safety standards.
Core Advantages of Our Deep Cultivator PTO Shaft
When compared to generic or budget PTO shafts, the GBC Deep Cultivator PTO shaft stands apart in every critical performance area:
✅ Extreme Torque Capacity
Available in Series 7 and Series 8 ratings (up to 1,600 Nm continuous), matching the high power demands of PTO-driven deep ripping at 400–600 mm depth.
✅ Shock-Load-Rated U-Joints
Oversize cross-and-bearing assemblies provide 50 % additional peak-torque headroom to absorb the violent shock loads that occur when oscillating tines hit buried rocks or ironstone layers.
✅ Extended Telescopic Stroke
Up to 400 mm of telescopic travel — critical for deep cultivators that create large height differences between transport and working positions.
✅ Heavy-Duty Friction Clutch
Multi-plate friction clutch rated for the sustained high torque of deep tillage, with adjustable spring preload so the slip point can be fine-tuned to your implement’s gearbox rating.
✅ Reinforced Weld Zones
Yoke-to-tube welds are robotically produced and 100 % non-destructively tested, ensuring fatigue life exceeds 3 × 10⁶ cycles at rated load.
Brand Compatibility & Replacement Guide
The GBC PTO Shaft for Deep Cultivator is designed as a direct drop-in replacement for OEM shafts on the following equipment brands:
Compatible Brands: Agrowplow, Gessner, Orthman, Agrisem, Gregoire-Besson, Quivogne, Howard, Maschio, Dondi, Alpego, Dal-Bo, Gascon
⚠️ Disclaimer: Brand names listed above are the property of their respective owners. They are mentioned solely for compatibility reference purposes to assist buyers in selecting the correct replacement PTO shaft. GBC is not affiliated with these brands.
Replacement Parts & Accessories
GBC stocks a comprehensive range of replacement components for all our PTO shafts, including:
- Universal joint cross-and-bearing kits
- Friction clutch plate sets and springs
- Telescopic profile tube pairs (lemon, star, triangular)
- Safety guard tubes and bearing supports
- Locking collars, shear bolts and retaining hardware
Quick Selection Guide — PTO Shaft for Deep Cultivator
Use this guide to identify the correct PTO shaft specification before placing your order:
| Parameter to Confirm | Options / Range | How to Determine |
|---|---|---|
| Number of Tines / Working Width | 2–7 tines / 1.0–3.5 m | More tines and wider width require higher shaft series |
| Working Depth | 300 mm – 600 mm | Deeper operation increases torque demand significantly |
| Tractor PTO Speed | 540 RPM / 1000 RPM | Verify the cultivator’s powered component input speed |
| PTO Spline Configuration | 6-spline 1-3/8″, 20-spline 1-3/4″ | Match tractor and cultivator gearbox input |
| Shaft Series (Torque Rating) | Series 6 (850 Nm) – Series 8 (1600 Nm) | Based on tine count, depth and soil type |
| Closed Length (Lz) | 600 mm – 1200 mm | Measure at full hitch raise — deep cultivators have large height variation |
| Overall Length (Lo) | 900 mm – 1800 mm | Measure at maximum working depth |
| Overload Protection | Heavy-duty friction clutch | Essential for deep-tillage shock loads |
Need Help Selecting? Contact Our Engineers
Installation Guide — PTO Shaft for Deep Cultivator
Follow these steps for safe, correct installation of your GBC PTO shaft on a deep cultivator application:
Position on Firm Ground
Park the tractor on a hard, level surface with the deep cultivator lowered to the ground. Shut the engine off, apply the handbrake and remove the key.
Verify Spline and Speed Match
Check the tractor PTO stub and the cultivator’s powered-component input shaft for matching spline profile and rated speed.
Measure the Full Working Range
Raise the three-point hitch to full transport height and measure the PTO-to-gearbox distance (this sets the minimum closed length). Lower the cultivator to maximum working depth and measure again (this sets the minimum overall length). Ensure at least 1/3 tube overlap at all positions.
Pre-Lubricate All Points
Grease U-joint zerks, telescopic spline tubes and the clutch bearing. Deep tillage generates extreme heat and dust — every grease point must be fully charged before first use.
Connect the Tractor End
Slide the yoke onto the PTO stub and verify the quick-release collar locks securely.
Connect the Cultivator End
Attach the implement-end yoke to the cultivator gearbox input shaft. Confirm the lock mechanism is fully engaged.
Phase the Universal Joints
Align both yoke ear pairs in the same rotational plane for smooth torque delivery.
Install Guard Assembly
Fit guard tubes, bearing supports and restraint chains. Deep cultivator operation throws large amounts of soil and debris — ensure guards are complete and secure.
Commissioning Test
Engage PTO at idle with the hitch raised. Confirm smooth shaft rotation, then lower the cultivator to a shallow depth (150 mm) for a short test pass. Progressively increase depth to the full working setting while monitoring for shaft performance.
️ PTO Shaft Troubleshooting — Deep Cultivator Applications
Use this reference to quickly diagnose and resolve common PTO shaft issues during deep cultivator operation:
⚠️ Friction clutch slips continuously at working depth
Likely Cause: Shaft series under-rated for the soil conditions
Recommended Solution: Upgrade to the next shaft series; alternatively reduce working depth or number of active tines
⚠️ Violent jolt through tractor when hitting rock
Likely Cause: Clutch torque set too high or clutch not functioning
Recommended Solution: Reduce clutch spring preload; inspect friction plates for glazing or sticking
⚠️ Telescopic tubes extend fully and separate
Likely Cause: Overall length insufficient for the working depth
Recommended Solution: Switch to a longer overall-length shaft; reduce working depth if shaft replacement is not immediately available
⚠️ U-joint fails after short service
Likely Cause: Operating angle exceeds joint rating at full depth
Recommended Solution: Adjust top-link to reduce the PTO-to-gearbox angle; consider a wide-angle CV joint shaft
⚠️ Excessive noise from telescopic section
Likely Cause: Spline wear from abrasive soil contamination
Recommended Solution: Disassemble, clean, inspect and re-grease splines; replace tube set if wear exceeds 1 mm backlash
⚠️ Guard damaged by soil throw
Likely Cause: Guard positioned too close to cultivator rotor
Recommended Solution: Reposition guard bearing bracket; replace damaged guard section with GBC heavy-duty guard
Australian Case Studies — Deep Cultivator PTO Shaft
Real-world feedback from Australian farmers and contractors who have installed GBC PTO shafts on their deep cultivator equipment:
Moree, NSW — Broadacre grain farmer ripping to 450 mm with a 5-tine Agrowplow PTO-driven deep ripper
“The Series 8 shaft handles the massive torque our black-soil country demands. The friction clutch saved us twice when we hit buried timber — the old shaft would have snapped.”
Birchip, VIC — Cropping enterprise decompacting Mallee sand-over-clay profiles with a Gessner deep ripper
“We needed extended telescopic travel because our ripper drops a long way from transport to depth. GBC had the right length spec and the shaft has run three seasons without issue.”
Roma, QLD — Pastoral property subsoiling for improved pasture with an Agrisem Combiplow
“The heat and dust out here destroy machinery. GBC’s sealed U-joints and reinforced tubes are holding up well — much better than the shaft that came with the implement.”
Bordertown, SA — Mixed farmer ripping limestone country at 500 mm depth
“Rock strikes are a daily event. The oversize U-joints absorb the shock and the friction clutch protects the gearbox. We’ve tried three brands — GBC is the only one that lasts.”
Merredin, WA — Broadacre cropper using an Orthman deep ripper to break ironstone hardpan
“WA soils are tough on rippers and their shafts. The GBC Series 8 shaft matched our 300 HP tractor and the clutch calibration was spot-on for our soil conditions.”
Scottsdale, TAS — Dairy farmer decompacting pastures with a Howard PTO-driven subsoiler
“Smaller operation but the soil is heavy basalt clay. The GBC friction-clutch shaft gave us confidence to run at full depth without worrying about tractor or implement damage.”
❓ Frequently Asked Questions — PTO Shaft for Deep Cultivator
❔ What shaft series do I need for a PTO-driven deep cultivator?
Most PTO-driven deep cultivators operating below 300 mm require at least Series 6. For depths of 400–600 mm or in heavy soils, Series 7 or 8 is recommended. Contact GBC engineers with your tractor HP, soil type and tine count for a precise recommendation.
❔ Can I use a standard rotary tiller PTO shaft on my deep cultivator?
We strongly advise against it. Deep cultivators generate significantly higher peak torques and shock loads than rotary tillers. A standard tiller shaft is likely to fail prematurely, posing both a safety risk and a costly repair bill.
❔ How often should I grease the shaft during deep ripping?
Every 4 operating hours for U-joints and every 10 hours for telescopic splines. The extreme forces and soil contamination of deep tillage demand frequent lubrication.
❔ My PTO shaft separates at full depth — what is wrong?
The overall length of the shaft is too short for the working-depth geometry. You need a shaft with a longer overall length (Lo). Alternatively, adjusting the top-link can reduce the distance variation.
❔ Does GBC offer custom-length shafts for non-standard setups?
Yes. We manufacture custom closed-length and overall-length configurations for unique tractor-implement combinations. Contact our team with your measurements.
