PTO Shaft for Deep Placement Applicator — Delivering Sustained Torque for Subsurface Fertiliser Injection
In precision agriculture across Australia, deep placement applicators (also known as deep band applicators, subsurface injectors, or knife-point fertiliser applicators) are used to place granular or liquid fertiliser below the soil surface directly into the root zone. This method dramatically improves nutrient uptake efficiency and reduces surface runoff — critical on Australia’s variable soils from the black earths of the Darling Downs to the sandy loams of Western Australia’s Wheatbelt.
The PTO shaft (power take-off drive shaft, PTO drive line, tractor implement driveshaft) on a deep placement applicator drives the metering system, distribution fans, and in some designs the ground-engaging opener mechanisms. The shaft must deliver smooth, consistent power under fluctuating soil resistance loads while operating at low ground speeds — a duty cycle that creates high-torque, low-RPM stress on the universal joints and telescopic tube assembly.
GBC (General Bearing Company Pty Ltd), an Ever-power Group Australia Agency, engineers PTO shafts with the sustained torque capacity, rugged construction, and dust-sealed joints required for deep placement applicator work across Australia’s toughest soil conditions.
Specifications — PTO Shaft for Deep Placement Applicators
| Parameter | Baseline Spec | Customisation Available |
|---|---|---|
| PTO Speed | 540 RPM | 540 / 1000 RPM |
| Tractor-Side Spline | 6-Spline 1-3/8″ | 6 / 20 / 21-Spline |
| Implement-Side Spline | 6-Spline 1-3/8″ | 6 / 20 / 21-Spline / Keyed |
| Closed Length | 950 mm | 750 – 1400 mm |
| Extended Length | 1400 mm | 1100 – 2100 mm |
| Cross Journal Dimensions | 27 × 74.5 mm | 22×54 / 27×74.5 / 30.2×92 mm |
| Continuous Torque | 350 Nm | 200 – 900 Nm |
| Peak Torque | 750 Nm | 400 – 1800 Nm |
| Power Rating @ 540 RPM | 28 HP (20.9 kW) | 15 – 75 HP |
| Tube Profile | Star profile | Star / Lemon / Triangular |
| Tube Wall | 3.5 mm | 2.5 – 5.0 mm |
| Guard Material | UV-stabilised Nylon | PP / Nylon / Steel |
| Overload Protection | Shear Bolt (M10 Gr 4.8) | Shear bolt / Friction clutch / Ratchet |
| U-Joint Bearing | Full-complement needle roller | Needle / Plain / Pre-lubed sealed |
| Seal Type | Double-lip NBR + dust excluder | NBR / FKM / PTFE |
| Grease Nipple | Zerk M6 | Zerk / Button-head |
| Weight | 10.2 kg | 7 – 22 kg |
| Max Operating Angle | 25° | Up to 35° (wide-angle option) |
| Surface Finish | Zinc plate + epoxy primer | Zinc / Galvanised / Powder coat |
| Dust Seal Rating | IP54 | IP54 / IP65 (heavy dust option) |
Working Principle — PTO Shaft on a Deep Placement Applicator
The PTO shaft on a deep placement applicator connects the tractor’s PTO output to the applicator’s primary drive input — typically a gearbox mounted centrally on the implement frame. This gearbox distributes power to the metering rollers (which control the flow rate of granular fertiliser), the distribution fan (which pneumatically conveys fertiliser through hoses to each opener), and sometimes the disc openers themselves via a secondary chain drive.

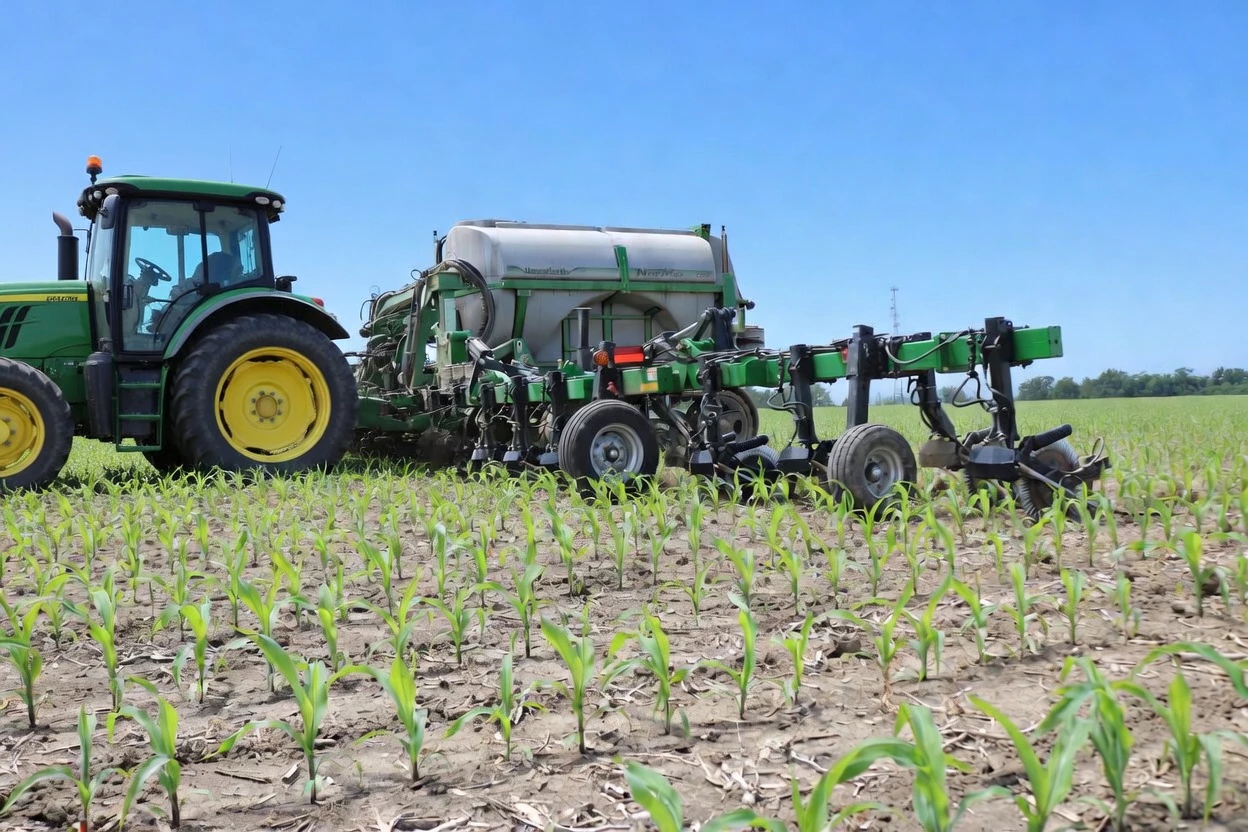

During operation, the applicator’s knife-point or disc openers cut into the soil at 50–150 mm depth while the metered fertiliser is injected into the furrow. As soil conditions change — from soft loam to hard clay pans, or when encountering rocks — torque demand on the PTO shaft fluctuates significantly. The shaft’s universal joints absorb angular changes as the three-point linkage adjusts implement depth, while the telescopic section compensates for distance changes between tractor and implement.
A shear bolt or friction clutch protects the drive train: if an opener strikes a rock or root and stalls, the clutch slips or the bolt breaks before damage reaches the gearbox or tractor PTO. This is particularly important for deep placement work in Australian soils where hidden obstructions are common.
GBC Advantages for Deep Placement PTO Shafts
🛡 Dust-Sealed Joints for Australian Conditions
GBC: Double-lip NBR seals with integrated dust excluders rated to IP54 — blocking the fine red and black dust that destroys bearing surfaces in cropping country.
Generic shafts: Single-lip seals that allow dust ingress within weeks, leading to premature U-joint failure.
⚙ Torque-Matched for Soil Resistance
GBC: Cross journals sized for the fluctuating high-torque loads of ground-engaging implements — 27 × 74.5 mm standard, with 30.2 × 92 mm option for heavy soils.
Generic shafts: Undersized crosses that fatigue under the shock loads typical of subsurface injection work.
🔧 Star-Profile Tube for Maximum Strength
GBC: Star-profile telescopic tubes provide higher torsional strength-to-weight ratio than lemon tubes, reducing flex under sustained load.
Generic shafts: Often use lemon tubes that are adequate for lighter implements but flex under deep placement loads.
🔎 Easy-Service Design
GBC: Quick-release yoke locks and externally accessible grease zerks — no disassembly needed for routine maintenance, even in the field.
Generic shafts: Recessed or obstructed grease points that discourage regular maintenance.
Brand Cross-Reference & Compatibility
GBC deep placement PTO shafts are designed as direct replacements for shafts used on implements from Flexi-Coil (CNH), John Shearer, Simplicity Australia, Bourgault, Morris Industries, Horwood Bagshaw, K-Hart Industries, and Great Plains. We also cross-reference Walterscheid, Bondioli & Pavesi, and Comer Industries part numbers.
All trademarks and brand names mentioned are the property of their respective owners. References are provided solely for customer convenience in identifying compatible replacement parts. GBC is an independent manufacturer and is not affiliated with any of the brands listed.
Replacement Parts
We stock cross & bearing kits, yoke assemblies, star-profile tube sets, shear bolts, friction clutch assemblies, dust seal kits, safety guards, and guard retaining chains — all available individually for fast repairs.
Purchasing Decision Matrix — Deep Placement PTO Shaft
| Parameter | Where to Find It | Typical Values | Guidance |
|---|---|---|---|
| Number of Openers / Rows | Applicator spec sheet | 6 – 24 rows | More rows = higher PTO torque demand |
| Working Depth | Agronomist recommendation / machine manual | 50 – 150 mm | Deeper placement = higher soil resistance |
| Soil Type | Local soil map or experience | Sandy loam / Clay / Stony | Heavy clay and stony soils need higher torque rating |
| Tractor HP at PTO | Tractor spec sheet | 30 – 100 HP | Shaft power rating ≥ tractor PTO HP |
| Linkage Type | Observe implement connection | 3-Point / Trailing / Toolbar | Trailing units need longer shafts |
| Overload Protection Preference | Machine manual or operator preference | Shear bolt / Friction clutch | Friction clutch for stony soils; shear bolt for lighter conditions |
| Dust Exposure Level | Assess field conditions | Moderate / Extreme | IP65 sealed joints for extremely dusty conditions |
Installation Procedure — Deep Placement Applicator PTO Shaft
Fault Diagnosis — Deep Placement Applicator PTO Shaft
⚠ Shear Bolt Breaks During Normal Operation
Likely Causes: Bolt grade too low, working depth too deep for soil conditions, or blockage in the metering system creating a torque spike.
Solutions: Verify bolt grade matches specification (M10 Grade 4.8). Reduce working depth. Clear any blockages. If breakage continues, upgrade to a friction clutch for automatic slip protection.
⚠ Inconsistent Fertiliser Metering Rate
Likely Causes: PTO shaft slipping at the spline (worn teeth), inconsistent PTO RPM, or telescopic tube binding causing speed fluctuations.
Solutions: Inspect splines — replace yoke if worn. Ensure tractor throttle maintains constant RPM. Clean and grease the telescopic tube to restore free movement.
⚠ Excessive Dust in U-Joint Bearings
Likely Causes: Damaged or worn seals, cracked guard allowing dust entry, or insufficient greasing allowing dry seal surfaces.
Solutions: Replace seals with GBC double-lip dust-excluder kits. Repair or replace cracked guards. Increase greasing frequency to every 8 hours during dry, dusty conditions.
⚠ Guard Melting or Deforming
Likely Causes: Guard chains not attached (guard co-rotates with shaft), causing friction heat. Or non-UV-stabilised guard material degrading in sun.
Solutions: Reattach retaining chains to prevent guard rotation. Replace with GBC UV-stabilised nylon guards rated for Australian conditions.
⚠ Clunking Noise When Engaging PTO
Likely Causes: Excessive backlash in spline connection, worn cross journals, or loose yoke retaining bolt.
Solutions: Check spline engagement — replace yoke if teeth are rounded. Replace cross & bearing kit. Torque all fasteners to specification.
Project Snapshots — Deep Placement PTO Shafts in Australian Agriculture
📍 Moree, New South Wales
Operation: 4,000-hectare cotton and grain farm using a 12-row Flexi-Coil deep placement applicator for pre-plant urea banding in black vertosol.
“The GBC shaft’s star-profile tube handles the torque spikes from our heavy clay without flex. The dust seals are lasting three times longer than the OEM seals we were buying. Outstanding product for inland cropping.” — Phil M., Farm Manager
📍 Horsham, Victoria
Operation: Wimmera cropping enterprise deep-banding MAP in clay loam for canola and wheat rotations.
“We break shear bolts regularly with other brands on our stony patches. GBC’s friction clutch option lets us keep moving without stopping to replace bolts every few passes. Game changer for productivity.” — Andrew S., Cropper
📍 Dalby, Queensland
Operation: Darling Downs broadacre sorghum and chickpea farm using a 16-row John Shearer applicator.
“Dust is our worst enemy. GBC’s double-lip sealed joints and the heavy-duty cross journals have given us two full seasons without a U-joint replacement — unheard of with previous brands.” — Wayne T., Farmer
📍 Clare, South Australia
Operation: Mixed cropping on red-brown earth applying DAP and zinc at 100 mm depth with a Simplicity air seeder.
“The quality of the spline fit and the smooth telescoping action are noticeably better than what came with the machine. We’ve recommended GBC to several neighbours.” — Helen R., Farmer
📍 Esperance, Western Australia
Operation: 6,000-hectare grain farm deep-banding compound fertiliser in sandy duplex soils.
“Sandy soils are easier on torque but brutal on bearings with dust. GBC’s IP54 sealed joints are still running perfectly after 1,800 hours. And the zinc-plated finish handles our coastal moisture.” — Greg A., Grain Grower
📍 Devonport, Tasmania
Operation: Vegetable grower deep-placing fertiliser for potato crops in rich, volcanic krasnozem soil.
“Our soil is heavy and wet in spring. The GBC shaft’s epoxy primer and zinc plating haven’t shown any rust after two seasons, even working in wet conditions daily. Reliable kit.” — Ian J., Vegetable Grower
Frequently Asked Questions
What tube profile is best for a deep placement applicator?
We recommend star-profile tubes for deep placement work. They offer higher torsional rigidity than lemon tubes, which is important when the shaft is transmitting fluctuating loads from soil resistance.
Do I need a friction clutch or a shear bolt?
In stony or variable soils where blockages and shock loads are frequent, a friction clutch provides automatic slip protection without stopping to replace bolts. For lighter, cleaner soils, a shear bolt is an economical and effective option.
How do I protect my PTO shaft from dust damage?
Choose GBC shafts with double-lip seals and dust excluders (IP54 or IP65 rating). Grease every 8 hours during dusty conditions — fresh grease purges contaminants from the seal interface. Always keep safety guards intact to shield the shaft from direct dust contact.
Can I use the same PTO shaft for both my air seeder and deep placement applicator?
If spline sizes and length ranges are compatible, it is physically possible. However, for optimal performance and protection, we recommend dedicated shafts with the correct torque rating and overload device matched to each implement.
What is the recommended greasing interval for deep placement work?
Every 8 operating hours in normal conditions. In extremely dusty or wet conditions, increase to every 5 hours. Use EP2 lithium-complex grease at all U-joint zerks and along the telescopic tube splines.
Regulatory Framework & Australian Market Relevance
GBC PTO shafts for deep placement applicators comply with AS/NZS 3815 guarding standards. Our products meet the safety requirements outlined by Safe Work Australia and state-level WHS authorities. Guards, retaining chains, and documentation are included with every shaft to support farm safety compliance and audit readiness.
Australian farmers and dealers searching for “deep placement applicator PTO shaft,” “subsurface fertiliser injector drive shaft,” “deep band applicator PTO replacement Australia,” and “knife-point applicator PTO parts” will find GBC products purpose-designed for local conditions — from the dusty black soils of northern NSW to the sandy duplexes of WA.
