PTO Shaft for Duster — Steady Rotational Drive for Efficient Powder Application

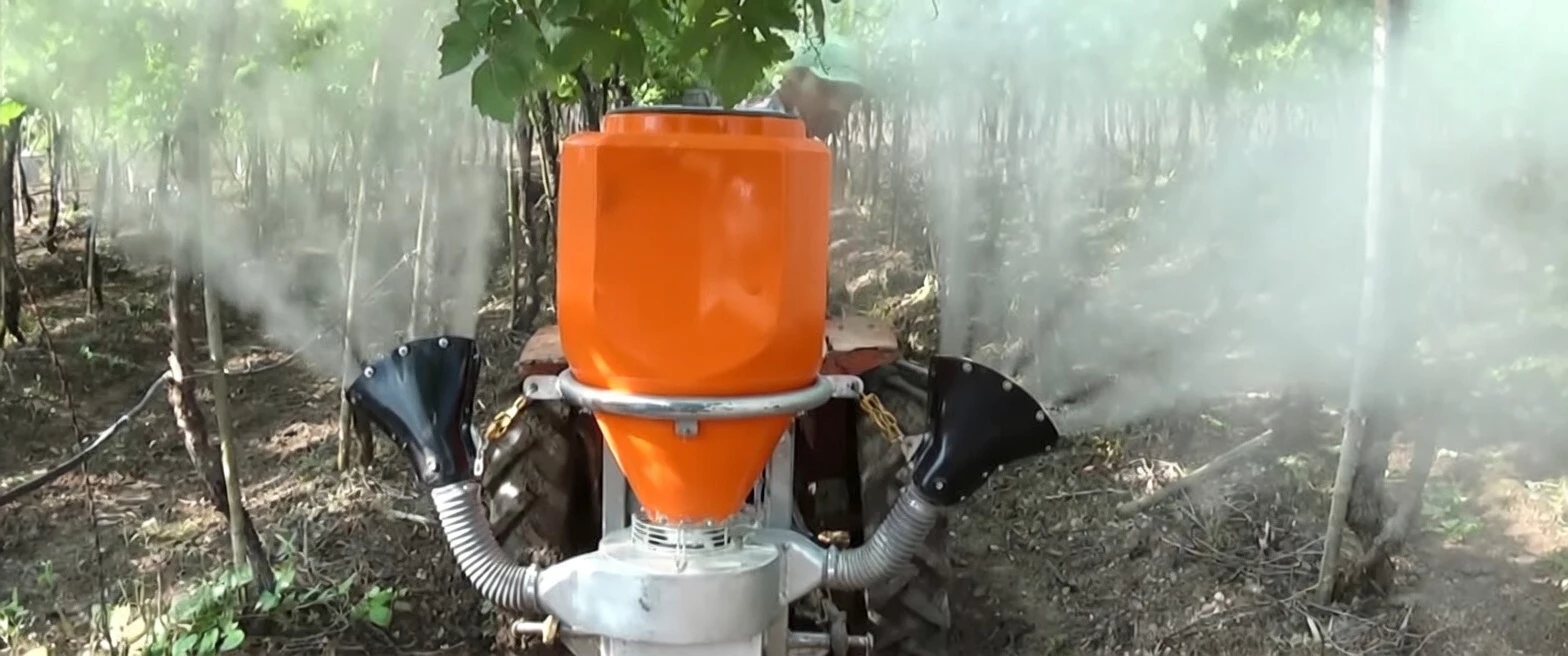

In Australian horticulture, viticulture, and broadacre crop protection, dusters (also referred to as powder applicators, crop dusters, sulphur dusters, or dust blowers) apply dry-form pesticides, fungicides, and sulphur powders to standing crops. The PTO shaft (power take-off shaft, PTO driveshaft, implement PTO line) drives the duster’s fan, agitator, and metering mechanism, converting tractor PTO output into the airflow and powder delivery required for consistent dusting coverage.
Duster PTO duty is characterised by moderate torque, high RPM consistency, and sensitivity to vibration. The fan must rotate at a constant speed to maintain uniform air velocity through the outlet nozzles. Any vibration or speed inconsistency creates uneven powder distribution — wasting product and leaving gaps in crop protection.
GBC (General Bearing Company Pty Ltd), an Ever-power Group Australia Agency, supplies PTO shafts engineered for the smooth, balanced, and reliable operation that duster applications demand in Australian climatic and field conditions.
Technical Parameters — PTO Shaft for Duster Applications
| Parameter | Standard Spec | Customisation Range |
|---|---|---|
| PTO Speed | 540 RPM | 540 / 1000 RPM |
| Tractor Spline Profile | 6-Spline 1-3/8″ | 6 / 20 / 21-Spline |
| Implement Spline Profile | 6-Spline 1-3/8″ | 6 / 20-Spline / Keyed bore |
| Closed Length | 750 mm | 550 – 1200 mm |
| Extended Length | 1100 mm | 800 – 1800 mm |
| Cross & Bearing Size | 22 × 54 mm | 22×54 / 27×70 / 27×74.5 mm |
| Continuous Torque | 140 Nm | 80 – 350 Nm |
| Peak Torque | 300 Nm | 160 – 700 Nm |
| Power Rating @ 540 RPM | 10 HP (7.5 kW) | 5 – 30 HP |
| Tube Profile | Lemon | Lemon / Triangular |
| Tube Wall Thickness | 2.5 mm | 2.0 – 3.5 mm |
| Guard Material | UV-stabilised Polypropylene | PP / Nylon |
| Overload Device | Shear Bolt (M6 Gr 4.8) | Shear bolt / Friction clutch |
| U-Joint Bearing | Needle roller (precision grade) | Needle / Pre-lubed sealed |
| Seal Material | NBR + dust excluder | NBR / FKM |
| Grease Nipple | Zerk M6 | Zerk / Button-head |
| Net Weight | 5.2 kg | 3.5 – 12 kg |
| Max Operating Angle | 22° | Up to 30° |
| Dynamic Balance | Factory balanced <5 g·cm | Standard / Precision (<2 g·cm) |
| Surface Treatment | Zinc plate + UV-resistant clear coat | Zinc / Powder coat |
How a PTO Shaft Operates in a Duster
The PTO shaft on an agricultural duster connects the tractor’s PTO output to the duster’s primary drive input — commonly a gearbox or direct-drive coupling at the front of the duster housing. Inside the duster, the drive powers a high-speed centrifugal fan (or blower) that generates the airstream carrying the powder, and an agitator or metering roller that controls powder feed rate from the hopper into the airstream.
The PTO shaft sits between the tractor’s rear PTO stub and the duster input. Dusters are typically three-point linkage mounted, so the shaft operates at relatively short and consistent length. The universal joints accommodate the angular offset between the PTO stub (horizontal) and the duster input (which may be offset vertically or laterally depending on the duster design).
For dusting, fan speed consistency is paramount. The fan must spin at the design RPM to create the correct air velocity for carrying powder particles to the desired distance and in the correct droplet (particle) size range. GBC’s dynamically balanced shafts ensure the fan receives smooth, pulse-free rotational energy — critical for uniform powder cloud formation.
GBC PTO Shaft Advantages for Duster Applications
🎯 Precision Balancing for Smooth Fan Drive
GBC: Dynamically balanced to <5 g·cm (precision <2 g·cm available) — eliminates vibration that causes uneven powder discharge and accelerated fan bearing wear.
Generic: Unbalanced shafts create pulsating airflow and premature fan bearing failure.
💨 Dust-Proof Sealed Joints
GBC: Double-lip NBR seals with integrated dust excluders — specifically important for dusters, where fine powder particles are airborne throughout operation.
Generic: Single-lip seals allow fine dust ingress, destroying U-joint bearings rapidly in dusty environments.
⚖ Compact & Lightweight
GBC: 5.2 kg net weight with 22 × 54 mm compact cross journals — perfectly sized for the low-to-moderate power demand of duster fans without overstressing the duster’s input bearing.
Generic: Oversized shafts add unnecessary weight and stress to lightweight duster frames.
🔧 Easy Maintenance Design
GBC: Clearly positioned zerk fittings, tool-free guard removal, and colour-coded grease points for fast in-field servicing.
Generic: Hidden grease points and difficult-to-remove guards discourage regular maintenance.
Brand Replacement Compatibility
GBC duster PTO shafts directly replace OEM and aftermarket shafts on machines from Jacto, Caffini, Tifone, Gaspardo (Maschio), Hardi, Curtis Dyna-Fog, Silvan, and Indian (Agrishell). We cross-reference Walterscheid, Bondioli & Pavesi, and Comer Industries part numbers for exact fitment.
All brand names and trademarks are the property of their respective owners. They are referenced solely for customer convenience in identifying compatible replacement PTO shafts. GBC is an independent supplier and has no affiliation with any listed brand.
Parts on Hand
We stock: cross & bearing kits (22×54 mm and 27×74.5 mm), lemon-tube profile sets, yoke assemblies, safety guards, guard chains, shear bolts, dust-excluder seal kits, and grease fittings — all ready for prompt despatch from our Australian warehouse.
Quick-Selection Guide — Duster PTO Shaft
| Factor | How to Check | Typical Values | Recommendation |
|---|---|---|---|
| Duster Type | Machine manual | Centrifugal fan / Axial fan | Both types benefit from balanced shaft |
| Fan Power Requirement | Duster spec sheet | 5 – 25 HP | Match PTO shaft power rating accordingly |
| Mounting | Observe connection | 3-Point linkage (Cat I/II) | Shorter shaft lengths suit 3-point mounting |
| Hopper Capacity | Duster label or manual | 50 – 500 kg | Larger hoppers may need higher-torque shaft for agitator |
| Dust Exposure Level | Assess operating conditions | High (always) | Always select dust-excluder sealed joints |
| Chemical Contact | Check dust product MSDS | Sulphur / Insecticide / Fungicide | Sulphur is corrosive — consider FKM seal upgrade |
Step-by-Step Installation — Duster PTO Shaft
Troubleshooting — Duster PTO Shaft Issues
⚠ Uneven Powder Distribution
Causes: PTO shaft vibration causing inconsistent fan speed, blocked nozzle, or uneven hopper flow.
Fix: Check the shaft for worn U-joints or imbalance. Replace cross & bearing kits if play is detected. Clean nozzles and agitator. Consider upgrading to a precision-balanced GBC shaft.
⚠ Rapid U-Joint Bearing Wear
Causes: Fine powder dust infiltrating bearings through inadequate seals, or insufficient greasing in dusty conditions.
Fix: Replace seals with GBC double-lip dust-excluder kits. Increase greasing frequency to every 5 hours during dusting operations. Consider sealed-for-life joints for severe dust conditions.
⚠ Fan Speed Drops Under Load
Causes: PTO shaft spline slipping, tractor RPM dropping, or agitator jam in hopper.
Fix: Inspect spline engagement. Maintain tractor throttle at full RPM during dusting. Clear any hopper blockage. If splines are worn, replace the yoke.
⚠ Shaft Guard Cracking or Becoming Brittle
Causes: Non-UV-stabilised plastic degrading in Australian sun, or chemical attack from sulphur powder.
Fix: Replace with GBC UV-stabilised polypropylene guards. If using sulphur dust, wash the guard after each session to prevent chemical degradation.
⚠ Excessive Noise at Start-Up
Causes: Dry bearings (cold start), loose yoke fasteners, or telescopic tube binding.
Fix: Pre-grease before first use of the day. Torque yoke bolts. Clean and lubricate the telescopic tube profiles.
Real-World Applications — Duster PTO Shafts Across Australia
📍 Griffith, New South Wales
Use: Sulphur dusting on 80 hectares of wine grapes for powdery mildew control, using a Caffini duster.
“Sulphur dust is incredibly abrasive and corrosive. GBC’s sealed joints lasted the entire season — three months of weekly dusting. Our previous shaft needed new U-joints every 4–5 weeks.” — Marco V., Viticulturist
📍 Mildura, Victoria
Use: Table grape and dried fruit vineyard dusting with a Jacto PJ-600 duster for disease management.
“Coverage uniformity improved when we changed to GBC’s balanced shaft. Our vineyard manager noticed more consistent dust deposits on the canopy, which translates to better disease control.” — Lisa T., Vineyard Owner
📍 Bundaberg, Queensland
Use: Macadamia orchard pest dusting with a Silvan duster for nut borer control.
“The compact, lightweight shaft suits our orchard tractor perfectly. No excessive stress on our duster’s fan bearing, and the dust seals hold up in our subtropical conditions.” — Chris B., Macadamia Grower
📍 Barossa Valley, South Australia
Use: Premium wine grape dusting for organic sulphur management across 120 hectares.
“Organic production means we use a lot of sulphur dust. The GBC shaft runs smooth and clean. We appreciate the easy-access grease points — makes servicing fast between vineyard blocks.” — Nicole H., Organic Winegrower
📍 Margaret River, Western Australia
Use: Fungicide dusting on premium wine grapes during the growing season.
“WA’s maritime climate means we alternate between wet and dry conditions. GBC’s zinc-plated shaft resists the coastal humidity while handling the dusty vineyard work. Best shaft we’ve used.” — David S., Viticulturist
📍 Huon Valley, Tasmania
Use: Apple orchard dusting for codling moth and scab management using a compact PTO duster.
“In our cool climate, we need dependable equipment for short dusting windows. The GBC shaft starts up smoothly even on cold mornings and delivers consistent fan speed all day.” — Paul E., Orchardist
FAQ — Duster PTO Shafts
How do I keep dust out of my PTO shaft bearings?
Choose GBC shafts with double-lip seals and dust excluders. Grease every 5 operating hours during dusting — fresh grease purges dust from the seal interface. Clean accumulated dust from the shaft and guards after each session.
Is a sulphur duster harder on PTO shafts than other dusters?
Yes. Sulphur is both abrasive and mildly corrosive (it forms sulphuric acid when combined with moisture). We recommend FKM seal upgrades and thorough washing after sulphur dusting sessions to extend shaft life.
Does the PTO shaft need to be dynamically balanced for a duster?
We strongly recommend it. Duster fans are sensitive to vibration, and even minor imbalance causes uneven powder distribution. All GBC duster PTO shafts are factory-balanced as standard.
Can I use a sealed-for-life PTO shaft on my duster?
Yes, GBC offers pre-lubed sealed-for-life U-joint options for duster applications. These are ideal for operators who prefer minimal maintenance, though they cannot be re-greased and must be replaced as a unit when the bearing reaches end of life.
What size PTO shaft do I need for a small vineyard duster?
Most compact vineyard dusters (50–200 kg hopper) operate in the 5–15 HP range. A Series 1 or Series 2 shaft with 22 × 54 mm cross journals and 140 Nm continuous torque is typically adequate. Contact our team for exact sizing.
Australian Regulations & Local Relevance
GBC duster PTO shafts comply with AS/NZS 3815 safety guarding standards. All shafts include full-length tubular guards, bell-housing end guards, and retaining chains as required by Safe Work Australia and state WHS regulations. Our products support farm safety compliance across every Australian state and territory.
Australian customers searching for “duster PTO shaft,” “sulphur duster drive shaft Australia,” “powder applicator PTO replacement,” “vineyard duster PTO shaft,” and “agricultural duster PTO parts” will find GBC products engineered specifically for the local horticultural and viticultural sectors.
Companion Products from GBC
GBC — Your Australian Partner for Agricultural PTO Drivetrain Components
We are GBC (General Bearing Company Pty Ltd), the Ever-power Group’s exclusive Australian agency. With close to two decades of PTO shaft manufacturing experience, our ISO 9001:2015 certified factory produces precision-engineered shafts, gearboxes, and power transmission parts for the global agricultural market.
Our 120,000 m² production complex houses CNC machining, induction heat treatment, dynamic balancing, and automated assembly — all dedicated to producing PTO shafts that meet or exceed OEM quality. We offer full OEM capability including custom specifications, private-label packaging, and flexible quantities for dealers, distributors, and equipment manufacturers across Australia.
With exports to over 60 countries and maintained Australian inventory, we deliver promptly to every state — from Sydney to Perth, Melbourne to Darwin. Whether you operate a small vineyard duster or a fleet of broadacre machines, GBC has the products and expertise to keep you running.
