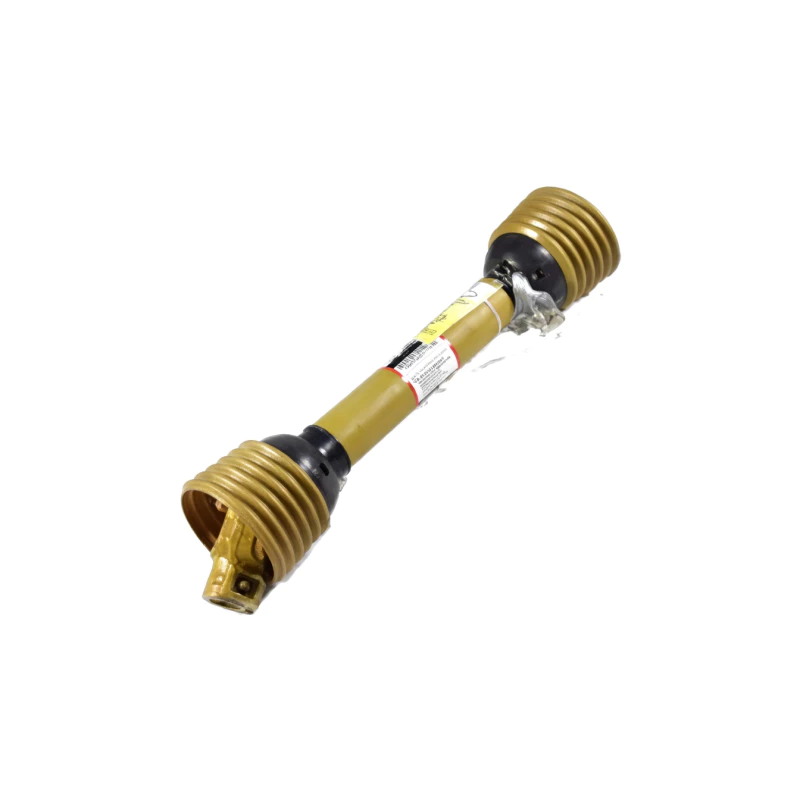

Overview: PTO Shaft for Flail Shredder
Flail shredders (also known as flail mowers or flail mulchers) are heavy-duty vegetation management machines used to clear scrub, mulch crop residues, shred prunings and maintain firebreaks across Australia. The PTO shaft powering a flail shredder must handle extreme shock loads — every time a swinging flail strikes a branch, rock or fence post, a violent torque spike travels back up the drivetrain. GBC’s PTO Shaft for Flail Shredder is engineered specifically for this punishing duty cycle. Built with oversized U-joint crosses, a ratchet-type overload clutch and reinforced profile tubes, it absorbs impacts that would destroy a standard agricultural PTO shaft within hours. Whether you maintain council roadsides in New South Wales, clear lantana in north Queensland or mulch vineyard prunings in the Barossa, GBC delivers the toughness and reliability that flail-shredder operators demand.
Technical Specifications — PTO Shaft for Flail Shredder
Below are the key technical parameters for our flail shredder PTO shaft. All values represent standard ranges — custom specifications are available upon request.
| Parameter | Specification | Customisable Range |
|---|---|---|
| Shaft Series | Series 5 / Series 6 / Series 8 | Custom series on request |
| Rated PTO Speed | 540 RPM or 1000 RPM | Economy PTO (540E) available |
| Continuous Torque Rating | 640 – 1600 Nm | Up to 2000 Nm on request |
| Peak Torque Rating | 1280 – 3200 Nm | 200 % of continuous |
| Tractor-End Spline | 6-spline × 1-3/8″ (35 mm) | 20-spline × 1-3/4″ available |
| Implement-End Spline | 6-spline × 1-3/8″ (35 mm) | Custom spline profiles |
| Closed Length (Lz) | 750 mm | 700 – 1300 mm custom range |
| Overall Length (Lo) | 1050 mm | 900 – 1700 mm custom range |
| Telescopic Stroke | 300 mm | Up to 450 mm extended-stroke |
| Profile Tube Shape | Star (outer) / Star (inner) | Lemon & triangular available |
| Tube Wall Thickness | 4.0 mm (reinforced standard) | 3.0 mm light-duty option |
| Tube Material | High-strength alloy steel | EN 10305-3 cold-drawn |
| U-Joint Cross Size | 30.2 × 92 mm (oversized for series) | 35 × 106.5 mm for Series 8 |
| U-Joint Bearing Type | Needle roller with triple-lip seals | Pre-packed long-life grease |
| U-Joint Operating Angle (max) | 25° | 80° CV joint option |
| Overload Clutch Type | Ratchet clutch (RA) | Friction (FF) or shear bolt (SB) options |
| Ratchet Clutch Torque Setting | 700 Nm (adjustable) | 400 – 1600 Nm range |
| Guard Material | HDPE — UV stabilised, heavy-duty | Chain-restrained design |
| Guard Standard Compliance | AS/NZS 1121 / CE | Fully compliant |
| Total Weight (approx.) | 14.0 kg | Varies with series and length |

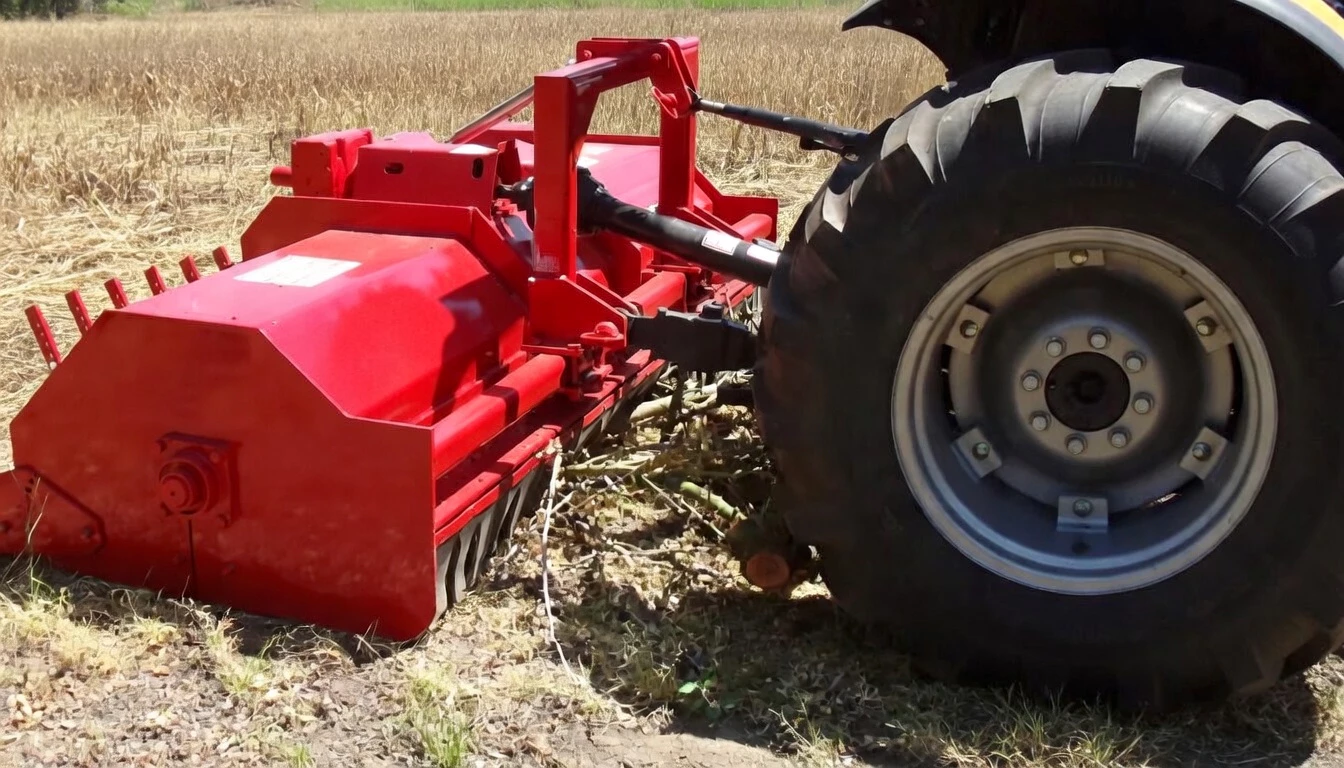

⚙️ How It Works: PTO Shaft in Flail Shredder Applications
The PTO shaft transfers rotational power from the tractor’s PTO output to the flail shredder’s rotor gearbox, which is usually mounted centrally on top of the machine’s cutting chamber. The shaft consists of two telescoping half-shafts connected by universal joints at each end and protected by free-spinning plastic guard tubes. When the tractor PTO is engaged, the shaft transmits 540 or 1000 RPM to the gearbox, which may include a belt-drive stage or direct gear reduction to spin the rotor at the required tip speed. The rotor carries rows of pivoting flail knives that swing outward under centrifugal force to cut and pulverise vegetation. Because each flail impact creates a sudden spike in torsional load, the PTO shaft includes an overload clutch — typically a ratchet (free-wheel) type for flail shredders — that allows brief angular slip to dissipate energy rather than transmitting the shock to the tractor’s PTO output bearing. The telescopic section compensates for changes in the distance between the tractor and the offset or trailed shredder as it follows contours. High-strength alloy yokes and cardan crosses rated for peak torques well above the shaft’s continuous rating provide the safety margin needed for impact-intensive work.
Core Advantages of Our Flail Shredder PTO Shaft
When compared to generic or budget PTO shafts, the GBC Flail Shredder PTO shaft stands apart in every critical performance area:
✅ Ratchet Overload Clutch
Purpose-designed for repetitive impact loads, the ratchet clutch slips momentarily on each shock event and re-engages automatically — far superior to shear-bolt clutches that leave you stranded in the paddock.
✅ Oversized U-Joint Crosses
Cross-and-bearing assemblies are one series size larger than the shaft’s nominal rating, providing up to 40 % additional peak-torque headroom for impact absorption.
✅ Reinforced Tube Walls
Profile tubes use 4 mm wall thickness (vs. 3 mm industry standard), dramatically reducing the risk of tube buckling when the shredder rotor locks momentarily on heavy material.
✅ Multi-Position Shear Pin Backup
Should the ratchet clutch ever need service, a secondary shear-pin station provides get-home capability without tools.
✅ UV-Stabilised Guard Tubes
Australian UV levels destroy standard guard plastic within two seasons. Our UV-stabilised HDPE guards remain crack-free for 5+ years in full sun.
Brand Compatibility & Replacement Guide
The GBC PTO Shaft for Flail Shredder is designed as a direct drop-in replacement for OEM shafts on the following equipment brands:
Compatible Brands: Nobili, Berti, Agrimaster, Orsi, Serrat, Tierre, Zanon, Seppi M, FAE, Hymach, Howard, Maschio Gaspardo, Kuhn
⚠️ Disclaimer: Brand names listed above are the property of their respective owners. They are mentioned solely for compatibility reference purposes to assist buyers in selecting the correct replacement PTO shaft. GBC is not affiliated with these brands.
Replacement Parts & Accessories
GBC stocks a comprehensive range of replacement components for all our PTO shafts, including:
- Universal joint cross-and-bearing kits
- Friction clutch plate sets and springs
- Telescopic profile tube pairs (lemon, star, triangular)
- Safety guard tubes and bearing supports
- Locking collars, shear bolts and retaining hardware
Quick Selection Guide — PTO Shaft for Flail Shredder
Use this guide to identify the correct PTO shaft specification before placing your order:
| Parameter to Confirm | Options / Range | How to Determine |
|---|---|---|
| Shredder Cutting Width | 0.8 m – 2.8 m | Wider machines demand higher torque; match shaft series accordingly |
| Tractor PTO Speed | 540 RPM / 1000 RPM | Verify the shredder gearbox input requirement |
| PTO Spline Configuration | 6-spline 1-3/8″, 20-spline 1-3/4″ | Match spline count and diameter at both ends |
| Shaft Series (Torque Rating) | Series 5 (640 Nm) – Series 8 (1600 Nm) | Select based on shredder width and typical material severity |
| Closed Length (Lz) | 700 mm – 1300 mm | Measure at shortest tractor-to-shredder distance during tight turns |
| Overload Protection | Ratchet clutch / Friction clutch / Shear bolt | Ratchet clutch strongly recommended for flail shredder impact duty |
| Tube Wall Thickness | 3 mm / 4 mm (reinforced) | 4 mm reinforced recommended for heavy mulching |
| Guard Rating | Standard / Heavy-duty UV-stabilised | Heavy-duty for Australian conditions |
Need Help Selecting? Contact Our Engineers
Installation Guide — PTO Shaft for Flail Shredder
Follow these steps for safe, correct installation of your GBC PTO shaft on a flail shredder application:
Prepare the Work Area
Park on flat, hard ground. Disengage PTO, turn off the engine, remove the ignition key and wait for the shredder rotor to stop completely before approaching.
Match Spline Profiles
Confirm the tractor PTO stub spline and the shredder gearbox input spline both match the PTO shaft end fittings in count, diameter and speed rating.
Set Telescopic Length and Overlap
Slide the shaft halves to approximate the working distance. Confirm at least 1/3 tube overlap at maximum extension — flail shredders on offset arms swing wide, so check at the extreme offset position.
Grease All Points Before Assembly
Apply EP2 grease to splines, U-joint zerks and the ratchet clutch grease point. Impacts generate heat rapidly; dry joints will seize within hours.
Connect the Tractor End
Slide the yoke onto the tractor PTO stub; verify the quick-release collar seats fully. A half-locked yoke under flail-shredder loads is extremely dangerous.
Connect the Shredder End
Attach to the gearbox input shaft and confirm the lock. Route the shaft so it does not contact the shredder’s hydraulic hoses or top-link turnbuckle.
Phase the Shaft
Align both yoke pairs in the same rotational plane. Out-of-phase operation amplifies the already high vibration of flail shredders.
Fit and Inspect Guards
Install guard tubes, bearing supports and restraint chains. Verify the guard spins freely by hand — a seized guard becomes a rotating hazard.
Commission Test
Engage PTO at idle with the rotor clear of material. Listen for rhythmic knocking (phasing issue) or metallic rattle (loose clutch components). Increase to working RPM and make a short test pass on light vegetation before tackling heavy scrub.
️ PTO Shaft Troubleshooting — Flail Shredder Applications
Use this reference to quickly diagnose and resolve common PTO shaft issues during flail shredder operation:
⚠️ Ratchet clutch chatters continuously
Likely Cause: Clutch spring tension too low or pawl faces worn
Recommended Solution: Adjust ratchet spring per service manual; replace pawl set if worn beyond limit
⚠️ Shaft vibrates severely
Likely Cause: Bent tube, out-of-phase yokes or rotor imbalance
Recommended Solution: Roll shaft on flat surface; re-phase yokes; check rotor flails for missing or uneven knives
⚠️ U-joint fails prematurely
Likely Cause: Insufficient greasing or operating angle exceeds limit
Recommended Solution: Increase grease frequency to every 4 hours for heavy mulching; reduce hitch angle below 15°
⚠️ Telescopic tubes seize after use
Likely Cause: Sap and debris bake onto splines
Recommended Solution: Disassemble, wire-brush splines, apply anti-seize compound, and re-grease
⚠️ Guard tube cracked or split
Likely Cause: UV degradation or impact damage
Recommended Solution: Replace with GBC UV-stabilised HDPE guard; inspect for rotor debris exit points
⚠️ Shredder gearbox overheating
Likely Cause: PTO shaft under-rated or continuous overload
Recommended Solution: Verify shaft series matches shredder HP requirement; upgrade to next series if marginal
Australian Case Studies — Flail Shredder PTO Shaft
Real-world feedback from Australian farmers and contractors who have installed GBC PTO shafts on their flail shredder equipment:
Orange, NSW — Council roadside vegetation crew running Nobili TMS flail shredders
“We shred blackberry and lantana along 200 km of road shoulders. GBC ratchet-clutch shafts handle rock strikes daily without breaking stride — the old shear-bolt shafts cost us an hour per breakage.”
Ballarat, VIC — Vineyard manager using a Berti EKR mulcher on prunings
“Clean, reliable shaft that matches the Berti input perfectly. The UV-resistant guard is still in great shape after three seasons in full sun.”
Bundaberg, QLD — Sugarcane grower shredding trash post-harvest with an Agrimaster rotary mulcher
“Punishing conditions — heat, dust, abrasive cane trash. The GBC oversized U-joints are noticeably beefier than what we had before. Fewer grease-ups needed too.”
Barossa Valley, SA — Winery estate using a Maschio Giraffona flail mower
“We mulch between vine rows weekly during summer. The compact closed length fits our narrow row spacing perfectly, and the ratchet clutch saved us when we hit a buried irrigation riser.”
Margaret River, WA — Hobby farm clearing bracken fern
“Affordable heavy-duty shaft that was easy to fit to my Chinese-import shredder. The GBC selection guide was spot-on with the measurements.”
Devonport, TAS — Forestry contractor using a Seppi M Superforst mulcher
“The reinforced 4 mm tube walls make a real difference when the rotor grabs stumps. We’ve bent standard shafts in under a day — the GBC shaft has lasted 14 months so far.”
❓ Frequently Asked Questions — PTO Shaft for Flail Shredder
❔ Why is a ratchet clutch better than a shear bolt for a flail shredder?
Flail shredders produce hundreds of small impact events per hour. A shear bolt breaks after one event, stopping work. A ratchet clutch slips momentarily on each impact and re-engages automatically, keeping you productive.
❔ Can I use a standard PTO shaft on my flail shredder?
We strongly advise against it. Standard shafts lack the oversize joints, reinforced tubes and impact-rated clutch that flail shredders require. Premature failure and safety risks are common.
❔ What shaft series do I need for a 2.0 m flail shredder?
For a 2.0 m machine running behind an 80–120 HP tractor, Series 6 is typically appropriate. Heavier scrub-clearing duty may require Series 8 — contact our engineers for a recommendation.
❔ How do I maintain the ratchet clutch?
Apply grease to the clutch grease point every 50 hours. Inspect the pawls and ratchet ring annually. Replacement kits are available from GBC.
❔ Are replacement U-joint kits available?
Yes. GBC stocks complete cross-and-bearing kits for all shaft series. Kits include seals, snap rings and needle bearings.
