Overview: PTO Shaft for Hay Baler
Australian farmers depend on robust mechanical linkages to keep their operations running from dawn to dusk. The PTO shaft (power take-off shaft) is the critical mechanical link between your tractor and your round balers, square balers, large square balers, and combination baler-wrappers. In the context of hay and straw baling operations critical to livestock feed preparation across Australia’s pastoral regions, a purpose-engineered PTO drive shaft ensures uninterrupted power flow, operator safety, and maximum implement efficiency.
At GBC — General Bearing Company, we manufacture and supply premium PTO shafts designed specifically for round balers, square balers, large square balers, and combination baler-wrappers. Whether you operate in New South Wales, Victoria, Queensland, South Australia, or Western Australia, our PTO shaft range delivers the torque, durability, and compatibility your operation demands.
Technical Specifications
Below are the key technical parameters for our PTO shaft range configured for this application. All values represent standard options — custom specifications are available on request.
| Parameter | Specification / Range |
|---|---|
| Cross Journal Material | 20CrMnTi case-hardened steel |
| Grease Fitting | M6 / M8 metric zerk / 1/4″-28 UNF |
| Country of Manufacture | China (Ever-power Group) / Assembled AU |
| Certification | CE / ISO 9001:2015 |
| Colour Coding | Yellow guard with black shaft (standard) |
| Weight (typical) | 8–25 kg (series dependent) |
| Cross & Bearing Kit Size | 27×74.6 / 30.2×92 / 35×106.5 mm |
| Noise Level at Rated Speed | ≤75 dB(A) at 1 m |
| Operating Angle (wide-angle) | Up to 80° continuous |
| Guard Colour | Yellow (RAL 1003) / Custom colour on request |
| Tube Profile | Lemon / Triangular / Star (customisable) |
| Telescoping Stroke Length | 100–200 mm (series dependent) |
| Torsional Stiffness | 2800–12000 Nm/rad (series dependent) |
| Yoke Type – Tractor End | Splined 1-3/8″ Z6 / 1-3/4″ Z6 / 1-3/4″ Z20 |
| Spline Hardness | HRC 58–62 (induction hardened) |
| Operating Temperature Range | -25 °C to +80 °C |
| Yoke Material | 40Cr forged alloy steel |
| PTO Speed Rating | 540 RPM |
| Shear Bolt Rating | Customisable from 200–1500 Nm |
| Torque Limiter Type | Friction clutch / Shear bolt / Ratchet |
* Specifications are indicative and may vary based on series and customisation. Contact our team for detailed datasheets.

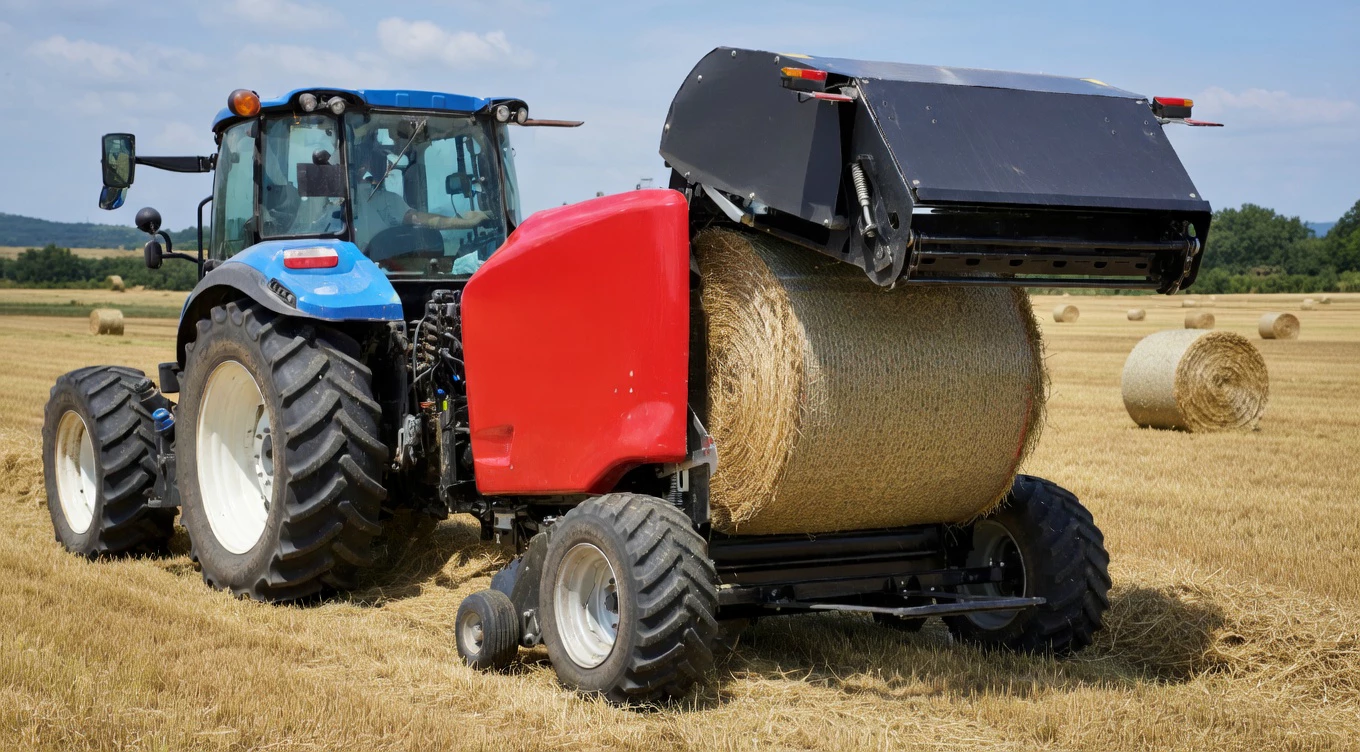

How the PTO Shaft Works in Hay Baler Applications
The PTO shaft delivers high-torque rotational power from the tractor PTO stub to the baler’s pick-up mechanism, plunger or roller assembly, and tying system, compressing loose crop material into tightly formed bales. The assembly consists of the following principal components:
| Component | Function |
|---|---|
| Tractor-Side Yoke | Connects to the tractor PTO stub via splined coupling |
| Universal Joints (×2) | Accommodate angular misalignment between tractor and implement |
| Telescoping Tubes | Allow length adjustment as the implement moves closer or further from the tractor |
| Safety Guard | Encloses rotating components to protect the operator (CE-rated) |
| Torque Limiter / Clutch | Protects the drivetrain from overload by disengaging or slipping at a preset torque |
| Implement-Side Yoke | Connects to the implement gearbox or input shaft |
The PTO shaft is positioned between the tractor’s rear (or mid) PTO output and the baler drawbar and PTO input shaft behind the tractor. During operation, the shaft rotates at the tractor’s PTO speed (540 RPM), transferring mechanical power through universal joints that compensate for the angle between tractor and implement as terrain changes.
Core Advantages of Our PTO Shaft
When comparing drivetrain components, the differences between a quality PTO shaft and a budget option become obvious in the field:
✔ Heavy-Duty Cross & Bearing Kits
20CrMnTi case-hardened cross journals with multi-lip rubber seals and high-capacity needle roller bearings rated for extended grease intervals.
vs. competitor: Generic cross bearings often lack adequate sealing, allowing dust and moisture ingress that accelerates bearing failure.
✔ CE-Compliant Safety Guards
UV-stabilised plastic guards with anti-rotation chains meet CE and Australian WHS requirements, providing full coverage of rotating components.
vs. competitor: Some imported shafts ship without guards or with flimsy guards that crack and detach, creating serious safety hazards.
✔ Integrated Torque Limiter Options
Choose friction clutch, shear bolt, or ratchet torque limiters factory-fitted and calibrated to your implement’s exact torque threshold.
vs. competitor: Shafts without torque limiters transmit shock loads directly to the tractor and implement gearboxes, causing expensive damage.
✔ Dynamic Balancing
Every shaft is dynamically balanced to ISO 1940 G16 standard, minimising vibration, reducing bearing stress, and extending the life of connected equipment.
vs. competitor: Unbalanced shafts create excessive vibration that accelerates wear on PTO bearings, seals, and implement gearboxes.
✔ Precision-Ground Spline Profiles
CNC-ground splines with induction hardening to HRC 58–62 ensure tight-fitting, low-backlash engagement with minimal wear over thousands of hours.
vs. competitor: Budget shafts use rough-cut splines that wear quickly, developing dangerous play and vibration.
✔ High-Strength Forged Yokes
40Cr alloy steel yokes forged (not cast) for superior fatigue resistance and impact toughness under heavy Australian field conditions.
vs. competitor: Competitor shafts often use cast iron yokes that crack under shock loads, leading to costly mid-season failures.
Brand Compatibility & Replacement Guide
Our PTO shaft for round balers, square balers, large square balers, and combination baler-wrappers is engineered as a direct replacement for OEM shafts supplied with equipment from the following brands:
| Compatible Brand | Typical Model Series | Replacement Confidence |
|---|---|---|
| John Deere | All current and recent model series | Direct fit — bolt-on replacement |
| New Holland | All current and recent model series | Direct fit — verify yoke profile |
| Claas | All current and recent model series | Compatible — confirm spline count |
| Massey Ferguson | All current and recent model series | Direct fit — match PTO speed |
| Case IH | All current and recent model series | Direct fit — bolt-on replacement |
| Kuhn | All current and recent model series | Compatible — verify shaft length |
| Krone | All current and recent model series | Direct fit — standard spline |
| Vermeer | All current and recent model series | Compatible — confirm yoke dimensions |
Disclaimer: Brand names mentioned above are the property of their respective owners. References are made solely for the purpose of identifying compatible equipment and assisting customers with product selection. GBC is not affiliated with or endorsed by the brands listed.
Spare Parts & Accessories
We stock a comprehensive range of replacement parts for our PTO shafts, including cross & bearing kits, safety guards, yokes, torque limiter discs, shear bolts, spline tubes, and guard chains. All parts are available individually for maintenance and repair.
Quick Selection Guide: Choosing the Right PTO Shaft
Use this guide to identify the correct PTO shaft for your hay baler application before placing an order.
| Step | Parameter to Confirm | How to Determine | Typical Options |
|---|---|---|---|
| 1 | PTO Speed | Check tractor PTO specification plate or manual | 540 RPM / 1000 RPM / Dual |
| 2 | Tractor Horsepower | Refer to tractor nameplate | 40–120 HP for this application |
| 3 | Shaft Series | Match to implement torque requirement | Series 6/8 |
| 4 | Closed Length (Lz) | Measure tractor PTO stub to implement input at closest position | 900–1800 mm typical |
| 5 | Tractor-Side Yoke Profile | Count splines on tractor PTO stub | 1-3/8″ Z6 / 1-3/4″ Z6 / 1-3/4″ Z20 |
| 6 | Implement-Side Yoke Profile | Inspect implement input shaft or check manual | Splined / Keyed / Plain bore |
| 7 | Torque Limiter Preference | Consider load type (constant vs. shock) | Friction clutch / Shear bolt / Ratchet |
| 8 | Tube Profile | Match to existing shaft or specify new | Lemon / Triangular / Star |
📌 Not sure? Email your tractor model, implement model, and a photo of the existing PTO stub to sales@australia-drive.com — our engineers will specify the correct shaft within 24 hours.
Installation Guide: PTO Shaft for Hay Baler
Follow these steps to install your PTO shaft safely and correctly. Always refer to your tractor and implement operator manuals in conjunction with this guide.
Park the tractor on level ground. Engage the parking brake and shut off the engine. Ensure the PTO lever is disengaged. Verify the baler drawbar and PTO input shaft behind the tractor is securely attached and stable.
Remove the shaft from packaging. Extend and compress the telescoping tubes to confirm smooth operation. Apply a thin coat of EP2 grease to the spline profile. Check that the safety guards rotate freely.
Slide the tractor-side yoke onto the tractor PTO stub. Ensure the splines engage fully. Lock the quick-release collar or push-pin until it clicks into the retaining groove. Tug firmly to verify the connection is secure.
Align the implement-side yoke with the implement input shaft on your hay baler. Slide on and lock with the push-pin or bolt. Confirm engagement by pulling back on the yoke.
With both ends connected, check that the telescoping tubes have at least 75 mm of overlap at full extension and do not bottom out at full compression. Confirm the operating angle at each universal joint does not exceed 25° in normal working position.
Secure the anti-rotation chains from each guard half to a fixed point on the tractor and implement respectively. The chains prevent the guards from rotating with the shaft. Ensure chains are taut but allow articulation.
Pump EP2 lithium grease into every zerk fitting on both universal joints and the spline tube until fresh grease appears at the seal edges. This is critical before the first use.
Start the tractor engine and slowly engage the PTO at low idle. Observe the shaft for smooth rotation, listen for unusual noises, and watch for vibration. Gradually increase to operating RPM (540 RPM) while monitoring the shaft and implement.
PTO Shaft Troubleshooting Guide
Use the table below to diagnose and resolve common PTO shaft issues quickly.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Excessive vibration during operation | Worn cross bearings; imbalanced shaft; operating angle too steep | Replace cross & bearing kits. Check hitch height to reduce joint angle. Rebalance if damaged. |
| PTO shaft will not engage / disengage | Corroded or burred splines; worn quick-release collar | Clean splines with a wire brush and regrease. Replace the collar or push-pin if worn. |
| Clunking or knocking noise at PTO engagement | Worn universal joint bearings; excessive backlash in spline | Inspect and replace cross bearings. If spline play exceeds 2°, replace telescoping tubes. |
| Torque limiter slipping under normal load | Clutch disc worn; incorrect torque setting | Replace friction discs or shear bolt. Adjust clutch spring preload per manufacturer specification. |
| Overheating at universal joints | Insufficient lubrication; joint angle exceeding rating | Regrease immediately. Reduce operating angle by adjusting hitch height. Consider wide-angle joints. |
| Safety guard cracked or detached | UV degradation; impact damage; missing chain | Replace guard immediately — never operate without guards. Re-attach anti-rotation chain. |
| Shaft telescoping tubes binding | Dirt ingress; bent tubes; lack of lubrication | Disassemble, clean, and inspect for damage. Replace if bent. Regrease spline profile. |
| Unusual whining sound at high RPM | Bearing preload issues; misalignment | Check cross bearing caps for looseness. Verify alignment between tractor and implement. |
Case Studies: Field Reports from Australian Farms
Real-world feedback from our customers across Australia demonstrates the performance and reliability of our PTO shafts in hay baler applications.
📍 Dubbo, NSW
Application: Large-scale hay contracting
Engineer / Operator: Sarah M.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Dubbo conditions. Highly recommend for anyone in large-scale hay contracting.”
Rating: ⭐ 5/5
📍 Ballarat, VIC
Application: Mixed farming feed storage
Engineer / Operator: Rachel K.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Ballarat conditions. Highly recommend for anyone in mixed farming feed storage.”
Rating: ⭐ 5/5
📍 Dalby, QLD
Application: Export-grade lucerne baling
Engineer / Operator: David T.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Dalby conditions. Highly recommend for anyone in export-grade lucerne baling.”
Rating: ⭐ 5/5
📍 Murray Bridge, SA
Application: Straw baling after grain harvest
Engineer / Operator: James W.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Murray Bridge conditions. Highly recommend for anyone in straw baling after grain harvest.”
Rating: ⭐ 4.8/5
📍 Esperance, WA
Application: Silage round baling
Engineer / Operator: Amanda G.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Esperance conditions. Highly recommend for anyone in silage round baling.”
Rating: ⭐ 4.9/5
📍 Devonport, TAS
Application: Small square baling for horse industry
Engineer / Operator: Emily H.
“We switched to the GBC PTO shaft for our hay baler operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Devonport conditions. Highly recommend for anyone in small square baling for horse industry.”
Rating: ⭐ 5/5
Frequently Asked Questions (FAQ)
❓ Why does my baler PTO shaft vibrate excessively?
❓ Should I use a wide-angle joint for my baler?
❓ What PTO speed does this shaft support?
❓ Do you ship to regional Australia?
❓ What is the lead time for stock items?
❓ Do you offer custom PTO shaft lengths?
❓ What warranty do you offer?
❓ What safety guards are included?
Australian Regulations, Safety Standards & Local Information
Operating PTO-driven equipment in Australia is governed by Work Health and Safety (WHS) regulations administered at both federal and state levels. Key requirements for PTO shaft operation include:
| Regulation / Standard | Relevance |
|---|---|
| AS 1121 – PTO for Agricultural Tractors | Defines PTO speed, dimensions, and guard requirements for equipment sold in Australia |
| Safe Work Australia – Code of Practice | Managing the Risks of Plant in the Workplace — includes specific PTO guarding requirements |
| WHS Act 2011 (Cth) & State WHS Acts | Imposes duties on employers and operators to maintain guarding on PTO shafts |
| CE Marking (EN 12965) | Our PTO shafts are CE-marked, meeting or exceeding European guarding and safety standards |
Local Availability & Service
GBC supplies PTO shafts to customers across all major Australian agricultural regions including New South Wales, Victoria, Queensland, South Australia, Western Australia, and Tasmania. Our distribution network covers metro and regional centres including Sydney, Melbourne, Brisbane, Adelaide, Perth, and major rural towns. We offer Australia-wide freight with typical delivery of 3–7 business days to regional addresses.
For urgent requirements, contact our sales team at sales@australia-drive.com to arrange express shipping.
