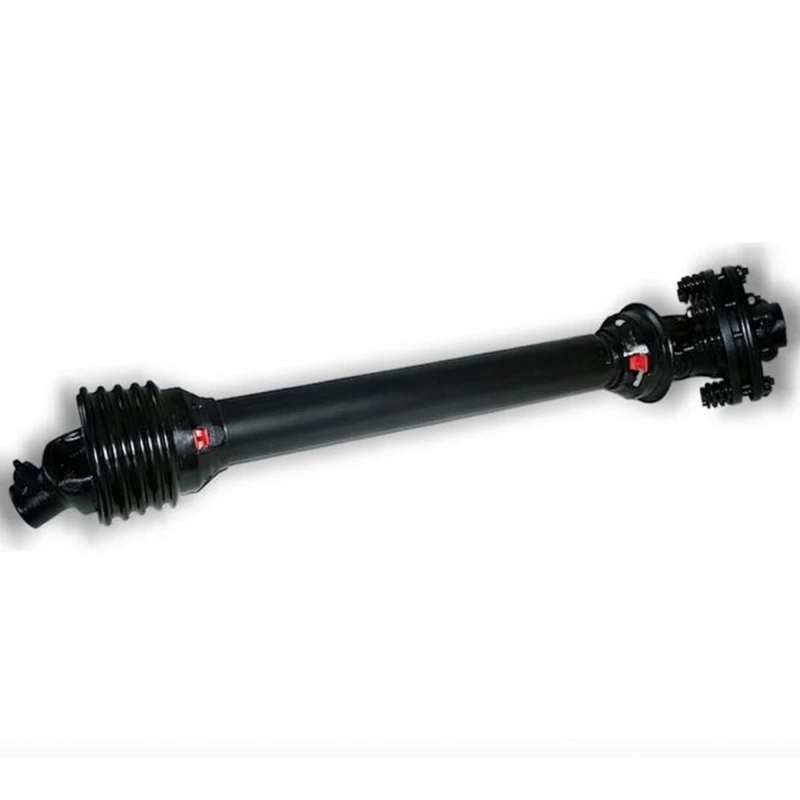

PTO Shaft for Hose Reel Irrigator — Reliable PTO Drive for Australian Irrigation Systems
Overview — The Critical Connection Between Tractor & Travelling Irrigator

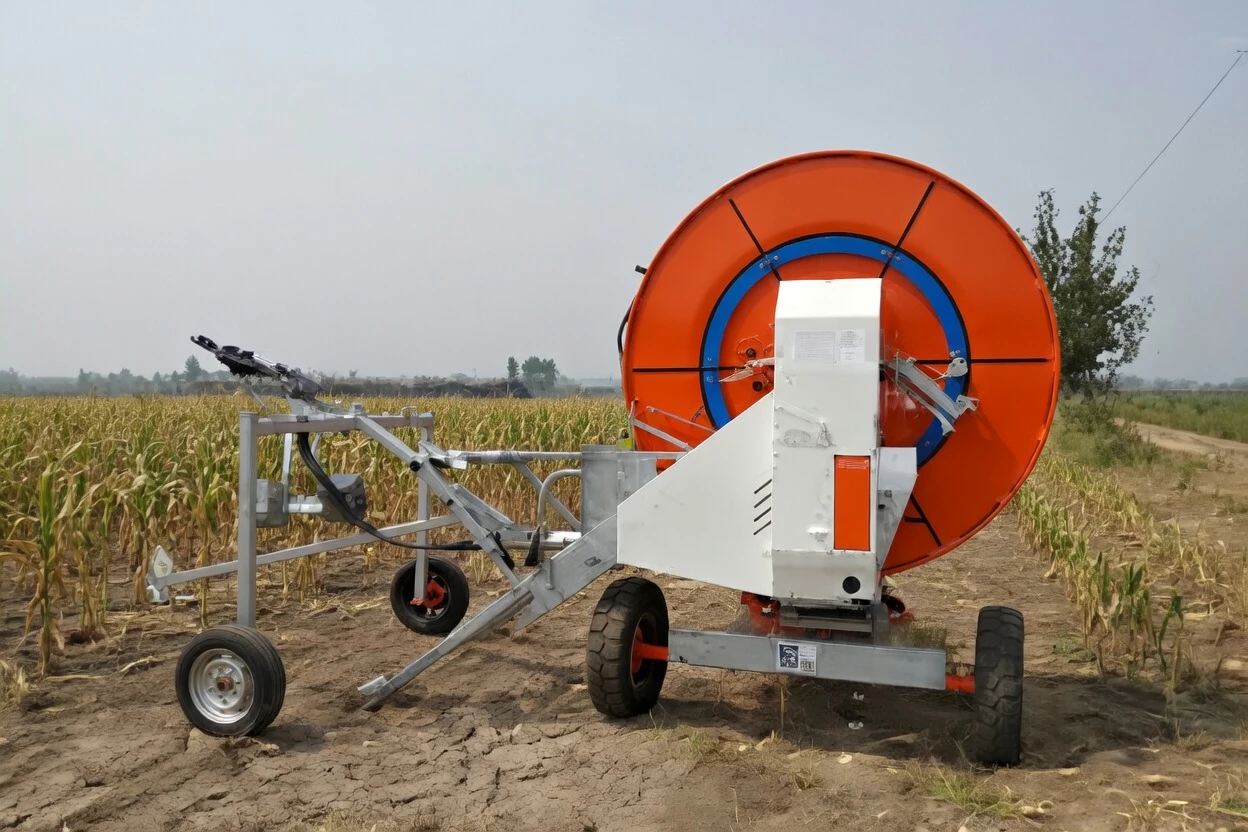

A hose reel (also called a travelling irrigator, rain gun, or hard hose traveller) is one of the most versatile and widely used irrigation implements on Australian farms. It works by reeling in a length of PE pipe connected to a rain gun or boom cart, which is towed across the paddock while distributing water. The reel mechanism is driven by water turbine, hydraulic motor, or — in PTO-driven configurations — directly by the tractor’s power take-off (PTO) shaft.
PTO-driven hose reels are favoured for their ability to operate independently of water pressure variations, providing consistent retraction speed and uniform water application. The PTO shaft connects the tractor to the reel’s gearbox, converting 540 RPM rotational energy into the slow, high-torque winding action needed to retract hundreds of metres of heavy, water-filled polyethylene hose.
GBC manufactures PTO shafts optimised for hose reel applications — shafts that deliver smooth, low-vibration power to the reel gearbox while handling the sustained loads of all-day irrigation across the pastoral and cropping regions of New South Wales, Victoria, Queensland, South Australia, and Western Australia.
Technical Specifications
Key parameters for GBC hose reel PTO shafts are listed below. Swipe to view all columns on mobile devices.
| Parameter | Standard Value | Customisation Range |
|---|---|---|
| PTO Series | Series 4 (S4) | S2 – S6 |
| Rated Torque | 480 Nm | 160 – 1500 Nm |
| Operating Speed | 540 RPM | 540 / 1000 RPM |
| Closed Length (Lz) | 910 mm | 700 – 1400 mm |
| Telescopic Stroke | 220 mm | 120 – 450 mm |
| Cross Journal Size | 27 × 74.5 mm | 23.8×61.3 – 35×98 mm |
| Tractor Yoke | Push-pin quick-release | Push-pin / Bolt / Collar |
| Implement Yoke | Splined bore 1 3/8″ 6-spline | Splined / Keyed / Flange |
| Tractor Spline | 1 3/8″ 6-spline | 1 3/8″ 6 / 1 3/4″ 6 / 1 3/8″ 21 / 1 3/4″ 20 |
| Implement Spline | 1 3/8″ 6-spline | 1 3/8″ 6 / 1 3/4″ 6 / Round bore |
| Overload Protection | Free-wheel clutch (overrunning) | Free-wheel / Friction / Shear-bolt |
| Guard Material | UV-stabilised polypropylene | PP / Nylon / Steel mesh |
| Tube Profile | Lemon | Lemon / Triangle / Star |
| Tube Material | Cold-drawn alloy steel | Alloy steel / Stainless |
| Surface Finish | Hot-dip galvanised | Galvanised / Dacromet / Zinc / Paint |
| U-Joint Bearing | Sealed needle roller | Sealed / Greaseable |
| Max Operating Angle | 25° | Up to 80° (wide-angle) |
| Weight | 10.4 kg | 5 – 28 kg |
| IP Rating (Guards) | IP54 | IP54 / IP55 |
| Certification | CE, ISO 5673 | CE / ISO 5673 / AS 1636 |
Working Principle — How PTO Power Drives a Hose Reel
In a PTO-driven hose reel system, the tractor PTO shaft transfers rotational power at 540 RPM into the reel’s reduction gearbox. This gearbox — typically a worm gear or planetary type — dramatically reduces speed while multiplying torque, converting 540 RPM input into the 2–5 RPM output needed to slowly wind the PE hose onto the reel drum.
Component Breakdown
The PTO shaft assembly for a hose reel consists of:
- Tractor-end splined yoke — connects to the 6-spline PTO stub via push-pin lock, providing a quick-connect solution that allows the tractor to be detached for other duties between irrigation runs.
- Two universal joints — needle-bearing Cardan joints accommodating angular offset between the tractor PTO centreline and the reel gearbox input.
- Lemon-profile telescoping tubes — allow the shaft to extend and compress as the tractor position varies relative to the stationary reel unit.
- Free-wheel (overrunning) clutch — an important safety device unique to hose reel applications. If the tractor PTO is disengaged while the hose is still under tension, the overrunning clutch prevents the reel drum from back-driving the PTO shaft, avoiding dangerous reverse rotation.
- Implement-end yoke — connects to the reel gearbox input shaft via splined or keyed connection.
- Safety guards with water-resistant chain anchoring — designed to withstand the wet operating environment of irrigation fields.
The PTO shaft is positioned between the rear of the tractor and the reel unit’s gearbox, which is typically mounted on a trailer frame. Because hose reels are often left stationary during operation while the tractor is parked alongside, the shaft operates at relatively constant length, but must still accommodate angular changes as the terrain varies.
Core Advantages — GBC Hose Reel PTO Shafts vs. Generic Alternatives
💧 GBC Irrigation-Grade
Hot-dip galvanised tubes — Full immersion galvanising (not spray zinc) provides 25+ year corrosion protection in the wet, muddy conditions of irrigation paddocks.
Overrunning clutch as standard — Prevents dangerous reverse-drive scenarios when PTO is disengaged under load, a critical safety feature for hose reel use.
Sealed-for-life U-joints — No greasing required, even in waterlogged conditions. Seal rated IP55 to prevent water ingress.
Low-backlash lemon tubes — Tight telescoping fit ensures smooth power delivery to the worm gearbox, preventing the jerky winding that damages PE hose.
⚠ Generic PTO Shafts
Zinc-plated tubes — Zinc plating wears through quickly in wet conditions, leading to rust that seizes the telescoping mechanism.
No overrunning clutch — Reel back-drive can spin the PTO shaft in reverse, creating a severe entanglement hazard for the operator.
Open-seal bearings — Water and silt penetrate the U-joints, causing premature pitting and failure during irrigation season.
Sloppy tube fit — Excess play introduces backlash that creates jerky reel movement, potentially kinking or damaging expensive PE pipe.
Brand Compatibility & Cross-Reference
GBC hose reel PTO shafts directly replace OEM shafts on these popular brands:
| Reel Brand | Model Range |
|---|---|
| Irriland / Bauer | Compact, Standard, and Magnum series |
| Ocmis | VIR series, R1/R2 range |
| Casella | FT series PTO-drive reels |
| Rainstar / RM | T-series travelling irrigators |
| Southern Cross / Onga | PTO-connected reel units |
| Kifco | B-Series water reels |
⚠ All manufacturer and model names are listed solely for cross-reference to assist in selecting the correct replacement PTO shaft. They are trademarks of their respective owners, and listing does not imply affiliation or endorsement.
Quick Selection Guide — Hose Reel PTO Shaft
| Selection Factor | How to Identify | Typical Hose Reel Value |
|---|---|---|
| PTO speed | Tractor PTO guard label | 540 RPM |
| Tractor HP | Tractor specification sheet | 40 – 130 HP |
| Gearbox input spline | Measure reel gearbox input shaft | 1 3/8″ 6-spline or round bore |
| Distance PTO to gearbox | Measure with reel coupled to tractor | 800 – 1200 mm |
| Operating environment | Wet / dry / both | Wet (galvanised/sealed preferred) |
| Clutch requirement | Back-drive risk when PTO disengaged | Free-wheel / overrunning clutch |
| Hose reel size (hose diameter × length) | Reel data plate | 50–125 mm × 200–500 m |
| Max operating angle | Measure offset at coupling | 10 – 25° |
Installation Steps — Connecting a PTO Shaft to a Hose Reel
Troubleshooting — PTO Shaft Issues on Hose Reel Irrigators
💧 Reel retracts unevenly or jerks during operation
Cause: Excessive backlash in PTO shaft telescoping tubes, worn gearbox, or inconsistent PTO engagement.
Solution: Check lemon-tube engagement — replace if lateral play exceeds 0.5 mm. Inspect the gearbox for worn worm gear. Verify tractor PTO engagement is fully locked.
💧 Overrunning clutch fails — shaft spins backward when PTO disengaged
Cause: Clutch rollers worn or jammed, or clutch installed in the wrong direction.
Solution: Check the directional arrow on the clutch housing — it must match PTO rotation direction. Disassemble, inspect rollers and springs, replace the clutch assembly if worn.
💧 Rust and seizure of telescoping tubes
Cause: Inadequate corrosion protection for wet irrigation environment.
Solution: Replace with GBC hot-dip galvanised PTO shaft. In the interim, clean, wire-brush, and apply marine-grade anti-seize compound. Regrease every 20 operating hours.
💧 Water ingress destroying U-joint bearings
Cause: Splash from irrigation or rain entering open-seal U-joints.
Solution: Upgrade to GBC sealed-bearing U-joints rated IP55. For immediate relief, pack extra grease to purge water. Replace bearing cross kit if corrosion pitting is visible.
💧 Vibration at PTO engagement
Cause: Worn splines, unbalanced shaft, or angular misalignment.
Solution: Inspect spline wear on both yokes. Realign tractor-to-reel centrelines. Replace shaft if tube is bent or U-joint is stiff.
💧 Guard chains breaking or falling off
Cause: Vibration loosening chain anchors, or chains corroded in wet environment.
Solution: Replace with stainless steel or galvanised chain. Use nyloc nuts on anchor bolts. Inspect weekly during irrigation season.
Case Studies — Australian Irrigators Powered by GBC
💧 Dairy Pasture — Shepparton, VIC (Melbourne Region)
“We irrigate 300 hectares of dairy pasture with two Irriland reels. The GBC galvanised PTO shaft is the only one that hasn’t rusted up on us. Three years in and it still slides smoothly.”
— 2 × S4 PTO shafts with galvanised finish and free-wheel clutch.
💧 Cotton Farm — Narrabri, NSW (Sydney Region)
“PTO-driven reels give us better retraction control than water-turbine units, especially when bore pressure fluctuates. The GBC shaft runs all day without heating up.”
— 3 × S4 PTO shafts for Ocmis VIR reels.
💧 Vegetable Farm — Gatton, QLD (Brisbane Region)
“We grow lettuce and broccoli on 80 hectares. The free-wheel clutch on the GBC shaft saved me from a nasty incident when I disengaged the PTO while the reel was under tension. Essential safety feature.”
— 1 × S4 PTO shaft with overrunning clutch.
💧 Fodder Crop — Murray Bridge, SA (Adelaide Region)
“We needed a longer shaft to reach our trailer-mounted reel. GBC custom-made a 1300 mm shaft with galvanised finish. Arrived in under two weeks. Fantastic service.”
— 1 × custom-length S4 PTO shaft.
💧 Turf Farm — Caversham, WA (Perth Region)
“Turf needs consistent watering. The GBC PTO shaft gives our Casella reel dead-smooth retraction — no surging, no stops. Best upgrade we’ve made to the irrigation setup.”
— 2 × S2 PTO shafts for smaller Casella FT reels.
💧 Sugarcane — Ayr, QLD
“We use hose reels to supplement our flood irrigation. GBC supplied five PTO shafts for our fleet, all with sealed bearings. No maintenance issues even in our wet tropics climate.”
— 5 × S4 PTO shafts with sealed U-joints.
Frequently Asked Questions
Why do I need an overrunning clutch on a hose reel PTO shaft?
When you disengage the tractor PTO, the weight and tension of the hose on the reel drum can cause the drum to spin, back-driving the PTO shaft. Without an overrunning clutch, this reverse rotation can damage the tractor gearbox and pose a serious entanglement risk.
Can I use a standard PTO shaft on my hose reel?
A standard shaft will physically fit, but without an overrunning clutch and galvanised finish, it will be unsafe in reverse-drive situations and will corrode quickly in the wet irrigation environment. We strongly recommend a purpose-built irrigation-grade shaft.
How do I know if my hose reel is PTO-driven or water-turbine driven?
Check the reel gearbox input. If it has a splined or keyed input shaft expecting a PTO connection, it is PTO-driven. Water-turbine reels have a turbine housing connected to the water supply line. Some reels offer both options.
What surface finish is best for irrigation use?
Hot-dip galvanised is the gold standard for wet environments. It provides sacrificial corrosion protection that lasts decades. Dacromet is a suitable alternative for slightly less exposure. Standard zinc plating is insufficient for continuous water contact.
Do you deliver to remote irrigation districts?
Yes. GBC delivers Australia-wide including remote pastoral and irrigation regions. Contact us for freight timelines to your specific area.
Regulatory Compliance & Local SEO
GBC PTO shafts for hose reel irrigators comply with:
- AS 1636 — PTO shaft guard safety for Australian agricultural machinery.
- EN 12965 — PTO shaft and guard safety standards (adopted in Australia).
- ISO 5673 — PTO shaft specifications.
- WHS Regulations (Qld, NSW, VIC, SA, WA) — Mandatory PTO guard requirements for all farm operations.
We service major irrigation regions across Australia including the Murray-Darling Basin (NSW/VIC/SA), Ord River (WA), Burdekin Delta (QLD), Macquarie Valley (NSW), and Goulburn Valley (VIC). Irrigators in Sydney, Melbourne, Brisbane, Adelaide, and Perth can count on fast dispatch from our Australian distribution centre.
