PTO Shaft for Peanut Harvesters – Durable Drive Solutions for Australian Groundnut Farming

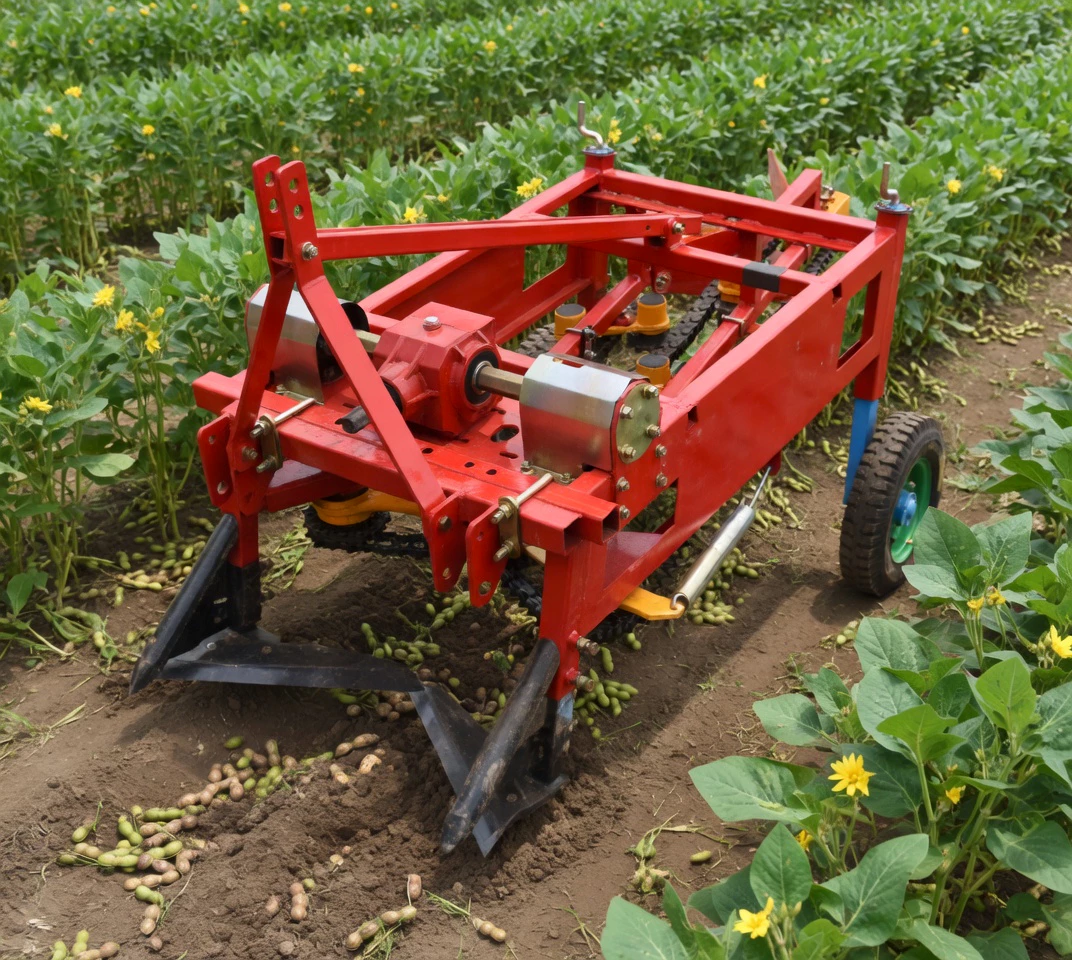

Peanut (groundnut) farming in Australia is centred in the Burnett region of Queensland and parts of the Northern Territory, where warm climates and sandy loam soils provide ideal growing conditions. Peanut harvesters perform the delicate task of digging, inverting, and windrowing peanut plants before combining, requiring smooth, consistent power delivery to avoid pod damage and vine tangling. The PTO shaft (Power Take-Off shaft) channels tractor power to the harvester’s digging blades, shaking conveyor, and vine-handling mechanism. Even minor PTO drive shaft vibration or misalignment causes excessive pod shatter and yield loss. GBC – General Bearing Company (Ever-power Group Australia Agency) supplies PTO shafts precision-engineered for the finesse and reliability that peanut harvesting demands in Australian conditions.

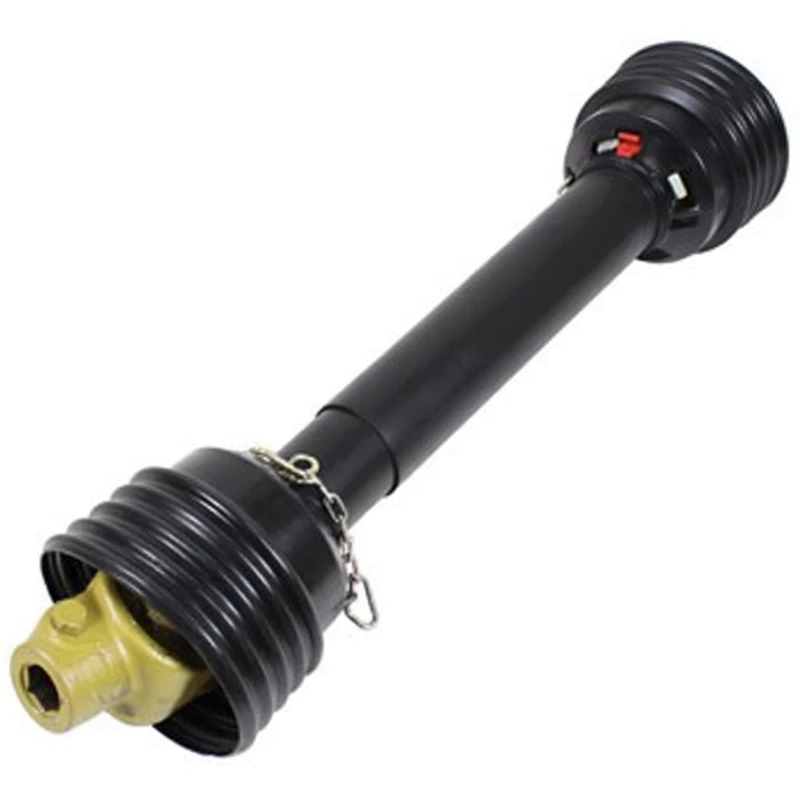

📈 Technical Specifications – PTO Shaft for Peanut Harvester
| Parameter | Specification | Customisable Range |
|---|---|---|
| PTO Speed (RPM) | 540 | 540 / 1000 RPM available |
| Horsepower Range | 25 – 120 HP | Custom ratings on request |
| Shaft Type | Light-Duty Telescoping Shaft | Standard / Wide-Angle / CV options |
| Closed Length | 500 – 1100 mm | Custom lengths available |
| Open (Extended) Length | 700 – 1600 mm | Custom lengths available |
| Tube Profile | Lemon / Triangle | All standard profiles available |
| Cross-Journal Size | 22 × 54.8 mm / 27 × 74.6 mm | Multiple sizes in stock |
| Yoke Connection | Push-Pin / Quick-Release | All types available |
| Torque Rating | 200 – 1200 Nm | Higher ratings on request |
| Spline Configuration | 6-Spline 1-3/8″ / 21-Spline 1-3/8″ | All standard configs available |
| Safety Guard | CE-Certified Compact Plastic Shield | CE / AS/NZS compliant |
| Shaft Weight | 6 – 20 kg | Varies by specification |
| Bearing Type | Needle Roller Bearing | Sealed option available |
| Surface Treatment | Yellow Zinc Plating / Clear Zinc | Multiple finishes available |
| Balance Standard | Static & Dynamic Balanced at 1000 RPM | Precision balancing included |
| Clutch Type | Shear Bolt Clutch / Overrunning Clutch | All types available |
| Material Grade | Carbon Steel C45 / 40Cr | Custom alloys on request |
| Hardness Rating | HRC 52-58 (Spline) / HRC 48-54 (Yoke) | Per application requirement |
| Operating Temperature | -15°C to +70°C Operating Temperature | Cold/hot climate variants |
| Service Life | ≥ 1200 Hours Under Rated Load | Extended life options available |
All specifications can be tailored to your specific peanut harvester model. Contact our engineering team for custom configurations.
⚙ How the PTO Shaft Powers a Peanut Harvester
Peanut harvesting demands gentle yet consistent power delivery. The tractor’s 540 RPM PTO output engages the shaft’s input yoke through a standard 6-spline or 21-spline coupling. Universal joints at each end of the shaft allow the relatively lightweight harvester to follow field contours without imposing side loads on the tractor’s PTO bearing. The telescoping tube compensates for the continual distance changes between tractor and harvester during operation. Power is transmitted to the harvester’s main gearbox, which drives the digging blades (severing taproots below ground), the shaking conveyor (separating soil and peanuts from vines), and the vine-handling mechanism (windowing or collecting vines for later threshing).
Component structure: The shaft comprises a tractor-end push-pin or quick-release yoke, a cross-journal U-joint with needle roller bearings, a lemon or triangular-profile inner tube, a matching outer tube forming the telescoping joint, a second U-joint, and an implement-end yoke. A shear bolt clutch is commonly installed at the implement yoke to protect the harvester’s lighter-duty gearbox from sudden overloads caused by vine wrapping or rocky soil encounters. A compact safety shield covers the full length with bearing-mounted rotating ends.
⭐ Core Advantages – Why Choose Our PTO Shaft for Your Peanut Harvester
|
|
|
|||
|
|
|
🔄 Brand Compatibility & Replacement Guide
Note: Brand names are referenced solely for compatibility identification purposes. All trademarks belong to their respective owners. GBC is not affiliated with any of the brands listed below.
Our PTO shafts for peanut harvesters provide perfect replacement for drive shafts on the following groundnut harvesting equipment used in Australian farming:
| Brand | Compatible Models | Spline Match |
|---|---|---|
| Amadas Industries | 2110 Digger/Shaker/Inverter, 9970 Combine | 6-Spline 1-3/8″ |
| KMC (Kelley Manufacturing) | 3386/4792 Digger-Inverters, Combines | 6-Spline 1-3/8″ & 21-Spline 1-3/8″ |
| Colombo | ARACHIS Series Peanut Harvesters | 6-Spline 1-3/8″ |
| Leinbach / Custom-Built | Various PTO-driven peanut diggers | 6-Spline 1-3/8″ |
Spare Parts & Accessories
Full parts inventory for peanut harvester PTO shafts: cross-journal bearing kits, quick-release yokes, shear bolt clutch kits, compact safety shields, and lemon-profile tube replacements. Fast shipping to Burnett, Kingaroy, and Katherine regions.
📚 Quick Selection Guide – PTO Shaft for Peanut Harvester
Use this guide to identify the correct PTO shaft for your specific tractor and harvester combination:
| Parameter to Confirm | Options / Range | How to Check |
|---|---|---|
| Tractor PTO Speed | 540 RPM | Standard for peanut harvesters |
| Required Horsepower | 25 – 120 HP | Match to harvester model requirement |
| Shaft Closed Length | 500 – 1100 mm | Measure at closest tractor-harvester point |
| Shaft Open Length | 700 – 1600 mm | Measure at full extension |
| Spline Configuration | 6/21 Spline options | Check tractor and harvester connections |
| Yoke Type | Push-Pin / Quick-Release | Quick-release for fast implement swapping |
| Clutch Type | Shear Bolt / Overrunning | Shear bolt for rocky field protection |
| Weight Class | Light-duty (6–20 kg) | Lighter shafts suit smaller tractors |
👉 Need help selecting? Send us your tractor and peanut harvester model numbers and we will recommend the exact PTO shaft specification.
🔧 Installation Guide – PTO Shaft for Peanut Harvester
⚠ Safety Warning: Always follow your tractor and harvester manufacturer’s safety procedures. Never work near a rotating PTO shaft. Wear close-fitting clothing and keep bystanders clear.
| Step 1: Safe Setup Park the tractor and peanut harvester on flat, dry ground. Engage the parking brake, switch off the engine, and remove the key. Lower all digging blades and shakers to the ground. |
| Step 2: Verify Shaft Specifications Check that the PTO shaft matches your tractor’s 540 RPM PTO stub spline count (6 or 21 spline), the harvester’s input yoke type, and the required shaft length range. |
| Step 3: Lubricate Thoroughly Apply grease to cross-journal bearings and lemon or triangle profile tube surfaces. Extend and retract the telescoping section several times to distribute grease into all contact surfaces. |
| Step 4: Connect to Tractor Slide the input yoke onto the tractor PTO stub. Push until the push-pin or quick-release collar locks. Pull back firmly to confirm engagement. |
| Step 5: Connect to Peanut Harvester Attach the output yoke to the harvester’s gearbox input shaft. Engage the locking mechanism and check the shear bolt clutch is properly installed with the correct rated bolt. |
| Step 6: Attach Guard Restraints Secure the compact safety guard chains to fixed points on tractor and harvester. Ensure chains are not so tight as to restrict articulation, nor so loose as to drag. |
| Step 7: Articulation Test Turn the steering wheel lock-to-lock while stationary. Observe the shaft for smooth articulation and telescoping. Check that the guard does not catch on any harvester components. |
| Step 8: Low-RPM Spin Test Start the tractor and engage PTO at the lowest idle speed. Watch the shaft for smooth rotation and listen for any clicking or grinding. Gradually increase to 540 RPM. |
| Step 9: Field Operation Check Lower the digging blades and engage the harvester in light soil. Monitor PTO shaft behaviour under load. Confirm smooth, vibration-free operation and check that the shear bolt remains intact under normal digging resistance. |
🛠 Troubleshooting – PTO Shaft Issues on Peanut Harvester
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Gentle vibration felt through tractor | Slight shaft imbalance or worn bearings | Rebalance shaft. Replace cross-journal kit if play detected. Even minor vibration causes pod shatter. |
| Shear bolt breaks during normal digging | Bolt rating too low for soil conditions | Install next-higher-rated shear bolt. Adjust digging depth to reduce resistance. Avoid rocky areas. |
| Vine wrapping around shaft | Gap in safety guard or missing guard section | Inspect guard for cracks or gaps. Replace guard and ensure full coverage. Trim guard chains to correct length. |
| Telescoping tube gritty or stiff | Fine sand ingress into profile channels | Disassemble, blow out sand with compressed air, clean, and regrease with sand-resistant grease. |
| Clicking from push-pin yoke | Push-pin spring worn or pin tip rounded | Replace push-pin assembly. Inspect yoke bore for wear. Replace yoke if bore is oval. |
| Inconsistent power to shaker conveyor | Spline wear causing intermittent engagement | Inspect spline teeth for rounding. Replace yoke or shaft end with worn splines. |
| Guard dragging on soil surface | Guard too long for shaft or chains too loose | Trim guard to correct length. Adjust chain tension. Reposition anchor points. |
| Shaft too long for compact harvester setup | Incorrect length specification ordered | Verify measurements. Order correct length. Shaft must maintain minimum 1/3 overlap when fully extended. |
📖 Australian Case Studies – Engineer’s Field Notes
Real feedback from Australian farmers and contractors using GBC PTO shafts on their peanut harvester equipment:
|
📍 Kingaroy, Queensland Burnett region peanut farm, 200 hectares “Kingaroy is the peanut capital and we need our equipment running perfectly. The GBC PTO shaft delivers beautifully smooth power to our digger-inverter. Pod shatter is noticeably lower compared to our old vibrating shaft.” |
|
📍 Bundaberg, Queensland Coastal peanut and vegetable rotation, 100 hectares “Sandy soil gets into everything. The sealed bearings on the GBC shaft keep the sand out of the cross-journal, which was a constant maintenance headache with our previous shaft. Big improvement.” |
|
📍 Emerald, Queensland Central Highlands peanut operation, 150 hectares “Compact, lightweight, and reliable. The GBC PTO shaft suits our smaller tractor perfectly without adding unnecessary drawbar load. Quick-release yoke makes swapping between implements fast and easy.” |
|
📍 Katherine, Northern Territory NT peanut and grain farm, 300 hectares “Extreme heat up here tests every component. The GBC shaft handles 40°C+ operating conditions without any grease breakdown or bearing issues. Very well-engineered for harsh Australian conditions.” |
|
📍 Gayndah, Queensland Family peanut and citrus farm, 80 hectares “Small but busy operation. The GBC PTO shaft was affordable and arrived quickly. It fitted our KMC digger-inverter perfectly – no modifications needed. Great value.” |
|
📍 Mareeba, Queensland Atherton Tablelands groundnut grower, 120 hectares “The light-duty design of the GBC shaft is perfect for peanut harvesting. It’s easy to handle during attachment and detachment, and the shear bolt clutch gives us peace of mind in our rocky paddocks.” |
❓ Frequently Asked Questions – PTO Shaft for Peanut Harvester
Why is low vibration so important for peanut harvesting?
What PTO shaft length do I need for my peanut digger-inverter?
Is a light-duty PTO shaft sufficient for peanut harvesting?
How does sandy soil affect PTO shaft life?
Can I use a PTO shaft with a friction clutch instead of a shear bolt?
Do you ship PTO shafts to regional Queensland and the Northern Territory?
⚖ Regulations, Compliance & Local Information
PTO shaft safety in Australia is governed by state and territory workplace health and safety legislation. Key requirements for PTO shafts used on peanut harvester equipment include:
|
📜 Australian PTO Safety Standards • All PTO shafts must be fitted with a compliant safety guard covering the full shaft length • Safety guards must include chain or cable restraints at both ends to prevent rotation if the guard detaches • Guards must be maintained in serviceable condition and replaced immediately if damaged • Workers must receive training in PTO safety procedures before operating PTO-driven equipment • Safe Work Australia guidance note: “Managing risks of plant in the workplace” applies to all PTO operations |
Servicing Peanut Harvester Operators Across Australia
GBC supplies PTO shafts for peanut harvester equipment to all major agricultural regions of Australia, including New South Wales, Victoria, Queensland, South Australia, Western Australia, Tasmania, and the Northern Territory. Our distribution network ensures fast delivery to major cities including Sydney, Melbourne, Brisbane, Adelaide, and Perth, as well as regional centres. Whether you operate in the wheat belt of Western Australia, the cane fields of Queensland, the dairy regions of Victoria, or the horticultural zones of the Riverina, we have the right PTO shaft for your peanut harvester.
