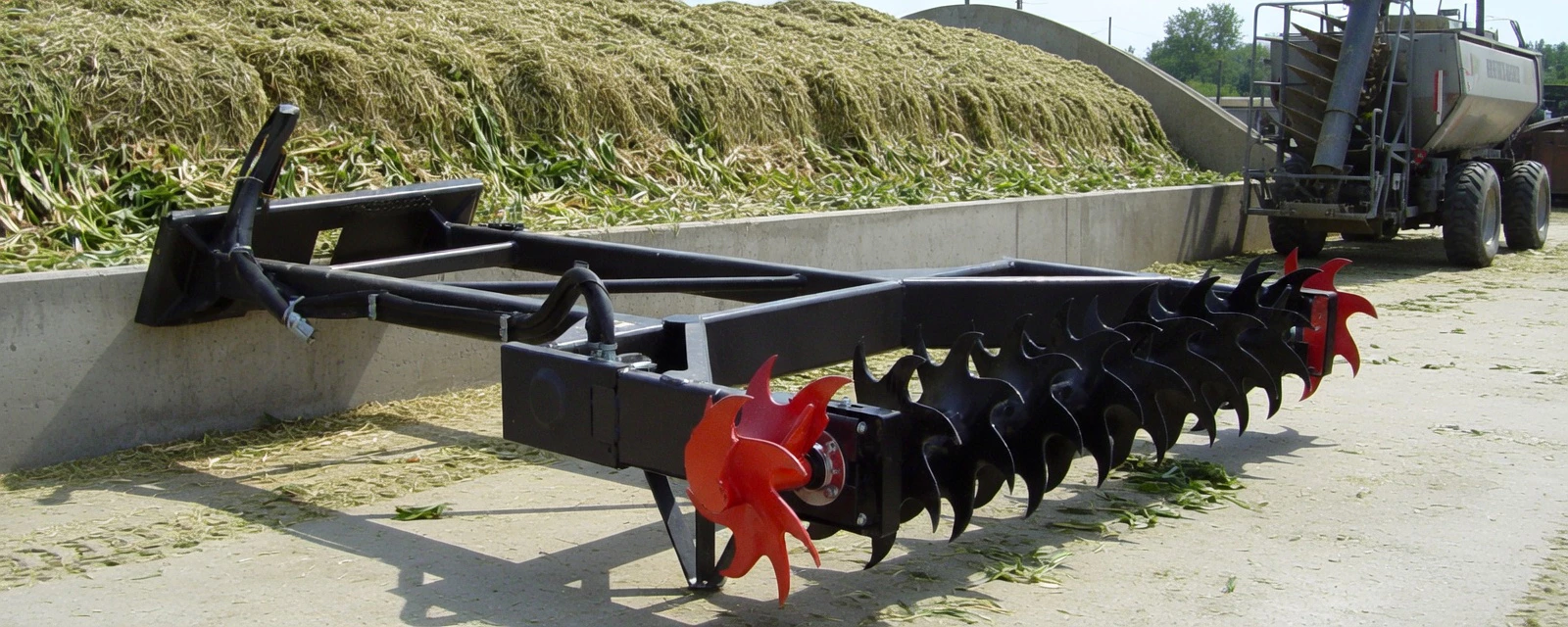

Overview: PTO Shaft for Silage Defacer / Silage Cutter
Australia’s agricultural sector, a cornerstone of the national economy, depends on the uninterrupted transfer of mechanical power to keep implements working at peak capacity. The PTO shaft (power take-off shaft) is the critical mechanical link between your tractor and your silage defacers, bunker face cutters, silage block cutters, and feed-out systems. In the context of silage face management and feed-out efficiency on Australian dairy farms and beef feedlots, a purpose-engineered PTO drive shaft ensures uninterrupted power flow, operator safety, and maximum implement efficiency.
At GBC — General Bearing Company, we manufacture and supply premium PTO shafts designed specifically for silage defacers, bunker face cutters, silage block cutters, and feed-out systems. Whether you operate in New South Wales, Victoria, Queensland, South Australia, or Western Australia, our PTO shaft range delivers the torque, durability, and compatibility your operation demands.
Technical Specifications
Below are the key technical parameters for our PTO shaft range configured for this application. All values represent standard options — custom specifications are available on request.
| Parameter | Specification / Range |
|---|---|
| Horsepower Range | 40–100 HP |
| Surface Finish | Zinc plated / Painted / Powder coated |
| Colour Coding | Yellow guard with black shaft (standard) |
| Bearing Seal Type | Multi-lip NBR rubber seal |
| Corrosion Protection | Zinc phosphate + clear lacquer |
| Packaging | Individual carton / Bulk pallet |
| Noise Level at Rated Speed | ≤75 dB(A) at 1 m |
| Operating Temperature Range | -25 °C to +80 °C |
| Minimum Order Quantity | 1 pc (retail) / negotiable (wholesale) |
| Inner Tube Material | Cold-drawn seamless alloy steel |
| Cross & Bearing Kit Size | 27×74.6 / 30.2×92 / 35×106.5 mm |
| Balancing | Dynamic balancing to ISO 1940 G16 |
| Safety Guard Material | CE-rated plastic (UV stabilised) |
| Compatible Series | Series 6/8 |
| Torsional Stiffness | 2800–12000 Nm/rad (series dependent) |
| Yoke Type – Implement End | Splined / Keyed / Plain Bore (to spec) |
| Operating Angle (wide-angle) | Up to 80° continuous |
| Operating Angle (std joint) | 0°–25° continuous, 45° intermittent |
| Recommended Grease | NLGI Grade 2 EP lithium complex |
| Warranty | 12 months standard (extendable) |
* Specifications are indicative and may vary based on series and customisation. Contact our team for detailed datasheets.
How the PTO Shaft Works in Silage Defacer / Silage Cutter Applications
The PTO shaft powers the defacer’s rotating drum or milling head through PTO connection, cleanly shaving or cutting the silage bunker face to minimise exposure, reduce spoilage, and maintain feed quality while loading silage into mixer wagons or feed-out systems. The assembly consists of the following principal components:
| Component | Function |
|---|---|
| Tractor-Side Yoke | Connects to the tractor PTO stub via splined coupling |
| Universal Joints (×2) | Accommodate angular misalignment between tractor and implement |
| Telescoping Tubes | Allow length adjustment as the implement moves closer or further from the tractor |
| Safety Guard | Encloses rotating components to protect the operator (CE-rated) |
| Torque Limiter / Clutch | Protects the drivetrain from overload by disengaging or slipping at a preset torque |
| Implement-Side Yoke | Connects to the implement gearbox or input shaft |
The PTO shaft is positioned between the tractor’s rear (or mid) PTO output and the silage defacer mounted on the tractor’s front-end loader or three-point hitch facing the bunker. During operation, the shaft rotates at the tractor’s PTO speed (540/1000 RPM), transferring mechanical power through universal joints that compensate for the angle between tractor and implement as terrain changes.
Core Advantages of Our PTO Shaft
Performance, safety, and longevity — three areas where our PTO shafts consistently outclass the competition:
✔ Precision-Ground Spline Profiles
CNC-ground splines with induction hardening to HRC 58–62 ensure tight-fitting, low-backlash engagement with minimal wear over thousands of hours.
vs. competitor: Budget shafts use rough-cut splines that wear quickly, developing dangerous play and vibration.
✔ Dynamic Balancing
Every shaft is dynamically balanced to ISO 1940 G16 standard, minimising vibration, reducing bearing stress, and extending the life of connected equipment.
vs. competitor: Unbalanced shafts create excessive vibration that accelerates wear on PTO bearings, seals, and implement gearboxes.
✔ Integrated Torque Limiter Options
Choose friction clutch, shear bolt, or ratchet torque limiters factory-fitted and calibrated to your implement’s exact torque threshold.
vs. competitor: Shafts without torque limiters transmit shock loads directly to the tractor and implement gearboxes, causing expensive damage.
✔ High-Strength Forged Yokes
40Cr alloy steel yokes forged (not cast) for superior fatigue resistance and impact toughness under heavy Australian field conditions.
vs. competitor: Competitor shafts often use cast iron yokes that crack under shock loads, leading to costly mid-season failures.
✔ Heavy-Duty Cross & Bearing Kits
20CrMnTi case-hardened cross journals with multi-lip rubber seals and high-capacity needle roller bearings rated for extended grease intervals.
vs. competitor: Generic cross bearings often lack adequate sealing, allowing dust and moisture ingress that accelerates bearing failure.
✔ CE-Compliant Safety Guards
UV-stabilised plastic guards with anti-rotation chains meet CE and Australian WHS requirements, providing full coverage of rotating components.
vs. competitor: Some imported shafts ship without guards or with flimsy guards that crack and detach, creating serious safety hazards.
Brand Compatibility & Replacement Guide
Our PTO shaft for silage defacers, bunker face cutters, silage block cutters, and feed-out systems is engineered as a direct replacement for OEM shafts supplied with equipment from the following brands:
| Compatible Brand | Typical Model Series | Replacement Confidence |
|---|---|---|
| Krone | All current and recent model series | Direct fit — bolt-on replacement |
| BvL | All current and recent model series | Direct fit — verify yoke profile |
| Trioliet | All current and recent model series | Compatible — confirm spline count |
| Siloking | All current and recent model series | Direct fit — match PTO speed |
| Jaylor | All current and recent model series | Direct fit — bolt-on replacement |
| Supreme | All current and recent model series | Compatible — verify shaft length |
| Kuhn | All current and recent model series | Direct fit — standard spline |
| NDEco | All current and recent model series | Compatible — confirm yoke dimensions |
Disclaimer: Brand names mentioned above are the property of their respective owners. References are made solely for the purpose of identifying compatible equipment and assisting customers with product selection. GBC is not affiliated with or endorsed by the brands listed.
Spare Parts & Accessories
We stock a comprehensive range of replacement parts for our PTO shafts, including cross & bearing kits, safety guards, yokes, torque limiter discs, shear bolts, spline tubes, and guard chains. All parts are available individually for maintenance and repair.
Quick Selection Guide: Choosing the Right PTO Shaft
Use this guide to identify the correct PTO shaft for your silage defacer / silage cutter application before placing an order.
| Step | Parameter to Confirm | How to Determine | Typical Options |
|---|---|---|---|
| 1 | PTO Speed | Check tractor PTO specification plate or manual | 540 RPM / 1000 RPM / Dual |
| 2 | Tractor Horsepower | Refer to tractor nameplate | 40–100 HP for this application |
| 3 | Shaft Series | Match to implement torque requirement | Series 6/8 |
| 4 | Closed Length (Lz) | Measure tractor PTO stub to implement input at closest position | 900–1600 mm typical |
| 5 | Tractor-Side Yoke Profile | Count splines on tractor PTO stub | 1-3/8″ Z6 / 1-3/4″ Z6 / 1-3/4″ Z20 |
| 6 | Implement-Side Yoke Profile | Inspect implement input shaft or check manual | Splined / Keyed / Plain bore |
| 7 | Torque Limiter Preference | Consider load type (constant vs. shock) | Friction clutch / Shear bolt / Ratchet |
| 8 | Tube Profile | Match to existing shaft or specify new | Lemon / Triangular / Star |
📌 Not sure? Email your tractor model, implement model, and a photo of the existing PTO stub to sales@australia-drive.com — our engineers will specify the correct shaft within 24 hours.
Installation Guide: PTO Shaft for Silage Defacer / Silage Cutter
Follow these steps to install your PTO shaft safely and correctly. Always refer to your tractor and implement operator manuals in conjunction with this guide.
Park the tractor on level ground. Engage the parking brake and shut off the engine. Ensure the PTO lever is disengaged. Verify the silage defacer mounted on the tractor’s front-end loader or three-point hitch facing the bunker is securely attached and stable.
Remove the shaft from packaging. Extend and compress the telescoping tubes to confirm smooth operation. Apply a thin coat of EP2 grease to the spline profile. Check that the safety guards rotate freely.
Slide the tractor-side yoke onto the tractor PTO stub. Ensure the splines engage fully. Lock the quick-release collar or push-pin until it clicks into the retaining groove. Tug firmly to verify the connection is secure.
Align the implement-side yoke with the implement input shaft on your silage defacer / silage cutter. Slide on and lock with the push-pin or bolt. Confirm engagement by pulling back on the yoke.
With both ends connected, check that the telescoping tubes have at least 75 mm of overlap at full extension and do not bottom out at full compression. Confirm the operating angle at each universal joint does not exceed 25° in normal working position.
Secure the anti-rotation chains from each guard half to a fixed point on the tractor and implement respectively. The chains prevent the guards from rotating with the shaft. Ensure chains are taut but allow articulation.
Pump EP2 lithium grease into every zerk fitting on both universal joints and the spline tube until fresh grease appears at the seal edges. This is critical before the first use.
Start the tractor engine and slowly engage the PTO at low idle. Observe the shaft for smooth rotation, listen for unusual noises, and watch for vibration. Gradually increase to operating RPM (540/1000 RPM) while monitoring the shaft and implement.
PTO Shaft Troubleshooting Guide
Use the table below to diagnose and resolve common PTO shaft issues quickly.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Excessive vibration during operation | Worn cross bearings; imbalanced shaft; operating angle too steep | Replace cross & bearing kits. Check hitch height to reduce joint angle. Rebalance if damaged. |
| PTO shaft will not engage / disengage | Corroded or burred splines; worn quick-release collar | Clean splines with a wire brush and regrease. Replace the collar or push-pin if worn. |
| Clunking or knocking noise at PTO engagement | Worn universal joint bearings; excessive backlash in spline | Inspect and replace cross bearings. If spline play exceeds 2°, replace telescoping tubes. |
| Torque limiter slipping under normal load | Clutch disc worn; incorrect torque setting | Replace friction discs or shear bolt. Adjust clutch spring preload per manufacturer specification. |
| Overheating at universal joints | Insufficient lubrication; joint angle exceeding rating | Regrease immediately. Reduce operating angle by adjusting hitch height. Consider wide-angle joints. |
| Safety guard cracked or detached | UV degradation; impact damage; missing chain | Replace guard immediately — never operate without guards. Re-attach anti-rotation chain. |
| Shaft telescoping tubes binding | Dirt ingress; bent tubes; lack of lubrication | Disassemble, clean, and inspect for damage. Replace if bent. Regrease spline profile. |
| Unusual whining sound at high RPM | Bearing preload issues; misalignment | Check cross bearing caps for looseness. Verify alignment between tractor and implement. |
Case Studies: Field Reports from Australian Farms
Real-world feedback from our customers across Australia demonstrates the performance and reliability of our PTO shafts in silage defacer / silage cutter applications.
📍 Moss Vale, NSW
Application: Large dairy bunker defacing
Engineer / Operator: Mark L.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Moss Vale conditions. Highly recommend for anyone in large dairy bunker defacing.”
Rating: ⭐ 5/5
📍 Colac, VIC
Application: Beef feedlot silage management
Engineer / Operator: Rachel K.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Colac conditions. Highly recommend for anyone in beef feedlot silage management.”
Rating: ⭐ 5/5
📍 Beaudesert, QLD
Application: Tmr preparation feed-out
Engineer / Operator: James W.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Beaudesert conditions. Highly recommend for anyone in TMR preparation feed-out.”
Rating: ⭐ 5/5
📍 Mount Compass, SA
Application: Maize silage block cutting
Engineer / Operator: Chris B.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Mount Compass conditions. Highly recommend for anyone in maize silage block cutting.”
Rating: ⭐ 4.8/5
📍 Margaret River, WA
Application: Grass silage bunker facing
Engineer / Operator: Amanda G.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Margaret River conditions. Highly recommend for anyone in grass silage bunker facing.”
Rating: ⭐ 4.9/5
📍 Scottsdale, TAS
Application: Combined silage and grain feed-out
Engineer / Operator: Olivia P.
“We switched to the GBC PTO shaft for our silage defacer / silage cutter operation and noticed the difference immediately — smoother engagement, less vibration, and the build quality is a clear step above what we had before. It has been running faultlessly through an entire season in Scottsdale conditions. Highly recommend for anyone in combined silage and grain feed-out.”
Rating: ⭐ 5/5
Frequently Asked Questions (FAQ)
❓ Why does my defacer PTO shaft wear out faster than expected?
❓ Can I use the same PTO shaft for a defacer and a mixer wagon?
❓ What PTO speed does this shaft support?
❓ How do I measure the correct PTO shaft length?
❓ Do you offer custom PTO shaft lengths?
❓ What safety guards are included?
❓ Can I use this PTO shaft with a non-standard implement?
❓ How often should I grease the PTO shaft?
Australian Regulations, Safety Standards & Local Information
Operating PTO-driven equipment in Australia is governed by Work Health and Safety (WHS) regulations administered at both federal and state levels. Key requirements for PTO shaft operation include:
| Regulation / Standard | Relevance |
|---|---|
| AS 1121 – PTO for Agricultural Tractors | Defines PTO speed, dimensions, and guard requirements for equipment sold in Australia |
| Safe Work Australia – Code of Practice | Managing the Risks of Plant in the Workplace — includes specific PTO guarding requirements |
| WHS Act 2011 (Cth) & State WHS Acts | Imposes duties on employers and operators to maintain guarding on PTO shafts |
| CE Marking (EN 12965) | Our PTO shafts are CE-marked, meeting or exceeding European guarding and safety standards |
Local Availability & Service
GBC supplies PTO shafts to customers across all major Australian agricultural regions including New South Wales, Victoria, Queensland, South Australia, Western Australia, and Tasmania. Our distribution network covers metro and regional centres including Sydney, Melbourne, Brisbane, Adelaide, Perth, and major rural towns. We offer Australia-wide freight with typical delivery of 3–7 business days to regional addresses.
For urgent requirements, contact our sales team at sales@australia-drive.com to arrange express shipping.
Related Products
Complement your PTO shaft with these quality power transmission components from GBC:

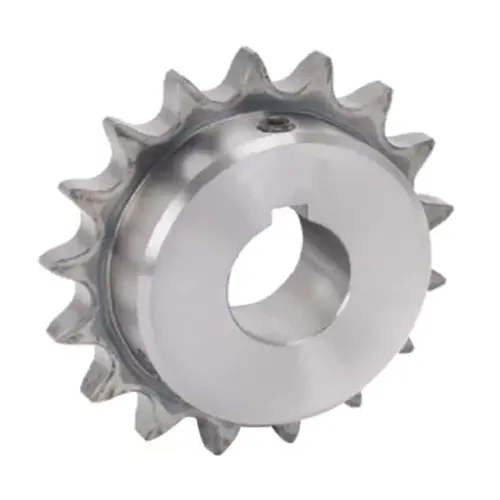

Sprockets
