PTO Shaft for Slurry Tanker — Reliable High-Torque Power for Liquid Waste and Fertiliser Hauling

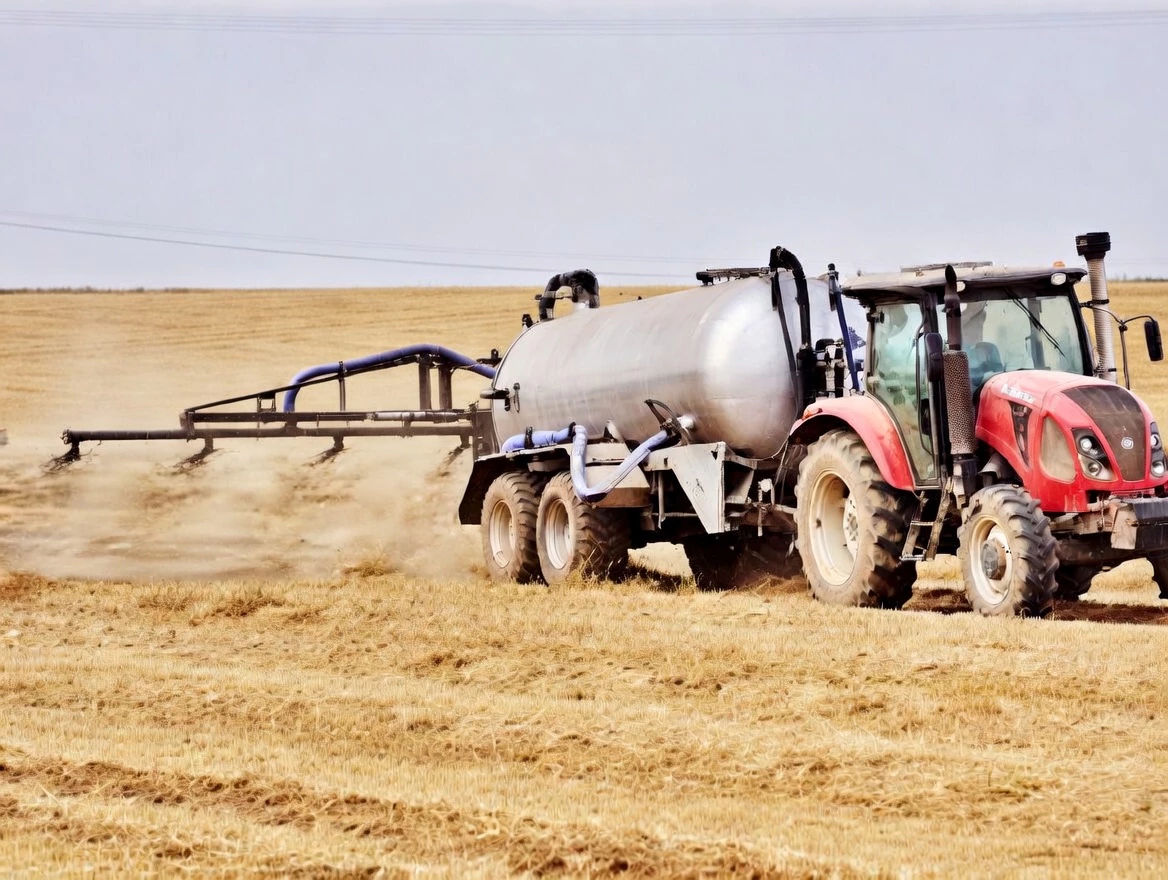

Across Australia’s dairy regions, piggeries, and feedlots, slurry tankers (also called liquid manure tankers, vacuum tankers, or effluent spreaders) play a vital role in nutrient recycling by collecting and distributing liquid organic fertiliser onto pastures and cropland. The PTO shaft (power take-off shaft, PTO drive line, or tractor-to-implement driveshaft) powering a slurry tanker must handle sustained high-torque loads generated by the vacuum pump, agitator, and distribution system — often for hours at a time under heavy, viscous loads.

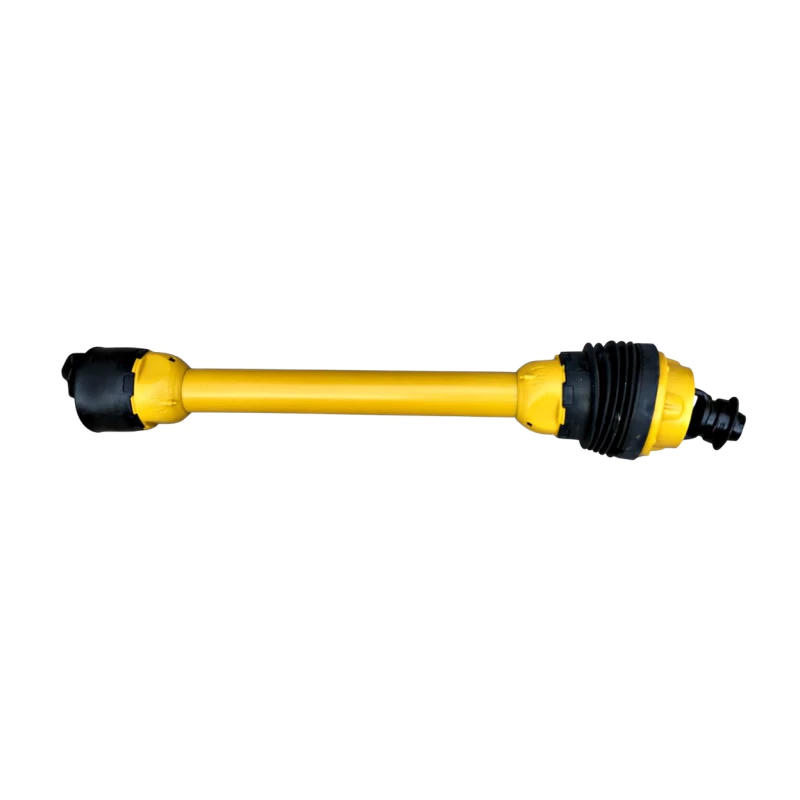

GBC (General Bearing Company Pty Ltd), an Ever-power Group Australia Agency, manufactures heavy-duty PTO shafts specifically rated for the extreme torque and continuous-duty demands of slurry tanker operations. Our shafts feature reinforced wide-angle universal joints, heavy-wall telescopic tubes, and integrated overrunning clutches that protect the tractor drivetrain when the tanker’s momentum pushes back on deceleration.
Technical Data — PTO Shaft for Slurry Tanker Operations
| Specification | Standard Configuration | Custom Range Available |
|---|---|---|
| Rated PTO Speed | 540 RPM | 540 / 1000 RPM |
| Tractor-End Spline | 6-Spline 1-3/8″ | 6 / 20 / 21 Spline; 1-3/8″ or 1-3/4″ |
| Implement-End Spline | 21-Spline 1-3/8″ | 6 / 20 / 21 Spline; Custom bore |
| Collapsed Length | 1050 mm | 850 – 1600 mm |
| Maximum Extended Length | 1650 mm | 1200 – 2400 mm |
| Cross & Bearing Size | 30.2 × 92 mm | 27×74.5 / 30.2×92 / 35×106.5 mm |
| Continuous Torque Rating | 580 Nm | 350 – 1600 Nm |
| Peak Torque | 1200 Nm | 700 – 3200 Nm |
| Power Rating @ 540 RPM | 45 HP (33.5 kW) | 25 – 120 HP |
| Tube Profile | Triangular | Triangular / Lemon / Star |
| Tube Wall Thickness | 4.0 mm | 3.0 – 6.0 mm |
| Safety Guard Standard | AS/NZS 3815 compliant | PP / Nylon / Steel shields |
| Clutch Type | Overrunning (Freewheel) Clutch | Overrunning / Friction / Ratchet |
| Overrunning Clutch Torque | 800 Nm | 400 – 2000 Nm |
| U-Joint Type | Wide-Angle (80°) | Standard (50°) / Wide-Angle (80°) |
| Grease Fittings | Zerk M8 metric | Zerk M6 / M8 / Button-head |
| Shaft Net Weight | 14.5 kg | 10 – 28 kg |
| Operating Angle (Max) | 35° (wide-angle joints) | 25° standard / 80° wide-angle |
| Corrosion Protection | Hot-dip galvanising | Galvanised / Zinc plate / Powder coat |
| Seal Type | FKM quad-lip seals | NBR / FKM / PTFE lip seals |
Operational Principle — How the PTO Shaft Powers a Slurry Tanker
The PTO shaft connects the tractor’s power take-off to the slurry tanker’s vacuum pump (commonly a rotary vane or lobe-type pump) mounted at the front or rear of the tank. When the operator engages the tractor PTO, rotational energy is transmitted through the telescoping drive shaft into the pump, creating a vacuum that draws liquid slurry into the tank during filling. During spreading, the same PTO drives the pump in reverse (or opens the pressure valve) to push liquid through distribution booms, splash plates, or trailing-shoe injectors.
The PTO shaft is positioned beneath the tanker’s chassis drawbar, typically at a low angle. Because slurry tankers are trailed implements with significant weight (often 5,000 – 20,000 litres loaded), the drawbar articulates substantially during turns and over terrain, requiring wide-angle universal joints. An overrunning clutch on the implement end is essential: when the tractor decelerates or stops, the tanker’s inertia can drive the shaft backwards — the overrunning clutch disconnects the load, protecting the tractor’s PTO gearbox and the operator.
Why GBC PTO Shafts Outperform for Slurry Tanker Duty
💪 Heavy-Duty Torque Capacity
GBC: 30.2 × 92 mm cross journals with induction-hardened bearing cups rated to 1,200 Nm peak — designed for the sustained high loads of vacuum pump operation.
Budget alternatives: Undersized 27 × 74.5 mm crosses that fatigue and fail under continuous tanker duty.
🔀 Integrated Overrunning Clutch
GBC: Factory-installed freewheel clutch rated to 800 Nm, protecting the tractor drivetrain from back-drive when braking with a loaded tanker.
Budget alternatives: No overrunning clutch — leading to PTO gearbox wear and potential driveline failure.
💧 Corrosion Resistance for Wet Environments
GBC: Hot-dip galvanised tubes and FKM quad-lip seals resist the highly corrosive slurry environment and frequent wash-downs.
Budget alternatives: Painted steel that blisters within months, and NBR seals that degrade from chemical exposure.
🛠 Wide-Angle Joint Design
GBC: Constant-velocity wide-angle joints allowing up to 80° total articulation — essential for trailed tankers navigating tight paddock gateways.
Budget alternatives: Standard 25° joints that bind and wear rapidly when the tanker articulates beyond range.
Brand Compatibility & Cross-Reference
GBC PTO shafts are engineered to directly replace OEM shafts on major slurry tanker brands including Slurrykat, Major Equipment, Joskin, Pichon, Bauer, Abbey Machinery, NC Engineering, Broughan Engineering, and Peecon. We also cross-reference Walterscheid, Comer Industries, and Bondioli & Pavesi part numbers for seamless replacement.
Disclaimer: All brand names referenced above are trademarks of their respective owners and are mentioned solely for compatibility cross-referencing purposes. GBC has no affiliation with these manufacturers.
Available Spare Parts
Full parts inventory: overrunning clutch assemblies, wide-angle joint kits, cross & bearing sets, telescopic tube pairs, safety guard assemblies, guard chains, yoke forgings, and sealing kits. All stocked in Australia.
Selection Guide — Choosing the Right PTO Shaft for Your Slurry Tanker
| Decision Point | How to Determine | Common Options | GBC Advice |
|---|---|---|---|
| Tank Capacity & Weight | Tanker datasheet | 5,000 – 20,000 L | Larger tanks need higher torque-rated shafts |
| Pump Type | Check tanker specification | Rotary vane / Lobe / Centrifugal | Lobe pumps draw more torque — size up |
| Tractor PTO HP | Tractor specs | 40 – 150 HP | Shaft power rating must meet or exceed tractor HP |
| Operating Distance (PTO to Pump) | Measure fully articulated range | 900 – 2000 mm | Keep ≥200 mm tube overlap at full extension |
| Overrunning Clutch Required? | Tanker manual (mandatory for trailed tankers) | Yes / No | Always recommended for trailed slurry tankers |
| Wide-Angle Joints Needed? | Measure max drawbar articulation angle | Standard / Wide-Angle | Wide-angle recommended for tankers > 8,000 L |
| Corrosion Exposure | Assess washdown frequency & slurry contact | Moderate / High | Hot-dip galvanising for all tanker applications |
Step-by-Step Installation — PTO Shaft on a Slurry Tanker
Troubleshooting Guide — Slurry Tanker PTO Shaft Issues
⚠ Overrunning Clutch Does Not Disengage
Causes: Lack of lubrication, corrosion of clutch rollers, or contamination from slurry ingress.
Fix: Remove the clutch housing, clean all rollers and ramps with solvent, re-grease with EP2, and replace the seal if damaged. If rollers are pitted, replace the clutch assembly.
⚠ Severe Vibration at Operating Speed
Causes: Out-of-phase yokes, worn U-joint crosses, or imbalanced shaft due to dried-on slurry buildup.
Fix: Clean accumulated slurry from shaft and guards. Check yoke phasing — both yoke ears must lie in the same plane. Replace cross & bearing kits if play is detected.
⚠ Pump Loses Vacuum or Pressure
Causes: PTO shaft slipping (worn splines), incorrect PTO RPM, or clutch slipping under load.
Fix: Inspect spline engagement — replace yoke if splines are worn. Verify tractor PTO is set to the correct speed (540 or 1000). If friction clutch is slipping, adjust torque setting or replace friction discs.
⚠ Rapid Corrosion of Shaft Components
Causes: Ammonia and acid content in slurry attacking unprotected surfaces; frequent pressure washing stripping coatings.
Fix: Upgrade to hot-dip galvanised shaft tubes and FKM seals. Apply anti-corrosion grease after each washdown. Replace guards if cracked, as they allow direct exposure.
⚠ Telescopic Tube Seized
Causes: Infrequent greasing, slurry contamination in tube profiles, or rust welding of inner/outer tubes.
Fix: Disassemble, clean with degreaser, sand any rust, apply anti-seize compound, reassemble and grease thoroughly. Establish a greasing schedule of every 6 hours for slurry work.
Field Reports — Slurry Tanker PTO Shafts Across Australia
📍 Warrnambool, Victoria
Setup: 500-cow dairy spreading 12,000 L tanker loads across 250 hectares of irrigated pasture.
“We run the tanker 300+ hours per season. GBC’s galvanised shaft with the overrunning clutch has eliminated the annual shaft replacement we used to budget for. The wide-angle joints handle our tight lane turns perfectly.” — James C., Dairy Farmer
📍 Casino, New South Wales
Setup: Piggery effluent management with a 15,000 L vacuum tanker and trailing-shoe applicator.
“Pig slurry is extremely corrosive. Standard shafts lasted one season at best. GBC’s hot-dip galvanised unit is in its third season with no issues. The FKM seals make all the difference.” — Robert N., Piggery Manager
📍 Beaudesert, Queensland
Setup: Feedlot effluent contractor servicing properties across the Scenic Rim with a 10,000 L tanker.
“As a contractor, I need reliability. GBC shafts handle the daily loading and unloading without a hiccup. Their overrunning clutch actually saved my tractor’s PTO gearbox on a steep hill run last winter.” — Steve L., Contractor
📍 Murray Bridge, South Australia
Setup: Dairy farm using an 8,000 L tanker with dribble bar for effluent application on sandy loam soils.
“The GBC shaft telescopes smoothly even after months of use in dusty conditions. Greasing is straightforward with the well-placed zerks. A genuine improvement over what we had before.” — Karen P., Farmer
📍 Harvey, Western Australia
Setup: 800-head dairy using a 16,000 L Joskin tanker with injector system for subsurface application.
“Big tanker, big loads, and lots of hours. GBC delivered a custom-length shaft with 35×106.5 mm crosses for our high-HP tractor. Flawless performance — we ordered a second for our backup rig.” — Tony G., Dairy Manager
📍 Smithton, Tasmania
Setup: Mixed dairy and beef operation using a 6,000 L tanker in cold, wet pasture conditions year-round.
“Tassie weather is relentless on equipment. GBC’s galvanised finish and UV-stable guards hold up where others deteriorate quickly. Solid shaft, solid company.” — Marie B., Farmer
FAQ — PTO Shafts for Slurry Tankers
Why is an overrunning clutch important for a slurry tanker PTO shaft?
A loaded slurry tanker has significant momentum. When the tractor decelerates or the PTO is disengaged, the tanker’s inertia can drive the PTO shaft backwards, potentially damaging the tractor’s PTO gearbox. An overrunning (freewheel) clutch allows the shaft to spin freely in reverse, absorbing the back-drive safely.
How often should I grease a PTO shaft used on a slurry tanker?
Due to the corrosive environment, grease every 6 operating hours. Use EP2 lithium-complex grease on all U-joint zerks, the telescopic tube splines, and the overrunning clutch grease point.
Can I use a standard PTO shaft on my slurry tanker?
We strongly recommend a shaft specifically rated for slurry tanker duty — with an overrunning clutch, heavy-wall tubes, galvanised coating, and wide-angle joints. A light-duty shaft designed for a spreader or mower will fail prematurely under tanker loads.
What PTO shaft series suits a 12,000-litre tanker?
For tankers in the 10,000–15,000 L range, we recommend a Series 6 or Series 8 shaft with 30.2 × 92 mm cross journals and a minimum 580 Nm continuous torque rating. Contact our team for exact sizing.
Do you supply shafts for 1000 RPM tanker pumps?
Yes. Some high-capacity tankers use 1000 RPM PTO to drive centrifugal pumps. We supply 1000 RPM rated shafts with the correct 1-3/8″ 21-spline or 1-3/4″ 20-spline tractor-end profiles.
Australian Regulatory Compliance & Local SEO Relevance
All GBC slurry tanker PTO shafts comply with AS/NZS 3815 safety guard requirements. Under WHS regulations in every Australian state and territory, it is a legal obligation to operate PTO-driven equipment only with properly fitted and chained guards. Our shafts ship ready to comply.
We serve customers searching for “slurry tanker PTO shaft Australia,” “vacuum tanker drive shaft replacement,” “effluent spreader PTO parts,” “dairy tanker PTO shaft with overrunning clutch,” and “liquid manure tanker PTO drive line” across all major regions. GBC is your Australian source for high-performance, tanker-rated PTO shafts.
