PTO Shaft for Sugar Beet Harvesters – Precision Drive Components for Australian Beet Operations

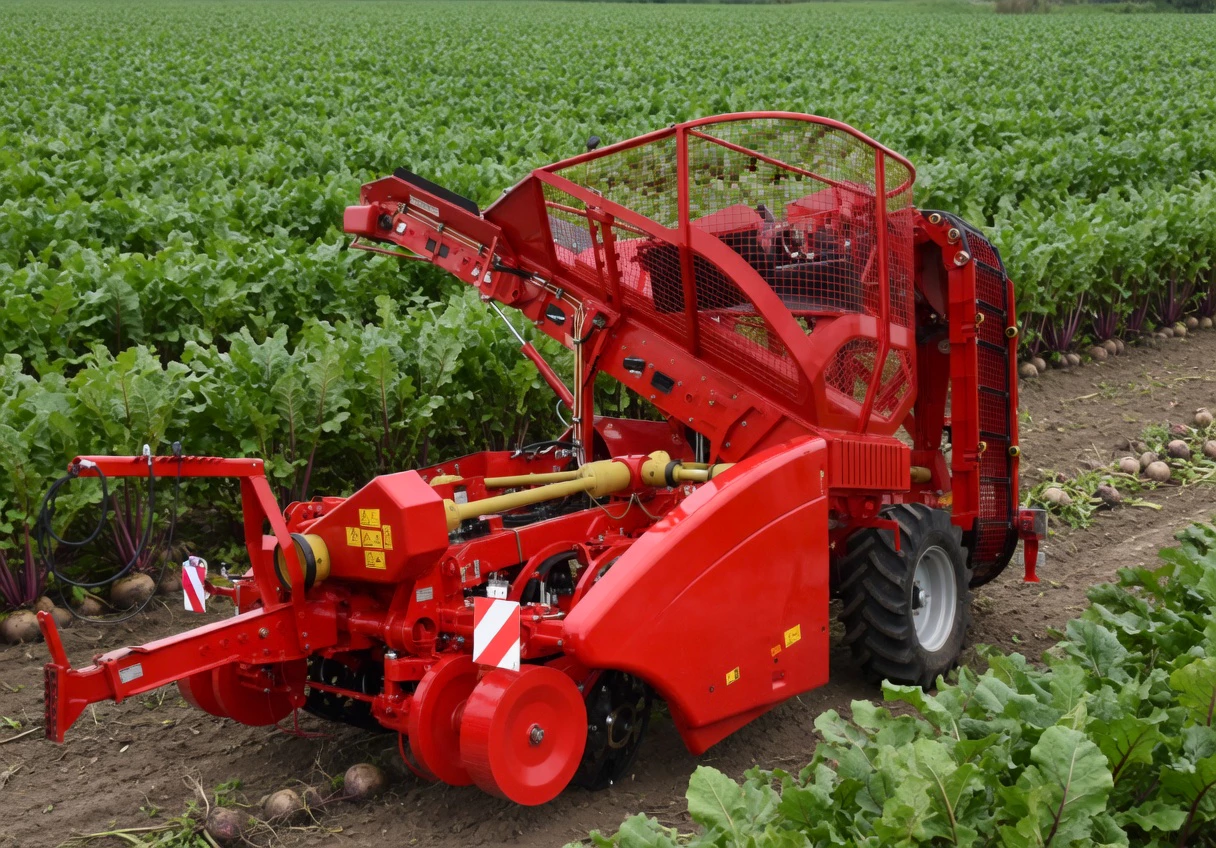

Sugar beet cultivation in Australia, while niche compared to sugarcane, is supported by targeted agricultural programmes in cooler temperate zones of Victoria and Tasmania. Sugar beet harvesters must lift, top, and clean beets in a single pass, placing enormous mechanical demands on every drivetrain component. The PTO shaft (Power Take-Off shaft) transmits rotational power from the tractor to the harvester’s topping unit, lifting shares, cleaning turbines, and conveyor systems. Soil ingestion and root resistance create sudden load spikes that test any PTO drive shaft to its limits. GBC – General Bearing Company (Ever-power Group Australia Agency) provides purpose-built PTO shafts tailored to sugar beet harvesting machinery used across Australian growing regions.

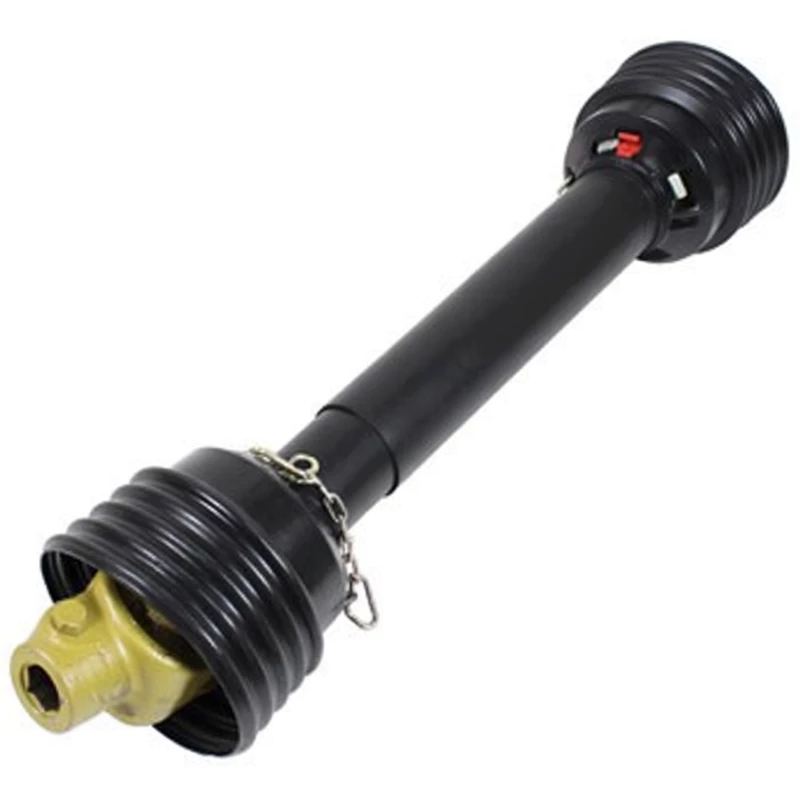

📈 Technical Specifications – PTO Shaft for Sugar Beet Harvester
| Parameter | Specification | Customisable Range |
|---|---|---|
| PTO Speed (RPM) | 540 / 1000 | 540 / 1000 RPM available |
| Horsepower Range | 60 – 250 HP | Custom ratings on request |
| Shaft Type | Standard Telescoping Cardan Shaft | Standard / Wide-Angle / CV options |
| Closed Length | 750 – 1400 mm | Custom lengths available |
| Open (Extended) Length | 1000 – 2100 mm | Custom lengths available |
| Tube Profile | Triangle / Lemon | All standard profiles available |
| Cross-Journal Size | 27 × 74.6 mm / 30.2 × 92 mm / 35 × 106.5 mm | Multiple sizes in stock |
| Yoke Connection | Quick-Release / Push-Pin / Bolt-On | All types available |
| Torque Rating | 350 – 2200 Nm | Higher ratings on request |
| Spline Configuration | 6-Spline 1-3/8″ / 21-Spline 1-3/8″ | All standard configs available |
| Safety Guard | CE-Certified Protective Plastic Shield with Chain Guard | CE / AS/NZS compliant |
| Shaft Weight | 10 – 32 kg | Varies by specification |
| Bearing Type | Sealed Needle Roller Bearing | Sealed option available |
| Surface Treatment | Zinc Plating / E-Coating | Multiple finishes available |
| Balance Standard | Dynamic Balancing at 1200 RPM | Precision balancing included |
| Clutch Type | Shear Bolt Clutch / Cam Clutch / Friction Disc Clutch | All types available |
| Material Grade | Carbon Steel C45 / 42CrMo | Custom alloys on request |
| Hardness Rating | HRC 56-60 (Spline) / HRC 52-58 (Yoke) | Per application requirement |
| Operating Temperature | -30°C to +80°C Operating Temperature | Cold/hot climate variants |
| Service Life | ≥ 1800 Hours Under Rated Load | Extended life options available |
All specifications can be tailored to your specific sugar beet harvester model. Contact our engineering team for custom configurations.
⚙ PTO Shaft Working Mechanism in Sugar Beet Harvesting
In sugar beet harvesting, the PTO shaft conveys tractor power to a complex series of harvester mechanisms that must operate in tight synchronisation. The tractor’s PTO, running at 540 or 1000 RPM, drives the input yoke of the shaft. Two universal joints permit the angular deflection necessary as the harvester tracks row contours independently of the tractor’s position. The telescoping section adjusts for longitudinal variation. Power flows into the harvester’s main gearbox and is then distributed to the defoliator (removing beet tops), lifting shares or wheels (extracting beets from the soil), the cleaning turbine (removing soil and stones), and the elevator conveyor (loading beets into a hopper or trailer).
Build-up of the shaft: A splined input yoke mates to the tractor PTO stub; a cross-journal bearing assembly forms the first articulation point; profiled inner and outer telescoping tubes provide axial travel; a second cross-journal joint provides the implement-end articulation; and a yoke or flange connects to the harvester’s gearbox. A cam clutch or shear bolt assembly is built into the implement end to protect against shock overloads from rocks or frozen soil. The CE-certified guard features chain restraints on both ends for added safety.
⭐ Core Advantages – Why Choose Our PTO Shaft for Your Sugar Beet Harvester
|
|
|
|||
|
|
|
🔄 Brand Compatibility & Replacement Guide
Note: Brand names are referenced solely for compatibility identification purposes. All trademarks belong to their respective owners. GBC is not affiliated with any of the brands listed below.
Our PTO shafts for sugar beet harvesters are direct-fit replacements for shafts on the following leading beet harvesting equipment used in Australian operations:
| Brand | Compatible Models | Spline Match |
|---|---|---|
| Grimme | Rexor Series, Rootster 604 | 6-Spline 1-3/8″ & 21-Spline 1-3/8″ |
| Holmer | Terra Dos T4 Series | 21-Spline 1-3/8″ & 20-Spline 1-3/4″ |
| Ropa | Tiger 6, Panther 2 Series | 21-Spline 1-3/8″ |
| Kleine | SF 10-2 Series | 6-Spline 1-3/8″ |
| Agrifac | Hexa Series | 21-Spline 1-3/8″ |
Spare Parts & Accessories
Comprehensive parts range for sugar beet harvester PTO shafts: cross-journal kits, cam clutch assemblies, push-pin and bolt-on yokes, CE-certified chain-restrained guards, and profile tube replacements. Fast delivery across Victoria and Tasmania.
📚 Quick Selection Guide – PTO Shaft for Sugar Beet Harvester
Use this guide to identify the correct PTO shaft for your specific tractor and harvester combination:
| Parameter to Confirm | Options / Range | How to Check |
|---|---|---|
| Tractor PTO Speed | 540 or 1000 RPM | Verify harvester input requirement |
| Required Horsepower | 60 – 250 HP | Match to beet harvester configuration |
| Shaft Closed Length | 750 – 1400 mm | Measure at minimum separation |
| Shaft Open Length | 1000 – 2100 mm | Measure at maximum extension |
| Spline Configuration | 6/21 Spline options | Check both tractor and harvester ends |
| Clutch Type | Shear Bolt / Cam Clutch / Friction | Cam clutch for automatic re-engagement |
| Guard Type | CE-certified with chain restraints | Chain restraints mandatory in Australia |
| Operating Temperature | Verify cold-weather rating | Important for early-season harvests |
👉 Need help selecting? Send us your tractor and sugar beet harvester model numbers and we will recommend the exact PTO shaft specification.
🔧 Installation Guide – PTO Shaft for Sugar Beet Harvester
⚠ Safety Warning: Always follow your tractor and harvester manufacturer’s safety procedures. Never work near a rotating PTO shaft. Wear close-fitting clothing and keep bystanders clear.
| Step 1: Position Equipment Safely Park the tractor and sugar beet harvester on solid, flat ground. Set parking brake, switch off the engine, and withdraw the key. Lower all hydraulic toppers and lifters. |
| Step 2: Unbox & Verify Remove the PTO shaft from packaging and verify it matches your tractor PTO speed (540 or 1000 RPM), spline count, yoke type, and required shaft length. Inspect for transit damage. |
| Step 3: Grease Application Apply NLGI #2 EP grease to cross-journal bearing assemblies and profile tube channels. Cycle the telescoping section fully in and out at least three times. |
| Step 4: Connect Tractor End Align the input yoke with the tractor PTO stub splines. Push on until the locking collar or pin engages. Tug firmly to confirm lock. |
| Step 5: Connect Harvester End Attach the output yoke to the beet harvester’s gearbox input. Secure the connection and verify the cam clutch or shear bolt assembly is correctly oriented. |
| Step 6: Anchor Guard Chains Attach guard restraint chains to both tractor drawbar and harvester frame. Ensure the chains restrict guard rotation to less than one revolution if the guard were to detach. |
| Step 7: Full Range-of-Motion Test Steer through maximum articulation angles and simulate field undulation. Verify smooth telescoping action and no mechanical interference between the shaft, guard, and machine components. |
| Step 8: Start-Up Check Run the PTO at idle for 3 minutes. Listen for abnormal sounds. Feel for vibration at the guard and yoke areas. Check grease is not leaking excessively from any bearing. |
| Step 9: Full-Load Verification Engage all beet harvester functions: topper, lifter, cleaner, elevator. Operate at field speed and RPM. Monitor shaft behaviour and verify the clutch only trips under genuine overload conditions. |
🛠 Troubleshooting – PTO Shaft Issues on Sugar Beet Harvester
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Vibration increases when lifter engages | Shaft imbalance aggravated by additional load | Rebalance shaft. Replace worn cross-journal bearings. Check lifter mechanism alignment. |
| Cam clutch slipping under normal load | Worn cam surfaces or weak springs | Inspect cam clutch internals. Replace cam rollers and springs. Reset engagement torque. |
| Shaft seized after overnight frost | Moisture frozen inside telescoping tubes | Thaw gently (never use open flame). Disassemble, dry, apply cold-rated grease. Store indoors overnight. |
| Topper not receiving consistent power | Intermittent slip in tube profiles | Inspect profile tubes for wear. Replace if cross-section has worn round. Regrease with EP2. |
| Guard chain broken during operation | Chain fatigue or incorrect anchor positioning | Replace chain with rated safety chain. Reposition anchors to reduce chain stress during articulation. |
| Excessive play in yoke connection | Worn locking collar or PTO stub groove | Replace locking mechanism. If PTO stub groove is worn, consult tractor dealer for stub replacement. |
| Unusual metallic scraping sound | Guard contacting shaft due to bent cone bearing | Replace guard bearing cone. Straighten or replace guard tube if deformed. |
| Shaft length insufficient for headland turns | Incorrect shaft length selected for tractor-harvester combination | Measure actual distance range. Order correct length shaft. Never operate with shaft fully collapsed or extended. |
📖 Australian Case Studies – Engineer’s Field Notes
Real feedback from Australian farmers and contractors using GBC PTO shafts on their sugar beet harvester equipment:
|
📍 Warrnambool, Victoria Beet trial operation, 50 hectares “Small operation but the beet harvester demands a good PTO shaft. The GBC unit was affordable, well-made, and handled our heavy clay soil conditions through the full harvest season.” |
|
📍 Colac, Victoria Diversified farm with beet rotation, 80 hectares “Our Grimme beet harvester ran perfectly with the GBC PTO shaft. The cam clutch saved us twice when we hit frozen soil patches during early-season harvest. Very impressed.” |
|
📍 Devonport, Tasmania Research farm with beet trials, 30 hectares “Even at small scale, we need reliable components. The GBC PTO shaft operated flawlessly in our cold Tasmanian conditions, and the cold-weather rating gave us confidence in early-morning starts.” |
|
📍 Ballarat, Victoria Mixed root crop operation, 100 hectares “The chain-restrained safety guard on the GBC shaft meets our strict farm safety policy. It’s well-designed and the chains are the right length for full articulation. Good engineering.” |
|
📍 Hamilton, Victoria Western district beet grower, 60 hectares “Reliable, smooth operation from the GBC PTO shaft. The dual-speed option means we can use it with our 540 RPM tractor and our newer 1000 RPM unit. Versatile and practical.” |
|
📍 Launceston, Tasmania Beet processing trial, 40 hectares “We needed a PTO shaft with good anti-clog tube design for our sticky clay soil. The GBC smooth-profile tubes stayed clean all season. Would definitely recommend for Tasmanian conditions.” |
❓ Frequently Asked Questions – PTO Shaft for Sugar Beet Harvester
Can one PTO shaft work for both 540 and 1000 RPM?
How does frozen soil affect the PTO shaft?
What maintenance is needed after each beet harvest season?
Are chain restraints on the safety guard mandatory in Australia?
What causes the cam clutch to slip during normal operation?
Can I retrofit a cam clutch to an existing PTO shaft?
⚖ Regulations, Compliance & Local Information
PTO shaft safety in Australia is governed by state and territory workplace health and safety legislation. Key requirements for PTO shafts used on sugar beet harvester equipment include:
|
📜 Australian PTO Safety Standards • All PTO shafts must be fitted with a compliant safety guard covering the full shaft length • Safety guards must include chain or cable restraints at both ends to prevent rotation if the guard detaches • Guards must be maintained in serviceable condition and replaced immediately if damaged • Workers must receive training in PTO safety procedures before operating PTO-driven equipment • Safe Work Australia guidance note: “Managing risks of plant in the workplace” applies to all PTO operations |
Servicing Sugar Beet Harvester Operators Across Australia
GBC supplies PTO shafts for sugar beet harvester equipment to all major agricultural regions of Australia, including New South Wales, Victoria, Queensland, South Australia, Western Australia, Tasmania, and the Northern Territory. Our distribution network ensures fast delivery to major cities including Sydney, Melbourne, Brisbane, Adelaide, and Perth, as well as regional centres. Whether you operate in the wheat belt of Western Australia, the cane fields of Queensland, the dairy regions of Victoria, or the horticultural zones of the Riverina, we have the right PTO shaft for your sugar beet harvester.
