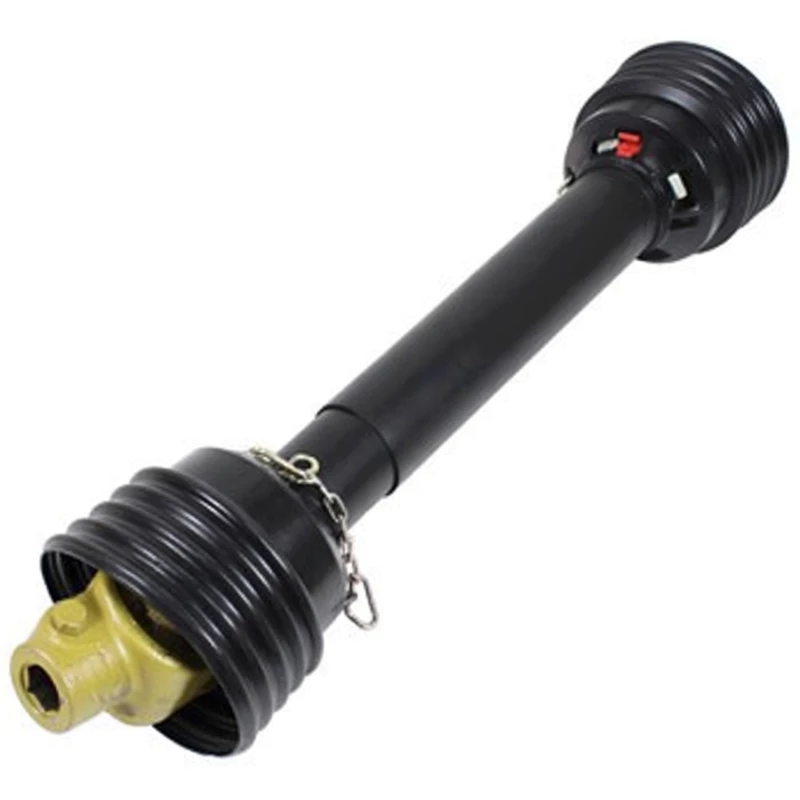

PTO Shaft for Sugarcane Harvesters – High-Torque Power Delivery for Queensland’s Cane Industry

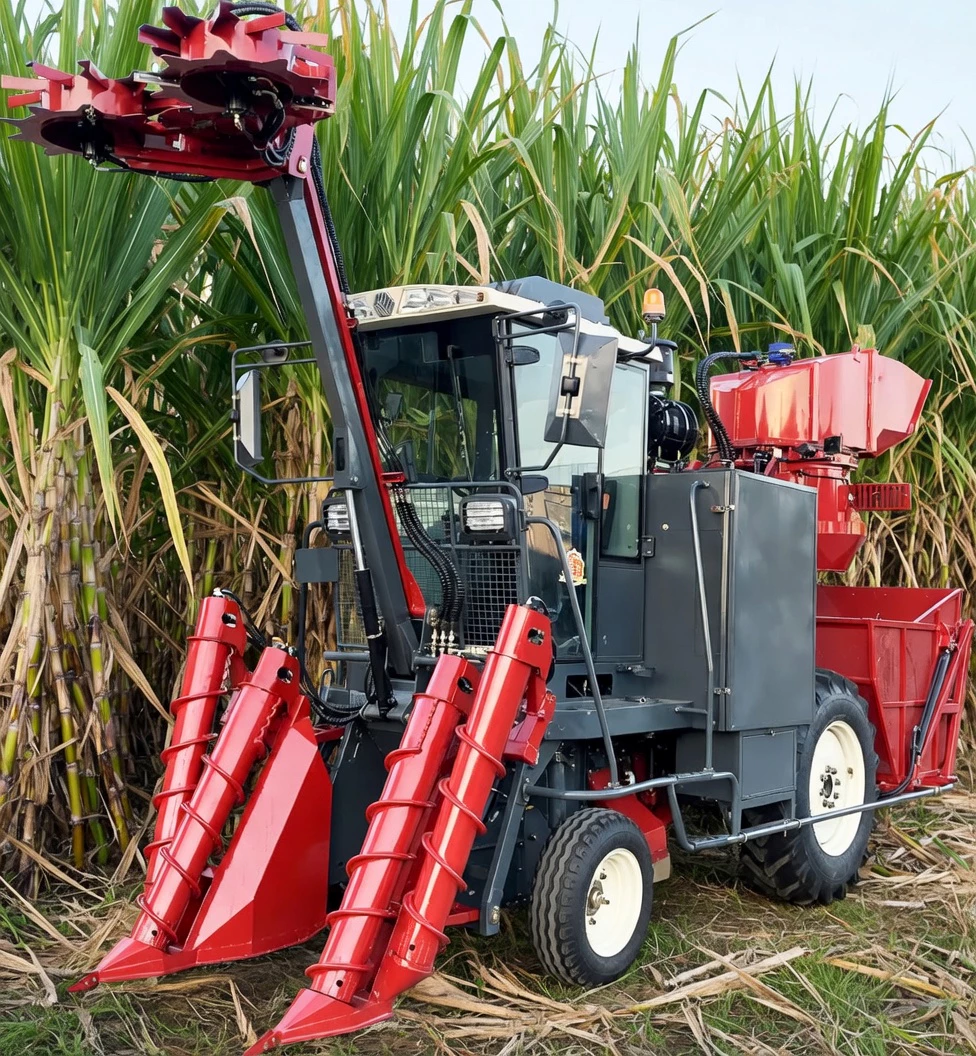

Australia’s sugarcane industry, concentrated in Queensland’s tropical and subtropical coastal belt from Mossman to Grafton, demands machinery capable of cutting, chopping, and loading dense cane stalks at formidable speed. The PTO shaft (Power Take-Off shaft) is the vital power transmission link between the tractor and the cane harvester’s base cutter, chopper drums, primary extractor fan, and elevator systems. Sugarcane harvesting subjects PTO drive shafts to extreme torque spikes caused by variable cane density, lodged stalks, and field debris. GBC – General Bearing Company (Ever-power Group Australia Agency) engineers heavy-duty PTO shafts built for the punishing conditions of Australian cane harvesting, ensuring maximum uptime during the critical crushing season.
📈 Technical Specifications – PTO Shaft for Sugarcane Harvester
| Parameter | Specification | Customisable Range |
|---|---|---|
| PTO Speed (RPM) | 1000 | 540 / 1000 RPM available |
| Horsepower Range | 100 – 400 HP | Custom ratings on request |
| Shaft Type | Heavy-Duty Telescoping Cardan Shaft | Standard / Wide-Angle / CV options |
| Closed Length | 900 – 1600 mm | Custom lengths available |
| Open (Extended) Length | 1200 – 2400 mm | Custom lengths available |
| Tube Profile | Star / Lemon / Triangular | All standard profiles available |
| Cross-Journal Size | 30.2 × 92 mm / 35 × 106.5 mm / 39 × 118 mm | Multiple sizes in stock |
| Yoke Connection | Bolt-On / Quick-Release / Flange Yoke | All types available |
| Torque Rating | 600 – 3500 Nm | Higher ratings on request |
| Spline Configuration | 21-Spline 1-3/8″ / 20-Spline 1-3/4″ / 6-Spline 1-3/4″ | All standard configs available |
| Safety Guard | CE-Certified Heavy-Duty Plastic Guard | CE / AS/NZS compliant |
| Shaft Weight | 18 – 45 kg | Varies by specification |
| Bearing Type | Heavy-Duty Needle Roller Bearing | Sealed option available |
| Surface Treatment | Hot-Dip Galvanisation / Powder Coating | Multiple finishes available |
| Balance Standard | Precision Dynamic Balancing at 1800 RPM | Precision balancing included |
| Clutch Type | Overrunning Clutch / Friction Clutch / Ratchet Torque Limiter | All types available |
| Material Grade | Alloy Steel 42CrMo / 40Cr | Custom alloys on request |
| Hardness Rating | HRC 58-63 (Spline) / HRC 56-62 (Yoke) | Per application requirement |
| Operating Temperature | -15°C to +90°C Operating Temperature | Cold/hot climate variants |
| Service Life | ≥ 2500 Hours Under Rated Load | Extended life options available |
All specifications can be tailored to your specific sugarcane harvester model. Contact our engineering team for custom configurations.
⚙ Operating Principle of a PTO Shaft on a Sugarcane Harvester
Sugarcane harvesters demand extreme torque transfer through the PTO shaft. The tractor’s PTO stub, typically running at 1000 RPM, drives the shaft’s input yoke through a heavy-duty splined connection. Dual universal joints compensate for the significant angular offsets created by uneven cane-field terrain and turning manoeuvres. The telescoping shaft section – engineered with reinforced star or lemon profile tubes – handles the large axial movements encountered in cane-field operations. Power is delivered to the harvester’s base cutter (severing cane at ground level), the chopper drums (cutting stalks into billets), the primary extractor fan (removing leaf trash), and the elevator conveyor (loading billets into haul-out bins).
Assembly breakdown: The shaft features a flanged or splined input yoke, an oversized cross-and-bearing assembly rated for high torque, a heavy-wall inner profile tube, a reinforced outer tube, a second heavy-duty U-joint, and an output yoke matched to the harvester’s gearbox input. An overrunning clutch at the implement end prevents the harvester’s rotating mass from back-driving the tractor’s PTO when the operator decelerates. The safety shield is a heavy-duty design that resists damage from flying cane debris.
⭐ Core Advantages – Why Choose Our PTO Shaft for Your Sugarcane Harvester
|
|
|
|||
|
|
|
🔄 Brand Compatibility & Replacement Guide
Note: Brand names are referenced solely for compatibility identification purposes. All trademarks belong to their respective owners. GBC is not affiliated with any of the brands listed below.
Our heavy-duty PTO shafts for sugarcane harvesters provide seamless replacement for drive shafts used on the following cane harvesting brands operating across Queensland and northern NSW:
| Brand | Compatible Models | Spline Match |
|---|---|---|
| John Deere | CH570, CH670 Cane Harvesters | 20-Spline 1-3/4″ & 21-Spline 1-3/8″ |
| Case IH | Austoft 8000/8800 Series, A8000, A8800 | 21-Spline 1-3/8″ & 20-Spline 1-3/4″ |
| CAMECO / CNH | CHT 2500 Series | 20-Spline 1-3/4″ |
| Toft | Various trailed cane harvester models | 6-Spline 1-3/4″ & 21-Spline 1-3/8″ |
Spare Parts & Accessories
Full parts support for sugarcane harvester PTO shafts including heavy-duty cross-journal kits, flanged yokes, overrunning clutch assemblies, reinforced safety guards, and high-strength profile tubes. Priority shipping to all QLD cane regions.
📚 Quick Selection Guide – PTO Shaft for Sugarcane Harvester
Use this guide to identify the correct PTO shaft for your specific tractor and harvester combination:
| Parameter to Confirm | Options / Range | How to Check |
|---|---|---|
| Tractor PTO Speed | 1000 RPM | Standard for cane harvesting equipment |
| Required Horsepower | 100 – 400 HP | Match to cane harvester cutting and chopping load |
| Shaft Closed Length | 900 – 1600 mm | Measure at minimum tractor-harvester separation |
| Shaft Open Length | 1200 – 2400 mm | Measure at maximum extension in turns |
| Spline Configuration | 21-Spline 1-3/8″ / 20-Spline 1-3/4″ | Match to tractor and harvester input |
| Yoke Type | Bolt-On / Flange | Flange recommended for heavy-duty applications |
| Clutch Type | Overrunning / Ratchet Torque Limiter | Overrunning clutch essential for safety |
| Tube Profile | Star / Lemon / Triangular | Star profile for maximum torque capacity |
👉 Need help selecting? Send us your tractor and sugarcane harvester model numbers and we will recommend the exact PTO shaft specification.
🔧 Installation Guide – PTO Shaft for Sugarcane Harvester
⚠ Safety Warning: Always follow your tractor and harvester manufacturer’s safety procedures. Never work near a rotating PTO shaft. Wear close-fitting clothing and keep bystanders clear.
| Step 1: Safe Positioning Park the tractor and sugarcane harvester on flat, stable ground away from standing cane. Set the parking brake, turn off the engine, and remove the key. Ensure all chopper and extractor systems are stopped. |
| Step 2: Component Verification Inspect the heavy-duty PTO shaft out of packaging. Confirm 1000 RPM rating, spline configuration (20 or 21 spline), yoke type, and shaft length match your equipment. |
| Step 3: Heavy-Duty Greasing Apply EP2 grease generously to both cross-journal bearing packs. Grease the star or lemon profile tubes. Extend and retract the telescoping section multiple times to ensure full coverage. |
| Step 4: Mount to Tractor PTO Align the input yoke carefully with the tractor’s 1000 RPM PTO stub. Push on firmly until the locking mechanism engages. Verify the overrunning clutch direction arrow points toward the implement. |
| Step 5: Connect to Harvester Gearbox Attach the output yoke or flange to the cane harvester’s main gearbox input. Torque all bolts to manufacturer specification if using a flanged connection. Verify lock engagement. |
| Step 6: Fit Guard & Chains Install the heavy-duty safety guard over the shaft. Secure both end-chains to structural anchor points on the tractor and harvester. Ensure the guard can rotate freely around the shaft. |
| Step 7: Articulation & Extension Check Simulate field operation by turning the tractor and rolling the harvester over uneven ground. Verify the shaft telescopes and articulates without binding, and that guard chains maintain proper tension. |
| Step 8: Idle Speed Test Start the tractor and engage the 1000 RPM PTO at low idle. Run for 2–3 minutes while checking for smooth rotation, absence of vibration, and no unusual noise from the shaft or guard. |
| Step 9: Loaded Operation Test Progressively engage the harvester’s base cutter, chopper, and extractor systems. Monitor the PTO shaft at full 1000 RPM under load. Check for heat at the U-joints and verify the overrunning clutch functions correctly when the tractor decelerates. |
🛠 Troubleshooting – PTO Shaft Issues on Sugarcane Harvester
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Severe vibration at 1000 RPM | Shaft imbalance, worn bearings, or damaged tube | Rebalance shaft. Replace cross-journal kit. Inspect tubes for dents or bends. |
| Overrunning clutch not engaging/disengaging | Clutch rollers worn or springs fatigued | Disassemble and inspect clutch. Replace rollers and springs. Flush and regrease. |
| Shaft overheating during continuous cutting | Insufficient grease or overloaded beyond rating | Verify torque load within shaft rating. Regrease all joints. Check for cane blockages causing overload. |
| Flange bolts loosening under vibration | Insufficient torque or incorrect bolt grade | Retorque to specification with thread-locking compound. Use Grade 10.9 bolts minimum. |
| Safety guard cracked by flying debris | Impact from cane billets or field objects | Replace damaged guard section. Consider upgrading to reinforced heavy-duty guard. |
| Telescoping tube difficult to extend | Corrosion from tropical humidity or cane juice | Clean, treat with rust inhibitor, regrease. Replace tubes if pitting exceeds 0.5 mm depth. |
| PTO shaft whipping at high RPM | Critical speed exceeded or shaft too long for application | Verify shaft length is within rated range. Add midship bearing if necessary. Consult GBC engineering team. |
| Noise from implement-end yoke area | Worn splines or yoke bearing failure | Inspect spline engagement. Replace yoke if backlash exceeds 2°. Replace bearing if defective. |
📖 Australian Case Studies – Engineer’s Field Notes
Real feedback from Australian farmers and contractors using GBC PTO shafts on their sugarcane harvester equipment:
|
📍 Ayr, Queensland Burdekin Delta cane farm, 800 hectares “We push our harvesters hard during the crush. The GBC heavy-duty PTO shaft handles the torque of continuous cutting in thick plant cane without any drama. The overrunning clutch works perfectly every time we stop.” |
|
📍 Mackay, Queensland Mackay Sugar district, 600 hectares “Replaced the OEM shaft with a GBC unit at half the price. The galvanised finish is holding up brilliantly in our coastal humidity. Three crushing seasons and counting.” |
|
📍 Innisfail, Queensland Wet tropics cane operation, 400 hectares “The humidity and rain up here destroy most metal components. The GBC PTO shaft’s hot-dip galvanisation is resisting corrosion far better than anything else we’ve tried. Top quality.” |
|
📍 Bundaberg, Queensland Southern QLD cane region, 500 hectares “Our Austoft harvester needed a PTO shaft upgrade to handle our thicker ratoon cane. The GBC shaft with 3500 Nm rating handles it without breaking a sweat.” |
|
📍 Ingham, Queensland Herbert River district, 700 hectares “Fast turnaround was critical – we couldn’t afford downtime during crushing. GBC had the exact shaft we needed in stock and shipped it same day. Perfect fit and outstanding performance.” |
|
📍 Mossman, Queensland Far North QLD cane farm, 350 hectares “Steep terrain and lodged cane create huge torque spikes. The GBC PTO shaft’s ratchet torque limiter protects our gearbox while allowing us to keep cutting without stopping to replace shear bolts.” |
❓ Frequently Asked Questions – PTO Shaft for Sugarcane Harvester
Why do sugarcane harvesters use 1000 RPM PTO shafts?
Is an overrunning clutch necessary for cane harvesting?
How does tropical humidity affect PTO shaft maintenance?
Can I use a generic PTO shaft on my cane harvester?
What is the typical service life of a cane harvester PTO shaft?
Do you supply PTO shafts for self-propelled cane harvesters?
⚖ Regulations, Compliance & Local Information
PTO shaft safety in Australia is governed by state and territory workplace health and safety legislation. Key requirements for PTO shafts used on sugarcane harvester equipment include:
|
📜 Australian PTO Safety Standards • All PTO shafts must be fitted with a compliant safety guard covering the full shaft length • Safety guards must include chain or cable restraints at both ends to prevent rotation if the guard detaches • Guards must be maintained in serviceable condition and replaced immediately if damaged • Workers must receive training in PTO safety procedures before operating PTO-driven equipment • Safe Work Australia guidance note: “Managing risks of plant in the workplace” applies to all PTO operations |
Servicing Sugarcane Harvester Operators Across Australia
GBC supplies PTO shafts for sugarcane harvester equipment to all major agricultural regions of Australia, including New South Wales, Victoria, Queensland, South Australia, Western Australia, Tasmania, and the Northern Territory. Our distribution network ensures fast delivery to major cities including Sydney, Melbourne, Brisbane, Adelaide, and Perth, as well as regional centres. Whether you operate in the wheat belt of Western Australia, the cane fields of Queensland, the dairy regions of Victoria, or the horticultural zones of the Riverina, we have the right PTO shaft for your sugarcane harvester.
🛒 Related Products
We also manufacture and supply a comprehensive range of agricultural drivetrain components designed to work alongside our PTO shafts:
|
|
|
|||
|
|
|
🏭 About GBC – Your Trusted PTO Shaft Manufacturer
|
We are GBC – General Bearing Company Pty Ltd., the official Australian agency of the Ever-power Group, one of the world’s leading manufacturers of power transmission components. With over 25 years of manufacturing excellence, we bring unmatched expertise to every PTO shaft we produce. Our state-of-the-art production facilities span over 50,000 square metres, equipped with CNC machining centres, heat treatment furnaces, dynamic balancing machines, and comprehensive quality testing laboratories. We hold ISO 9001:2015 certification and our products meet CE, SGS, and relevant Australian safety standards. We export to over 60 countries worldwide, with Australia being one of our most important markets. Our deep understanding of Australian farming conditions – from the tropical cane fields of Queensland to the broadacre grain paddocks of Western Australia – informs every design decision we make. Our OEM capability means we can manufacture PTO shafts to your exact specifications, including custom lengths, spline configurations, yoke types, clutch options, and surface treatments. Whether you need a single replacement shaft or a bulk order for a dealership network, we deliver quality, reliability, and value. Key strengths: In-house forging, CNC machining, heat treatment, surface finishing, assembly, dynamic balancing, and comprehensive quality testing – all under one roof for complete quality control. |
📞 Partner With Us – Get Your PTO Shaft for Sugarcane Harvester Today
|
Ready to upgrade your sugarcane harvester with a premium PTO shaft? Whether you need a single replacement shaft, a bulk order for your dealership, or a custom-engineered OEM solution, our team is ready to help. We offer competitive pricing, fast delivery across Australia, and full technical support. 📧 Email: sales@australia-drive.com 🌐 Website: australia-drive.com |
