PTO Shaft for Tree Shaker — Heavy-Duty Driveline for Australian Nut & Fruit Harvesting
Overview — PTO Shaft Demands in Tree Shaker Applications

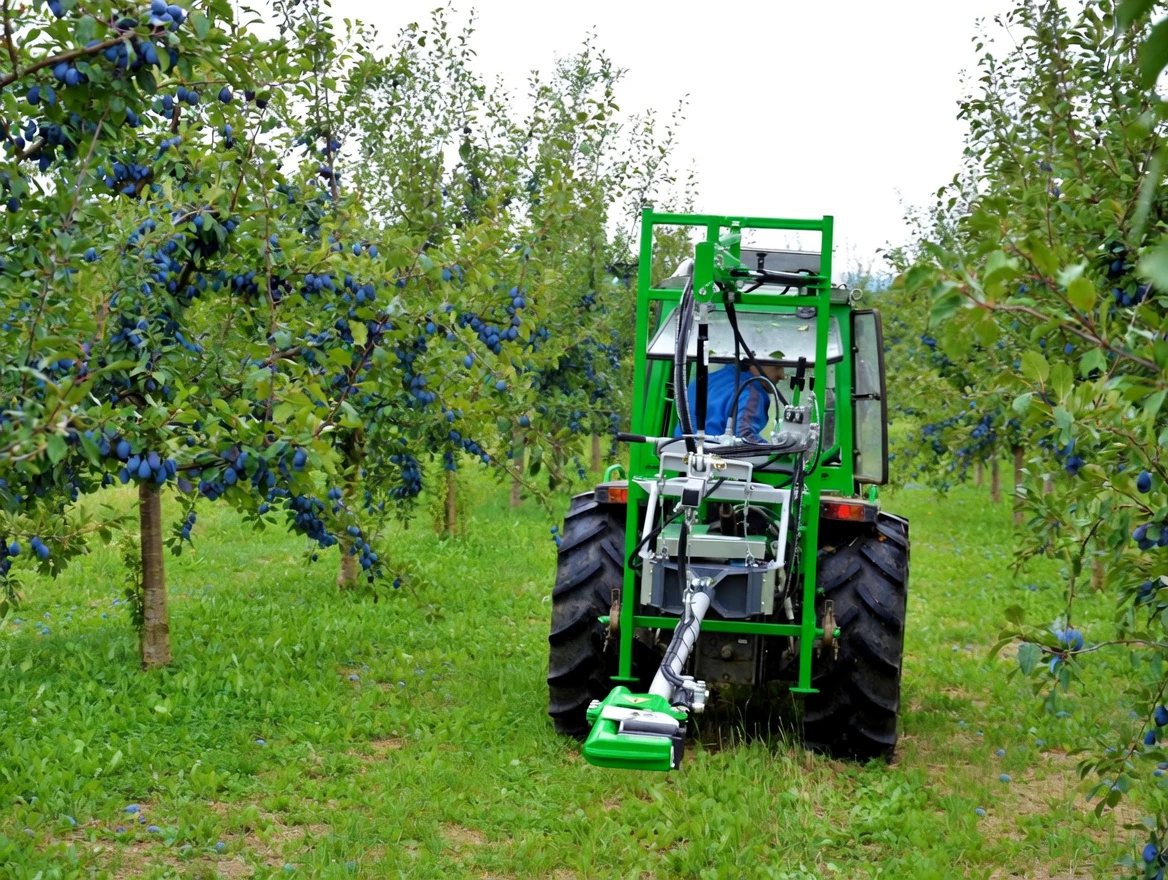

A tree shaker is a specialised harvesting machine used to detach nuts (almonds, macadamias, walnuts, pecans) and stone fruits (olives, cherries, plums) from trees by clamping the trunk or primary limb and applying rapid oscillation. This violent shaking action demands an enormous amount of cyclic torque, making the PTO shaft one of the hardest-working components in the entire driveline.
Unlike spray equipment that operates at a steady, continuous load, a tree shaker subjects the PTO shaft to severe shock loads and rapid torque reversals as the eccentric weight mechanism oscillates. The shaft must absorb these pulses while transmitting up to 80+ HP worth of energy from the tractor to the shaker’s hydraulic power unit or mechanical eccentric drive.
GBC (General Bearing Company) manufactures heavy-duty PTO shafts specifically engineered for the punishing demands of tree shaker operations. Our shafts are deployed in almond orchards across the Riverina, macadamia plantations in the Bundaberg region, olive groves in the Adelaide Hills, and walnut farms throughout regional Victoria.
Technical Specifications
Our tree shaker PTO shafts are built to a higher torque class than standard agricultural shafts. Scroll horizontally on mobile for full details.
| Parameter | Standard Value | Custom Range |
|---|---|---|
| PTO Series | Series 6 (S6) | S4 – S8 |
| Rated Torque | 1200 Nm | 500 – 2500 Nm |
| Peak Torque (Momentary) | 2400 Nm | 1000 – 5000 Nm |
| Operating Speed | 1000 RPM | 540 / 1000 RPM |
| Closed Length (Lz) | 1050 mm | 800 – 1800 mm |
| Telescopic Stroke | 280 mm | 150 – 600 mm |
| Cross Journal Size | 35 × 98 mm | 30.2×92 – 42×104.5 mm |
| Tractor Yoke | Bolt-on flange | Flange / Push-pin / Collar |
| Implement Yoke | Splined bore 1 3/4″ 20-spline | Splined / Keyed / Flange |
| Tractor Spline | 1 3/4″ 20-spline | 1 3/4″ 6 / 1 3/4″ 20 / 1 3/8″ 21 |
| Clutch Type | Friction clutch (heavy-duty) | Friction / Ratchet / Free-wheel |
| Friction Clutch Torque Rating | 1500 Nm | 600 – 3000 Nm |
| Tube Profile | Star (6-point) | Star / Lemon / Triangle / Splined |
| Tube Wall Thickness | 5.0 mm | 4.0 – 6.0 mm |
| Surface Treatment | Dacromet + epoxy coat | Dacromet / Zinc / Powder coat |
| U-Joint Bearing | Full-complement needle roller | Needle / Full complement |
| Max Continuous Angle | 18° | Up to 80° (wide-angle CV) |
| Shaft Weight | 18.5 kg | 10 – 38 kg |
| Balancing | Dynamically balanced | Static / Dynamic |
| Certification | CE, ISO 5673, ASABE S204 | CE / ISO / ASABE |
Working Principle — How the PTO Shaft Powers a Tree Shaker
A PTO-driven tree shaker channels power from the tractor into an eccentric mechanism or hydraulic pump that generates violent oscillating motion. The PTO shaft connects the tractor’s 1000 RPM PTO output to the shaker’s gearbox or hydraulic power pack, transmitting energy through two heavy-duty universal joints and a set of telescoping star-profile tubes.
Key Structural Elements

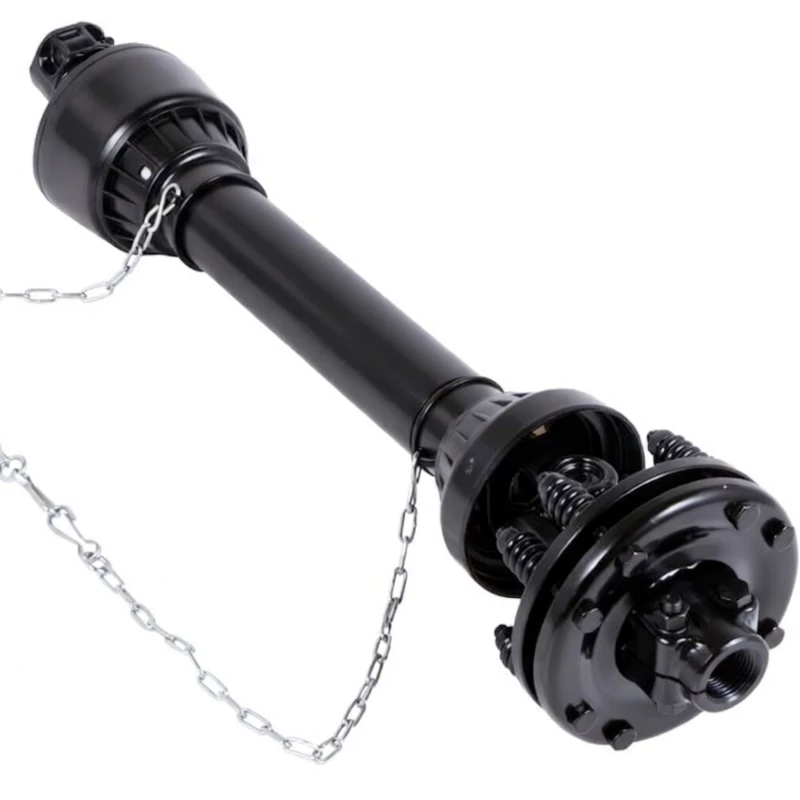

The tree shaker PTO shaft is composed of:
- Flange-type tractor yoke — bolted directly to the tractor PTO output flange, providing a rigid, zero-backlash connection that withstands the high torque reversals of shaking operations.
- Heavy-duty universal joints — larger-diameter cross journals (35 × 98 mm) with full-complement needle bearings rated for cyclic shock loads.
- Star-profile telescoping tubes — 6-point star geometry distributes torque more evenly than triangle or lemon profiles, reducing stress concentration at the tube contact faces. Wall thickness is 5 mm (vs. 3 mm for standard agricultural shafts).
- Heavy-duty friction clutch — positioned at the implement end, rated to slip at 1500 Nm, protecting both the shaker mechanism and tractor driveline from catastrophic overload (e.g., if the clamp strikes a hidden support wire or irrigation riser).
- Safety guard system — reinforced cone guards with heavy-duty chains, designed to withstand the vibration environment without loosening.
The PTO shaft sits in a near-horizontal plane between the tractor and the shaker chassis. Because tree shakers are often mounted on three-point hitches or trailer drawbars, the shaft must accommodate both angular misalignment (up to 18° continuous) and rapid length changes as the operator positions the clamp around each tree.
Core Advantages — GBC Heavy-Duty vs. Standard PTO Shafts
💪 GBC Heavy-Duty Build
Star-profile tubes with 5 mm wall — Engineered for the extreme torsional fatigue of shaker applications, lasting 2–3× longer than standard lemon or triangle tubes.
Full-complement needle bearings in U-joints — Handle the cyclic shock loading that destroys standard caged-needle bearings within one harvest season.
Dacromet + epoxy dual coating — Provides 1,000+ hour salt-spray resistance, essential for orchards with alkaline soils or coastal exposure.
Dynamic balancing — Every S6 and S8 shaft is balanced at the factory to less than 2 mm/s residual vibration, preventing premature wear on the shaker’s gearbox.
⚠ Under-Specified PTO Shafts
Thin-wall lemon tubes (3 mm) — Twist and fatigue-crack under the cyclic loads of a tree shaker, often failing catastrophically during harvest.
Caged needle bearings — Cages break apart under shock reversals, contaminating the bearing and causing U-joint seizure.
Single zinc coat — Flakes off within months in orchard floor conditions (moisture, organic acids, fertiliser residue).
Unbalanced assembly — Amplifies the already-high vibration of shaker operation, destroying gearbox seals and shortening implement life.
Brand Compatibility & Replacement
GBC tree shaker PTO shafts are designed as direct replacements for original equipment on these brands:
| Brand | Compatible Models |
|---|---|
| Coe Orchard / Orchard-Rite | Side-mounted & rear-mounted trunk shakers |
| Weiss McNair | 9800, 9900 series trunk shakers |
| Munckhof | Pluk-O-Trak shaker systems |
| Exact / Nairn | Almond & walnut shaker heads |
| Tenias | Olive & nut trunk vibrators |
| Sicma | Self-propelled & PTO-driven olive shakers |
⚠ Brand and model references are included purely for cross-referencing purposes to help buyers find the correct replacement PTO shaft. These names are registered trademarks of their respective owners and do not imply sponsorship or endorsement.
Selection Guide — Matching the PTO Shaft to Your Tree Shaker
| Decision Point | How to Determine | Typical Tree Shaker Value |
|---|---|---|
| Tractor PTO speed | Data plate on tractor PTO guard | 1000 RPM (most shakers) |
| Tractor HP class | Tractor specifications / manual | 80 – 200+ HP |
| Shaker PTO input connection | Measure input shaft splines | 1 3/4″ 20-spline |
| Distance PTO to shaker input | Measure with shaker attached, hitch mid-travel | 900 – 1500 mm |
| Required torque class | Shaker manual / HP × 7120 ÷ RPM | 800 – 2000 Nm |
| Shock load rating | Typically 2× rated torque | 2400 – 5000 Nm peak |
| Clutch type | Application risk assessment | Friction clutch (mandatory) |
| Balancing requirement | Operating RPM and shaft length | Dynamic balancing recommended |
Installation Procedure — Fitting a PTO Shaft to a Tree Shaker
Troubleshooting — PTO Shaft Problems on Tree Shakers
⚙ Severe vibration during shaking cycle
Cause: Shaft imbalance, worn star-profile tube fit, or failed U-joint bearing.
Solution: Check tube engagement for excessive play (replace if slop exceeds 1 mm). Inspect U-joint crosses for pitting or flat spots. Rebalance or replace shaft.
⚙ Friction clutch engaging prematurely (chattering)
Cause: Clutch spring tension too low, worn friction plates, or oil contamination on friction surfaces.
Solution: Disassemble clutch, inspect plates for glazing or oil. Replace plates and springs as a set. Clean housing with solvent before reassembly.
⚙ U-joint cross snaps during operation
Cause: Under-rated shaft series for shaker torque, or operating at angles exceeding 18° continuous.
Solution: Upgrade to a higher series (S6 or S8). Adjust hitch height to bring operating angle within specification. Use wide-angle CV joints if geometry demands it.
⚙ Shaft telescoping tubes seize during harvest
Cause: Orchard debris (bark, leaves, mud) packed into tube profile; insufficient lubrication.
Solution: Clean tubes between each orchard block. Grease profile tubes every 8 hours during harvest. If scoring is present, replace tube pair.
⚙ Flange bolts loosening repeatedly
Cause: Vibration from the shaker cycle fatiguing bolt tension.
Solution: Use Nord-Lock washers or thread-locking compound (Loctite 243). Check bolt torque daily during harvest season.
⚙ Abnormal heat build-up in U-joint area
Cause: Bearing caps running dry due to failed seals or missed greasing.
Solution: Grease immediately and monitor temperature. If bearing surface is damaged (blue discolouration), replace the entire U-joint cross kit.
Case Studies — Australian Nut & Fruit Growers Using GBC
🍰 Almond Orchard — Renmark, SA (Adelaide Region)
“We shake 15,000 trees every harvest. GBC’s S6 PTO shaft with the heavy-duty friction clutch is the only shaft that’s survived a full season without needing a U-joint replacement. We’ve tried three other brands — none come close.”
— 4 × S6 PTO shafts for Weiss McNair trunk shakers.
🍃 Macadamia Plantation — Bundaberg, QLD (Brisbane Region)
“Macadamia trees are tough — big trunks, hard shake cycles. The GBC star-profile tubes handle the torque beautifully. No twisting, no cracking. And the Dacromet coating is holding up in our humid climate.”
— 2 × S6 PTO shafts with Dacromet finish.
🍅 Olive Grove — Swan Hill, VIC
“We use a Sicma olive shaker on our 200-hectare grove. GBC made a custom-length shaft with the exact spline match we needed. Delivery was faster than expected and the shaft has been faultless.”
— 1 × custom S6 PTO shaft, 1150 mm closed length.
🍰 Walnut Farm — Young, NSW (Sydney Region)
“The peak torque rating on the GBC S6 shaft gives us real confidence during the aggressive shake cycles needed for walnuts. We’ve had zero downtime during harvest for the second year running.”
— 2 × S6 PTO shafts with dynamic balancing.
🍒 Cherry Farm — Orange, NSW
“We switched to GBC after our previous PTO shaft snapped mid-harvest — lost two days of picking. The GBC shaft is visibly heavier-built. Hasn’t missed a beat.”
— 1 × S6 PTO shaft with ratchet overload clutch.
🍃 Pecan Orchard — Emerald, QLD
“We run two shaker heads from separate tractors. GBC supplied matched pairs with identical specs — balanced, clutched, and coated. Consistency is what we value and GBC delivers.”
— 2 × matched S8 PTO shafts for dual-tractor pecan harvesting.
FAQ — PTO Shafts for Tree Shakers
Why does a tree shaker need a higher-series PTO shaft than a sprayer?
Tree shakers generate extreme cyclic torque loads — often 2–3× the rated torque in momentary peaks. A higher series (S6, S8) provides larger cross journals, thicker-wall tubes, and wider splines to withstand this punishment.
Can I use a standard farm PTO shaft on my tree shaker?
We strongly advise against it. Standard S1–S4 shafts are designed for continuous, moderate loads. The shock loading of a shaker will rapidly destroy their U-joints and tubes. Always use S6 or above.
How often should I grease the U-joints on a tree shaker PTO shaft?
Every 8 hours of shaking operation (approximately every 1–2 days during harvest). The high vibration environment demands more frequent lubrication than other PTO applications.
Do you supply PTO shafts for self-propelled shakers?
Yes. We can supply custom driveline shafts for self-propelled and side-mount shaker configurations. Contact our engineering team with your machine details.
What is dynamic balancing and why is it important for shakers?
Dynamic balancing removes mass asymmetry from the rotating shaft assembly. For tree shakers, this is critical because the shaft already operates in a high-vibration environment — an unbalanced shaft amplifies oscillation, accelerating wear on every component in the drivetrain.
Standards, Regulations & Local Information
GBC tree shaker PTO shafts are manufactured to comply with:
- AS 1636 — Australian standard for PTO shaft safety guards.
- EN 12965 — European PTO shaft guard and drive safety standard (adopted by Australian importers).
- ISO 5673 — PTO shaft dimensional specifications.
- ASABE S204 — Safety for farm PTO equipment (widely referenced by Australian almond and nut grower associations).
Key nut and fruit growing regions we serve include the Riverina (NSW), Sunraysia/Murray Valley (VIC/SA), Bundaberg–Childers (QLD), Adelaide Hills (SA), and the Swan Coastal Plain (WA). From Sydney to Perth, GBC delivers heavy-duty PTO shafts on fast turnaround to keep your harvest on track.
