PTO Shaft Adaptors

⚙ Precision CNC Machining

Every adaptor is CNC-turned to tight tolerances, guaranteeing a snug spline fit with minimal backlash. This eliminates vibration and premature wear under sustained rotary loads.

💪 Heat-Treated Alloy Steel

Forged from 42CrMo or equivalent chromium-molybdenum alloy steel and through-hardened to 58–62 HRC on the spline surfaces, delivering exceptional fatigue resistance for demanding field conditions.

🔄 Extensive Spline Coverage

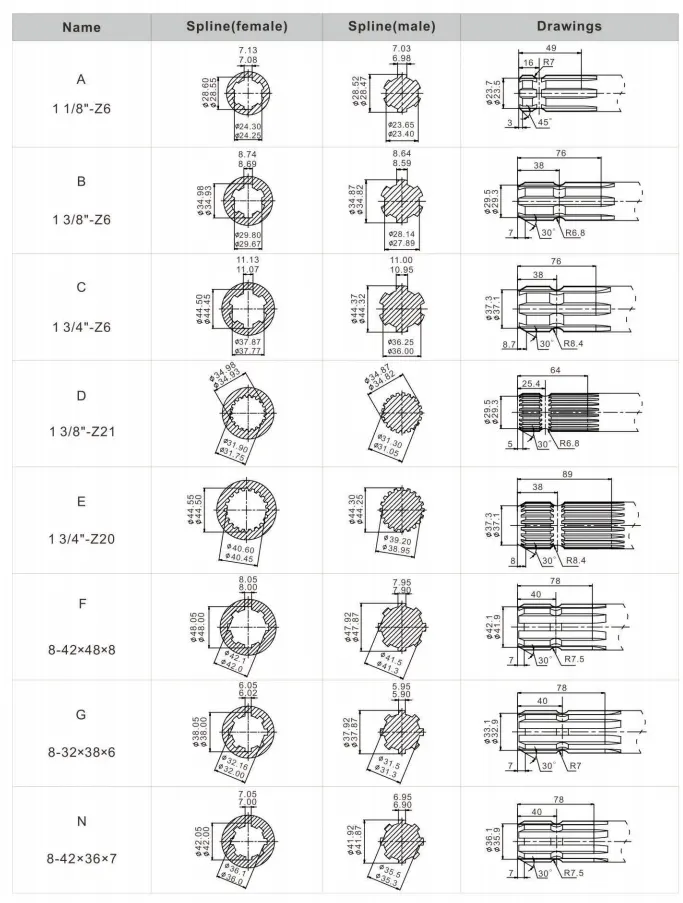

From 1 1/8" Z6 to 1 3/4" Z20 and metric 8-32×38×6, the catalogue covers virtually every female-to-male conversion encountered in modern farming — no obscure adaptor left behind.

✅ Drop-In Replacement

Designed as a direct substitute for OEM adaptors from leading European and North American manufacturers. No modifications to your existing PTO shaft or gearbox are required.

🛡️ Anti-Corrosion Finish

A phosphate or zinc-plated surface treatment shields each adaptor against rust and chemical exposure, extending service life even in humid coastal or irrigated environments.

📈 Cost-Effective Fleet Solution

Stocking a set of PTO adaptors is far cheaper than purchasing multiple dedicated PTO shafts. Ideal for dealers, hire companies, and mixed-brand farming operations.

🌾 Broadacre Cropping

Farmers operating rotary hoes, seed drills, and grain augers often encounter spline mismatches when pairing implements from different manufacturers. A PTO adaptor lets you run a Kuhn power harrow behind a John Deere tractor without any shaft modification.

🌿 Viticulture & Horticulture

Vineyards and orchards rely on compact tractors (often Kubota or Kioti) paired with Italian or Spanish implements that use metric spline profiles. The adaptor converts metric 8-32×38×6 to standard 1 3/8" Z6 for seamless power transfer to mulchers and sprayers.

🐄 Livestock & Dairy

PTO-driven feed mixers, silage wagons, and manure spreaders frequently require 1 3/4" Z20 connections while the tractor outputs 1 3/8" Z21. An adaptor bridges the difference, keeping feed schedules on track without expensive driveline swaps.

🏭 Construction & Civil Works

Post-hole diggers, trenchers, and PTO-powered generators used on rural construction sites benefit from quick spline conversion — especially when the same tractor must drive multiple attachments in a single workday.

✅

ISO 9001:2015

Manufactured under a certified quality management system with full traceability from raw material to finished part.

🇧🇪

CE Marked

Compliant with EU Machinery Directive 2006/42/EC for safe integration into agricultural and industrial drivelines.

🔎

100% Inspection

Each adaptor undergoes dimensional inspection, hardness testing, and spline-fit verification before shipment.

📦

12-Month Warranty

All PTO adaptors carry a 12-month warranty against manufacturing defects. Replacement or refund — no questions asked.

Average rating: ⭐⭐⭐⭐⭐ 4.8 / 5 (based on 5 verified reviews)

⭐⭐⭐⭐⭐ Mark T. — Toowoomba, QLD

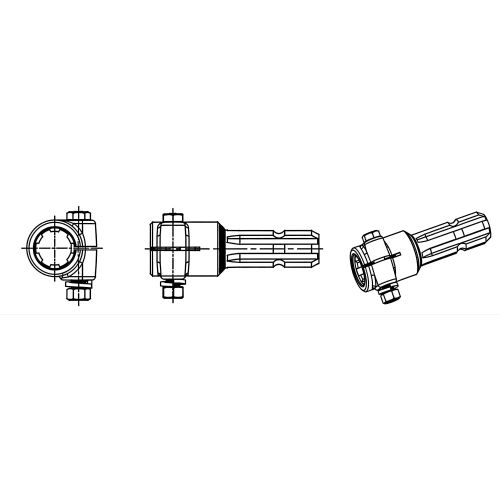

Bought the 00.18.02B*D to connect my old Massey 1 3/8" Z6 to a new Italian rotary hoe with Z21 input. Slid on perfectly, zero vibration after 40 hours of work. Saved me from buying a whole new driveline. Very happy with the machining quality.

⭐⭐⭐⭐⭐ Sarah L. — Griffith, ACT

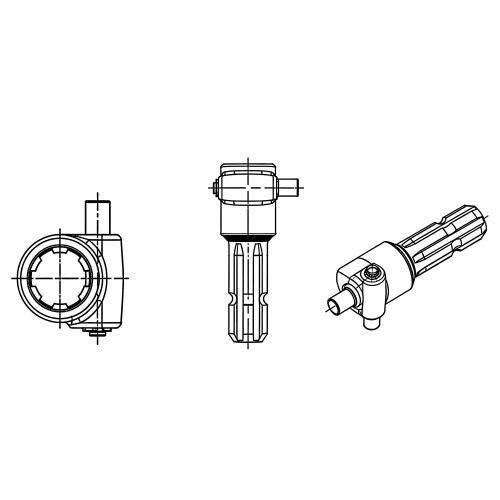

We run a machinery hire business and keep a full set of these adaptors in stock. Customers return equipment in one piece, and we avoid having to supply ten different PTO shafts. The 00.18.07 series has been particularly popular — great build quality and the zinc plating holds up well.

⭐⭐⭐⭐⭐ James R. — Barossa Valley, SA

Our vineyard uses compact Kubota tractors with 1 3/8" Z6 PTO paired with an Italian under-vine cultivator that requires 8-32×38×6. The adaptor made the conversion effortless. Solid steel construction and it hasn't budged after an entire season of heavy use through wet clay soils.

⭐⭐⭐⭐ David K. — Shepparton, VIC

Reliable adaptor that does the job well. I dropped one star only because the packaging could be improved — arrived loose in the box. But the adaptor itself is well machined and fits true. Reordered three more for our other machines.

⭐⭐⭐⭐⭐ Tom H. — Albany, WA

Running a 1 3/4" Z20 to 1 3/8" Z21 adaptor on our baler for a second season now. No wear visible on the splines at all. Fast delivery to WA and the pricing was fair for the quality. Will definitely purchase again.

❌

Cross Kits (Universal Joints)

Replacement U-joint cross and bearing kits in all popular sizes — ensuring smooth angular power transfer through the driveline.

🔧

Slip Yokes & Splined Shafts

Telescoping slip yokes with push-pin or ball-collar locking mechanisms, available in every standard spline profile.

🛠️

Complete PTO Shafts

Full-assembly PTO drive shafts with guards, from light-duty Series 1 through to heavy-duty Series 8 for maximum horsepower transfer.

🛡️

Safety Shields & Guards

CE-compliant plastic safety shields and bearing-mounted guard assemblies to protect operators from rotating driveline components.

We are a specialist driveline manufacturer with over 20 years of experience producing PTO shafts, adaptors, universal joints, and associated components for the global agricultural and industrial markets. Our factory operates a fully integrated production line — from raw steel bar cutting and CNC machining through to heat treatment, surface finishing, and final assembly — giving us complete control over quality at every stage.

We export to more than 30 countries across Australia, Europe, North America, South America, and Southeast Asia, serving both OEM customers and aftermarket distributors. Our engineering team can develop custom adaptors from your drawings or reverse-engineer existing parts to exact specifications.

With annual production capacity exceeding 500,000 units, we offer competitive lead times, flexible MOQ arrangements, and private-label packaging for dealer and brand partners. Every component that leaves our facility is backed by our ISO 9001-certified quality system and a commitment to customer satisfaction.
