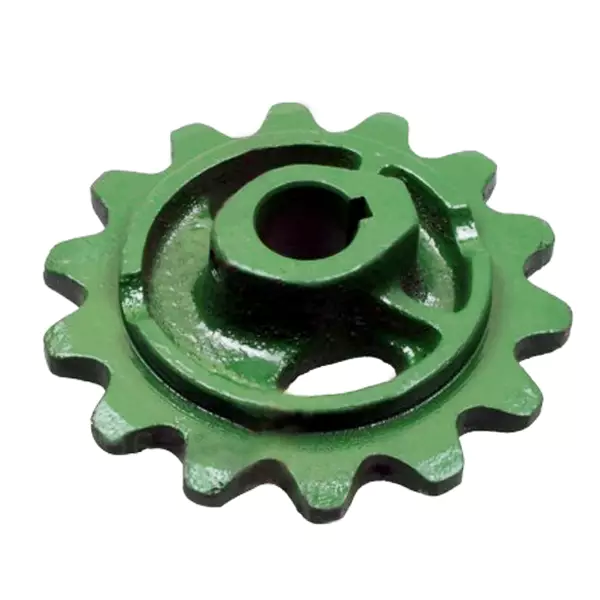

Z10815/Z11543 Chain Sprocket for John Deere Combine
Z10815/Z11543 Chain Sprocket can be adapted to Combine harvester John Deere: 1032 1042 1052 1055 925 932 942 945 952 955 965 965H 968H
Parameters of Z10815/Z11543 Chain Sprocket
| Weight , W | kg | 2.7 |
|---|---|---|
| Inner diameter , d | mm | 35 |
| Outer diameter , D | mm | 190 |
| Number of teeth , Z | 14 | |
| Number of mounting holes , N | 2 | |
| Height , H | mm | 58 |
| Thread , M | M12x1.5 | |
| Outside diameter , D1 | mm | 135 |
| Root radius , R | mm | 6 |
Key Features of Z10815/Z11543 Chain Sprocket For John Deere Combine
- Designed specifically as a spare part for John Deere combines, ensuring compatibility.
- Constructed with a robust design featuring 14 teeth for effective torque transfer.
- Dimensions: Inner diameter of 35mm and outer diameter of 190mm.
- Single row sprocket, ideal for various models including 1032, 1042, and 1055.
Installation Steps for Z10815/Z11543 Chain Sprocket for John Deere Combine
1. Ensure the combine is turned off and parked on a flat surface for safety.
2. Remove the old chain sprocket by unfastening the mounting bolts (2) using a suitable wrench.
3. Clean the shaft and check for any wear or damage before installation.
4. Align the new Z10815/Z11543 sprocket with the shaft, ensuring the inner diameter fits properly.
5. Secure the sprocket in place with the mounting bolts, tightening them evenly to prevent misalignment.
6. Reconnect the chain, ensuring it is properly seated on the sprocket teeth.
7. Test the assembly by rotating the sprocket manually before operating the combine.
Manufacturing Process of Z10815/Z11543 Chain Sprocket for John Deere Combine
The manufacturing process of the Z10815/Z11543 chain sprocket involves several key steps:
- Material Selection: High-quality steel is chosen for durability and strength.
- Cutting: Steel sheets are cut into appropriate sizes for sprocket production.
- Shaping: The cut pieces are shaped using precision machining techniques to form the sprocket profile.
- Heat Treatment: The sprockets undergo heat treatment to enhance hardness and wear resistance.
- Finishing: Finally, the sprockets are polished and coated to prevent corrosion.

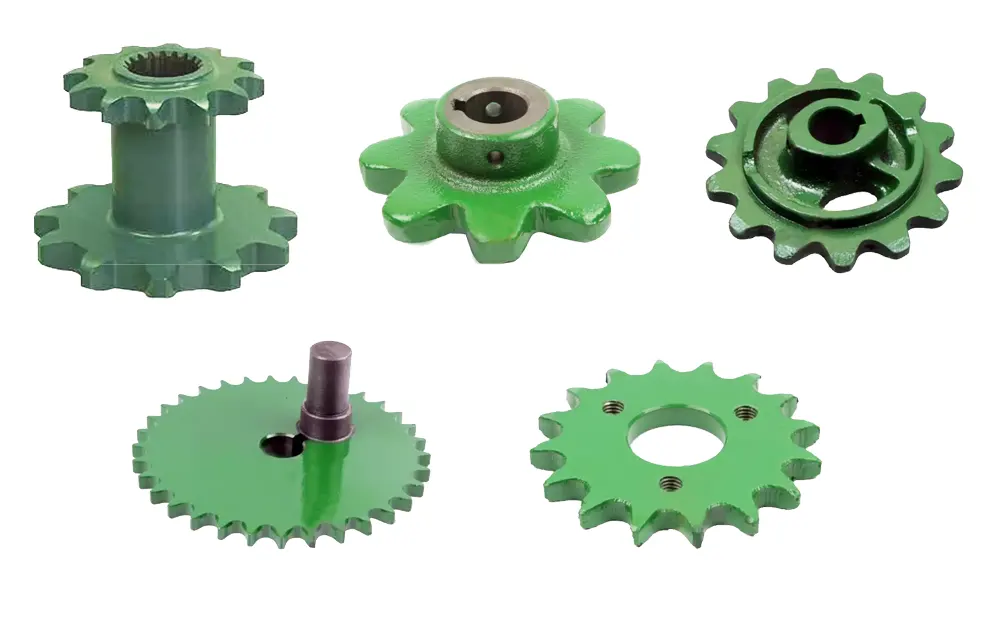

Agricultural Chains and Sprockets Supplier
