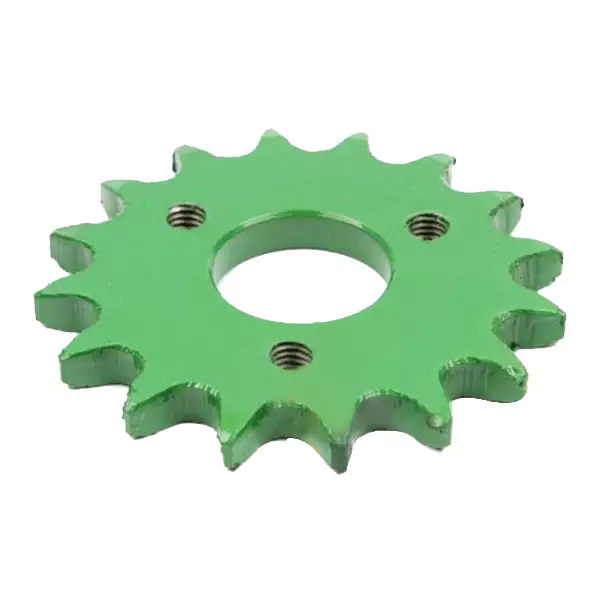

Z30028 Straw Walker Sprocket for John Deere Combine
The Z30028 Straw Walker Sprocket is specifically designed for John Deere combines: 1032, 1042, 1052, 1055, 1133, 1144, 1155, 1157, 1158, 925, 930, 932, 935, 940, 942, 945, 950, 952, 955, 960, 965,965H, 968H, 970, 975, 985. This durable sprocket ensures optimal performance, allowing for smoother operation and improved crop processing. Its robust construction guarantees longevity and reliability, making it an essential replacement part for maintaining the high performance of your John Deere combine during harvest season.
Parameters of the Z30028 Straw Walker Sprocket
| Weight , W | kg | 0.24 |
|---|---|---|
| Inner diameter , d | mm | 30 |
| Outer diameter , D | mm | 90 |
| Number of teeth , Z | 16 | |
| Number of mounting holes , N | 3 | |
| Mounting holes diameter , Dm | mm | 6 |
| Height , H | mm | 8.5 |
Features of Z30028 Straw Walker Sprocket for John Deere Combine
- Designed specifically for John Deere combines, ensuring compatibility and reliability.
- One-row sprocket construction for efficient torque transfer.
- High-quality material for durability and long service life.
- Dimensions: Inner diameter - 30mm, Outer diameter - 90mm, Number of teeth - 16.
- Easy installation with three mounting holes, each 6mm in diameter.
Installation Steps for Z30028 Straw Walker Sprocket For John Deere Combine
- Ensure the combine is turned off and properly secured to prevent accidental movement.
- Remove the old sprocket by unscrewing the mounting bolts. Keep track of the bolts for reinstallation.
- Inspect the shaft and surrounding components for any damage or wear.
- Align the new Z30028 sprocket with the mounting holes on the shaft.
- Insert and tighten the mounting bolts securely, ensuring the sprocket is stable.
- Double-check the installation for proper alignment and clearance before
