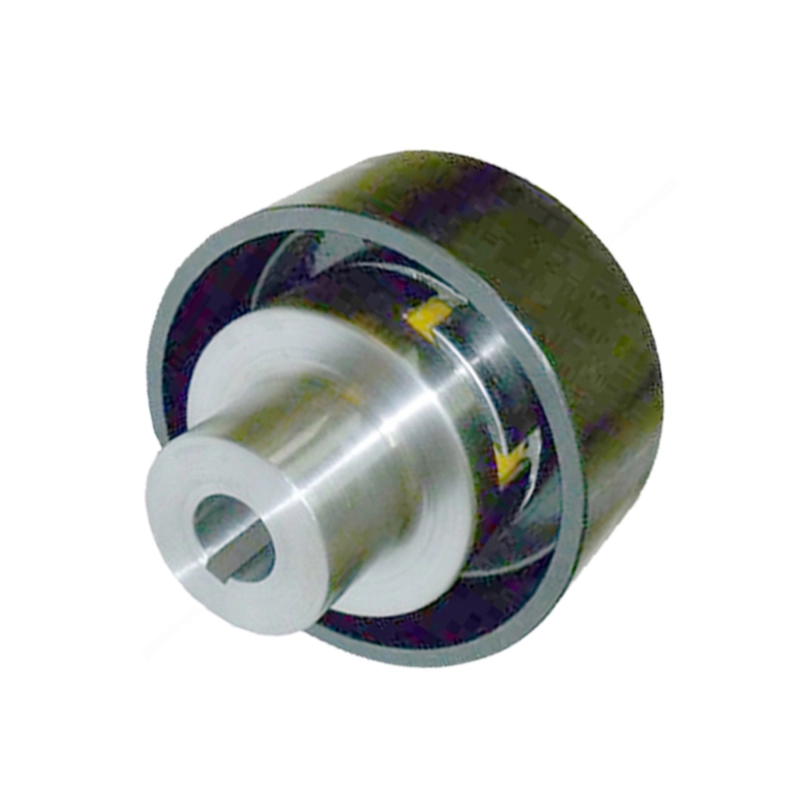

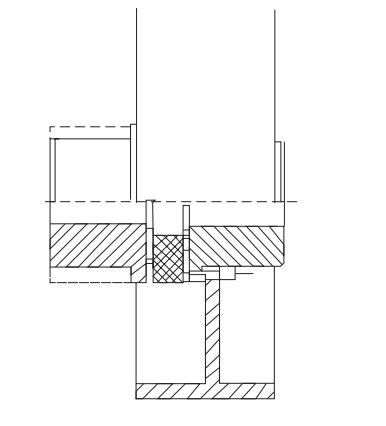

Integral Brake Drum Hub

The cylindrical drum surface is machined integral with the coupling hub casting, ensuring concentricity and eliminating drum slip or run-out. The precision inner drum surface meets the dimensional requirements of standard industrial shoe brake actuators.

Multiple Drum Sizes per Model

Three to five drum diameter options are available for most Z Type models. A larger drum delivers higher braking torque for the same shoe brake actuator clamping force, allowing independent optimisation of coupling and braking torque without resizing the coupling.

Full Standard Coupling Characteristics

The Z Type retains all characteristics of the standard jaw coupling — zero-lubrication elastomeric spider, torsional flexibility, vibration damping, misalignment tolerance, and axial plug-in installation. The spider is replaceable without removing either hub from its shaft.

Compact Single-Position Assembly

Both coupling and brake functions act at the same axial position on the drive shaft, reducing total drive length compared to a separate coupling-plus-drum arrangement — particularly valuable in crane end-carriage drives and elevator machine rooms.

Marine-Tolerant Construction

The drum brake shoe design is inherently more tolerant of water and debris ingress than disc brake caliper systems in exposed locations, making the Z Type the preferred choice for outdoor, port, and marine environments where disc brake caliper sealing would require additional protection.

Standardised Marking System

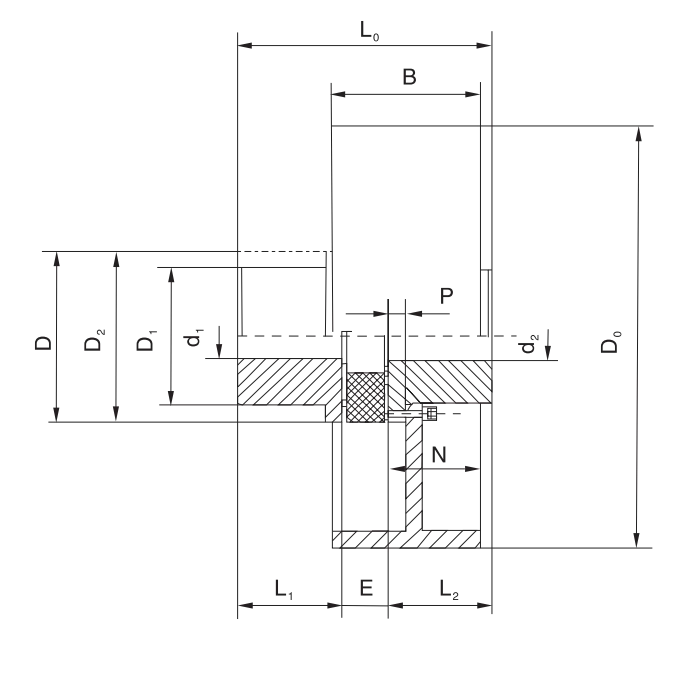

Z Type couplings are specified using: coupling type + drum outer diameter × drum width × hub pitch diameter P + bore sizes. Example: TS65Z–315×118×58 Coupling 60/65. This enables precise specification and positive identification of installed assemblies across a site's complete crane and hoist inventory.

🇦🇺 Australia — Overhead Crane Operations

A structural steel fabrication yard in Newcastle, New South Wales upgraded 12 overhead crane travel drives to 65Z couplings with 315×118 mm drums. The integral drum construction eliminated a separate drum-to-shaft adapter that had been a recurring failure point. After 18 months of operation across three-shift production, zero drum-related failures were recorded across all 12 cranes — a significant improvement over the previous design's record of two to three adapter failures per year.

★★★★★

"Eliminated the adapter failure mode entirely. Zero drum failures in 18 months across 12 cranes."

🇷🇺 Russia — Mining Winders

A coal mine in the Kemerovo region specified 125Z couplings with 800×300 mm drums on primary hoisting winder drives. The elastomeric spider absorbed the dynamic torque spikes generated during the deceleration phase of each hoisting cycle, reducing stress on the winder gearbox teeth and extending oil change intervals — an unexpected benefit beyond the primary brake integration function.

★★★★☆

"Torque spike absorption from the spider is the unexpected benefit. Gearbox oil stays cleaner longer."

🇦🇺 Australia — Steel Manufacturing

A steelworks in Whyalla, South Australia fitted 90Z couplings with 500×190 mm drums on ladle crane hoist drives, operating in extreme thermal environments adjacent to the furnace bays (ambient temperatures 45–60°C). Both the cast iron drum hub and polyurethane spider maintained performance across a full 12-month maintenance cycle with no coupling-related downtime incidents reported.

★★★★★

"Ambient 60°C next to the furnaces. No coupling issues in 12 months. Impressive."

🇳🇴 Norway — Ship & Port Equipment

A ship repair yard in Stavanger specified 75Z couplings with 400×150 mm drums on a new 50-tonne boat lift travel drive system. The drum brake design was selected over disc brakes for its greater tolerance to salt spray ingress in the exposed marine environment. The Z Type's integral drum and elastomeric coupling combination reduced the drive assembly length by 280 mm compared to the originally specified separate coupling-and-drum arrangement.

★★★★★

"Saved 280 mm of drive length and the drum brake suits our marine environment perfectly."
