P Type Disc Brake Flexible Jaw Coupling
The P Type Disc Brake Flexible Jaw Coupling integrates a precision brake disc into the coupling hub for use with disc brake caliper actuators. Torque range 190–6,650 N·m, brake disc diameters from 200 to 900 mm. Ideal for hoisting, positioning, and holding applications requiring combined drive torque transmission and positive braking in a compact assembly.

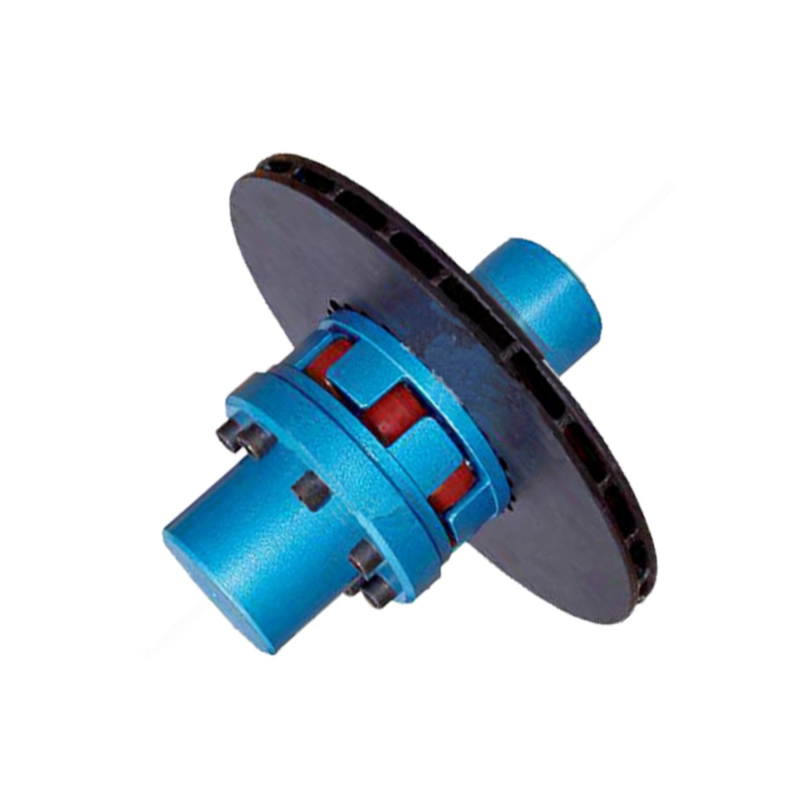

P Type Disc Brake Flexible Jaw Coupling
Integrated disc brake surface on the coupling hub — combining torsional flexibility, vibration damping, and positive disc braking in a single compact assembly for hoisting and positioning drives.
Drive Torque Transmission and Positive Braking in One Assembly
Many drive applications — particularly hoists, cranes, and industrial positioning systems — require both a flexible coupling for torque transmission and a positive braking device on the same shaft. Mounting a separate brake disc assembly alongside a standard coupling increases drive length, adds mass, and creates additional alignment requirements. The P Type Disc Brake Flexible Jaw Coupling integrates both functions into a single hub assembly.
The P Type hub incorporates a precision-machined brake disc surface suitable for standard industrial disc brake caliper actuators. The brake disc is an integral part of the coupling hub casting — not a bolted-on addition — ensuring concentric accuracy and eliminating the potential for loosening under dynamic loading. The elastomeric spider sits between the P Type hub and the second plain hub, providing the same torsional flexibility and vibration isolation as the standard GBC jaw coupling.
Ten model sizes from 38P to 125P cover nominal coupling torques from 190 N·m to 6,650 N·m, with brake disc diameters ranging from 200 mm to 900 mm. Multiple brake disc sizes are available for most model sizes, allowing independent optimisation of coupling torque and braking torque capacity without changing the coupling size or bore configuration.
Why Integrate Brake and Coupling?
Reduced Drive Length
Eliminating a separate brake disc assembly reduces overall axial drive length — critical in space-constrained installations such as elevator machine rooms, crane end-carriages, and mining winder housings.
Concentric Brake Disc Accuracy
The brake disc surface is machined integral with the coupling hub, ensuring concentricity within close tolerances. This eliminates the disc run-out problems that occur with bolted-on disc assemblies, providing more consistent caliper engagement and even pad wear.
Multiple Disc Size Options per Model
Most P Type models offer two to five brake disc diameter options. A larger disc with the same caliper delivers higher braking torque — allowing independent optimisation of coupling torque and maximum braking torque without changing the coupling size.
Single Shaft Position for Both Functions
Both coupling and brake functions act at the same axial position on the drive shaft, minimising the bending moment imposed on the shaft compared to separate mounting positions at different shaft locations.
Full Standard Coupling Characteristics
The P Type retains all characteristics of the standard jaw coupling — zero lubrication, elastomeric vibration damping, misalignment tolerance, and custom bore-and-keyway configuration — while adding the integrated disc brake interface.
Standardised Marking System
P Type models are marked using coupling type, disc diameter, disc thickness, hub pitch diameter, and bore sizes — e.g. TS65P–500×20×61.5 Coupling 50/55 — enabling precise specification and positive identification of installed assemblies.
P Type Series — Technical Specifications

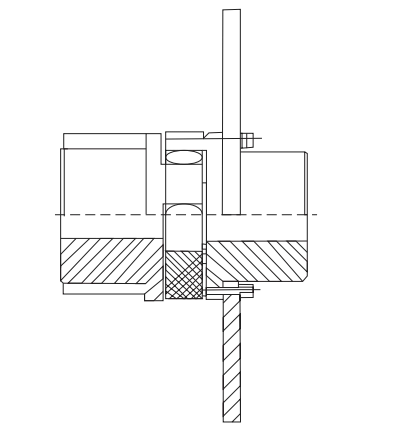

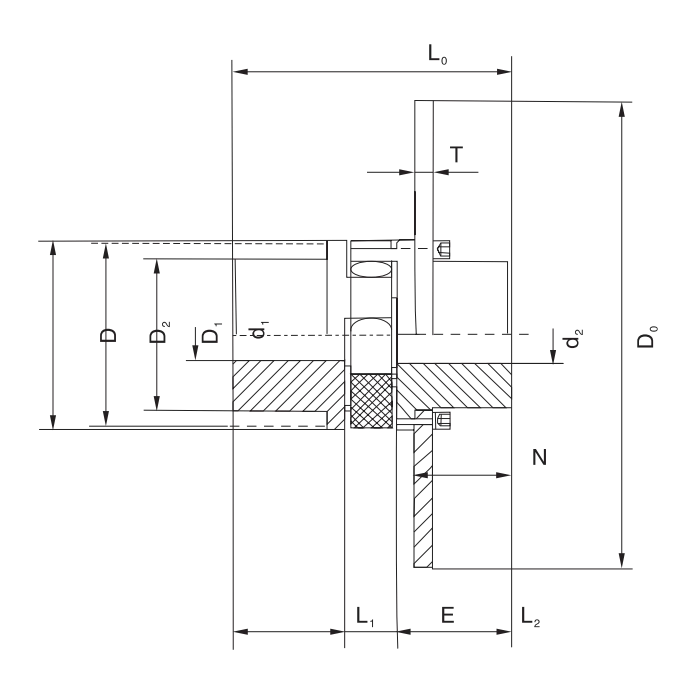

| Model | Nom. Torque (N·m) | Max Speed (rpm) | D (mm) | d₁max (mm) | d₂max (mm) | E (mm) | L₀ (mm) | Brake Disc D₀×T (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 38P | 190 | 9500 | 80 | 48 | 34 | 24 | 114 | 200×15 / 250×15 | 37.5 |
| 42P | 265 | 8000 | 95 | 55 | 42 | 26 | 126 | 250×15 / 315×20 | 40.5 |
| 48P | 310 | 7100 | 105 | 60 | 48 | 28 | 140 | 250×15 / 315×20 / 400×20 | 45.5 |
| 55P | 410 | 6300 | 120 | 70 | 55 | 30 | 160 | 315×20 / 400×20 / 500×20 | 52.5 |
| 65P | 625 | 5600 | 135 | 75 | 65 | 35 | 185 | 315×20 / 400×20 / 500×20 / 630×20 / 710×25 | 61.5 |
| 75P | 1280 | 4750 | 160 | 90 | 75 | 40 | 210 | 315×20 / 400×20 / 500×20 / 630×20 / 710×25 | 69.5 |
| 90P | 2400 | 3750 | 200 | 100 | 100 | 45 | 245 | 400×20 / 500×20 / 630×20 / 710×25 / 800×30 | 89.5 |
| 100P | 3300 | 3350 | 225 | 110 | 100 | 50 | 270 | 400×20 / 500×20 / 630×20 / 710×25 / 800×30 | 98.5 |
| 110P | 4800 | 3000 | 255 | 125 | 110 | 55 | 295 | 400×20 / 500×20 / 630×20 / 710×25 / 800×30 / 900×30 | 96.5 |
| 125P | 6650 | 2650 | 290 | 145 | 130 | 60 | 340 | 500×20 / 630×20 / 710×25 / 800×30 / 900×30 | 112.5 |
