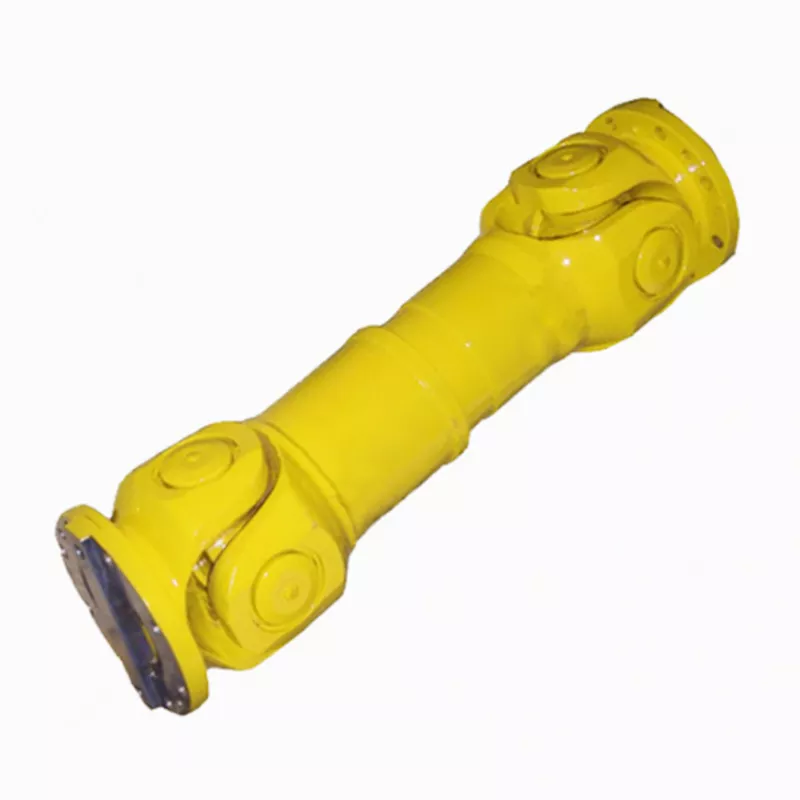

SWP-F Long Large Flexible Universal Joint Couplings
The SWP-F Long Large Flexible Universal Joint Coupling delivers 2–3× the telescoping stroke of SWP-A at equivalent diameters (Ls 150–380 mm vs 50–230 mm), covering gyration diameters 160–640 mm and torques 16–1 250 kN·m at ≤10° fold angle. It is the standard choice for hot strip mill work roll change spindles, seamless tube mill mandrel drives, and large rolling press drives where extended axial displacement exceeds standard coupling stroke capacity.
SWP-F Long Large Flexible Universal Joint Couplings — Product Overview
The SWP-F Long Large Flexible Universal Joint Coupling is engineered for applications where standard telescoping stroke is insufficient. While SWP-A provides Ls of 50–230 mm, the SWP-F delivers Ls from 150 mm (D160) to 380 mm (D640) — approximately 2 to 3 times the axial displacement capacity of its SWP-A counterpart. This extended stroke, combined with the same angular compensation of ≤10°, makes SWP-F the coupling of choice wherever large axial shaft movement during operation or maintenance must be accommodated without disconnecting the driveline.
Structurally, SWP-F retains all the hallmarks of the SWP series: split axletree bearing housing for in-situ spider replacement, cross-spider Hooke's joint mechanism, and the full torque range from 16 to 1 250 kN·m across 14 standard sizes (D160–D640). The intermediate body is lengthened relative to SWP-A to provide the greater spline engagement length necessary for the extended stroke — SWP-F Lmin ranges from 770 mm to 2 920 mm, slightly longer than SWP-A at equivalent diameters.
Where standard SWP-A stroke is insufficient: Hot rolling mill primary spindles routinely require roll change extraction distances of 150–300 mm as the work roll is withdrawn axially from the stand. For mills with large roll barrel lengths or narrow stand spacing, SWP-A's maximum 230 mm stroke may not be adequate. SWP-F resolves this with its 380 mm maximum stroke at D640, covering the full extraction requirements of the largest hot strip mill stands.
Tube mill and pipe mill applications: Mandrel bars in seamless tube mills travel axially while torque is transmitted through the spindle coupling. The large telescoping stroke of SWP-F accommodates mandrel travel without the coupling reaching the end of its stroke and transmitting axial force to the roll bearings — a failure mode that causes rapid roll bearing damage in mills where undersized-stroke couplings are specified.
Australian steel and tube manufacturing context: Australia's tube and pipe manufacturing sector, while smaller than Asia's, includes operations producing structural steel sections and line pipe for the resources sector. These operations typically use European or Japanese-manufactured rolling mills that specify large-stroke spindle couplings — SWP-F provides the compatible supply chain alternative at competitive pricing.

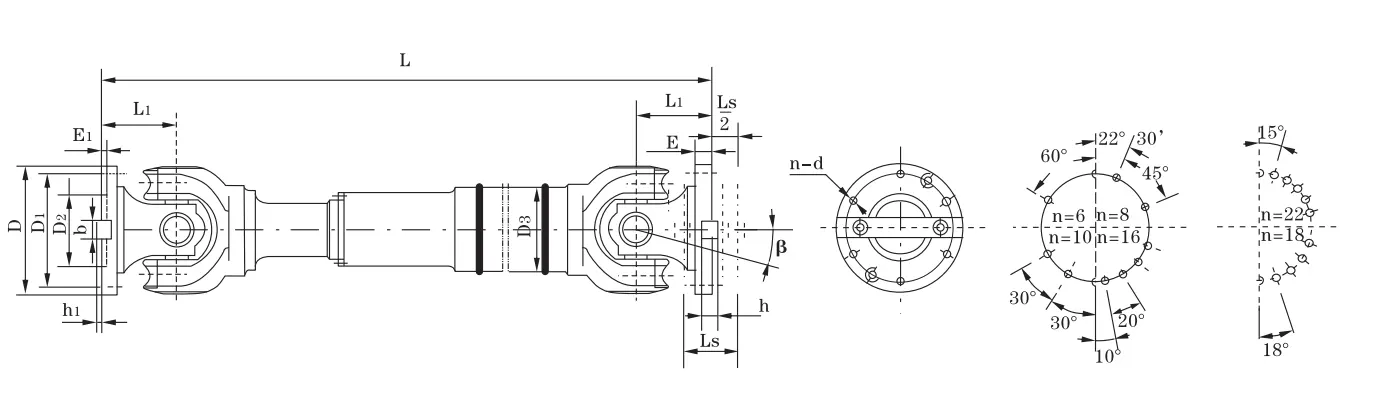

Technical Specifications
| Type | D (mm) | Tn (kN·m) | Tf (kN·m) | Ls (mm) | β | Lmin (mm) | D1 js11 | D2 H7 | D3 | E | E1 | b×h | h1 | L1 | n–d | I Lmin (kg·m²) | ΔI/100mm | G Lmin (kg) | ΔG/100mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWP160F | 160 | 16 | 8 | 150 | ≤10 | 770 | 140 | 95 | 114 | 15 | 4 | 20×12 | 6 | 85 | 6–13 | 0.14 | 0.0059 | 51 | 2.1 |
| SWP180F | 180 | 20 | 10 | 170 | ≤10 | 830 | 155 | 105 | 121 | 15 | 4 | 24×14 | 7 | 95 | 6–15 | 0.23 | 0.0072 | 64 | 2.3 |
| SWP200F | 200 | 31.5 | 16 | 190 | ≤10 | 950 | 175 | 125 | 127 | 17 | 5 | 28×16 | 8 | 110 | 8–15 | 0.4 | 0.0114 | 88 | 3.4 |
| SWP225F | 225 | 40 | 20 | 210 | ≤10 | 1070 | 196 | 135 | 152 | 20 | 5 | 32×18 | 9 | 130 | 8–17 | 0.66 | 0.029 | 120 | 6.6 |
| SWP250F | 250 | 63 | 31.5 | 220 | ≤10 | 1110 | 218 | 150 | 168 | 25 | 5 | 40×25 | 12.5 | 135 | 8–19 | 1.06 | 0.0407 | 158 | 7.3 |
| SWP285F | 285 | 90 | 45 | 240 | ≤10 | 1270 | 245 | 170 | 194 | 27 | 7 | 40×30 | 15 | 150 | 8–21 | 2.24 | 0.0702 | 255 | 9.4 |
| SWP315F | 315 | 140 | 63 | 270 | ≤10 | 1410 | 280 | 185 | 219 | 32 | 7 | 40×30 | 15 | 170 | 10–23 | 3.99 | 0.1144 | 344 | 12.0 |
| SWP350F | 350 | 180 | 90 | 290 | ≤10 | 1540 | 310 | 210 | 245 | 35 | 8 | 50×32 | 16 | 185 | 10–23 | 6.9 | 0.1663 | 460 | 13.6 |
| SWP390F | 390 | 250 | 112 | 315 | ≤10 | 1680 | 345 | 235 | 273 | 40 | 8 | 70×36 | 18 | 205 | 10–25 | 11.9 | 0.2695 | 600 | 18.0 |
| SWP435F | 435 | 355 | 160 | 335 | ≤10 | 1880 | 385 | 255 | 299 | 42 | 10 | 80×40 | 20 | 235 | 16–28 | 22.41 | 0.3645 | 985 | 20.0 |
| SWP480F | 480 | 450 | 224 | 350 | ≤10 | 2000 | 425 | 275 | 351 | 47 | 12 | 90×45 | 22.5 | 265 | 16–31 | 39.09 | 0.7028 | 1356 | 28.0 |
| SWP550F | 550 | 710 | 315 | 360 | ≤10 | 2230 | 492 | 320 | 402 | 50 | 12 | 100×45 | 22.5 | 290 | 16–31 | 62.12 | 1.1842 | 1785 | 35.7 |
| SWP600F | 600 | 1000 | 500 | 370 | ≤10 | 2800 | 544 | 380 | 450 | 55 | 15 | 90×55 | 27.5 | 360 | 22–34 | 100.48 | 1.7159 | 2403 | 40.5 |
| SWP640F | 640 | 1250 | 630 | 380 | ≤10 | 2920 | 575 | 385 | 480 | 60 | 15 | 100×60 | 30 | 385 | 18–38 | 168.28 | 2.308 | 3207 | 48.3 |
Note: D=315mm, L=1600mm → SWP315F×1600. Ls = large telescoping stroke (150–380 mm); significantly greater than SWP-A at same diameter. ΔI and ΔG are incremental per 100 mm length increase.
Industry Applications

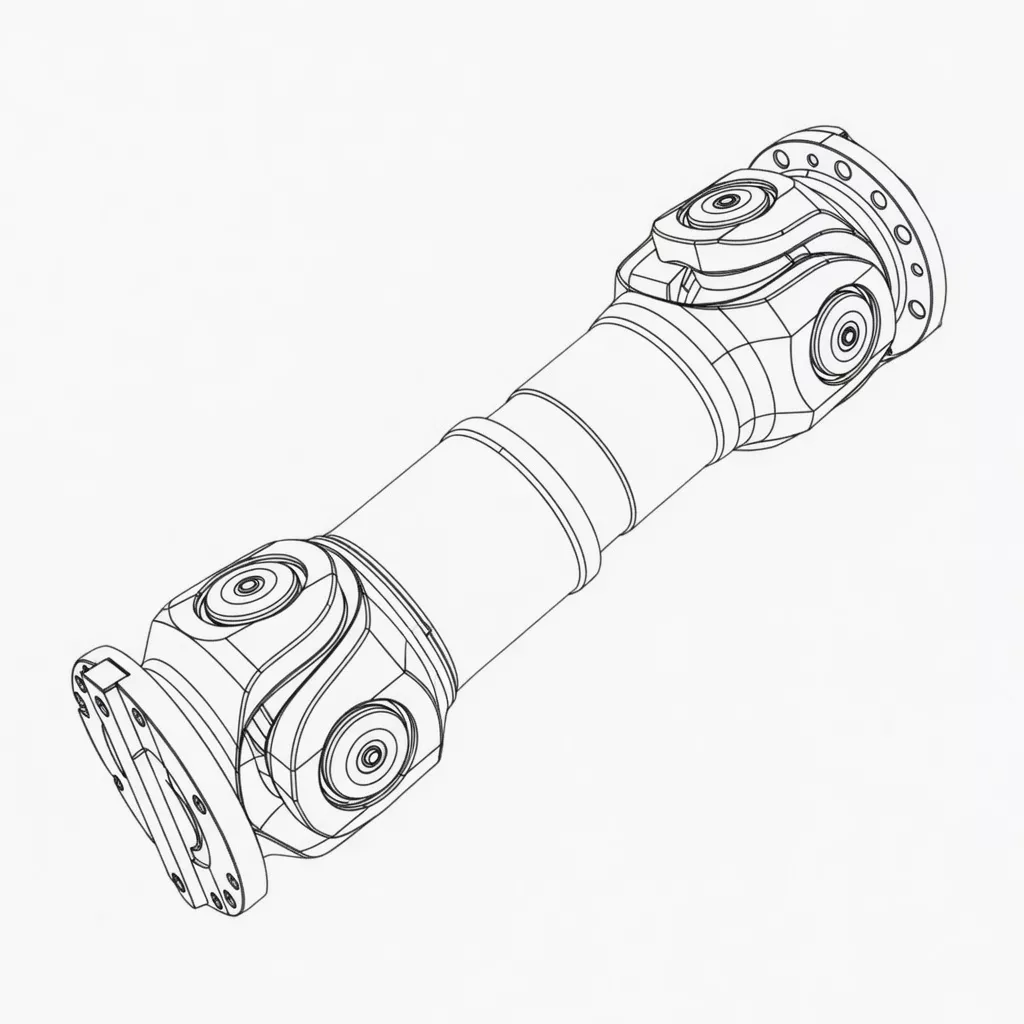

Hot Strip Mill Work Roll Change Spindles
Working condition: Work roll change requires axial extraction of 200–350 mm; simultaneous torque transmission up to 1 250 kN·m during rolling; high cycle count for spindle stroke during shift-level roll changes.
Why SWP-F: SWP-A's maximum stroke of 230 mm (at D640) is insufficient for the roll extraction distances of large-diameter hot strip mill work rolls. SWP-F provides up to 380 mm Ls at D640, covering the full extraction requirement in a single coupling unit without resorting to multi-element extension arrangements.
Customer benefit: Roll change completed within coupling stroke — no drivetrain disconnection required. Faster roll change cycle, reduced downtime per shift.
Seamless Tube Mill Mandrel Bar Drives
Working condition: Mandrel bar travels 100–300 mm axially while the mill spindle simultaneously transmits high torque; contaminated environment (scale, water, lubricant).
Why SWP-F: The mandrel bar's axial travel during piercing and sizing operations demands a coupling stroke well beyond standard types. SWP-F's extended Ls keeps the telescoping sleeve within its designed working range throughout the full mandrel travel cycle, preventing end-of-stroke axial force loading on roll bearings.
Customer benefit: Roll bearing protection across full mandrel travel range; elimination of the bearing overload failures common when undersized-stroke couplings are specified on mandrel drives.
⚙️ Large Rolling Press & Forging Press Drives
Working condition: Eccentric ram motion induces significant axial displacement at the drive coupling point each press cycle; very high torque at slow speed.
Why SWP-F: The eccentric rotation of press drive cranks produces cyclic axial displacement at the coupling — SWP-F's large stroke accommodates this without loading the press crankshaft bearings with coupling-induced axial forces every cycle.
Customer benefit: Extended crankshaft bearing life; smoother press cycle dynamics; reduced vibration transmission to press frame.
Offshore & Heavy Lifting Equipment
Working condition: Winch and crane drives on vessels experience significant axial movement from vessel motion and structural flex; harsh marine environment.
Why SWP-F: The large telescoping stroke absorbs vessel-motion-induced axial displacement at the coupling, preventing the drivetrain from acting as a rigid axial strut that transmits vessel-flex forces into gearbox and motor bearings. Corrosion-resistant treatment options available for offshore duty.
Customer benefit: Drivetrain protected from vessel-flex loads; gearbox bearing life extended in harsh offshore environment.
How to Choose: SWP-F vs SWP-A Stroke Comparison
The decision between SWP-F and SWP-A hinges on a single question: does your required axial displacement exceed the SWP-A Ls value for your selected diameter? If yes, SWP-F is the correct choice.
| Diameter | SWP-A Ls (mm) | SWP-F Ls (mm) | SWP-F Stroke Advantage |
|---|---|---|---|
| D160 | 50 | 150 | +200% stroke |
| D250 | 80 | 220 | +175% stroke |
| D315 | 110 | 270 | +145% stroke |
| D480 | 170 | 350 | +106% stroke |
| D640 | 230 | 380 | +65% stroke |
Stroke Calculation Guidance
Required Ls = Axial displacement (operational) + Thermal shaft growth + Assembly tolerance + 20% safety margin. For roll change applications: measure actual roll extraction travel from your mill's roll change procedure. For mandrel drives: measure full mandrel travel from initial contact to end of rolling stroke.
SWP-F vs SWP-A torque performance: Torque ratings are identical. Tn and Tf values for SWP-F match SWP-A at every diameter. There is no torque penalty for specifying the larger stroke. The primary trade-off is slightly higher weight and inertia due to the longer spline engagement body.
⚠️ Common Errors When Specifying SWP-F
- Using SWP-A where roll extraction stroke exceeds its Ls: A 280 mm roll extraction distance on a D480 spindle cannot be served by SWP480A (Ls=170 mm). Operating at over-stroke compresses the telescoping sleeve against its end stop, transmitting the full extraction force directly to roll bearings — immediate bearing damage results.
- Over-specifying SWP-F where SWP-A stroke suffices: SWP-F is heavier, longer, and more expensive than SWP-A. If SWP-A Ls covers your displacement with a 20% margin, there is no benefit to specifying SWP-F.
- Not accounting for dynamic stroke changes: On tube mill mandrel drives, the stroke varies with tube length being rolled. Verify that the minimum tube length production run does not bring the coupling to the stroke fully-open position, which reduces spline engagement and increases wear rate.
Rolling mill spindle stroke calculation is complex — share your mill geometry and roll change procedure with our engineering team and we will confirm the appropriate SWP-F size and length.
Why Choose GBC for SWP-F Supply
SWP-F large stroke couplings are manufactured to the same quality standard as all SWP types, with additional specific controls on the extended telescoping sleeve assembly that governs the coupling's defining feature.
Spline Engineering for Large Stroke
The extended spline engagement length of SWP-F requires precise involute spline geometry to distribute torque evenly across the full engagement range. Our splines are hobbed on CNC gear machines and ground on internal grinding centres to achieve profile accuracy class 7 or better. This ensures load distribution uniformity across the engagement length, preventing premature spline fretting at the entry end.
️ Sealing for Contaminated Environments
The telescoping sleeve of SWP-F uses a labyrinth seal and grease retention band on both ends of the spline engagement zone. For rolling mill applications where scale, water, and rolling oil mist are present, we offer an upgraded seal kit with lip seal replacement of the standard labyrinth — providing greater exclusion of fine abrasive contamination that can accelerate spline wear on large-stroke couplings.
Full Load Testing
SWP-F assemblies in sizes D315 and above can be supplied with a witnessed torque test at 1.5× Tn and a full-stroke cycling test (25 complete compression/extension cycles) before shipment. This factory acceptance test gives maintenance teams confidence before installation on critical high-value rolling mill drives. Test reports provided as part of the shipment documentation.
Global Delivery Track Record
We supply SWP-F spindle couplings to rolling mills in Asia, Europe, and the Middle East as both OEM replacements and new-build components. For Australian customers, sea freight via weekly consolidation services to Melbourne, Sydney, Brisbane, and Fremantle. Air freight available for urgent rolling mill breakdowns — we process emergency orders within 24 hours of confirmation.
Customer Reviews & Case Studies
Australia — Hot Strip Mill Spindle Replacement, New South Wales
★★★★★
Our rougher stand spindle couplings had been overshooting their Ls during roll changes — we were hearing the end-stop impact on every roll change cycle. GBC SWP480F with 350 mm stroke resolved the problem permanently. Installed eight months ago — no more end-stop events, no roll bearing failures since. Wish we had specified the large stroke type from the beginning.
— Rolling Mill Maintenance Engineer, New South Wales Steel Plant
Japan — Seamless Tube Mill Mandrel Drive, Osaka
★★★★★
We evaluated SWP-F against two domestic suppliers. GBC's dimensional accuracy, spline surface finish, and documentation quality were equivalent to our benchmark. Price was 22% lower. We have been using GBC SWP-F on our sizing mill mandrel drives for two years — no quality issues and consistent lead times.
— Procurement Manager, Japanese Tube Mill Operator
Saudi Arabia — Rolling Press Drive, Jubail Industrial City
★★★★☆
Specified SWP350F for a rolling press eccentric drive where the press stroke induced 180 mm axial cycling at the coupling. Previous coupling had a 120 mm stroke and was failing every 6 months from end-stop contact. SWP-F has now run 14 months without incident. Good result for a challenging application.
— Mechanical Engineer, Saudi Arabian Metal Processing Plant
Netherlands — Offshore Crane Drive, North Sea Vessel
★★★★★
We installed SWP285F on a North Sea crane vessel winch drive. The marine-grade surface treatment and large stroke absorbed the vessel-induced axial displacement that had been causing premature failure on the previous standard-stroke coupling. Two offshore seasons, zero coupling maintenance. Excellent product for a demanding marine environment.
— Chief Engineer, Dutch Offshore Crane Vessel Operator
Frequently Asked Questions
What is the maximum telescoping stroke available in SWP-F and how does it compare to SWP-A?
SWP-F provides Ls from 150 mm (D160) to 380 mm (D640). SWP-A provides Ls from 50 mm (D160) to 230 mm (D640). The SWP-F stroke advantage ranges from +200% at small diameters to +65% at the largest diameter (D640). At the critical D480 size (commonly used on rougher stands), SWP-A Ls is 170 mm and SWP-F is 350 mm — a 106% increase. For applications where roll extraction or mandrel travel exceeds 230 mm, SWP-F is the only SWP-series solution; no intermediate option exists between SWP-A Ls and SWP-F Ls.
Does the larger stroke of SWP-F reduce its torque capacity compared to SWP-A?
No. The nominal torque (Tn) and fatigue torque (Tf) values for SWP-F are identical to SWP-A at every gyration diameter. The extended Ls is achieved by lengthening the spline engagement zone, not by reducing the cross-spider or yoke dimensions. Both spider cross-section and needle bearing specifications are unchanged. The only performance trade-off is marginally higher weight and rotational inertia due to the longer body (example: SWP315F at 344 kg / 3.99 kg·m² vs SWP315A at 322 kg / 3.86 kg·m²).
How should the telescoping sleeve of SWP-F be maintained in high-cycle rolling applications?
In high-cycle applications (multiple roll changes per shift), the telescoping spline is the most maintenance-critical component. Recommended practice: apply grease every 200–300 operating hours via the dedicated spline grease nipple — do not rely on grease migrating from the spider bearings to the spline. Use a tackified NLGI #1.5 or #2 lithium-complex grease with EP additive for elevated temperatures. At every planned roll change outage, visually inspect the spline for fretting, galling, or unusual wear patterns. Spline wear indicators: increased play in the assembled stroke, unusual resistance during compression, or grease contamination with metallic particles.
Can SWP-F be used in vertical shaft installations?
Yes, with specific lubrication attention. In vertical installations, the telescoping sleeve will tend to fully compress or extend under coupling weight unless the connected shafts are positioned to apply axial preload. This is generally not a structural issue, but lubricant retention in the spline zone requires attention — the grease must not drain away from the upper spline engagement area. For vertical applications, use a thicker grade (NLGI #2.5 or #3) grease in the spline zone, and increase re-greasing frequency to every 300 hours to compensate for gravity drainage. Inform our engineering team of vertical installation at the time of order for specific lubrication recommendations.
What is the lead time for SWP-F couplings in sizes above D435?
For sizes D160–D390, semi-finished components are maintained in stock for assembly within 15 business days. For D435–D550, production time is 4–5 weeks. For D600–D640, 5–7 weeks production time is typical due to the extended machining and heat treatment cycles required for the large spline components. For urgent rolling mill breakdowns in sizes D435 and above, contact our emergency supply team immediately — we will assess current work-in-progress stock and provide the fastest achievable timeline. Air freight for large coupling sizes (D435+) is feasible but costly; we recommend maintaining a spare coupling on-site for critical rolling mill spindle applications.
Request Your SWP-F Large Stroke Coupling Quote
Large Stroke Rolling Mill Spindles — SWP-F Enquiries Welcome
Whether you're upgrading undersized-stroke couplings or specifying new mill spindles, our team will calculate the correct SWP-F size and length for your exact roll change or mandrel travel requirement. No guesswork — engineering-verified selection.
Get Stroke Calculation Review
Request Commercial Quote
