Combine Harvester Chain
Engineered for harsh Australian agricultural conditions, our heavy-duty combine harvester chains offer superior tensile strength and wear resistance. These ISO 9001:2015 certified chains ensure maximum uptime during critical harvest windows. Request a free quote or product samples today.
Advanced Combine Harvester Chains: Engineered for Australian Agricultural Machinery
The Australian agricultural sector presents some of the most demanding harvesting conditions globally. From the abrasive, silica-rich dust of Western Australia's wheat belt to the heavy, high-moisture crop loads in Queensland's sorghum and sugarcane fields, agricultural machinery must perform flawlessly during critical, time-sensitive harvest windows. As a premier manufacturer of agricultural drive components, we provide precision-engineered combine harvester chains designed to withstand massive tensile loads, resist severe abrasion, and deliver continuous operational uptime.
Combine harvesters rely heavily on roller chains to drive feeder houses, grain elevators, tailings returns, and unloading augers. A failure in any of these subsystems translates directly to lost yield, expensive downtime, and disrupted supply chains. Our mechanical engineering team has meticulously optimized our chains' metallurgical composition and heat treatment processes to address the specific failure modes encountered in the Southern Hemisphere's harsh harvesting environments—specifically fatigue fracture and pin-bushing wear elongation.

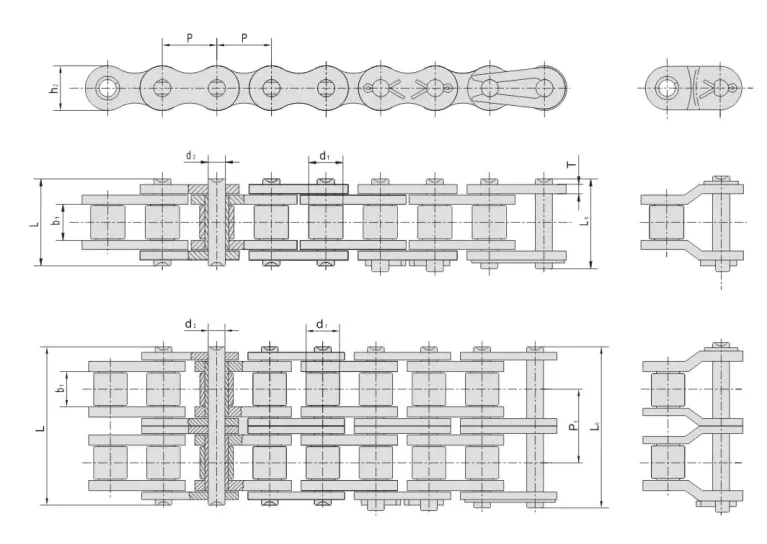

Technical Specifications Overview
Understanding the dimensional and mechanical specifications of your combine harvester chain is critical for ensuring proper sprocket engagement and calculating load capacities. The table below details our standard and heavy-duty agricultural chain parameters. Ultimate Tensile Strength ($Q_{min}$) represents the catastrophic failure point under static load, while Average Tensile Strength ($Q_0$) indicates typical batch performance. Proper selection requires evaluating the pitch (P), roller diameter ($d_1$), and plate thickness (T) to match your specific machinery's torque requirements.
| Chain No. | Pitch (P) mm |
Roller diameter ($d_1$ max) mm |
Width between inner plates ($b_1$ min) mm |
Pin diameter ($d_2$ max) mm |
Pin length (L max) mm |
Pin length ($L_c$ max) mm |
Inner plate depth ($h_2$ max) mm |
Plate thickness (T) mm |
Transverse pitch (Pt) mm |
Ultimate tensile strength (Q min) KN |
Average tensile strength ($Q_0$) KN |
Weight per meter (q) kg/m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08B-1 | 12.70 | 8.51 | 7.75 | 4.45 | 16.7 | 18.0 | 11.80 | 1.60 | - | 18.0 | 19.3 | 0.69 |
| 08B-3 | 12.70 | 8.51 | 7.75 | 4.45 | 44.9 | 46.1 | 11.80 | 1.60 | 13.92 | 47.5 | 50.2 | 2.03 |
| 10A-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.9 | 22.2 | 15.09 | 2.03 | - | 22.2 | 26.4 | 1.02 |
| 10A-2 | 15.875 | 10.16 | 9.40 | 5.08 | 39.0 | 40.3 | 15.09 | 2.03 | 18.11 | 44.4 | 55.4 | 2.00 |
| 12A-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.5 | 18.00 | 2.42 | - | 31.8 | 38.8 | 1.50 |
| 16A-1 | 25.40 | 15.88 | 15.75 | 7.92 | 32.8 | 34.9 | 24.00 | 3.25 | - | 56.7 | 64.9 | 2.60 |
| 16AH-1 | 25.40 | 15.88 | 15.75 | 7.92 | 36.2 | 37.7 | 24.00 | 4.00 | - | 56.7 | 71.4 | 3.10 |
Engineering Note: The 16AH-1 variant utilizes thicker link plates ($T = 4.00$ mm vs $3.25$ mm in the standard 16A-1), significantly enhancing its fatigue limit and shock-absorption capabilities. This makes it ideal for the high-torque primary drive systems of heavy combine harvesters.
Comprehensive Application Guide
Combine harvesters are complex mechanical ecosystems. Our chains are engineered to execute specific mechanical functions across various subsections of the machinery. Understanding where and how these chains operate helps maintenance technicians predict wear patterns and establish proactive replacement schedules.
🌾 Feeder House Chains
Position: Front of the combine, connecting the header to the threshing drum.
Mechanical Action: Conveys cut crop material upwards. These chains undergo continuous cyclic loading and are exposed to the highest concentrations of dirt, rocks, and foreign objects. They require exceptional ultimate tensile strength (Q min) to prevent snapping during ingestion of heavy, damp crop mats.
🌽 Grain Elevator Chains
Position: Vertical or steeply inclined enclosures on the side of the combine.
Mechanical Action: Lifts clean grain from the lower auger to the grain tank. Operates at high linear speeds. Wear is primarily abrasive friction between the pin and bushing due to microscopic silica dust bypassing seals. Our shot-peened components significantly reduce elongation here.
🔄 Tailings Return Elevators
Position: Rear of the separation shoe.
Mechanical Action: Transports unthreshed crop back to the cylinder for a second pass. Demands high resistance to irregular loading, as the volume of tailings can fluctuate wildly depending on crop conditions and ground speed.
⚙️ Unloading Auger Drives
Position: Extending from the grain tank to the discharge spout.
Mechanical Action: Transfers massive volumes of grain into chaser bins rapidly. Experiences immense sudden torque spikes upon engagement, requiring heavy plate thickness (e.g., the 16AH-1 specification) to handle the abrupt angular acceleration.
Australia Market Suitability & OEM Compatibility
The Australian agricultural landscape dictates strict performance parameters. High UV exposure degrades inferior lubricants rapidly, while the red, silicate-heavy soils of the outback act as a relentless grinding paste on moving metal parts. Furthermore, the sheer scale of Australian broadacre farming means combines often run 24-hour shifts during harvest. Our chains are engineered specifically to combat these environmental extremes through advanced metallurgical hardening and optimized clearances that trap lubrication while expelling grit.
Broad OEM Compatibility
We design our chains as drop-in upgrades for the most prevalent agricultural machinery platforms operating in Australia. Compatibility encompasses, but is not limited to:
- John Deere: S-Series and X-Series Combines (Elevator and Feeder House assemblies).
- Case IH: Axial-Flow series (Rotor drives and Unloading systems).
- New Holland: CR Revelation series (Twin Rotor drive chains).
- MacDon: Draper Headers (Draper drive and auger feed mechanics).
- Horwood Bagshaw: Precision seeding and harvesting attachments.
📐 Engineering Verification: Calculating Pitch Elongation
To ensure OEM compatibility and determine when replacement is necessary, Australian maintenance engineers must accurately measure pitch elongation. Over time, internal pin and bushing wear causes the chain to "stretch", which misaligns the chain with the sprocket teeth, leading to accelerated wear.
To verify pitch accuracy in the field, measure the length across a specific number of links (typically 10 to 20 to compound the measurement error for easier reading) under standard tension. The formula to calculate percentage elongation is:
Standard Engineering Guideline: For combine harvesters operating at moderate to high speeds, a chain should be replaced when elongation exceeds 2.0% to 2.5%. Operating beyond this limit risks sprocket hook wear and catastrophic chain failure. For example, a 16A-1 chain (Pitch 25.40mm) measured over 10 links has a nominal length of 254.0mm. If the measured length exceeds 259.08mm, immediate replacement is mandated.
Our Technical Edge & Manufacturing Capabilities
We bypass generic marketing rhetoric, focusing instead on quantifiable engineering metrics that demonstrate our manufacturing superiority. Our production facilities operate under stringent quality management systems to deliver power transmission components that consistently outperform baseline industry standards.
- Certified Production Prowess: Fully accredited under ISO 9001:2015 and verified by SGS, ensuring every batch meets exact dimensional tolerances and metallurgical compositions.
- Massive Output Capacity: With a daily production capacity of over 50,000 links, we guarantee uninterrupted supply chains for major OEM assembly lines and aftermarket distributors, even during peak pre-harvest demand surges.
- Advanced Heat Treatment: Pins and bushings undergo precisely controlled carbonitriding processes, achieving surface hardnesses of HRC 50-55 while retaining a ductile, shock-absorbing core. This dramatically improves wear resistance against field abrasives.
- Fatigue Enhancement: All link plates are shot-peened to induce compressive residual surface stresses, increasing fatigue life by up to 30% under dynamic harvesting loads. Furthermore, chains are factory pre-stretched to 50% of their ultimate tensile strength to eliminate initial run-in elongation.
- Comprehensive OEM/ODM Support: Our engineering team designs custom pitch configurations, specialized K1/SK1 flight attachments, and specific surface treatments (e.g., Dacromet coating for extreme corrosion resistance) tailored to proprietary machinery designs.
- Dedicated Australian Support: Technical support and engineering consultation are available directly during standard Australian Eastern Standard Time (AEST 9:00–17:00), ensuring immediate assistance for critical downtime situations.

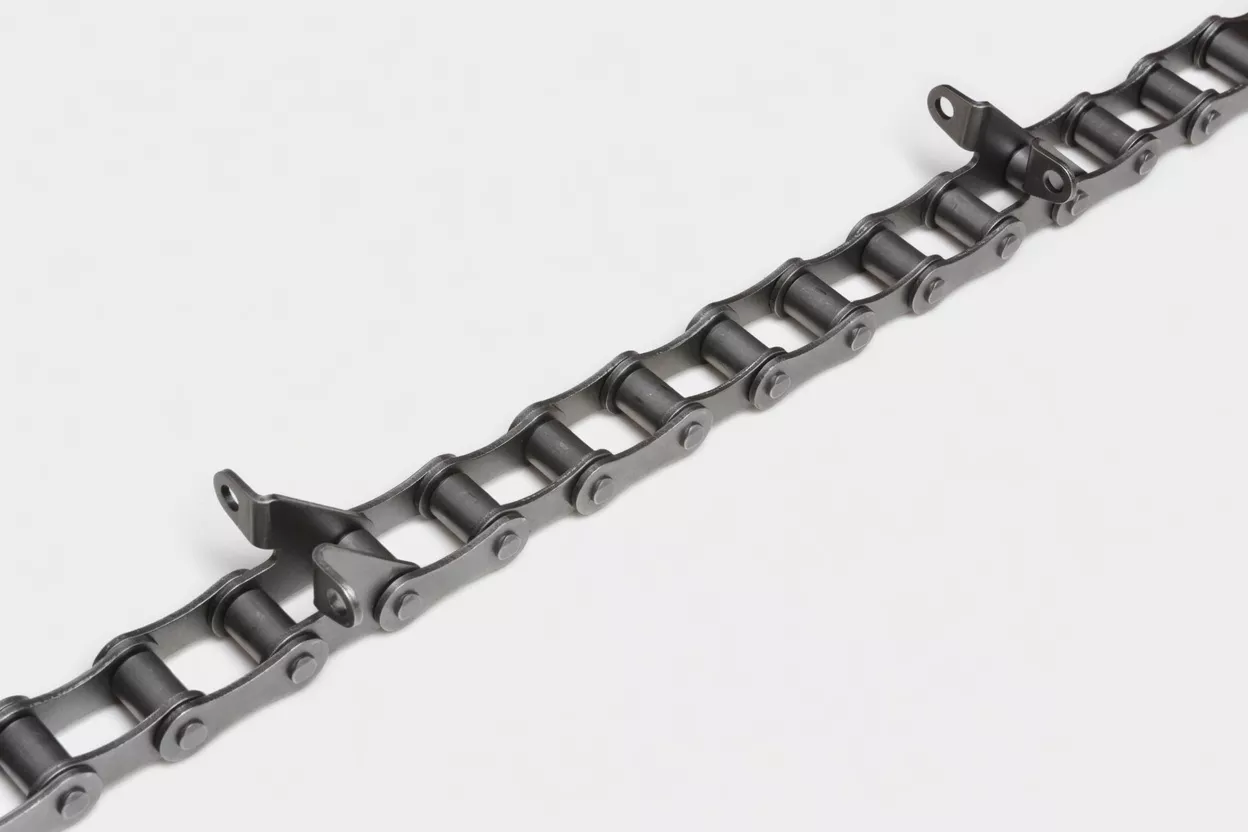

Global Case Studies: Proven in the Field
Our engineering data is validated by real-world performance. From the extreme heat of the Australian outback to the freezing harvests of North America, our combine harvester chains consistently deliver extended service life.
🇦🇺 Queensland, Australia | OEM Contractor
Scenario: Heavy Sorghum & Sugarcane Harvesting
"The 16AH-1 chains installed on our Case IH rotary units survived the entire season without requiring early tensioning. The shock load capacity is exceptional in dense, wet crop conditions. Highly recommended for heavy contracting work."
🇦🇺 Western Australia | Broadacre Farm
Scenario: High-Abrasive Wheat Belt Environment
"Silica dust usually ruins our elevator chains within weeks. The enhanced heat treatment and tight tolerances on these chains kept the grit out of the bushings. We experienced zero mid-harvest failures this year."
🇨🇦 Alberta, Canada | Equipment Dealership
Scenario: Sub-zero Canola Harvest
"We require components that don't become brittle when the temperature drops. The alloy steel composition used here provided the necessary cold-weather startup resilience for our MacDon headers."
🇺🇸 Texas, USA | Cotton Co-op
Scenario: High-Lint Accumulation Environment
"Lint buildup forces chains out of sprocket alignment. The precise manufacturing geometry of these roller chains meant they cleared debris much better than our previous supplier's product, reducing maintenance stops."
🇩🇪 Bavaria, Germany | Machinery OEM
Scenario: High-Speed Corn Foraging
"As an OEM, dimensional consistency is our primary concern. The pitch tolerance across large batches of the 10A-1 chains is phenomenally tight, making our assembly line highly efficient."
Related Products: Complete Your Drive System
Installing a new, precision-engineered chain on a worn sprocket drastically reduces the lifespan of the new chain due to misaligned pitch loading and hook-tooth wear. To maximize power transmission efficiency and component longevity, we strongly advise replacing sprockets and chains simultaneously.
⚙️ Custom & Standard Agricultural Sprockets
We manufacture a comprehensive line of sprockets specifically designed to mesh perfectly with our combine harvester chains. Features include induction-hardened teeth, precise bore machining, and mud-relief grooves to prevent dirt packing in the tooth root. Explore our full range of agricultural sprockets to ensure your entire drive system is optimized for the harsh Australian harvest season.
Interactive FAQ: Engineering & Procurement
What core materials are used in the manufacturing of these harvester chains?
We utilize premium-grade alloy steels, primarily 40Mn or 45Mn for the link plates to ensure high tensile strength and elasticity. The pins and bushings are manufactured from specialized bearing steels and undergo deep carburizing (case hardening) to create a highly wear-resistant exterior while maintaining a tough, shock-absorbing interior core, vital for agricultural impact loads.
Can you accommodate custom attachments and tailored pitch specifications for OEM designs?
Absolutely. Our ODM (Original Design Manufacturer) capabilities allow us to produce chains with non-standard pitches, specialized K1, K2, SK1, or SK2 attachments, extended pins, and custom flightings. We can work directly from your CAD drawings or physical samples to reverse-engineer and manufacture bespoke solutions with rapid prototyping turnaround times.
What quality certifications back your production processes?
Our entire manufacturing ecosystem is ISO 9001:2015 certified, guaranteeing strict adherence to international quality management systems. Furthermore, our facilities and output capacities have been independently audited and verified by SGS. Every batch undergoes rigorous tensile, hardness, and fatigue testing before shipment.
How do I ensure these chains are completely compatible with my existing machinery?
Our chains are manufactured to strict ANSI/DIN standards, making them direct drop-in replacements for major brands like John Deere, Case IH, and New Holland. To ensure compatibility, you simply need to measure the pitch (distance between pin centers), roller diameter, and inside width of your current chain. Match these parameters against our technical specifications table, or consult our AEST technical support team for cross-reference verification.
What surface treatments are available to combat corrosion and rust?
Standard chains receive a rust-preventative oil immersion treatment post-assembly. For high-moisture environments or prolonged off-season storage, we offer advanced surface treatments including Zinc plating, Nickel plating, and Dacromet coating. These treatments drastically reduce oxidation without compromising the mechanical integrity of the link plates.
Upgrade Your Harvest Machinery Today
Don't let inferior drive components risk your harvest yields. Partner with our company for precision-engineered, fatigue-resistant combine harvester chains tailored for the rigorous Australian agricultural sector. Equip your machinery with parts that refuse to quit.
We respond within 24 business hours. Engineering consultation available during AEST 9:00–17:00.
