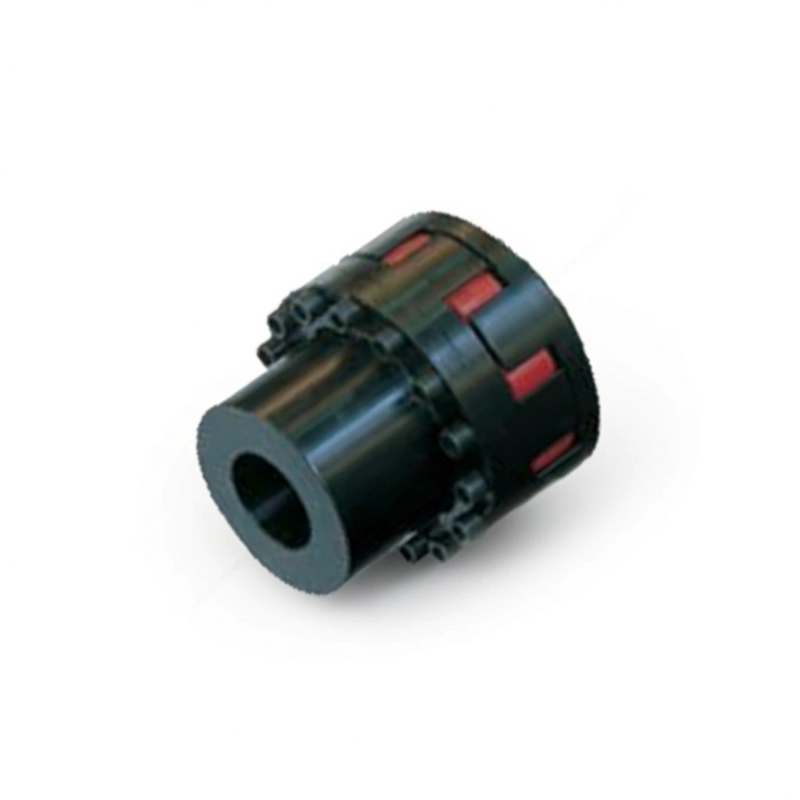

Spider Access from Either End

Both flanges are independently removable. Maintenance personnel can access the spider from whichever side provides better physical access — critical in cramped plant layouts, underground installations, or drives mounted against structural columns.

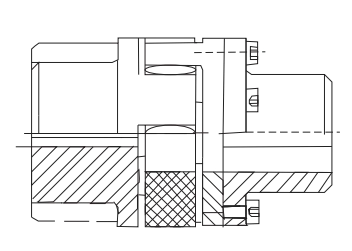

Symmetric Axial Retention

Equal flange connections on both sides provide balanced axial retention forces, eliminating asymmetry in the coupling's resistance to axial loads — particularly important in drives subject to alternating axial thrust from connected machinery.

Flange-to-Flange Drive Connection

When both connected machines have flanged interfaces, the DF Type provides a direct, clean connection without adapters or intermediate shaft stubs, reducing overall drive complexity and alignment requirements.

Elastomeric Isolation Between Rigid Housings

Rigid gearbox-to-gearbox connections transmit high-frequency vibration and gear mesh noise through the drive train. The DF Type's polyurethane spider provides an elastomeric break, attenuating vibration and noise between the two housings.

No Drive Repositioning for Maintenance

As with the SF Type, spider replacement on the DF Type requires no axial movement of either connected machine. Only the flange bolts are removed, the flange is pulled off radially, and the spider is extracted and replaced with the drive locked out but physically undisturbed.

98 ShA High-Torque Spider Option

Upgrading from 92 ShA to 98 ShA spider hardness increases torque capacity by approximately 70% with no change to the flanged hubs — a cost-effective torque upgrade path when application loads increase after initial installation.

🇦🇺 Australia — Sugar Milling

A sugar mill in Queensland installed TS140 DF couplings to connect flanged gearbox outputs to flanged mill roller drives. The symmetric double-flange configuration matched the existing flanged interfaces on both sides without adapters. Spider replacement during the inter-season maintenance window was completed from the more accessible gearbox side in under one hour per coupling position.

★★★★★

"Fitted straight to our existing flanges with no adapters. Spider replacement from the accessible side took under an hour."

🇮🇹 Italy — Printing Machinery OEM

A web-offset printing press manufacturer in Milan integrated TS38 DF and TS42 DF couplings into the print unit drive trains of their flagship press platform. The DF Type's elastomeric isolation attenuated gear mesh frequency vibration between adjacent print unit gearboxes, reducing register errors at high print speeds — a measurable quality improvement at 60,000 sheets per hour.

★★★★★

"Isolating gear mesh vibration between units was the missing piece. Register errors dropped immediately."

🇦🇺 Australia — Mining Processing (Pilbara)

An iron ore processing facility in the Pilbara region fitted TS160 DF couplings on primary crusher drive gearbox-to-motor connections. Operating in ambient temperatures up to 50°C, the polyurethane spider maintained dimensional stability across seasonal temperature variation. The symmetric flange arrangement allowed the crew to approach from the motor side — the platform with better access — during each quarterly inspection.

★★★★☆

"Works in 50°C without complaint. Access from whichever side we need is a genuine advantage up here."

🇧🇪 Belgium — Chemical Processing

A specialty chemical plant near Antwerp used TS90 DF couplings on reactor agitator drives connected to flanged speed reducers. The balanced double-flange geometry was specified to avoid asymmetric loading on the speed reducer output shaft bearings, and the polyurethane spider withstood incidental exposure to cleaning solvents throughout 18 months of operation.

★★★★★

"Symmetric loading on both output bearings was the engineering requirement. The DF Type is the only design that delivers it."
