NL Nylon Gear Flexible Coupling
The NL type nylon gear flexible coupling uses crowned tooth geometry and an engineering-grade nylon sleeve to connect driving and driven shafts with generous axial, radial, and angular misalignment compensation. Available in 10 sizes (NL1-NL10) covering 40 to 3150 N.m torque capacity. Ideal for conveyors, pumps, crushers, and general industrial drives. No lubrication required, low noise, easy sleeve replacement.
NL Nylon Gear Flexible Coupling
The NL type nylon gear flexible coupling is a high-performance internal gear coupling designed for flexible drive shaft connections, offering generous axial, radial, and angular misalignment compensation with low noise, simple structure, and extended service life. Manufactured to GB3852-83 standard with precision-cast iron or steel halves and an engineering-grade nylon gear sleeve, the NL coupling series covers torque ratings from 40 N.m (NL1) through to 3150 N.m (NL10) and suits a wide range of power transmission equipment across mining, agriculture, water treatment, and general manufacturing in Australia.
GBC is a specialist coupling manufacturer with over 15 years of export experience serving the Australian and Oceania markets. We supply OEM and aftermarket NL nylon gear couplings direct from our factory, with full custom bore machining, competitive MOQ, and English-speaking engineering support. Explore our full range of industrial couplings or contact us for a fast quote.
Core Specifications at a Glance
40 - 3150 N.m
NL1 to NL10
Up to 6000 RPM
6 - 100 mm
-20 to +70 ℃
Cast Iron HT20-40 / Steel ZG35 II
Engineering Nylon
Cylindrical (Y), Conic (Z), Short Cylindrical (J)
What Is an NL Nylon Gear Flexible Coupling?

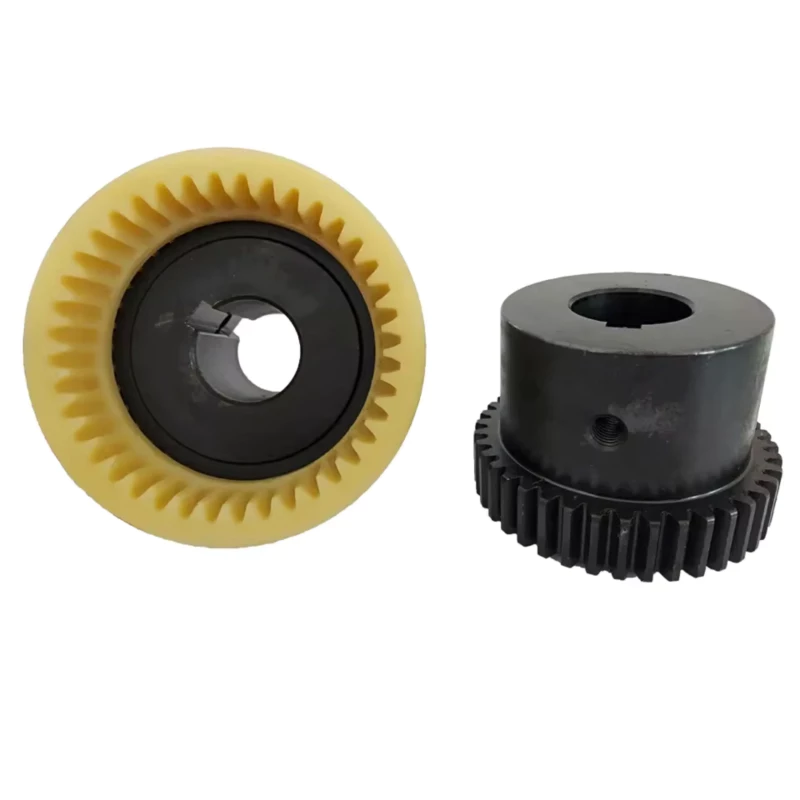

The NL nylon gear flexible coupling is a type of drum-shaped (crowned tooth) internal gear coupling. It connects two shafts by meshing the external gear teeth on each coupling half with the internal gear teeth of a nylon sleeve that sits between them. This design allows the coupling to transmit torque while simultaneously accommodating axial displacement, radial offset, and angular misalignment between the driving and driven shafts.
Unlike a straight-tooth gear coupling where the teeth are cut parallel to the shaft axis, the NL coupling uses crowned (drum-shaped) tooth geometry. The tooth flanks are machined to a spherical profile so that as angular misalignment occurs, the contact patch moves smoothly along the tooth surface rather than concentrating stress at the tooth edges. This crowned geometry is the key engineering principle that eliminates edge loading, reduces contact stress concentration, and extends coupling life under real-world shaft alignment conditions.
The nylon gear sleeve insert provides several functional advantages: it dampens vibration and shock loads, operates without lubrication, generates low noise during operation, and is easy to replace during maintenance. The coupling halves are precision cast from cast iron HT20-40 or cast steel ZG35 II, with bore and keyway machined to GB3852-83 standard dimensions.
NL Nylon Gear Flexible Coupling Specifications and Size Chart
The NL series is manufactured in 10 standard sizes, covering bore diameters from 6 mm up to 100 mm and nominal torques from 40 to 3150 N.m. All dimensions conform to GB3852-83 standard for coupling shaft hole and keyway form and dimensions. The specification image and full data table below include every critical parameter you need for selection.

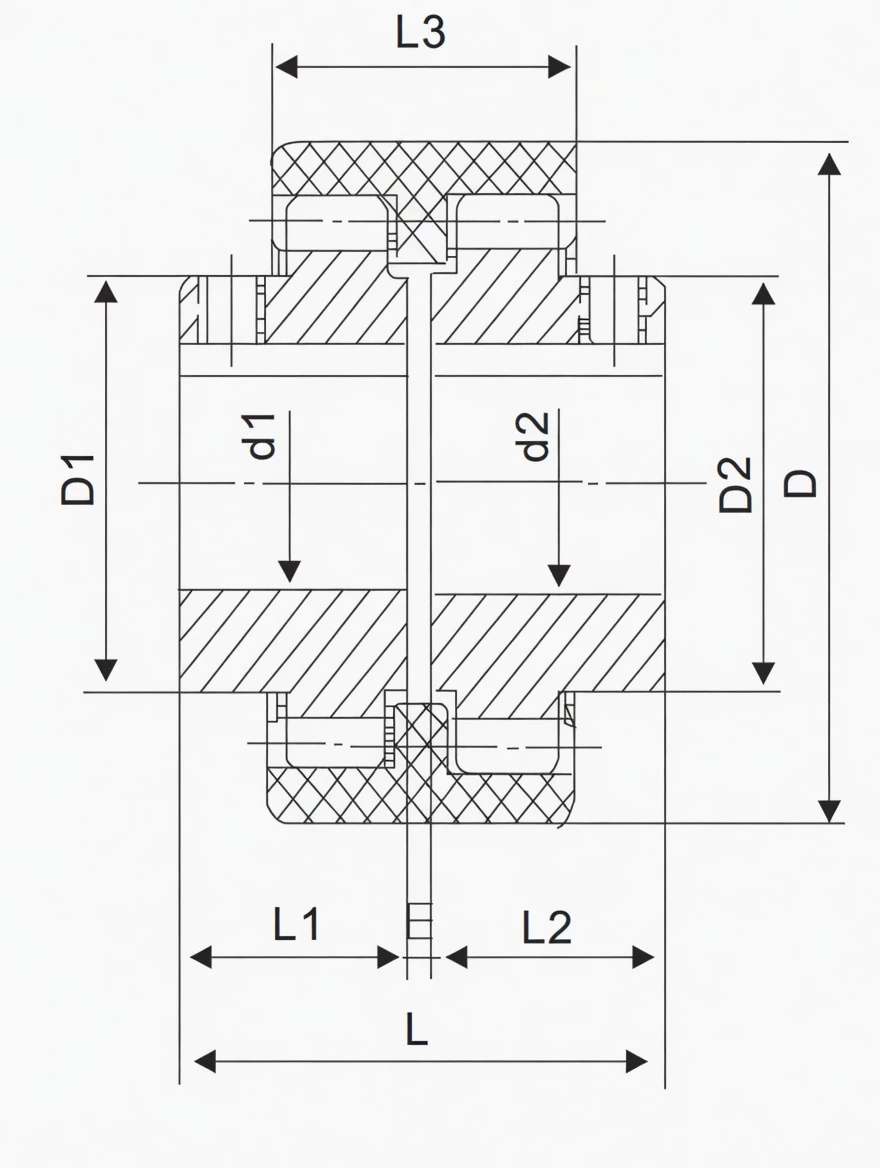

Complete Dimensional Data Table - NL1 to NL10
| Type | Tn (N.m) | Max Speed (RPM) | Bore d1, d2 (mm) | Shaft Hole Length L1, L2 (mm) | L (mm) | D (mm) | D1/D2 (mm) | E (mm) | L3 (mm) | Axial (mm) | Radial (mm) | Angular | Inertia (KgCm2) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NL1 | 40 | 6000 | 6, 8, 10, 12, 14 | 16, 20, 25, 32 | 37, 45, 55, 69 | 40 | 26 | 4 | 34 | 2 | +/-0.3 | 1 deg | 0.25 | 0.85 |
| NL2 | 100 | 6000 | 10, 12, 14, 16, 18, 20, 22, 24 | 25, 32, 42, 52 | 57, 71, 91, 111 | 42 | 36 | 4 | 40 | 2 | +/-0.4 | 1 deg | 0.92 | 1.7 |
| NL3 | 160 | 6000 | 20, 22, 24, 25, 28 | 52, 65 | 113, 133 | 66 | 44 | 4 | 46 | 2 | +/-0.4 | 1 deg | 3.10 | 2.6 |
| NL4 | 250 | 6000 | 28, 30, 32, 35, 38 | 62, 82 | 129, 169 | 83 | 58 | 4 | 48 | 2 | +/-0.4 | 1 deg | 8.69 | 3.6 |
| NL5 | 315 | 5000 | 32, 35, 38, 40, 42 | 82, 112 | 169, 229 | 93 | 68 | 4 | 50 | 3 | +/-0.4 | 2 deg | 14.28 | 5.5 |
| NL6 | 400 | 5000 | 40, 42, 45, 48 | 82, 112 | 230 | 100 | 68 | 4 | 52 | 3 | +/-0.4 | 2 deg | 18.34 | 6.8 |
| NL7 | 630 | 3600 | 45, 48, 50, 55 | 82, 112 | 229 | 115 | 80 | 4 | 60 | 3 | +/-0.6 | 2 deg | 56.5 | 9.8 |
| NL8 | 1250 | 3600 | 48, 50, 55, 60, 63, 65 | 112, 142 | 229, 289 | 140 | 96 | 4 | 72 | 3 | +/-0.6 | 2 deg | 98.55 | 26.5 |
| NL9 | 2000 | 2000 | 60, 63, 65, 70, 71, 75, 80 | 142, 172 | 295, 351 | 175 | 124 | 6 | 93 | 4 | +/-0.7 | 2 deg | 370.5 | 37.6 |
| NL10 | 3150 | 1800 | 70, 71, 75, 80, 85, 90, 95, 100 | 142, 172, 212 | 292, 352, 432 | 220 | 157 | 8 | 110 | 4 | +/-0.7 | 2 deg | 1156.8 | 55 |
Order marking example: NL4 gear flexible coupling (Keyway GB3852-83). Driving shaft: d1=38, L1=80; Driven axle: d2=30, L21=50. Denotes that: 38 x 80/30 x 50 (non-standard keyway sizes indicated).
Custom bore diameters, custom shaft fit tolerances, and non-standard keyway dimensions are available on request. Send your drawing or shaft dimensions and our engineers will confirm feasibility within 24 hours.
How the NL Coupling Works

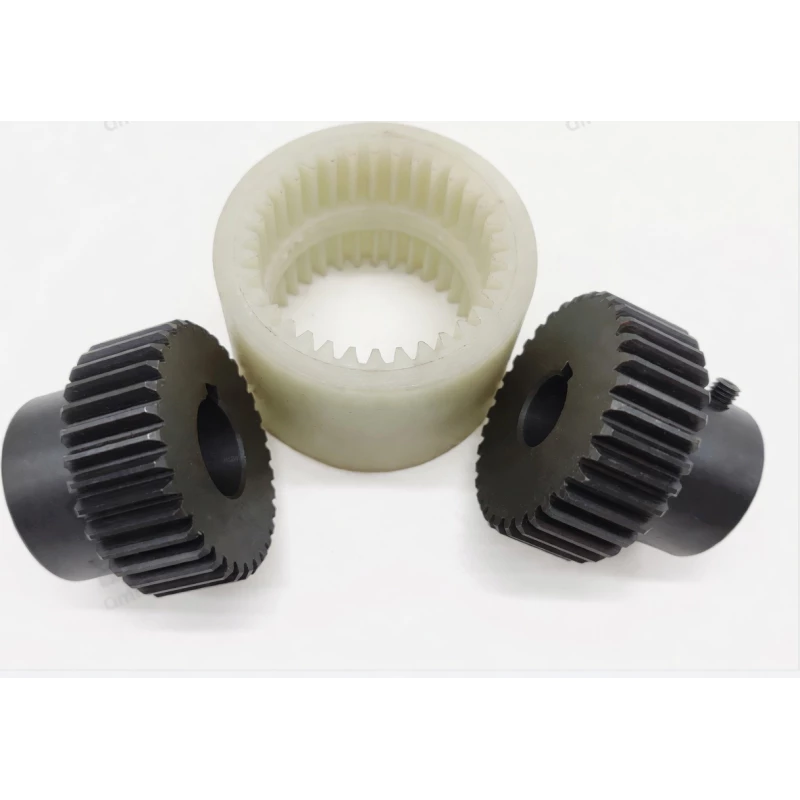

Each coupling half has external gear teeth machined around its hub. The nylon sleeve has matching internal gear teeth. When assembled, the two hubs slide into opposite ends of the nylon sleeve, and torque is transmitted from the driving shaft through the first hub's gear teeth, into the nylon sleeve, and out through the second hub to the driven shaft. The clearance between the internal and external teeth, combined with the crowned tooth profile, permits the coupling to flex in three planes simultaneously.
The standard maximum deviation tolerances for the NL series are: axial displacement of 2 to 4 mm depending on size, radial offset of plus or minus 0.3 to 0.7 mm, and angular misalignment of 1 to 2 degrees. These tolerances are built into every unit and verified during quality inspection.
Coupling Type Comparison: NL Nylon Gear vs. Jaw vs. Disc Coupling
| Feature | NL Nylon Gear Coupling | Jaw Coupling | Disc Coupling |
|---|---|---|---|
| Torque Capacity | High (up to 3150 N.m) | Low to Medium | Medium to High |
| Angular Misalignment | 1 - 2 degrees | Up to 1 degree | Up to 1 degree |
| Axial Displacement | 2 - 4 mm | Minimal | Moderate |
| Vibration Damping | Excellent (nylon sleeve) | Good (elastomer spider) | Poor |
| Lubrication Required | No | No | No |
| Noise Level | Low | Low | Medium |
| Max Speed | Up to 6000 RPM | Up to 3600 RPM | Up to 10000 RPM |
| Maintenance | Easy - replace nylon sleeve only | Easy - replace spider | Moderate - disc pack replacement |
| Best For | General industrial, mining, pumps, conveyors | Light-duty, small pumps, servo | High-speed, precision drives |
Industries and Applications in Australia
NL nylon gear flexible couplings are used across a broad range of Australian industrial sectors. The combination of high torque capacity, misalignment tolerance, vibration damping, and maintenance simplicity makes them a practical choice for many equipment types operating in harsh Australian conditions.
Mining and Mineral Processing
Conveyor belt drives, crushers, screen decks, and slurry pump connections in iron ore, gold, and coal operations across Western Australia, Queensland, and New South Wales. NL couplings absorb the heavy shock loads and vibration inherent in crushing and screening, protecting expensive gearboxes and motors from premature bearing failure.
Water and Wastewater Treatment
Centrifugal pump drives, aerator blower connections, and sludge mixer shafts in municipal and industrial water treatment plants. The nylon sleeve dampens torsional vibration from pump startup transients and eliminates the need for lubrication in wet environments where grease contamination is a concern.
Agriculture and Grain Handling
Grain auger drives, feed mill equipment, and irrigation pump shafts on farms and grain storage facilities. NL couplings tolerate the shaft misalignment that results from foundation settling on soft agricultural soils and provide reliable service with minimal maintenance in remote locations.
General Manufacturing
Fan and blower drives, packaging line conveyors, mixing equipment, and machine tool spindle drives in factories across metropolitan and regional Australia. The low-noise characteristic of the nylon sleeve is particularly valued in food processing and indoor manufacturing environments.
Power Generation
Auxiliary pump drives, cooling tower fan connections, and small generator sets. The coupling's ability to handle angular and axial displacement is critical in power plants where thermal expansion causes shaft position changes during operation.
Marine and Port Equipment
Crane drives, ship loader conveyor connections, and port facility pump systems in major Australian ports such as Port Hedland, Gladstone, and Newcastle. The corrosion-resistant nylon sleeve avoids the galvanic issues that can affect metal-to-metal gear couplings in salt-laden coastal air.
Why Drum-Shaped (Crowned) Tooth Geometry vs. Straight Tooth
The fundamental difference between a drum-shaped (crowned) tooth gear coupling and a straight-tooth gear coupling lies in the tooth contact mechanics. In a straight-tooth coupling, when angular misalignment occurs, only the edge of the tooth makes contact with the mating surface. This concentrates stress on a narrow line at the tooth tip, causing accelerated wear, pitting, and eventual tooth breakage. A crowned-tooth coupling machines the tooth flanks to a spherical or barrel-shaped profile so that as the coupling articulates, the contact patch spreads across the full tooth face. This difference is not subtle; it fundamentally changes the load distribution, wear pattern, and service life of the coupling.
Higher Misalignment Tolerance
The crowned tooth profile allows NL couplings to operate at angular misalignments of 1 to 2 degrees and radial offsets of up to 0.7 mm without edge loading or accelerated wear. In Australian mining sites, where heavy equipment foundations shift due to ground subsidence, blast vibration, and thermal cycling, this tolerance is not a luxury but a necessity. Equipment that cannot accommodate real-world misalignment fails prematurely and causes unplanned shutdowns that cost thousands of dollars per hour in lost production.
Longer Service Life Under Shock Loads
When a crusher jaw closes on a boulder or a conveyor belt jams, a sudden torque spike passes through the coupling. In a straight-tooth design, this shock concentrates on the tooth edges and can cause immediate fracture. The crowned tooth distributes the impact across the full tooth face area, and the nylon sleeve further absorbs the energy through elastic deformation. The result is a coupling that survives repeated shock loading events that would destroy a straight-tooth design in weeks.
Reduced Bearing Loads
A coupling that resists misalignment generates reaction forces that push back on the shaft bearings. The crowned tooth geometry reduces the coupling's stiffness in the angular direction, which means less restoring force is transmitted to the bearings when the shafts are slightly misaligned. This translates directly to longer bearing life and lower bearing replacement costs, which is significant given that bearing failure is one of the top three causes of rotating equipment downtime in Australian industry.
Lower Maintenance Frequency
Because the nylon sleeve requires no lubrication and can be replaced without moving the connected equipment (no hub removal needed), maintenance is fast and inexpensive. A sleeve change takes approximately 30 minutes versus several hours for a steel gear coupling that requires disassembly, cleaning, inspection, re-greasing, and realignment. For remote Australian mine sites and processing plants where maintenance access windows are short and labour costs are high, this translates to meaningful cost savings.
Suitable for High-Speed Applications
The NL series supports operating speeds up to 6000 RPM for smaller sizes. The balanced design and low rotational inertia of the nylon sleeve minimise centrifugal forces and dynamic imbalance at speed. This makes NL couplings suitable for direct motor connections, blower drives, and other applications where operating speed exceeds 3000 RPM, a range where many elastomeric couplings begin to exhibit resonance or centrifugal growth problems.
Crowned Tooth vs. Straight Tooth Gear Coupling - Technical Comparison
| Parameter | Crowned (Drum-Shaped) Tooth | Straight Tooth |
|---|---|---|
| Contact Stress Distribution | Uniform across full tooth face | Concentrated at tooth edges |
| Edge Loading | Eliminated by design | Present under misalignment |
| Angular Misalignment Capacity | 1 - 2 degrees | 0.25 - 0.5 degrees |
| Wear Pattern | Even across tooth face | Localised pitting at edges |
| Bearing Reaction Forces | Lower | Higher |
| Service Life Under Misalignment | Significantly longer | Reduced |
| Manufacturing Complexity | Higher (requires profile grinding) | Standard hobbing |
Manufacturing and Quality Assurance
GBC coupling hubs are precision cast and machined in-house under a controlled manufacturing process. Every NL coupling that leaves our factory has passed through a documented quality control workflow designed to ensure dimensional accuracy, material integrity, and reliable performance in demanding industrial applications.
Manufacturing Process Highlights
Coupling halves are precision cast from cast iron HT20-40 or cast steel ZG35 II. Bore and keyway are machined by draw moulding process for dimensional accuracy and concentricity. The gear tooth profile is cut and finished to achieve the crowned (drum-shaped) geometry that ensures uniform contact under misalignment. Tooth surfaces undergo induction hardening heat treatment to achieve optimal surface hardness (HRC 45-55 typical) while maintaining a tough core structure that resists shock fracture.

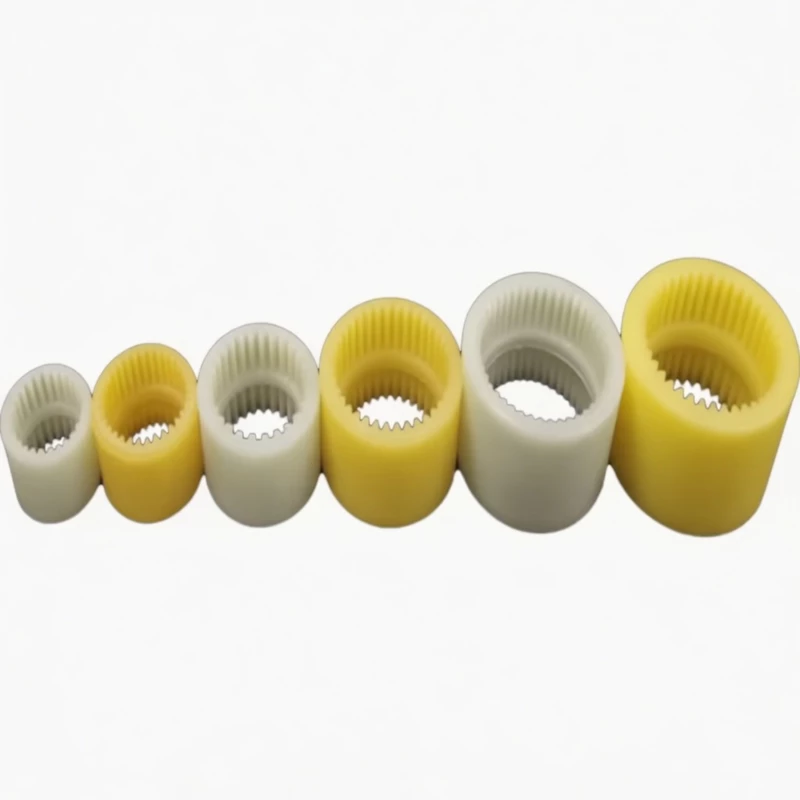

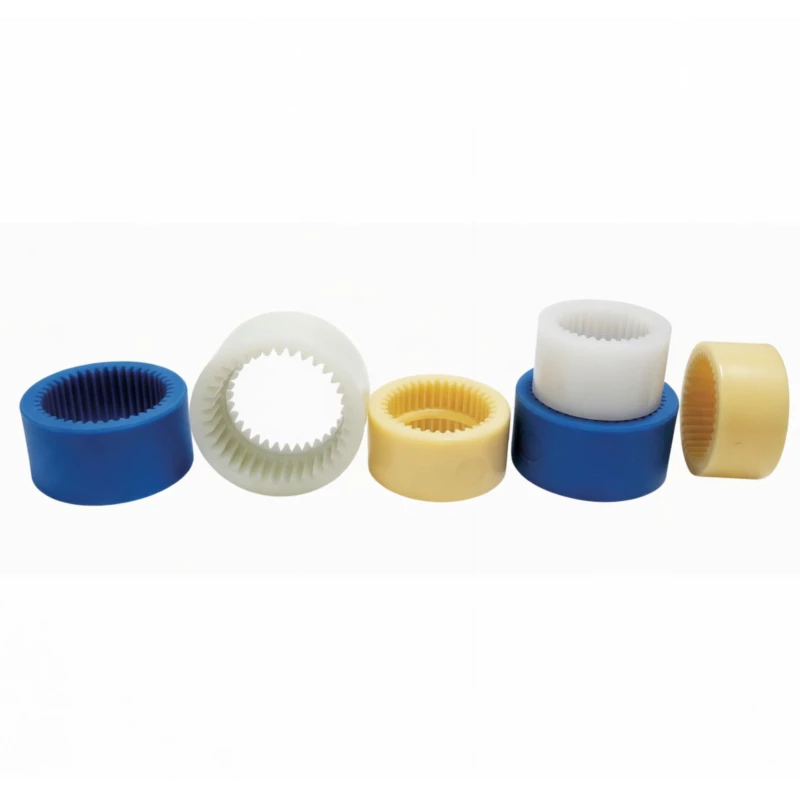

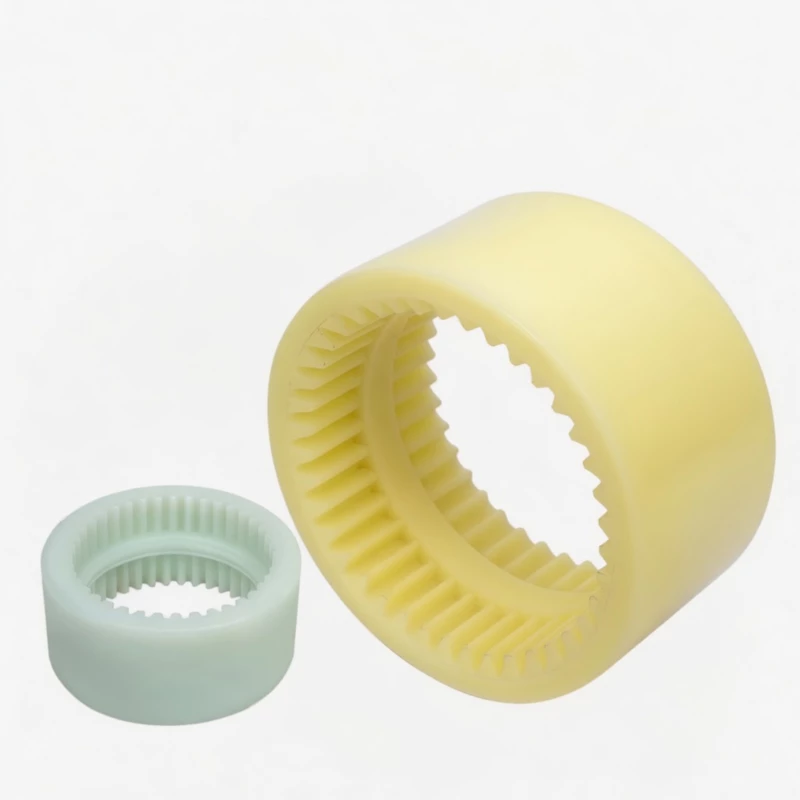

The nylon gear sleeve is injection moulded from engineering-grade nylon with controlled material properties for consistency across production batches. Alternative elastomeric sleeve materials including synthetic rubber, resin rubber, and reinforced nylon are available for specific operating conditions.
Quality Control Workflow
Inspection Equipment
Our quality laboratory is equipped with gear profile testing instruments for tooth form and pitch verification, Rockwell and Brinell hardness testers for post-heat-treatment validation, coordinate measuring machines (CMM) for bore concentricity and dimensional accuracy, and surface roughness testers for tooth flank finish quality. Every batch is inspected and documented with traceable quality records.
Certifications and Standards
GBC manufacturing facility operates under ISO 9001 quality management system certification. Products are manufactured to GB3852-83 standard and carry CE marking for export compliance. Our engineering team maintains awareness of Australian and New Zealand standards (AS/NZS) and can advise on coupling selection to meet local compliance requirements for specific applications.
Why Source NL Nylon Gear Couplings from GBC
Australian B2B buyers sourcing couplings from overseas need more than a low price. You need a supplier that understands your operating conditions, responds quickly, delivers consistently, and backs their product with real engineering capability. Here is what sets GBC apart.
Australian Standards Awareness
Our engineering team has worked with Australian buyers across mining, water, and manufacturing for over 15 years. We understand the operating conditions, safety requirements, and compliance expectations specific to the Australian market and can advise on coupling selection accordingly.
Proven Export Experience
GBC has been exporting coupling products to Australia and Oceania for over 15 years, serving mining contractors, OEM equipment builders, industrial distributors, and maintenance service providers. We understand Australian import logistics, documentation requirements, and delivery timeframes.
English-Speaking Engineering Support
Our dedicated export engineering team communicates fluently in English and provides technical selection assistance, drawing review, and application engineering support. No language barriers, no communication delays when you need technical answers fast.
Competitive MOQ for SME Buyers
We maintain flexible minimum order quantities designed for the Australian market. Standard sizes from NL1 to NL7 are available from 10 pieces per size. Mixed-size orders are welcome to help you consolidate shipping and reduce landed cost per unit.
OEM and Custom Capability
Beyond standard sizes, GBC offers full custom manufacturing: non-standard bore diameters, special keyway dimensions, modified shaft fit tolerances, and alternative materials. Send your drawing and we confirm feasibility and pricing within 24 hours. We have supplied custom couplings for Australian OEMs building specialised mining and processing equipment.
Factory Direct Pricing
As a manufacturer (not a trader), GBC provides factory-direct pricing without intermediary markups. This is particularly important for repeat orders and ongoing supply agreements where cost predictability matters to your procurement team.
Application Case Study
Conveyor Drive Coupling Replacement - Iron Ore Processing, Western Australia
A mid-tier iron ore processing operation in the Pilbara region of Western Australia, running multiple conveyor lines feeding a primary crusher circuit. The site operates 24/7 with planned maintenance shutdowns of 8 hours every two weeks.
The existing steel gear couplings on three conveyor head drives were failing every 4 to 6 months due to a combination of shaft misalignment from foundation settlement and shock loading from irregular ore feed. Each failure required 6 to 8 hours of downtime for disassembly, replacement, and realignment, plus the cost of expedited parts freight to the remote site.
GBC supplied NL7 nylon gear flexible couplings with custom bore machining to match the existing shaft dimensions. The crowned tooth geometry and nylon sleeve addressed both the misalignment issue and the shock load problem simultaneously. Three sets were supplied with additional spare nylon sleeves.
After 18 months of continuous operation, none of the three NL7 couplings have required replacement. Nylon sleeve condition was inspected during a planned shutdown and showed normal wear with an estimated remaining life of 12+ months. The customer has since standardised on NL nylon gear couplings for all conveyor drives across the site and placed a follow-on order for NL5 and NL8 sizes for additional equipment.
Frequently Asked Questions - NL Nylon Gear Flexible Coupling
What is the difference between NL nylon gear coupling and a standard jaw coupling?
NL nylon gear couplings use internal and external gear tooth meshing with a nylon sleeve insert, providing higher torque capacity and better misalignment compensation than standard jaw couplings. Jaw couplings use an elastomeric spider element and are limited in torque and angular misalignment tolerance. NL couplings handle axial, radial, and angular displacement simultaneously while maintaining reliable power transmission. For applications above 100 N.m or requiring more than 0.5 degrees of angular misalignment, the NL gear coupling is typically the better choice.
What bore types are available for NL nylon gear flexible couplings?
Three bore types are available per GB3852-83 standard: Cylindrical bore (Y type), Conic bore (Z type), and Short cylindrical bore (J type). All bores include keyway machining to standard dimensions. Custom bore sizes and non-standard keyway tolerances are available on request.
What is the working temperature range of NL type couplings?
The standard working temperature range is -20 to +70 degrees Celsius. This covers most industrial environments in Australia, including indoor manufacturing plants and moderate outdoor installations. For extreme temperature applications beyond this range, consult our engineering team for alternative sleeve materials.
Can I get custom bore sizes for NL couplings?
Yes. GBC offers full custom bore machining for all NL coupling sizes from NL1 to NL10. You can specify non-standard bore diameters, keyway dimensions, and shaft fit tolerances. Send your drawing or shaft dimensions to our engineering team and we will confirm feasibility within 24 hours.
How do I select the right NL coupling size for my application?
Selection is based on three primary factors: required torque capacity (Nominal Torque Tn ranges from 40 to 3150 N.m across NL1-NL10), shaft bore diameter of driving and driven shafts, and operating speed (max RPM varies from 1800 to 6000 depending on size). Apply a service factor based on your load type - typically 1.0 for uniform loads, 1.5 for moderate shock, and 2.0 or higher for heavy shock loads. Our engineers can assist with selection if you provide motor power, RPM, and shaft sizes.
What materials are used in GBC NL nylon gear couplings?
The coupling halves are precision cast from cast iron HT20-40 or cast steel ZG35 II. The bore and keyway are machined by draw moulding for accuracy. The internal gear sleeve is made from engineering-grade nylon, which provides vibration damping, low noise, and eliminates the need for lubrication. Alternative elastomeric materials including synthetic rubber and resin rubber are available for specific applications.
What is the minimum order quantity for NL couplings shipped to Australia?
Standard sizes from NL1 to NL7 can be supplied in quantities as low as 10 pieces per size. For larger sizes NL8-NL10 or custom specifications, MOQ starts from 5 pieces. Mixed-size orders are welcome to help consolidate your shipping costs.
How does the nylon sleeve compare to rubber or polyurethane inserts?
Nylon sleeves offer superior wear resistance and dimensional stability compared to rubber or polyurethane. They maintain consistent performance across the -20 to +70 degrees Celsius range without degradation. Nylon also provides better torque transmission efficiency with less energy loss, requires no lubrication, and delivers a longer service life under continuous industrial duty cycles.
Request a Quote for NL Nylon Gear Flexible Couplings
Send your shaft dimensions, required torque, or technical drawing. Our engineering team replies within 24 hours with sizing confirmation and competitive pricing.
Standard sizes in stock. Custom bore machining available. Flexible MOQ for Australian buyers.
