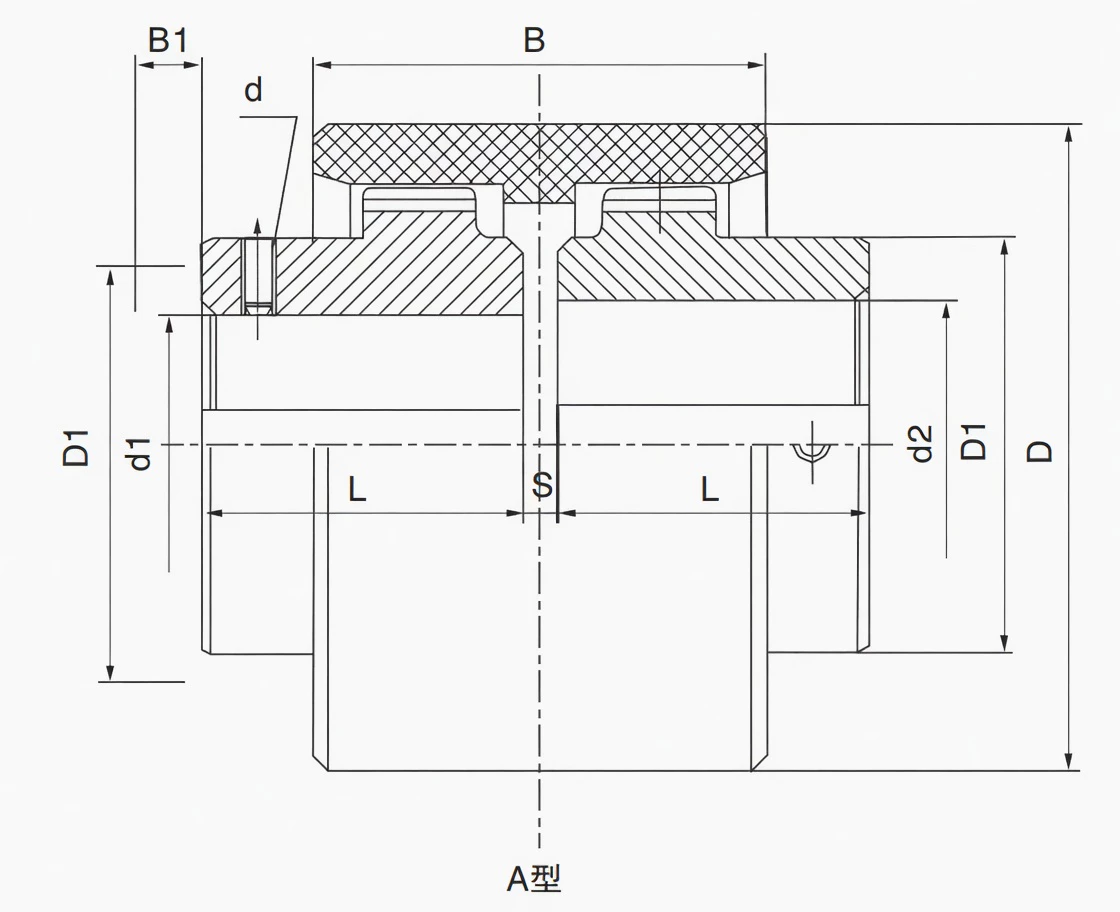

Type A (Basic Type)

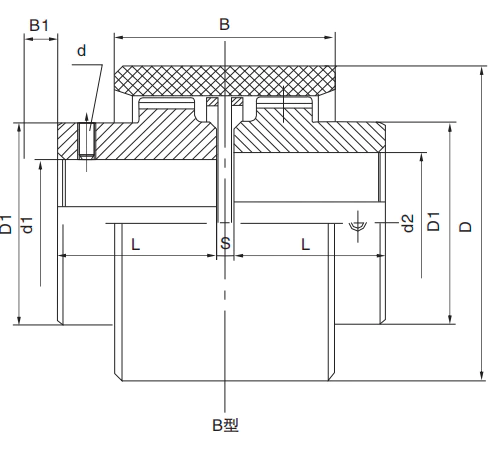

Type B (Inside Block Circle)

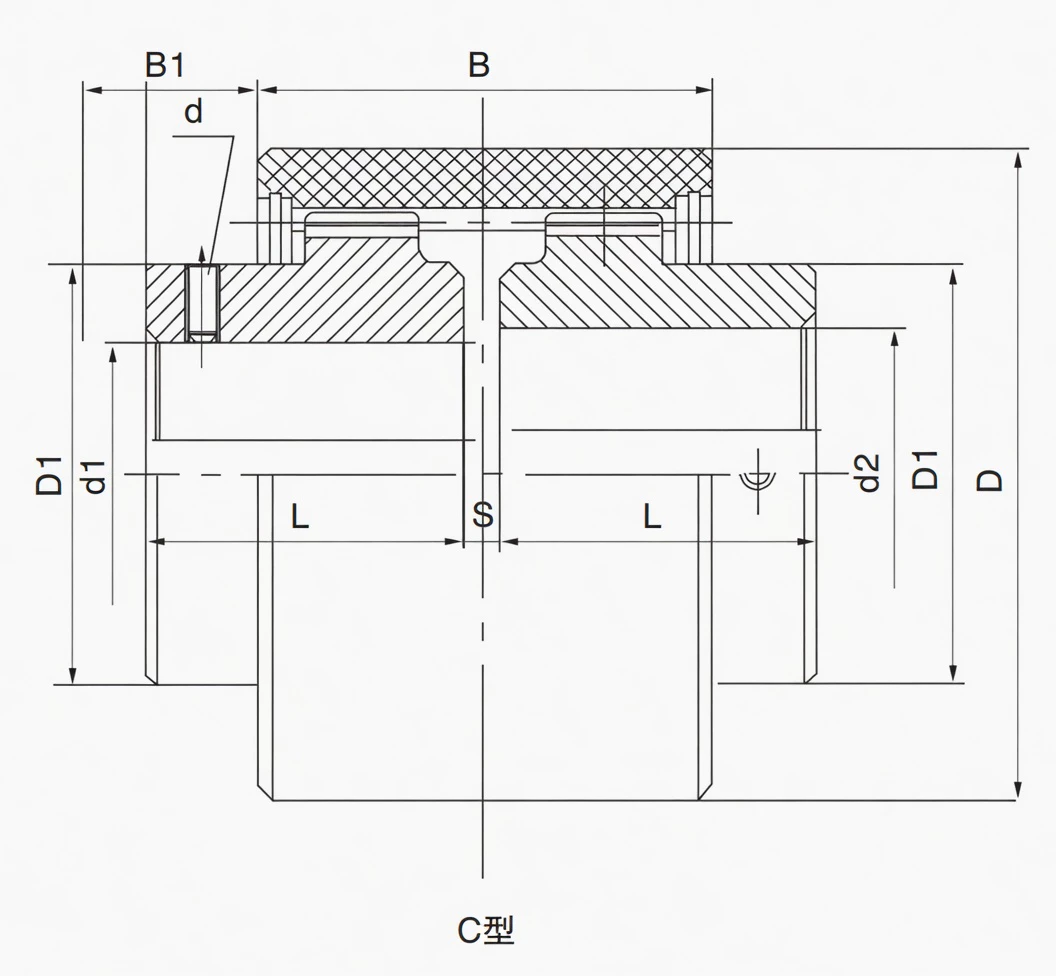

Type C (Outside Block Circle)

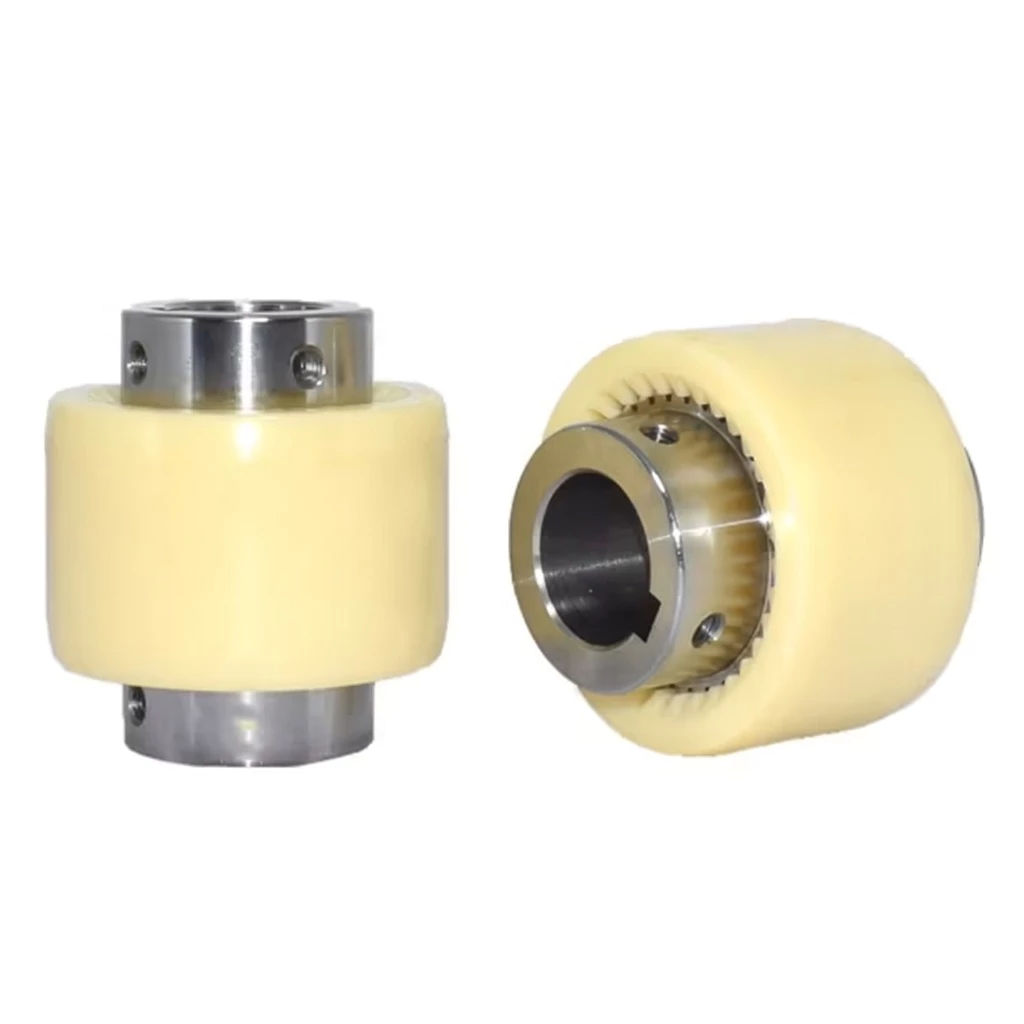

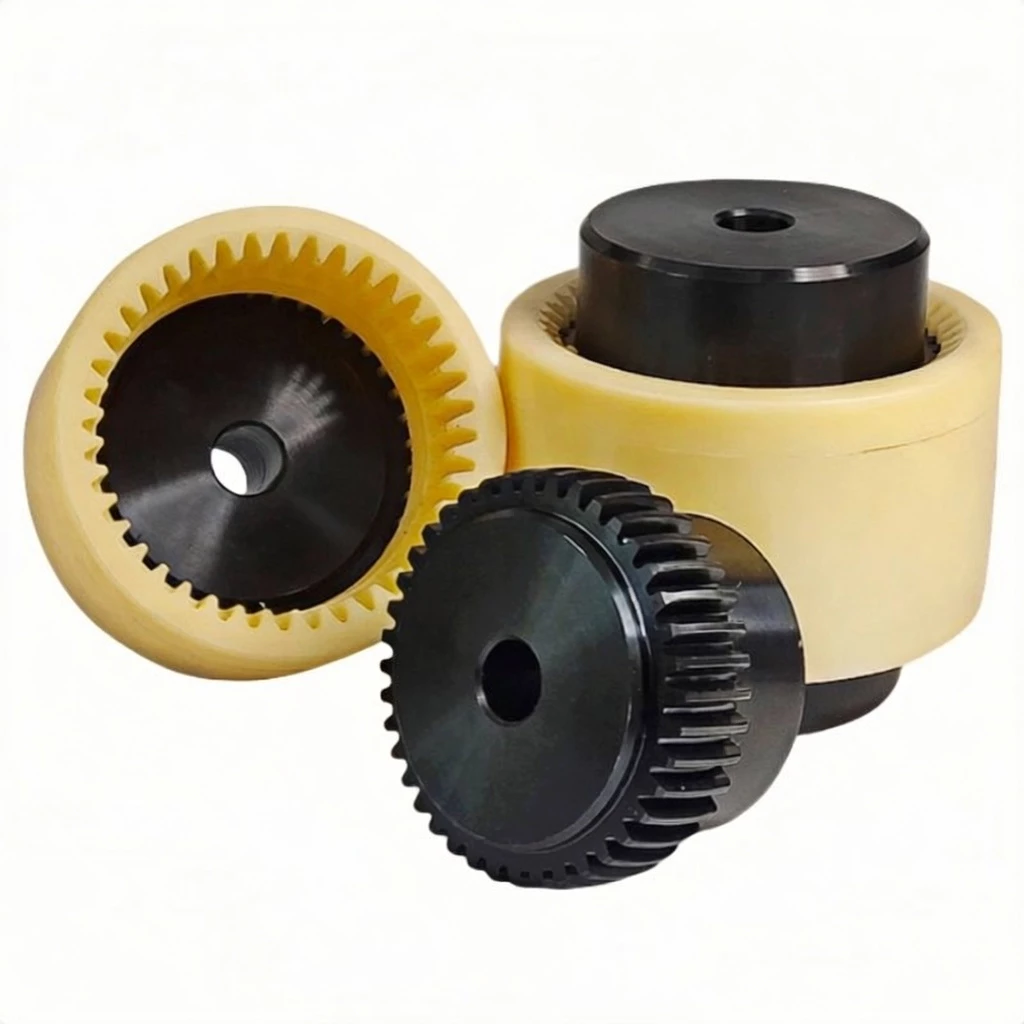

Higher Misalignment Tolerance

The crowned teeth pivot dynamically inside the sleeve. In Australian mining sites where intense ground subsidence continuously shifts equipment alignment out of specification, this mechanical flexibility prevents shaft snapping and sustains production output.

Longer Service Life Under Shock Loads

The heavy-duty engineering plastic sleeve acts inherently as a torque damping medium. When a driven crusher hits a massive hard spot, the nylon matrix absorbs a portion of that violent shock load, effectively shielding the driving motor and gearbox from peak mechanical spikes.

Reduced Bearing Loads

Because the coupling gracefully accommodates shifting misalignment internally rather than resisting it with rigidity, the reactive cantilever forces transmitted back into the motor and gearbox bearings are drastically minimized, yielding massive extensions in bearing lifespan.

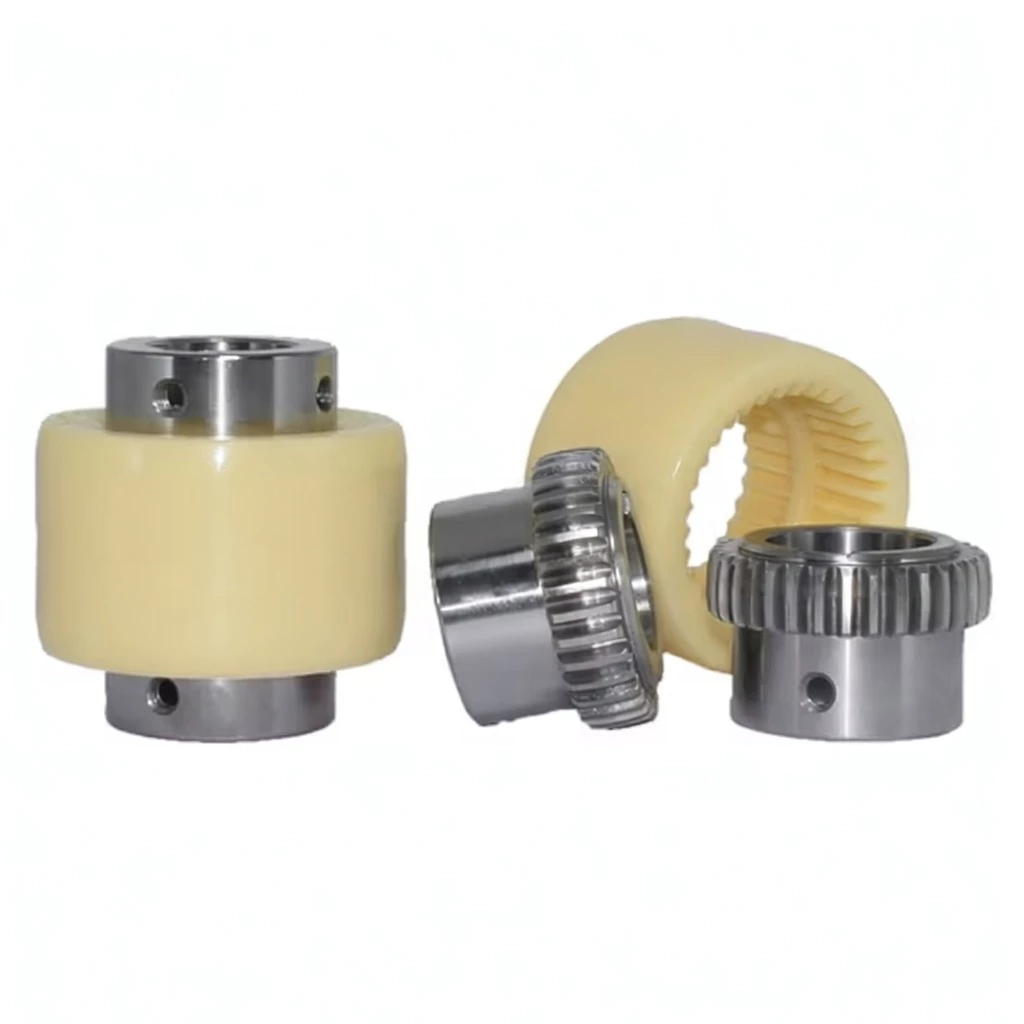

Maintenance-Free Operation

Steel-on-steel gear couplings demand constant, messy oil or grease lubrication to prevent galling. The TGL utilizes a self-lubricating engineering plastic sleeve directly interfacing with hardened steel. This dry-running friction capability entirely eliminates recurring lubrication costs and labor.

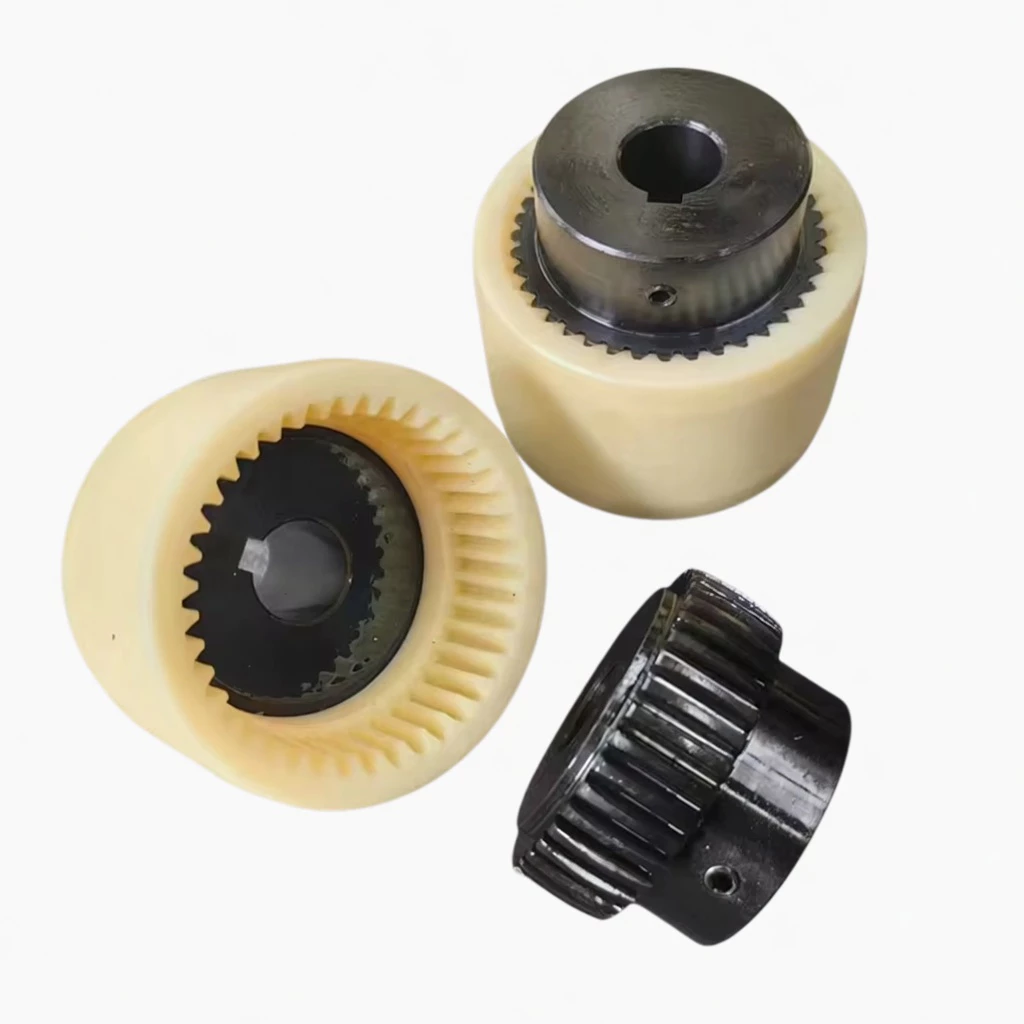

Upgrading Conveyor Drives in the Pilbara Region

A prominent tier-2 iron ore processing facility situated in the Pilbara region of Western Australia was facing critical operational downtime. The facility experienced frequent, highly unpredictable failures on their secondary crushing conveyor drives. Severe, abrasive red dust was heavily penetrating their existing standard jaw couplings, degrading the elastomer spiders rapidly. Furthermore, ground shifting was initiating angular misalignment that the rigid alternative couplings simply could not handle, resulting in catastrophic motor bearing failures on a tight 4-month cycle.

Our mechanical engineering team rigorously analyzed their starting torque requirements under heavy load. The technical recommendation was to immediately transition the drives to the Type C TGL Drum Shape Gear Coupling. The Type C's integrated outside block circle design delivered the mandatory dust-proofing capabilities, while the internal drum-shaped gear teeth effortlessly absorbed the aggressive 1.5-degree angular misalignment observed on-site. We custom-machined the hubs with AS standard keyways to ensure a rapid, direct drop-in replacement during a brief scheduled outage.

Subsequent maintenance records verified a massive 300% documented increase in operational lifespan. The mining site transitioned from actively replacing coupling elements three times a year to zero required replacements over an extended 14-month tracking period. Maintenance labor costs plummeted, and critical bearing vibrations returned fully to baseline OEM specifications.

What is the primary operational difference between a drum gear coupling and a flexible jaw coupling?

A standard flexible jaw coupling utilizes an elastomeric rubber spider to absorb light vibration and minor misalignment, making it suitable strictly for lighter, general-purpose duties. Conversely, a drum gear coupling transmits rotational torque mechanically through meshed high-strength gear teeth. This offers a vastly higher torque density, substantially superior angular misalignment compensation, and unmatched rugged durability in heavy industrial applications where rubber elements would instantly shear.

Can GBC supply gear couplings that fully align with Australian mining standards?

Yes, absolutely. We routinely manufacture couplings explicitly designed to comply with the rigorous, demanding nature of Australian mining environments. This involves utilizing robust dust-resistant structures (like our Type C), specifying heavy-duty forging materials, and executing precision machining processes that align with overarching AS 4024 safety design principles.

What is the maximum torque capacity available across your coupling ranges?

While the TGL (NLS) series specifically targets medium to small power transmission (handling torque values ranging from 10 N·m up to 2500 N·m depending on the selected model size), our manufacturing scope extends much further. We produce massive, full-steel drum gear couplings (such as the GIICL series) capable of safely transmitting hundreds of thousands of Newton-meters for massive mill drives and hoists.

Do you offer custom bore sizing options for legacy equipment?

Certainly. While standard apertures are machined strictly to ISO H7 tolerances, we retain complete in-house CNC machining capabilities. This allows us to rapidly provide custom bore sizes, splined bores, tapered awl holes, and highly non-standard keyways (including older British imperial standards) to ensure our hubs match your specific shaft requirements flawlessly without requiring adapters.

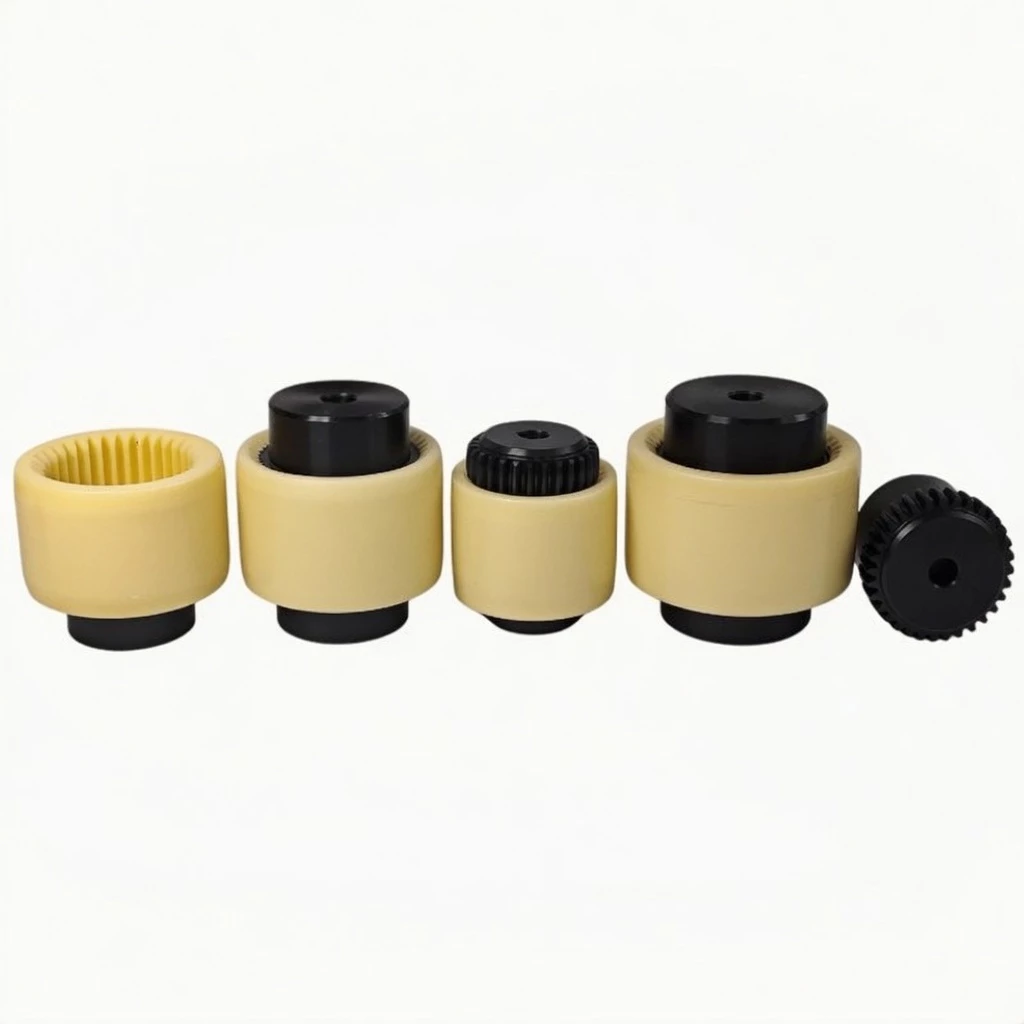

What is the typical production and delivery lead time for export to Australia?

For standard dimensional sizes and reasonable industrial batch quantities, complete manufacturing is typically achieved within a 15 to 25-day window. Subsequent ocean freight routing to major Australian ports (including Sydney, Melbourne, Brisbane, and Perth) generally adds 14 to 21 days in transit. Express air freight options are readily available for critical, urgent breakdown replacements.

How should a plant engineer correctly select the right gear coupling for a new application?

Proper technical selection requires a careful calculation of the nominal running torque, which is then multiplied by a specific service factor that accurately accounts for your unique operational mode (such as frequent hard starting, exposure to heavy shock loads, or non-stop continuous running). Local environmental conditions (heavy dust, moisture, extreme temperatures) will subsequently dictate whether you require an A, B, or C type sealing structure. Our Couplings specialists are available to perform these complex calculations on your behalf.

Do your coupling designs integrate well with AS 4024 safety standards?

Yes, our stringent manufacturing processes guarantee the structural integrity and heavy-duty reliability necessary for our components to be safely integrated into complex machinery that must comply fully with AS 4024 (Safety of Machinery). Additionally, the smooth, flush outer profile of the TGL plastic sleeve significantly minimizes operational snagging risks for personnel, actively contributing to overall plant equipment safety.
