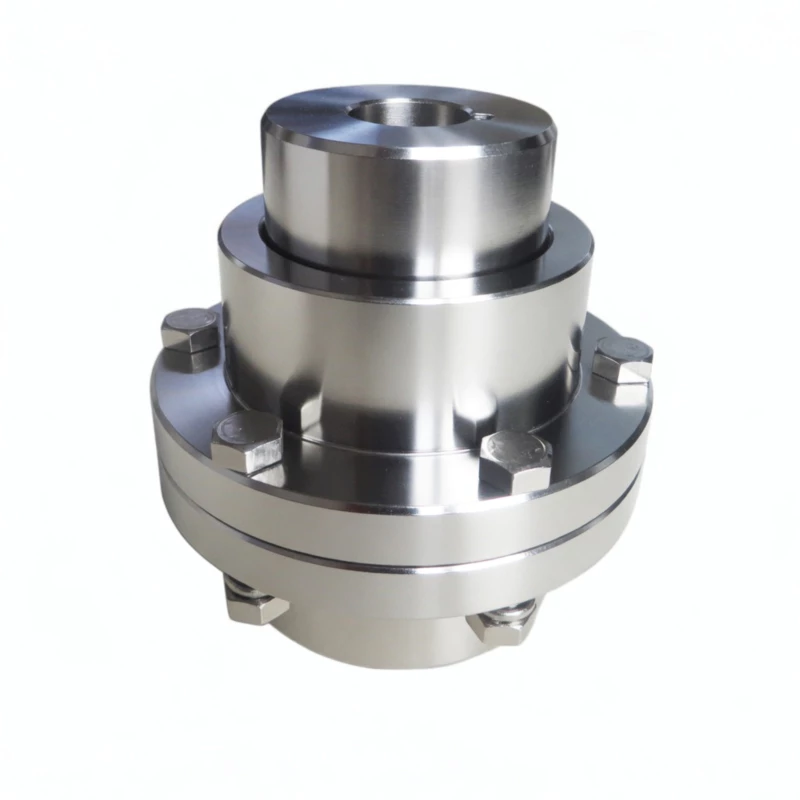

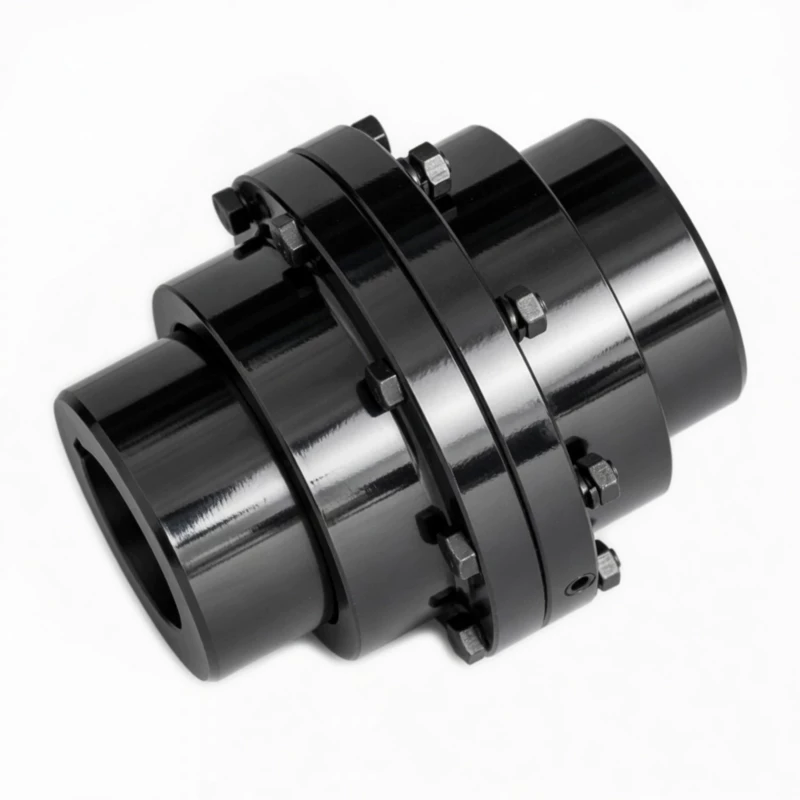

GICLZ Drum Shape Gear Coupling

⛰ Mining & Minerals Processing

Equipment: Ball mills, SAG mills, conveyor belt drives, apron feeders, crusher drives (jaw, cone, gyratory), slurry pump drives.

In Australian mining sites, foundation settlement from blasting and heavy equipment movement routinely causes shaft misalignment of 0.5–1.0°. The GICLZ's crowned teeth accommodate this without edge loading, preventing the bearing failures and gearbox damage that straight-tooth couplings suffer in these conditions.

🏭 Steel & Metal Production

Equipment: Rolling mill main drives, coilers, straighteners, continuous casters, reheat furnace roller drives.

Rolling mills impose severe shock loads during billet entry into the rolls. The GICLZ coupling's robust crowned gear mesh absorbs these shock torques without the spider element degradation that afflicts elastomeric couplings, eliminating the need for frequent spider replacements on critical mill lines.

🏗 Cement & Building Materials

Equipment: Cement ball mills, rotary kilns, bucket elevators, vertical roller mills, clinker conveyor drives.

Rotary kilns experience significant thermal expansion during operation, causing axial and angular misalignment between the drive gear and the kiln trunnion. The GICLZ intermediate shaft design accommodates this thermal displacement without placing lateral load on the motor or gearbox bearings.

🚢 Port & Bulk Handling

Equipment: Ship loader drives, stacker-reclaimer slewing drives, belt conveyor head pulley drives, grab crane hoisting drives.

Outdoor port equipment is subject to structural flexure, uneven loading, and sea spray corrosion. The sealed, lubricated GICLZ gear mesh is far more environmentally robust than open disc or jaw couplings, and its high misalignment tolerance accommodates structural deflection under maximum load.

💧 Power Generation & Pumping Stations

Equipment: Large centrifugal pumps, cooling water pumps, turbine drives, compressor drives, irrigation station main drives.

Pump stations often use long motor-to-pump shaft runs where precise alignment is difficult to maintain as foundations settle. The GICLZ's radial compensation formula ΔY = 0.026 × 2A means that increasing the intermediate shaft length directly increases permissible radial offset — a practical advantage for large pump installation.

🌿 Agriculture & Sugar Processing

Equipment: Sugar mill roller drives, diffuser drives, bagasse conveyor drives, irrigation pump drives.

Queensland sugar mills impose high cyclic shock loads as fibrous cane material passes between rollers. The GICLZ coupling withstands these load spikes without fatigue damage, while its wide bore range accommodates the large, low-speed shafts characteristic of sugar mill installations.

Customer Profile

Mid-tier iron ore producer operating a primary crushing and conveyor system. Annual throughput of approximately 8 million tonnes.

Challenge

Straight-tooth gear couplings on the primary apron feeder drive were failing every 3–5 months due to tooth edge loading caused by foundation movement in the iron-rich laterite soil. Each unplanned replacement required an 18-hour shutdown costing approximately AUD 150,000 in lost production.

Solution

Supplied GICLZ11 couplings with custom bore machined to 155 mm and a non-standard extended intermediate shaft of 600 mm to bridge the motor-to-feeder drive distance. Material: 42CrMo4 alloy steel with HRC 44 tooth surface hardness.

Result

After 24 months of continuous operation, the GICLZ11 couplings show no measurable tooth wear. Replacement frequency reduced from 3–4 times per year to zero unplanned failures. Estimated annual saving: AUD 600,000 in avoided downtime costs.

Customer Profile

Long-product steel rolling mill producing structural sections and reinforcing bar. Three-shift continuous operation.

Challenge

Elastomeric jaw coupling elements on the roughing mill drive were degrading within 6–8 weeks due to billet entry shock loads. Replacement required a 4-hour planned shutdown every 2 months. Adjacent motor bearings were also failing prematurely due to coupling-transmitted lateral loads.

Solution

Replaced with GICLZ9 couplings rated to 26.5 kN·m with standard catalogue bores. The rigid metallic tooth mesh of the GICLZ eliminated the elastomer element entirely, and the crowned tooth geometry absorbed angular misalignment without bearing-loading side forces.

Result

Coupling replacement interval extended from every 2 months to scheduled annual maintenance. Motor bearing MTBF improved from 11 months to 26 months. Total maintenance cost reduction on this drive: AUD 85,000 per year.

Customer Profile

Integrated cement plant producing approximately 1.2 million tonnes of clinker per year. Critical rotary kiln drive requiring maximum reliability.

Challenge

The kiln drive coupling was experiencing cyclic misalignment as the kiln shell expanded thermally by up to 8 mm axially and 1.2° angularly during heat-up from cold start to operating temperature of 1450°C. The existing coupling was generating abnormal noise and vibration above 900°C kiln temperature.

Solution

Specified GICLZ14 (160 kN·m rated) with an extended intermediate shaft length of 1200 mm to maximise radial compensation capacity per the formula ΔY = 0.026 × 2A. High-temperature EP grease specified for the operating environment.

Result

The coupling operated quietly through the full thermal expansion cycle during three consecutive months of kiln commissioning runs. Vibration monitoring confirmed a 62% reduction in drivetrain vibration amplitude compared to the previous coupling. No unplanned outages on the kiln drive in 30 months of operation.

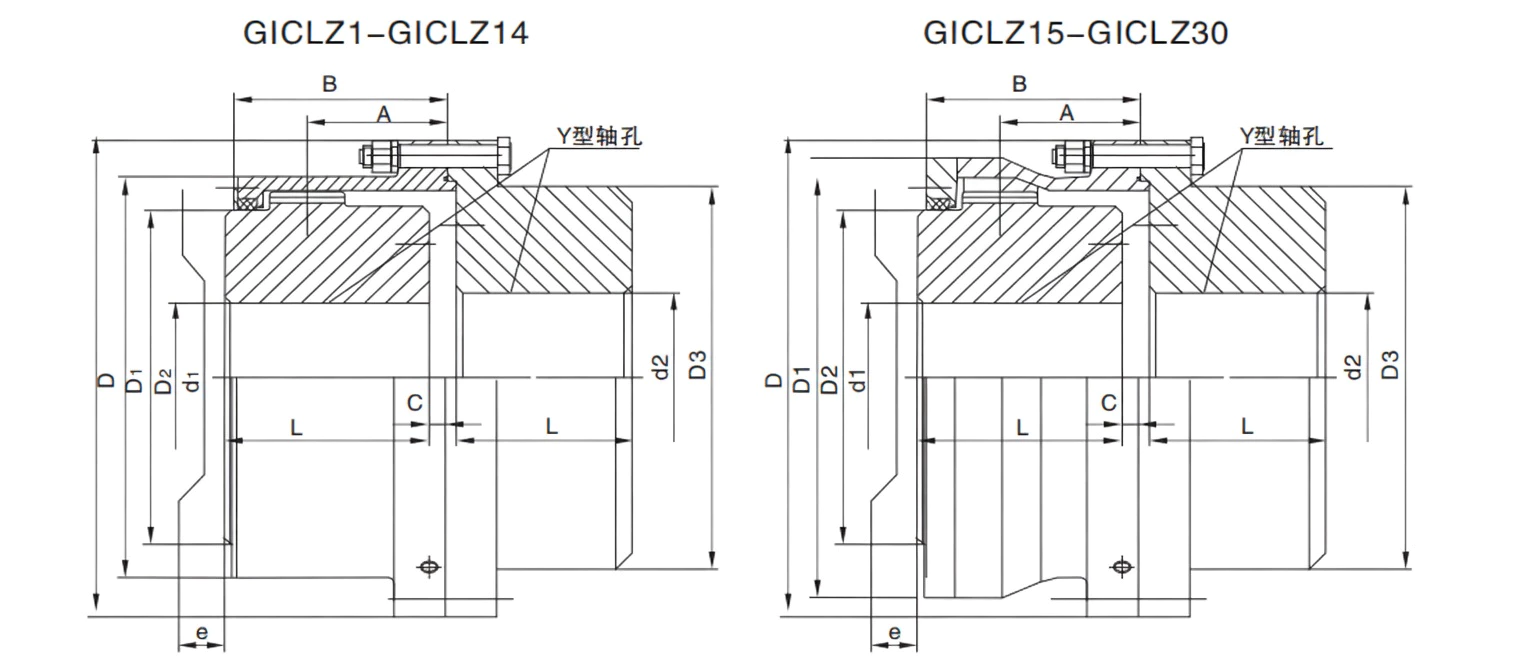

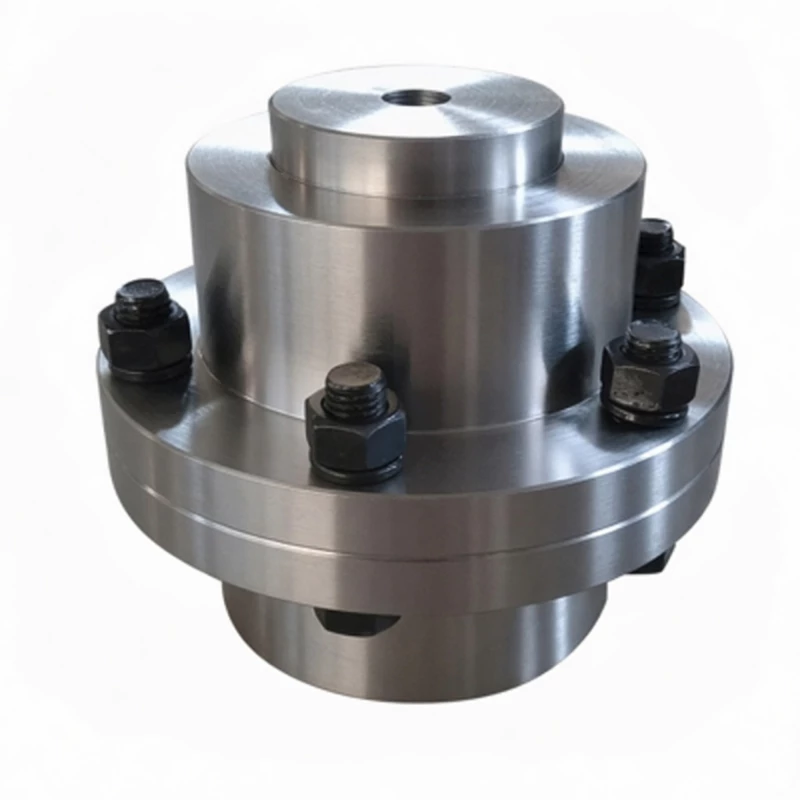

What is a GICLZ drum shape gear coupling?

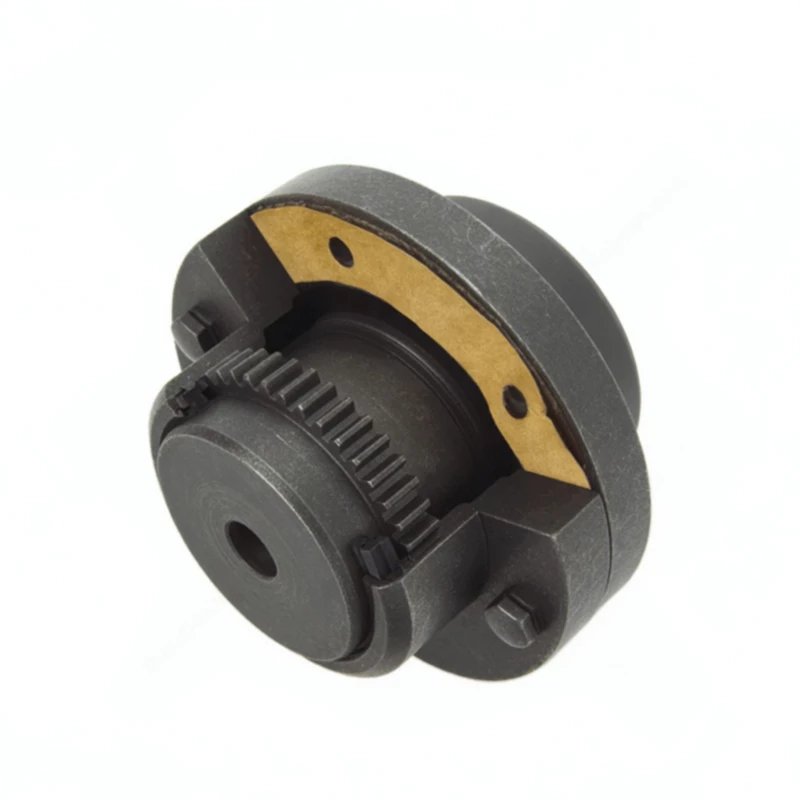

GICLZ is an intermediate-shaft crowned tooth gear coupling designed to connect two shafts that are further apart. It uses crowned (drum shape) tooth geometry to allow angular misalignment up to 1°30' and radial compensation of ΔY = 0.026 × 2A, making it ideal for heavy-duty industrial drives where shaft separation or foundation movement is a factor.

What is the difference between GICL and GICLZ?

GICL is a standard crowned tooth gear coupling for close-coupled shaft connections. GICLZ includes an intermediate shaft (the 'Z' suffix), which increases the axial separation between the two shaft hubs and provides significantly greater axial and radial displacement compensation. GICLZ is the preferred choice wherever shafts are widely separated or large misalignment compensation is needed.

What torque range does the GICLZ series cover?

The GICLZ series covers limited torque from 0.800 kN·m (GICLZ1) up to 3500 kN·m (GICLZ30), accommodating a wide range of machinery from small pump and fan drives to large ball mills, kiln drives, and mining conveyors.

Can GICLZ couplings be customised for non-standard bore sizes?

Yes. GBC offers custom bore machining to match your specific shaft diameters, keyway profiles, and shaft fits (H7/h6, H8/h7, or taper fit). We can also accommodate non-standard flange configurations and special surface treatments. Send us your drawing or shaft specification and our engineering team will respond within 24 hours.

What misalignment can a GICLZ coupling tolerate?

The GICLZ series allows angular misalignment of 1°30' and radial compensation of ΔY = 0.026 × 2A (where A is the half-length of the intermediate shaft). The crowned tooth geometry distributes contact stress across the full tooth face regardless of misalignment angle, preventing premature tooth wear.

What lubrication is required?

GICLZ couplings require grease lubrication — typically NLGI Grade 2 EP grease. The sealed design retains lubricant during operation. We recommend lubrication inspection every 6–12 months depending on speed, load, and ambient conditions. For high-temperature applications (above 80°C), a high-temperature EP grease should be specified.

Is GICLZ suitable for Australian mining and heavy industry?

Absolutely. The GICLZ coupling's shock load tolerance, high misalignment capacity, and robust crowned tooth geometry make it ideally suited to Australian mining environments including conveyor drives, ball mills, crusher drives, and pump stations where foundation settlement and thermal expansion routinely create shaft misalignment conditions that would cause premature failure in less capable coupling types.

What materials and heat treatment are used?

Outer gear sleeves are manufactured from medium-carbon alloy steel with tooth surface induction hardening to HRC 40–50. Inner gear hubs are forged from high-strength steel and undergo carburising or nitriding where required. All components are precision-machined to ISO 6336 quality standards. Material test certificates are provided with every order.
