Deutz Tractor Hydraulic Gear Pump Replacement – 0510615333

GBC-0510615333 — Deutz Tractor Hydraulic Gear Pump Replacement – 0510615333

Deutz tractors hold a strong following among Australian farmers who favour European engineering, particularly in specialist farming sectors such as viticulture, intensive horticulture, and smaller-scale precision agriculture. The Deutz brand’s signature air-cooled engines and compact, well-engineered hydraulic systems made them popular imports across Australia during the 1970s, 1980s, and 1990s. For operators maintaining these tractors today, sourcing hydraulic components can be more challenging than for mainstream Ford or Massey Ferguson models — making reliable aftermarket supply particularly important.

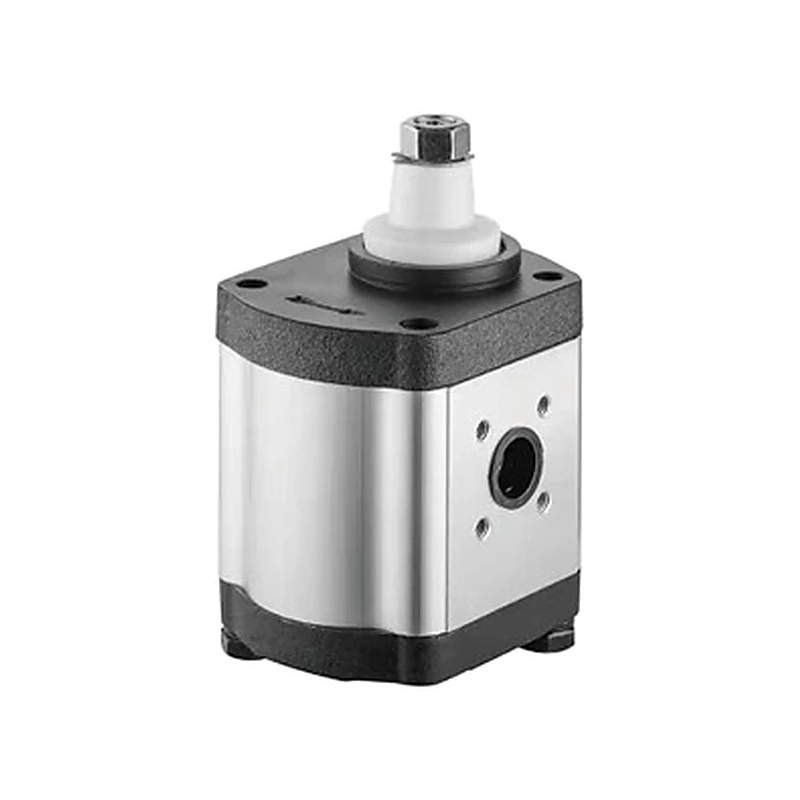

The GBC-0510615333 is a replacement hydraulic gear pump cross-referencing the Bosch Rexroth 0510615333 specification, fitted to Deutz tractor models in the relevant range. It provides 21.5 cc/rev displacement and is rated to 175 bar operating pressure, consistent with the original Bosch Rexroth design intent for these Deutz applications. For the full range of Deutz and European tractor hydraulic components, visit the GBC homepage.

OEM Reference Numbers and Bosch Rexroth Cross-Reference

The 0510615333 is a Bosch Rexroth part reference widely used across multiple European tractor manufacturers’ hydraulic pump specifications. When Deutz tractors are fitted with Bosch Rexroth external gear pump assemblies, this reference number appears on the pump body. Confirming this reference on your existing pump is the most reliable fitment verification method. Dimensional confirmation of displacement (21.5 cc/rev), port size, and shaft type is a recommended secondary check for any Bosch Rexroth cross-reference pump.

Technical Specifications

European Tractor Imports and Specialty Farming in Australia

European-import tractors in Australia — including Deutz, Fendt, Claas, and similar brands — tend to be concentrated in premium farming sectors where the engineering quality and fuel efficiency of European designs command a price premium. Australian viticulturalists, olive growers, and specialty vegetable producers have been particularly receptive to Deutz tractors, and a sizable population of late-model and vintage Deutz machines is found across the wine regions of South Australia, Victoria, and Western Australia.

Sourcing hydraulic pump replacements for European import tractors in Australia requires specialist knowledge of Bosch Rexroth and other European hydraulic pump specifications. The GBC-0510615333 with its 0510615333 Bosch Rexroth cross-reference addresses this need directly, providing a readily available aftermarket option without the long lead times and high costs associated with direct OEM ordering from European distributors. Contact our team for Deutz-specific hydraulic parts availability.

Installation Notes for Deutz / Bosch Rexroth Pump Replacement

Bosch Rexroth external gear pumps in Deutz applications are generally accessible after removing the hydraulic pump cover or access panel on the tractor’s transmission or hydraulic block. The pump is typically secured with metric fasteners (not imperial), so ensure you have the correct metric toolset before beginning work. Note the orientation of the inlet and outlet ports — Bosch Rexroth gear pumps can sometimes be dismantled and reassembled in different orientations; the GBC-0510615333 is supplied in the correct orientation for the 0510615333 specification.

Use the hydraulic fluid specified for your Deutz model — many Deutz tractors use Deutz UTTO or a compatible mineral hydraulic oil. Do not use transmission fluid or engine oil as a substitute without checking compatibility. For technical support or to order, contact our team or visit the About Us page for sourcing background.

About GBC

GBC is a specialist supplier of aftermarket agricultural and industrial hydraulic components, operating across Australia and key global markets. With a manufacturing background spanning gear pumps, hydraulic cylinders, power transmission components, and tractor drivetrain parts, GBC provides OEM-grade replacement parts with flexible order quantities and competitive lead times. Our sourcing team works directly with certified factories to ensure every unit meets or exceeds original equipment specifications. Learn more on our About Us page, or browse our full range at the GBC homepage.

Frequently Asked Questions
