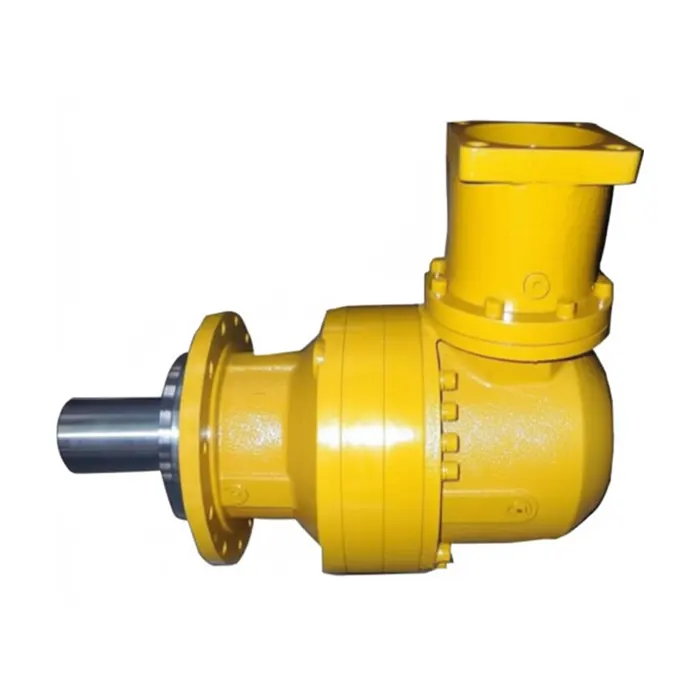

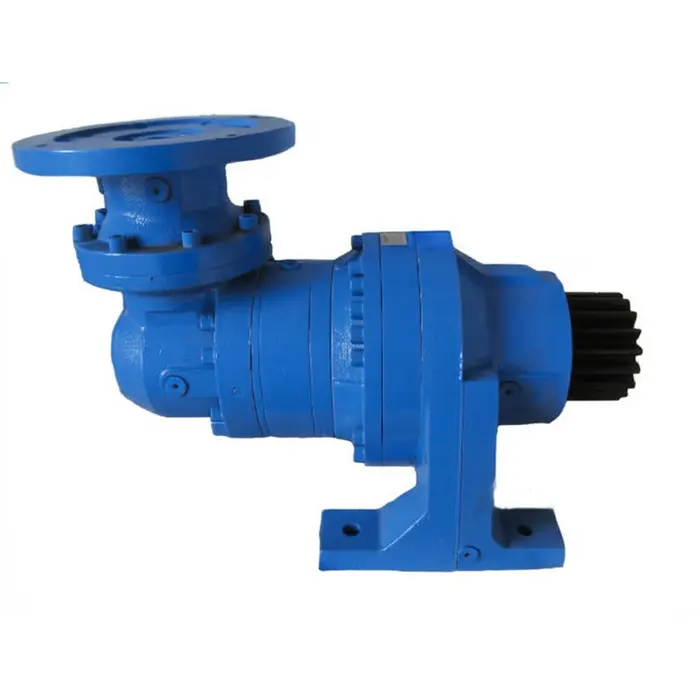

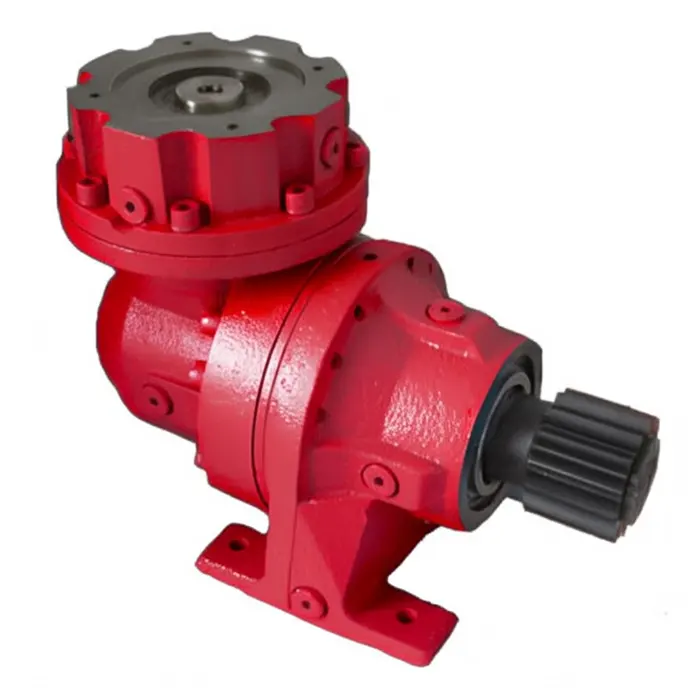

Right Angle Planetary Gearbox
EP300R series right angle planetary gearbox is designed for high torque, small size industrial equipment and heavy machinery. Compared with the traditional gearbox, its modular design is small in size, light in weight, excellent in performance, easy to install and low in maintenance cost. Available in a variety of sizes and high power versions to ensure long life, quiet operation and high cost performance.
Right Angle Planetary Gearbox Features
| Torque Range | 1000-450,000 Nm |
| Transmissible Mechanical Power | up to 150 kW |
| Gear Ratios | 6.9-9.000 |
| Gear Unit Versions | RIGHT ANGLE (with a spiral bevel gear set) |
| Output Configuration | Foot and flange mounted Output shaft: solid with key, splined, splined hollow, hollow with shrink disc |
| Input Configurations | Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and Nema motor adaptors Solid input shaft |
| Hydraulic Brake | Hydraulically released parking brake on request |
| Electric Brake | DC and AC type |
300R Series Right Angle Planetary Gearbox Models
| Type | Torque Nm | |
| EP300R | EP300R2, EP300R3, EP300R4 | 1000 |
| EP301R | EP301R2, EP301R3, EP301R4 | 1750 |
| EP303R | EP303R2, EP303R3, EP303R4 | 2500 |
| EP305R | EP305R2, EP305R3, EP305R4 | 5000 |
| EP306R | EP306R2, EP306R3, EP306R4 | 8500 |
| EP307R | EP307R2, EP307R3, EP307R4 | 12500 |
| EP309R | EP309R2, EP309R3, EP309R4 | 18000 |
| EP310R | EP310R2, EP310R3, EP310R4 | 25000 |
| EP311R | EP311R2, EP311R3, EP311R4 | 40000 |
| EP313R | EP313R2, EP313R3, EP313R4 | 55000 |
| EP315R | EP315R3, EP315R4 | 100000 |
| EP316R | EP316R3, EP316R4 | 135000 |
| EP317R | EP317R3, EP317R4 | 170000 |
| EP318R | EP318R4 | 250000 |
| EP319R | EP319R4 | 350000 |
| EP321R | EP321R4 | 500000 |
90 Degree Planetary Gearbox Applications
- Industrial Equipment: Precision machinery, conveyors, and automation systems.
- Heavy Machinery: Excavators, cranes, and self-propelled vehicles.
- Robotics: Compact power for advanced robotic systems.
- Renewable Energy: Wind turbines and solar tracking systems.
 |
 |
 |
 |
How to Choose a Suitable Right-Angle Planetary Gearbox
Selecting the right-angle planetary gearbox for your application requires careful consideration of several key factors. First, assess your torque requirements—ensure the gearbox can handle your equipment’s load without compromi
