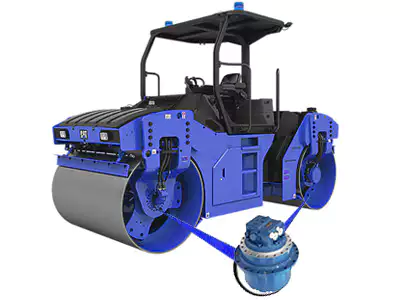

Wheel Drive Planetary Gearbox for Tandem Roller
The Wheel Drive Planetary Gearbox for Tandem Roller is a crucial component designed to efficiently transfer power from the engine to the roller’s wheels. Its compact design ensures smooth operation, enhancing the performance and stability of the tandem roller in various construction and pavement applications.
Wheel Drive Planetary Gearbox for Tandem Roller
The Wheel Drive Planetary Gearbox for Tandem Roller offers exceptional torque transmission and space efficiency, making it ideal for heavy-duty applications. Its robust design ensures durability and reliability, providing smooth operation in various terrains.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox for Tandem Roller
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: Saves space by allowing direct installation in the wheel hub, reducing the complexity of the drivetrain.
Load Distribution: Multi-planet gear design shares stress, enhancing durability.
Efficient Transmission: Reduces energy loss, improving overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted according to load and speed requirements.
Reliability: Designed for harsh environments, such as outdoor machinery.
Easy Maintenance: Compact structure allows for straightforward disassembly.
Low Noise and Smooth Operation: Multi-tooth engagement reduces vibration for a quieter performance.
Selection of Wheel Drive Planetary Gearbox for Tandem Roller
When selecting a Wheel Drive Planetary Gearbox for a Tandem Roller, several factors must be considered to ensure optimal performance. First, assess the type of load—whether static or dynamic—as this influences the gearbox's design and durability. Additionally, the working environment plays a crucial role; factors such as temperature, humidity, and dust levels can affect the gearbox's lifespan. Finally, consider the installation method, whether flange connection or shaft output, to ensure compatibility with existing machinery and ease of installation.
Why Choose Our Wheel Drive Planetary Gearbox for Tandem Roller
Choosing our Wheel Drive Planetary Gearbox for Tandem Roller means opting for unparalleled customization and quality. We design gear ratios and mounting options tailored to your specific needs, ensuring optimal performance. Our products are manufactured with precision to guarantee low tolerances and extended lifespan. Additionally, we provide technical support, offering selection guidance and comprehensive after-sales service. By simplifying the drivetrain system, our gearbox enhances the overall performance and reliability of your equipment, making it the ideal choice for your tandem roller applications.
Maintenance Tips for Wheel Drive Planetary Gearbox for Tandem Roller
To ensure optimal performance and longevity of your Wheel Drive Planetary Gearbox, follow these maintenance tips:
- Regularly check and change the oil as per manufacturer guidelines to prevent overheating and wear.
- Inspect seals and gaskets for leaks and replace them if necessary to keep contaminants out.
- Lubricate all moving parts to reduce friction and wear.
- Monitor for unusual noises or vibrations, which could indicate underlying issues.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, a reputable manufacturer known for its high-quality engineering solutions. Our Wheel Drive Planetary Gearbox for Tandem Roller is designed to enhance performance and efficiency in various applications. These gearboxes offer superior torque transmission and stability, making them ideal for heavy-duty machinery and construction equipment.
We pride ourselves on providing tailored solutions to meet the specific needs of our clients. With our extensive product range and dedicated customer service, GBC is committed to delivering exceptional value. We encourage all customers to customize their orders and take advantage of our comprehensive services to enhance their operations.
