Water & Wastewater — Treatment Plant Gate & Penstock Hoists — Precision Worm Gear Solutions for Australia
Operating across a continent defined by chlorinated water spray, H₂S gas in sewer intakes, UV radiation on outdoor headworks, and the regulatory requirement for fail-safe operation under EPA licence conditions, Australian industry demands drive components that perform without compromise. Municipal water-treatment plants in every Australian capital city, regional works serving towns like Ballarat and Townsville, and desalination plants at Wonthaggi and Kurnell all use gate hoists to control process flows.
The RV series worm reducer ensures that treatment-plant penstock and gate hoists operate with the self-locking security and corrosion resistance demanded by Australian water utilities and their EPA licence obligations. Explore our full range of worm gear motors to find the perfect match for your application.
Technical Specifications & Selection Guide
Selecting the right worm gear reducer Australia applications demand starts with matching the technical parameters to your operating conditions. The table below summarises the key specifications of the RV series for treatment plant gate hoists applications.
| Parameter | Specification |
|---|---|
| Ratio Range | 20:1 – 100:1 |
| Output Torque | 30 – 1,880 Nm |
| Input Shaft | Ø11 – Ø28 mm |
| Output Shaft | Ø20 – Ø50 mm |
| Housing Material | Cast iron or stainless steel 316L |
| Mounting Type | Foot, flange, direct stem coupling |
Selection Considerations
Treatment-plant gates must hold under all conditions. Specify self-locking ratio ≥ 40:1 and a Service Factor ≥ 2.0. For penstocks subject to full head pressure, calculate thrust from pressure × gate area and convert to stem torque. Corrosion protection must suit the specific zone: epoxy coating for outdoor headworks, stainless steel for chlorine-contact or H₂S zones.
How the RV Series Worm Reducer Serves Water & Wastewater — Treatment Plant Gate & Penstock Hoists in Australia
Inlet penstock hoists
Worm gear units lift heavy stainless-steel penstocks against incoming head pressure, isolating process trains for maintenance without leakage.
Weir-gate actuators in clarifiers
Heavy-duty speed reducers adjust overflow weir levels to optimise settling performance in sedimentation basins, requiring fine positioning within 1 mm.
Sludge-draw-off valve actuators
Compact worm speed reducers open and close knife-gate valves that release thickened sludge from clarifier hoppers into sludge-processing pipelines.
Australian Case Studies — Proven Performance in the Field
The following real-world examples demonstrate how the RV series worm reducer has solved critical drive challenges for Australian operators in the water & wastewater — treatment plant gate & penstock hoists sector.
Case 1: Melbourne Eastern Treatment Plant
Equipment: 8 × inlet penstock hoists on primary sedimentation
Challenge: Corroded gearbox housings in chlorine-contact zone required replacement every 2 years

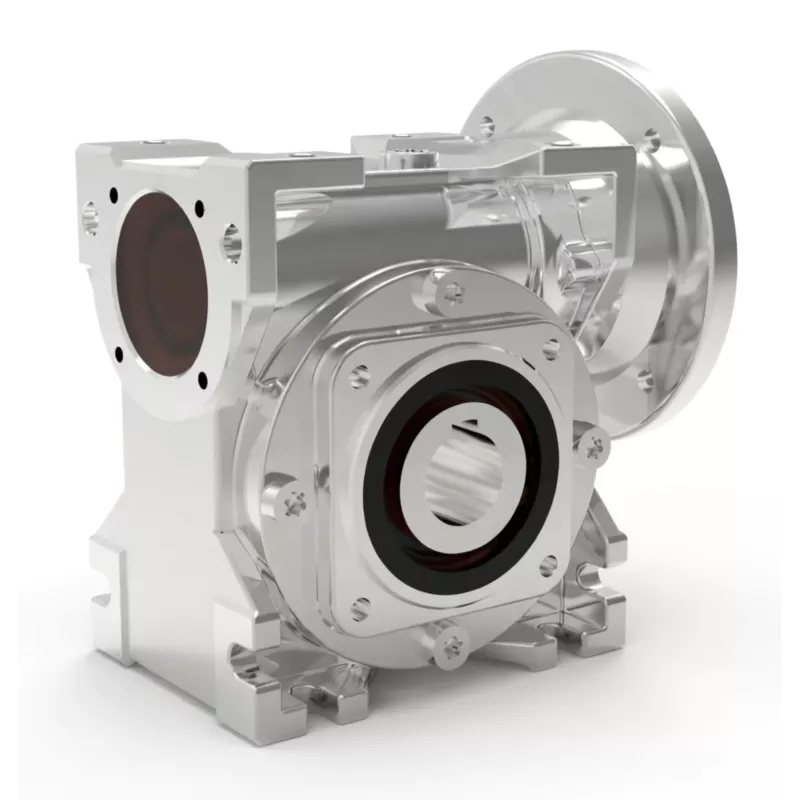

Solution & Result: 316L stainless-steel RV reducer; zero corrosion after 5 years in service
Case 2: Ballarat Water Reclamation Plant
Equipment: Clarifier weir-gate actuators
Challenge: Imprecise weir adjustment caused effluent turbidity spikes during flow changes
Solution & Result: NMRV063 with low-backlash worm; weir positioned to ±0.5 mm, turbidity spikes eliminated
Case 3: Townsville Water Supply
Equipment: Sludge knife-gate valve actuator on DAF unit
Challenge: Gate seized from sludge drying around stem between infrequent operations
Solution & Result: NMRV050 on timed auto-exercise cycle (daily partial open-close); seizure eliminated over 24-month monitoring period
Compliance & Quality Standards
Every RV series worm reducer is manufactured under a rigorous quality management system and carries the certifications that Australian industry expects.
- ISO 9001:2015 — Certified quality management across design, manufacturing, and testing
- CE Certification — Compliant with European Machinery Directive 2006/42/EC
- IEC Motor Interface — Input flanges conform to IEC 60072, ensuring compatibility with motors from all major Australian electrical suppliers
- NEMA Adapter Option — NEMA C-face adapters available for legacy American-built equipment still in service across Australian plants
- Protection Rating: IP65 standard; IP66 available — engineered to withstand Australia’s harsh outdoor and wash-down environments
Why Choose Us as Your Worm Reducer Partner in Australia?
When you source RV series worm reducers through us, you gain more than a product — you gain a technical partnership. Learn more about us and the value we bring to Australian industry.
Our engineering team provides real-time assistance via video call, email, and phone — covering every time zone across Australia, from Perth to Sydney.
We support non-standard shaft dimensions, special mounting configurations, custom housing materials, and private-label branding for volume OEM programmes.
Competitive factory-direct pricing combined with stocked inventory in commonly-used frame sizes means your project stays on schedule and on budget.
We ship to metro, regional, and remote Australian addresses with tracked freight, express options, and bulk-project staged delivery.
Frequently Asked Questions — Water & Wastewater — Treatment Plant Gate & Penstock Hoists
Ready to Upgrade Your Water & Wastewater — Treatment Plant Gate & Penstock Hoists Drive System?
Whether you need a single replacement unit or a bulk order for a major project, our team is ready to help you select, customise, and deliver the right RV series worm reducer for your Australian operation.
Need expert guidance? Contact our technical team for free selection assistance.
