NAFL200 Series 2-Bolt Flange Bearing Units — Standard Duty, Eccentric Locking Collar
The NAFL200 series combines the oval two-bolt flange housing of the UCFL200 with the eccentric locking collar insert of the NAP200 pillow block series. As with all NA series units, the eccentric collar tightens progressively under unidirectional shaft rotation — the collar's geometry creates a self-reinforcing grip that increases with operating torque. This makes the NAFL200 appropriate for oval flange installations on drives where the shaft runs in one direction and the enhanced retention of the eccentric collar is preferred over the static engagement of a setscrew.
Eccentric Collar in an Oval Flange Housing
The NAFL200 housing is dimensionally matched to the UCFL200 for equivalent bore sizes — H, J, and bolt-circle dimensions are identical, allowing an upgrade from setscrew to eccentric collar locking by replacing only the insert bearing without re-drilling the mounting panel. The B1 dimension (eccentric collar insert width) is wider than the UCFL200 B dimension: verify axial clearance before retrofitting in installations with tight axial space at the bearing position.
Key Features
🔄
Eccentric Collar Self-Tightening
Collar tightens under unidirectional shaft rotation. Self-reinforcing grip increases with load — more secure than setscrew under sustained belt drive and vibration on oval flange installations.
◯
Same Oval Housing as UCFL200
H, J, and bolt-circle match UCFL200 for equivalent bore sizes. Direct insert-only upgrade from setscrew to eccentric collar locking.
▼
NAFL201S–203S Slim Variant
Slim S-series for 12–17 mm bore where F dimension is omitted. Lighter and more compact for small bore bracket installations.
📏
Metric and Inch Bore
12–75 mm metric bore with inch bore variants per housing size.
▭
Solid Base Option
Hollow base standard. Solid base (SB) on request for highest-load installations.
✅
GB / ISO / ANSI / JIS Compliant
Drop-in replacement for NAFL200-pattern eccentric collar oval flange units.

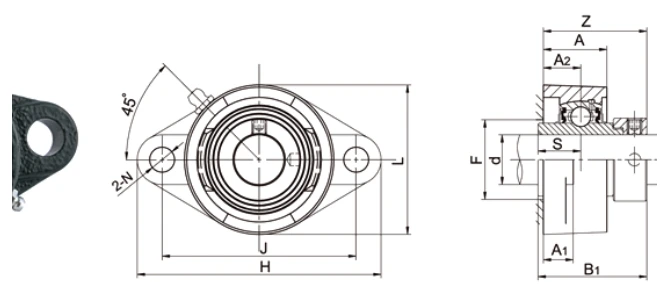

Full Dimensional Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B1 mm | S mm | Z mm | F mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NAFL201S~203S / 201-8S~203-11S | 12~17 | 1/2~11/16 | 97 | 76.5 | 15 | 11 | 25.5 | 11.5 | 55 | 37.3 | 13.9 | 38.2 | — | M10 | 0.48 |
| NAFL201~204 / 201-8~204-12 | 12~20 | 1/2~3/4 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 43.7 | 17.1 | 41.6 | 32 | M10 | 0.73 |
| NAFL205 / 205-14~16 | 25 | 7/8~1 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 44.4 | 17.5 | 42.9 | 36 | M14 | 0.80 |
| NAFL206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 48.4 | 18.3 | 48.1 | 42 | M14 | 1.20 |
| NAFL207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 160 | 130 | 19 | 15 | 34 | 16 | 90 | 51.1 | 18.8 | 51.3 | 50 | M14 | 1.60 |
| NAFL208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 175 | 144 | 21 | 15 | 36 | 16 | 100 | 56.3 | 21.4 | 55.9 | 55 | M14 | 1.90 |
| NAFL209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 188 | 148 | 22 | 16 | 38 | 19 | 108 | 56.3 | 21.4 | 56.9 | 60 | M16 | 2.30 |
| NAFL210 / 210-30/31 | 50 | 1-7/8~1-15/16 | 197 | 157 | 22 | 16 | 40 | 19 | 115 | 62.7 | 24.6 | 60.1 | 64 | M16 | 2.60 |
| NAFL211 / 211-32~35 | 55 | 2~2-3/16 | 224 | 184 | 25 | 18 | 43 | 19 | 125 | 71.4 | 27.8 | 68.6 | 71 | M16 | 3.80 |
| NAFL212 / 212-36~39 | 60 | 2-1/4~2-7/16 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 77.8 | 31 | 75.8 | 78 | M20 | 4.80 |
| NAFL213 / 213-40 | 65 | 2-1/2 | 258 | 210 | 30 | 22 | 50 | 23 | 153 | 85.7 | 34.1 | 81.6 | 85 | M20 | 6.00 |
| NAFL214 / 214-44 | 70 | 2-3/4 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 85.7 | 34.1 | 82.6 | 91 | M20 | 6.30 |
| NAFL215 / 215-47/48 | 75 | 2-15/16~3 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 92.1 | 37.3 | 88.8 | 96 | M20 | 7.20 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
S-suffix = slim variant, F dimension omitted. F = eccentric collar pin hole diameter. B1 = eccentric collar insert width. Solid base: suffix SB.
Applications
▶
Unidirectional Conveyor Frame Mounts
Drive and tail shaft supports on single-direction conveyors where the eccentric collar provides better retention than setscrew under sustained belt tension and frame vibration.
🌿
Agricultural Unidirectional Implement Shafts
PTO-driven implement shaft oval flange supports where the drive direction is fixed and the eccentric collar's self-tightening action suits the sustained load profile.
⚙
Fan & Blower Unidirectional Panel Mounts
Single-direction fan shaft oval flange supports where the eccentric collar tightens progressively under continuous operation and loosening under vibration is a concern.
📦
Packaging Drive Frame Supports
Main drive shaft oval flange supports on single-direction packaging machinery where the eccentric collar provides more reliable long-term retention than setscrew.
⛏
Light Industrial Single-Direction Drives
Any light to medium duty oval flange position on a single-direction drive where setscrew loosening has been experienced in service and an eccentric collar upgrade is preferred.
🔄
Upgrade from UCFL200 on Unidirectional Drives
Drop-in insert upgrade from UCFL200 setscrew. Housing H, J, bolt-circle unchanged. Replace insert bearing and eccentric collar only.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Can NAFL200 be used on a reversing drive?
No — eccentric collar releases under reversal. Use UCFL200 or UEFL200 for reversing drives.
Interchangeable with UCFL200?
Yes for H, J, bolt-circle. B1 is wider — verify axial clearance.
What is the F dimension?
F = eccentric collar pin hole diameter. S-suffix variants omit F.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for NAFL200 Series
Provide shaft diameter, rotation direction, bore type, and quantity. Contact us.
