SBFW200 & SAFW200 Series 2-Bolt Flange Bearing Units — FW Housing, Slot Same Side as Locking
The SBFW200 and SAFW200 series introduce the FW housing variant — a two-bolt oval flange where the mounting slot is positioned on the same side of the housing as the setscrew or eccentric collar. This slot orientation is the defining feature that distinguishes the FW housing from the FD housing (SBFD/SAFD200) where the slot is on the opposite side. The practical significance is in the direction that shaft tension or external load acts relative to the mounting bolts: when the operating load pulls the shaft toward the locking collar side, the FW housing's slot-on-same-side orientation provides a shorter moment arm between the load and the nearest bolt, which can provide better housing stability under that specific load direction.
FW vs FD vs SBLF — Housing Slot Orientation
SBLF200 / SALF200 are standard oval flange housings with centreline-symmetric bolt positions. SBFW200 / SAFW200 have the mounting slot on the same side as the locking mechanism (setscrew or collar). SBFD200 / SAFD200 have the mounting slot on the opposite side from the locking mechanism. The slot orientation affects which direction an asymmetric load acts on the housing relative to the bolts — for installations where the load direction is known and one slot orientation provides better stability than the other, specifying the correct FW or FD variant ensures optimised bolt engagement for the actual load path.
Key Features
▭
FW Housing — Slot Same Side as Locking
Mounting slot positioned on the same side as the setscrew/eccentric collar. Select when the primary load direction pulls toward the locking mechanism side.
🔧
SBFW200 = Setscrew / SAFW200 = Eccentric Collar
Identical FW housing, two locking options. Upgrade by replacing insert only.
▼
Compact Light Duty Housing
Same compact dimensions as SBLF/SALF200. Smaller and lighter than equivalent UCFL200. 12–40 mm shaft bore.
↔
SB/SA Insert Bearing
SB series setscrew insert for SBFW. SA series eccentric collar insert for SAFW. Self-aligning spherical OD, 2° misalignment compensation.
📏
Full Metric and Inch Bore
12–40 mm metric bore with inch bore variants per housing size.
✅
Cast Iron Housing
Grey cast iron despite light duty designation. Standard corrosion resistance and surface hardness.

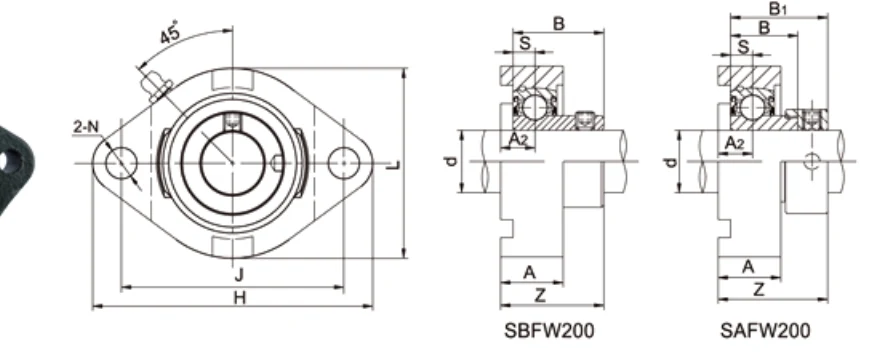

SBFW200 Series (Setscrew) Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A mm | N mm | L mm | B mm | S mm | Z mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBFW201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 81 | 63.5 | 8.5 | 15 | 7 | 59 | 22 | 6 | 24.5 | M6 | 0.26~0.28 |
| SBFW204 / 204-12 | 20 | 3/4 | 90 | 71 | 9.5 | 17 | 9 | 67 | 25 | 7 | 27.5 | M8 | 0.37 |
| SBFW205 / 205-14~16 | 25 | 7/8~1 | 95 | 76 | 9.5 | 17.5 | 9 | 71 | 27 | 7.5 | 29 | M8 | 0.44 |
| SBFW206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 113 | 90 | 12 | 20.5 | 12 | 84 | 30 | 8 | 34 | M10 | 0.70 |
| SBFW207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 125 | 100 | 12.5 | 22 | 12 | 93 | 32 | 8.5 | 36 | M10 | 0.91 |
| SBFW208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 148 | 119 | 14.5 | 25 | 13.5 | 104 | 34 | 9 | 39.9 | M12 | 1.20 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
SAFW200 Series (Eccentric Collar) Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A mm | N mm | L mm | B1 mm | B mm | S mm | Z mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAFW201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 81 | 63.5 | 8.5 | 15 | 7 | 59 | 28.6 | 19.1 | 6 | 31.1 | M6 | 0.26~0.28 |
| SAFW204 / 204-12 | 20 | 3/4 | 90 | 71 | 9.5 | 17 | 9 | 67 | 31 | 21.5 | 7 | 33.5 | M8 | 0.37 |
| SAFW205 / 205-14~16 | 25 | 7/8~1 | 95 | 76 | 9.5 | 17.5 | 9 | 71 | 31.5 | 22 | 7.5 | 33.5 | M8 | 0.44 |
| SAFW206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 113 | 90 | 12 | 20.5 | 12 | 84 | 35.7 | 23.8 | 8.0 | 39.7 | M10 | 0.70 |
| SAFW207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 125 | 100 | 12.5 | 22 | 12 | 93 | 38.9 | 25.4 | 8.5 | 42.9 | M10 | 0.91 |
| SAFW208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 148 | 119 | 14.5 | 25 | 13.5 | 104 | 43.7 | 30.2 | 9 | 49.2 | M12 | 1.20 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
Applications
🌿
Light Agricultural Equipment FW Positions
Shaft oval flange supports in compact implement frames where the FW slot orientation aligns with the primary load direction from belt or chain tension.
📦
Compact Packaging Machine FW Oval Flanges
Drive shaft oval flange supports in compact packaging machines where the FW slot orientation is specified by the machine designer for load direction optimisation.
⚙
Small Fan Frame FW Oval Flanges
Small centrifugal fan shaft FW housing oval flange supports where the fan aerodynamic load direction favours the FW slot orientation.
🧱
Light Conveyor FW Bracket Supports
Small conveyor drive shaft oval flange supports in compact frame sections where the FW housing slot orientation matches the belt tension load direction.
🔄
Replacement in FW-Specified Machines
Direct replacement for existing SBFW/SAFW housings in machines where the FW slot orientation is specified in the original engineering drawing.
⛏
SAFW Unidirectional Eccentric Collar Upgrade
Any SBFW installation experiencing setscrew loosening on a unidirectional drive — replace with SAFW eccentric collar insert. Housing unchanged.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Difference between SBFW200 and SBFD200?
SBFW = slot same side as setscrew. SBFD = slot opposite side from setscrew. Different load path geometry relative to mounting bolts.
Difference between SBFW200 and SBLF200?
SBLF = symmetric standard oval flange. SBFW = asymmetric FW slot orientation. H, J, A, N same as SBLF for equivalent bore.
Can I upgrade SBFW to SAFW?
Yes — replace insert only. Housing unchanged.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for SBFW200 & SAFW200 Series
Specify SBFW (setscrew) or SAFW (eccentric collar), shaft diameter, bore type, quantity. Contact us.
