SER Cylindrical Outer Ring Bearing Inserts
For SER Cylindrical Outer Ring Bearing Inserts, review the complete mounted interface: shaft bore, inner-ring width, outer-ring form and housing seat, then the setscrew locking shaft connection. The product construction is chrome-steel insert bearing construction.
Before removing the old unit, note where surface attack is concentrated. Compare the housing, exposed fasteners, shaft area and any cover. The pattern can show whether moisture is pooling under the support, reaching the shaft entry from one direction or remaining after cleaning. This is more actionable than a general statement that the application is “corrosive.”
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Mapping Local Corrosion Risk
Corrosion-focused buying notes
For SER Cylindrical Outer Ring Bearing Inserts, review the complete mounted interface: shaft bore, inner-ring width, outer-ring form and housing seat, then the setscrew locking shaft connection. The product construction is chrome-steel insert bearing construction.
This product family is commonly reviewed for conveyors, fans, roller tables and general industrial housings using replaceable inserts. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Representative
SER205
Mounting
Cylindrical outer ring with snap ring
Locking
Setscrew
Representative bore
25 mm
Series size
205
Outer ring
Cylindrical with snap ring
Mapping Local Corrosion Risk
Corrosion exposure is usually local rather than uniform across a machine. A bearing close to spray, drainage or a chemical cleaning path may age very differently from another support on the same line.
Before removing the old unit, note where surface attack is concentrated. Compare the housing, exposed fasteners, shaft area and any cover. The pattern can show whether moisture is pooling under the support, reaching the shaft entry from one direction or remaining after cleaning. This is more actionable than a general statement that the application is “corrosive.”
Mounting details can contribute to the problem. A base that traps liquid or a flange with poor drainage can keep a support wet long after the rest of the machine has dried. When the frame is being repaired, use the opportunity to improve the interface rather than expecting housing material alone to solve every corrosion issue.
Keep periodic photos in the maintenance history. Comparing the same position over time helps buyers distinguish normal staining from a recurring environmental problem and gives future RFQs a clearer description of the actual exposure.

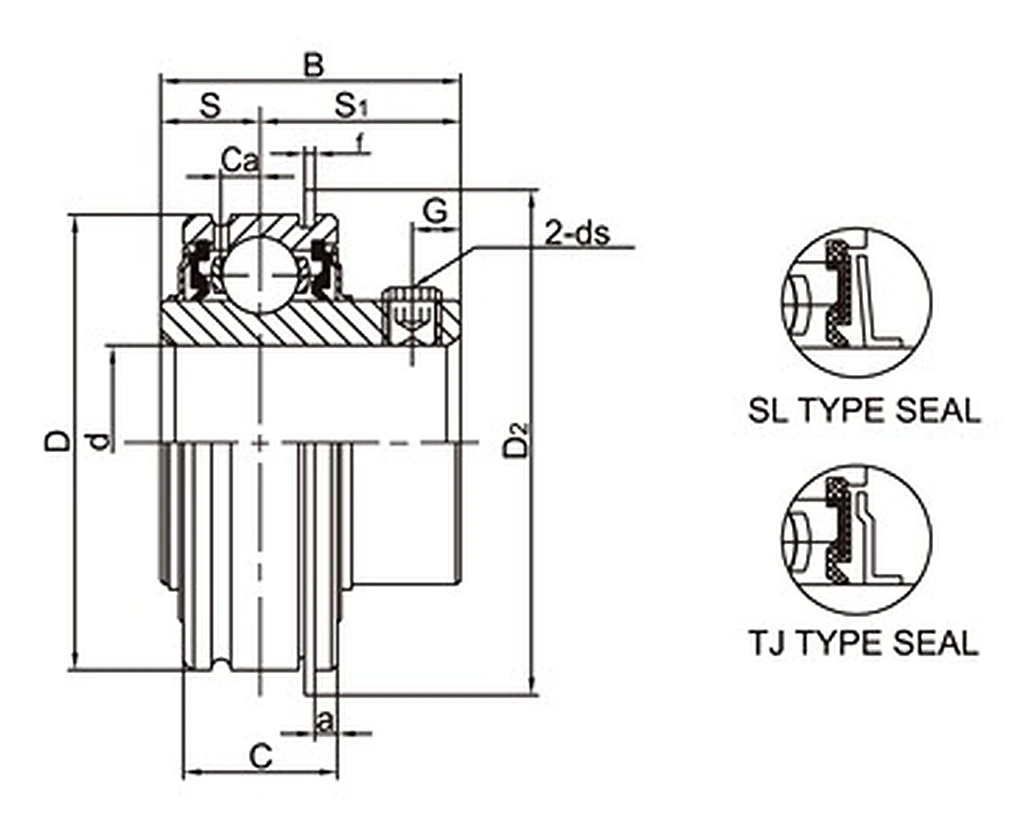

Corrosion-position drawing note
Use the drawing to compare shaft bore, inner-ring width, outer-ring form and housing seat. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Series size | 205 |
| Outer ring | Cylindrical with snap ring |
| Locking | Setscrew |
Applications
Conveyors
SER205 can be considered for conveyors where its cylindrical outer ring with snap ring geometry matches the machine. Check the machine-side interface shown in the drawing before final model approval.
Fans & General Machinery
For fans & general machinery, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Replacement & MRO
In replacement & mro service, use the construction of SER205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
Related Products
SB / CSB Narrow Inner Ring Bearing Inserts
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
SA / CSA Narrow Inner Ring Bearing Inserts
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
Corrosion-exposure RFQ
Describe where corrosion occurs and include the shaft, mounting geometry and quantity.
For SER Cylindrical Outer Ring Bearing Inserts, review the complete mounted interface: shaft bore, inner-ring width, outer-ring form and housing seat, then the setscrew locking shaft connection. The product construction is chrome-steel insert bearing construction.
Before removing the old unit, note where surface attack is concentrated. Compare the housing, exposed fasteners, shaft area and any cover. The pattern can show whether moisture is pooling under the support, reaching the shaft entry from one direction or remaining after cleaning. This is more actionable than a general statement that the application is “corrosive.”
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
