SSB Corrosion Resistant Bearing Inserts
The requested SSB-SERIES configuration combines corrosion-resistant insert construction with series-specific locking in a corrosion-resistant narrow inner-ring inserts format. The decisive fit dimensions are shaft bore, inner-ring width, outer-ring form and housing seat.
Describe the cleaning routine at the exact bearing location. A support under direct spray has a different service environment from another unit on the dry side of the same conveyor. Note whether fluid can collect beneath a base, behind a flange or around a cover. These local details are more useful than a broad statement that the machine is used in food or packaging production.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
SSB205
Mounting
Narrow inner ring
Locking
Setscrew
Representative bore
25 mm
D
52 mm
B
27 mm
Washdown and Cleaning Exposure
Washdown-focused buying notes
The requested SSB-SERIES configuration combines corrosion-resistant insert construction with series-specific locking in a corrosion-resistant narrow inner-ring inserts format. The decisive fit dimensions are shaft bore, inner-ring width, outer-ring form and housing seat.
The surrounding use case is typically wet, cleaning-intensive or chemically exposed machinery requiring corrosion-resistant insert construction, but the final choice still depends on the actual machine position and service conditions.
Washdown and Cleaning Exposure
Bearing positions in frequently cleaned machinery are exposed to conditions that do not appear on a basic load-and-speed description. Water direction, cleaning chemicals, trapped residue and repeated wet-dry cycles all influence how the housing and sealing arrangement should be discussed with the supplier.
Describe the cleaning routine at the exact bearing location. A support under direct spray has a different service environment from another unit on the dry side of the same conveyor. Note whether fluid can collect beneath a base, behind a flange or around a cover. These local details are more useful than a broad statement that the machine is used in food or packaging production.
During replacement, inspect the old unit before cleaning it. Water tracks, corrosion marks and residue deposits often show the direction from which contamination reaches the support. That observation can help the maintenance team decide whether the next improvement should focus on housing construction, sealing, mounting drainage or simply better cleaning access.
After installation, make sure protective features are seated as intended and that the mounting surface does not create a new trap for moisture. The objective is not to claim a bearing is “washdown proof” from a general description, but to match the ordered configuration to the real sanitation practice around the machine.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| D | 52 mm |
| B | 27 mm |
| C | 15 mm |
| Series | SSB200 |
| Load / Housing Strength Reference | |
| Catalogue dynamic load (205 size) | 14.03 kN |
| Catalogue static load (205 size) | 8.05 kN |

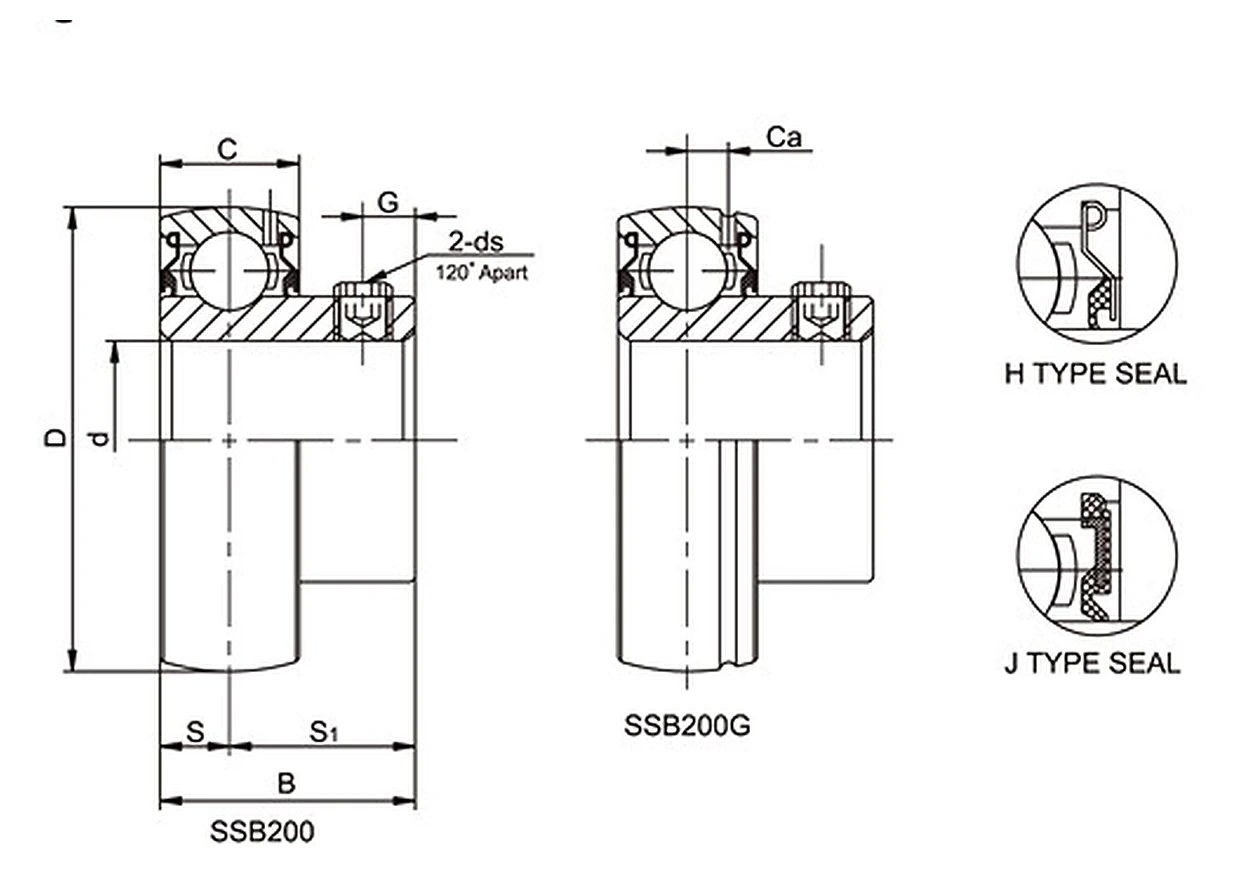

Cleaning-side drawing check
Use the drawing to compare shaft bore, inner-ring width, outer-ring form and housing seat. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Equipment
SSB205 can be considered for food equipment where its narrow inner ring geometry matches the machine. Check the machine-side interface shown in the drawing before final model approval.
Chemical & Wet Areas
For chemical & wet areas, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Conveyors
In washdown conveyors service, use the construction of SSB205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
